ZAM Helicopters K-Max

Mirko Z.SwitzerlandSep 5, 2023 Share
Report Post
ZAM HelicoptersDesignFuselage & Airframe
Chapter 1

Framing the Fuse

Sep 5, 2023

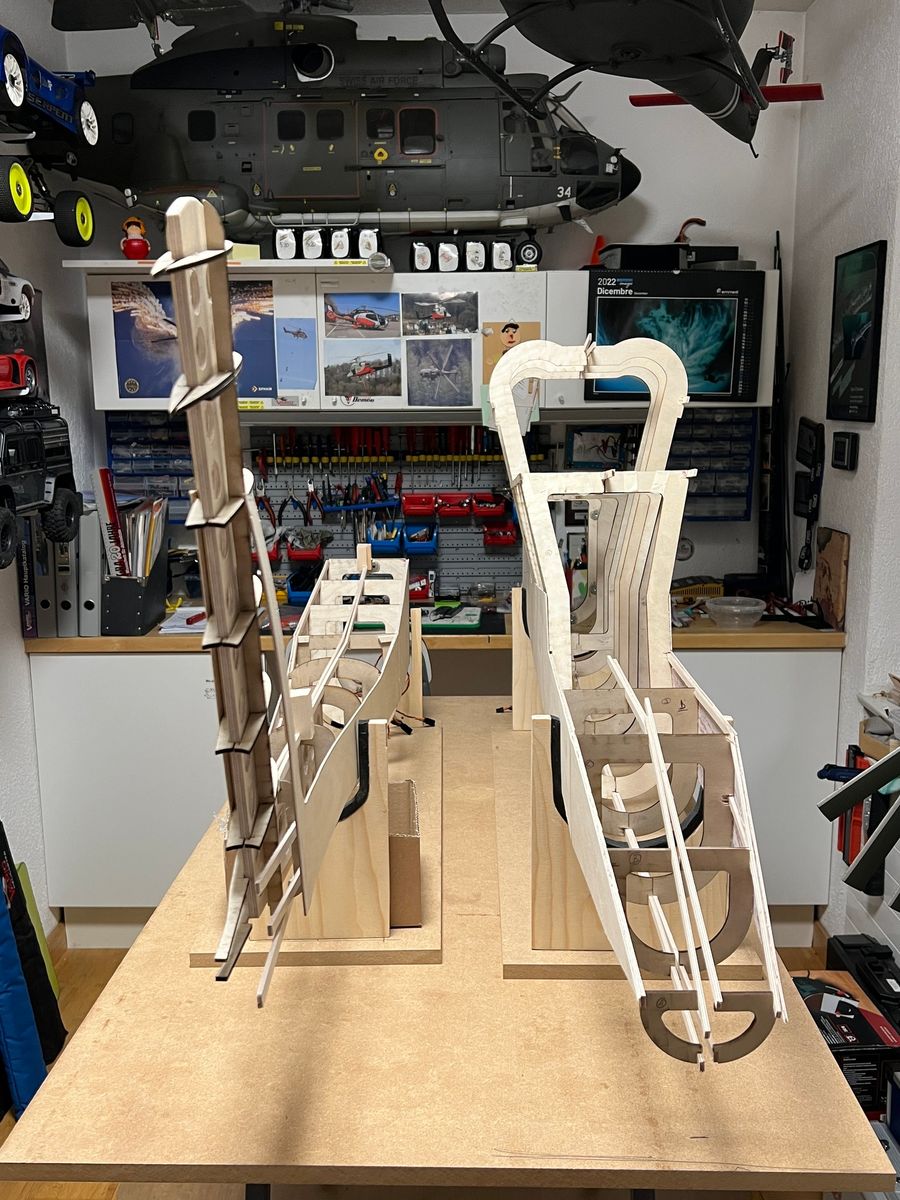

ZAM Helicopters new project Kaman K-Max Rotex 2,50m wood fuselage, 2,80m rotor diameter
with CAD+Modelltechnik Jung mechanic.

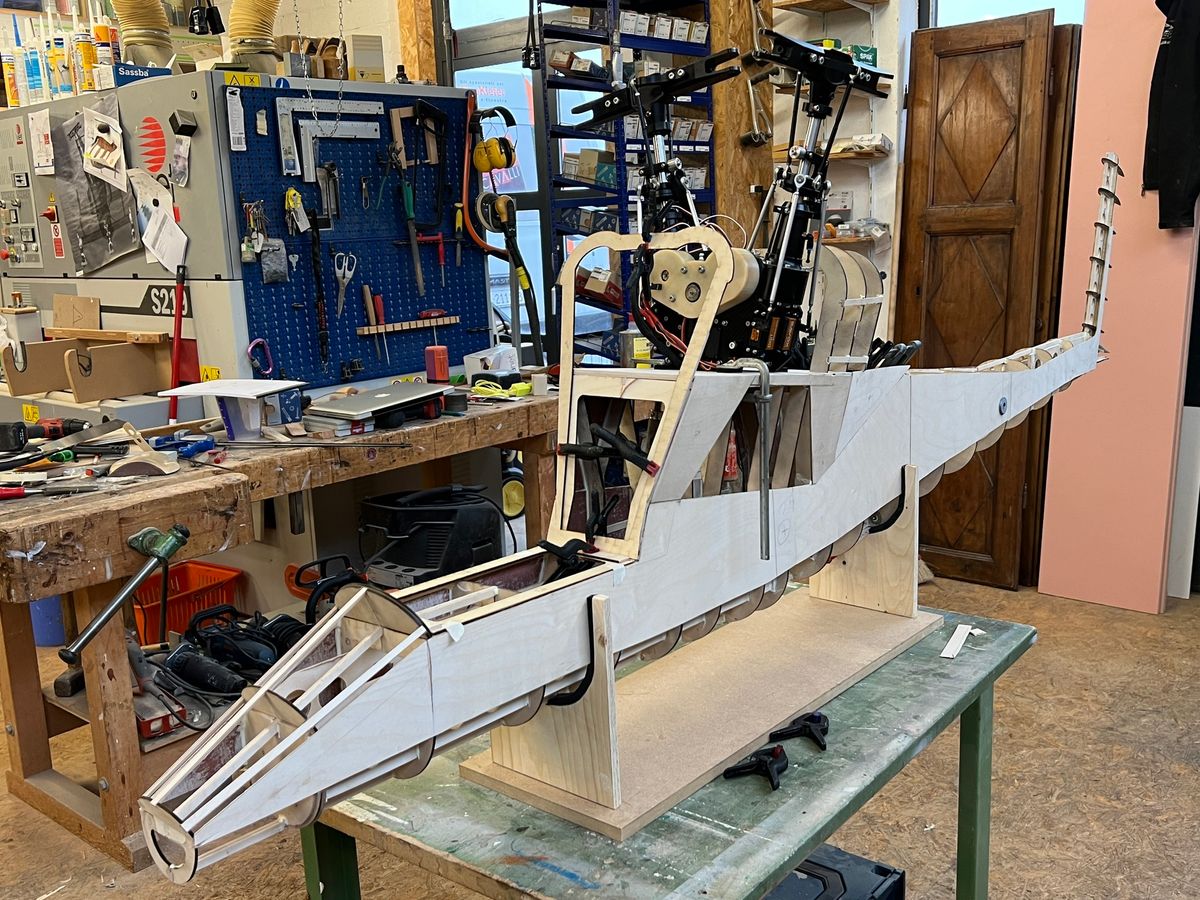

The fuselage begins to take shape

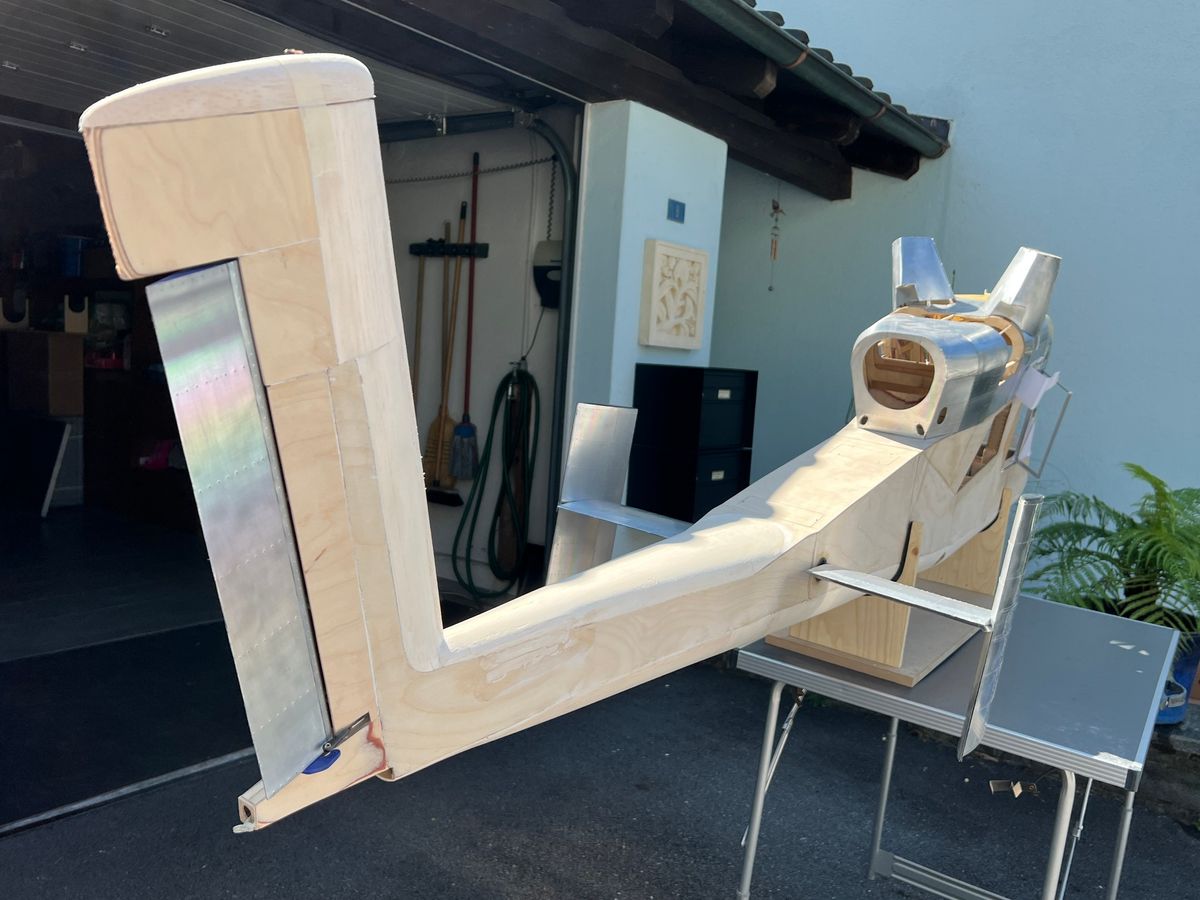

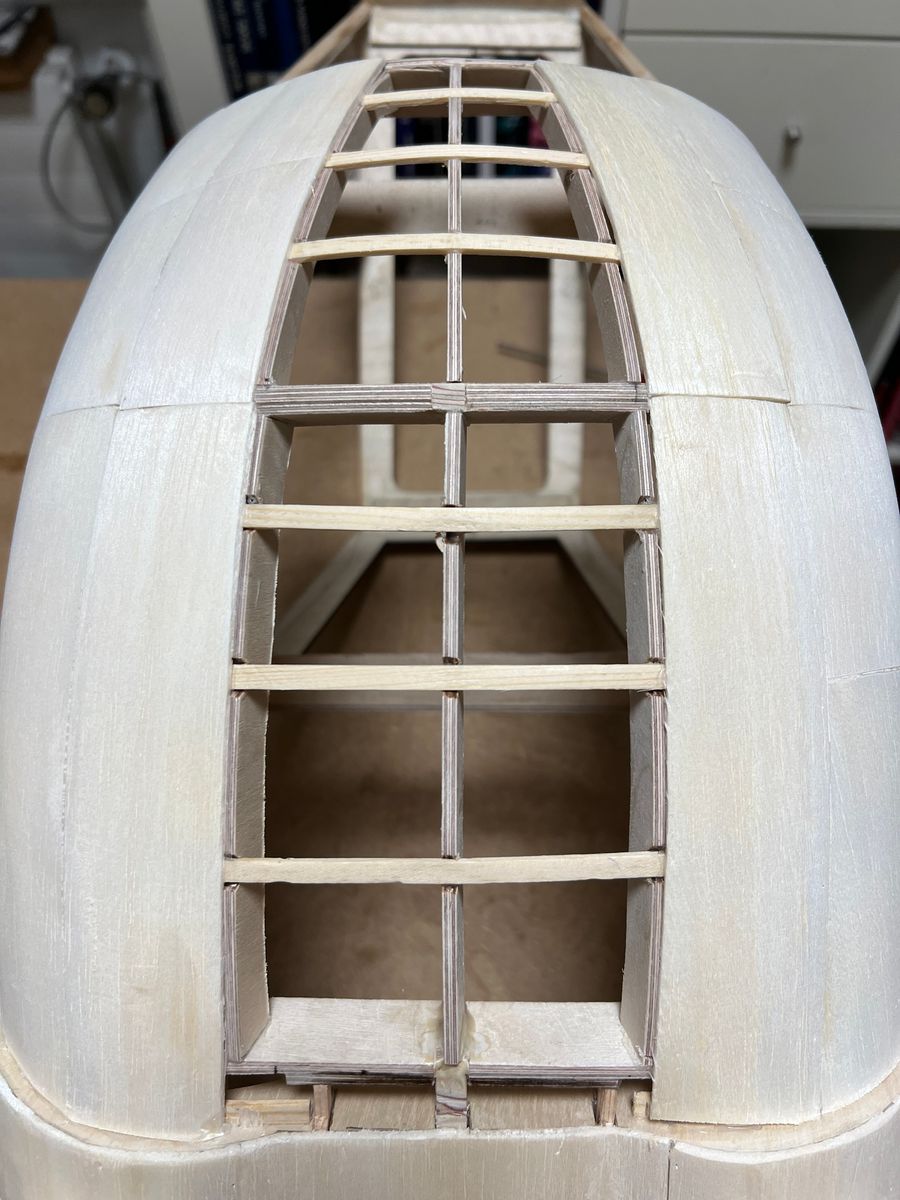

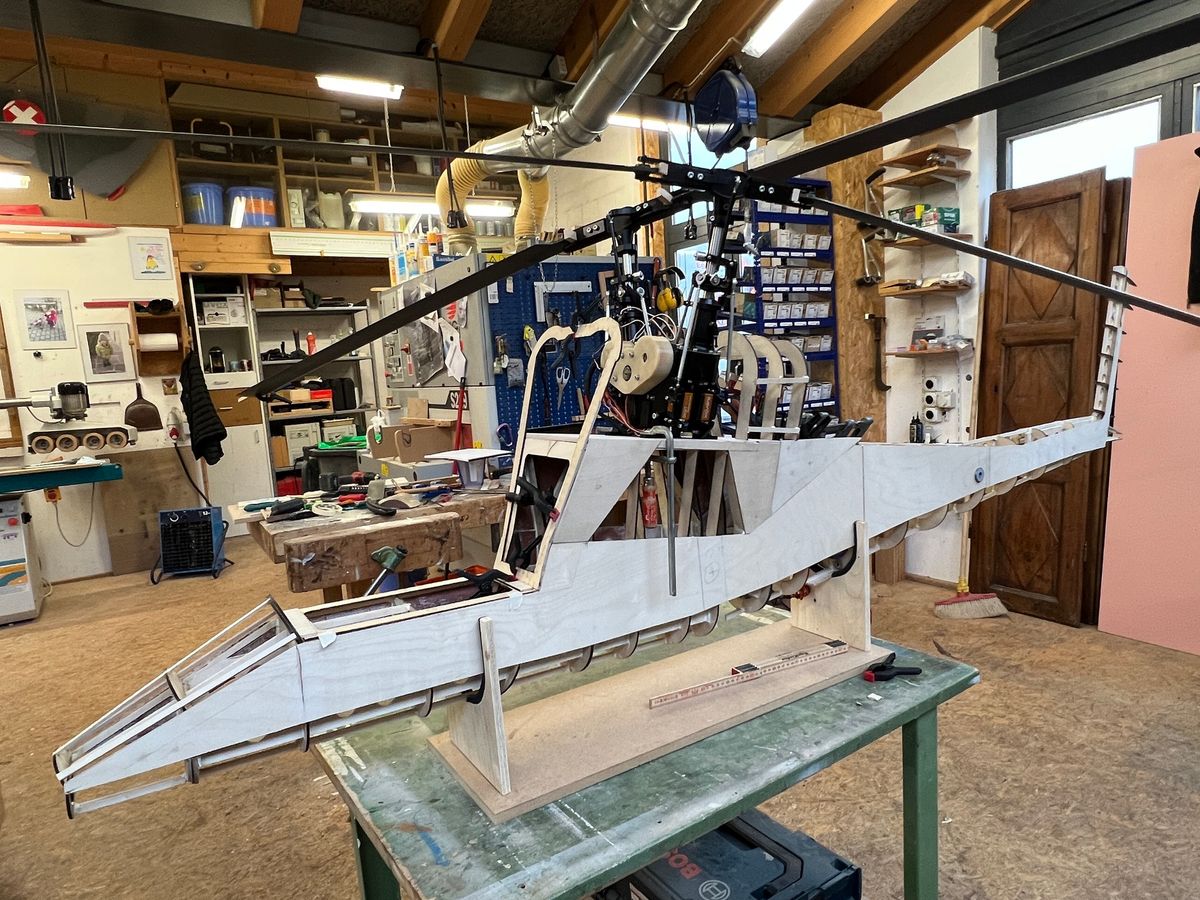

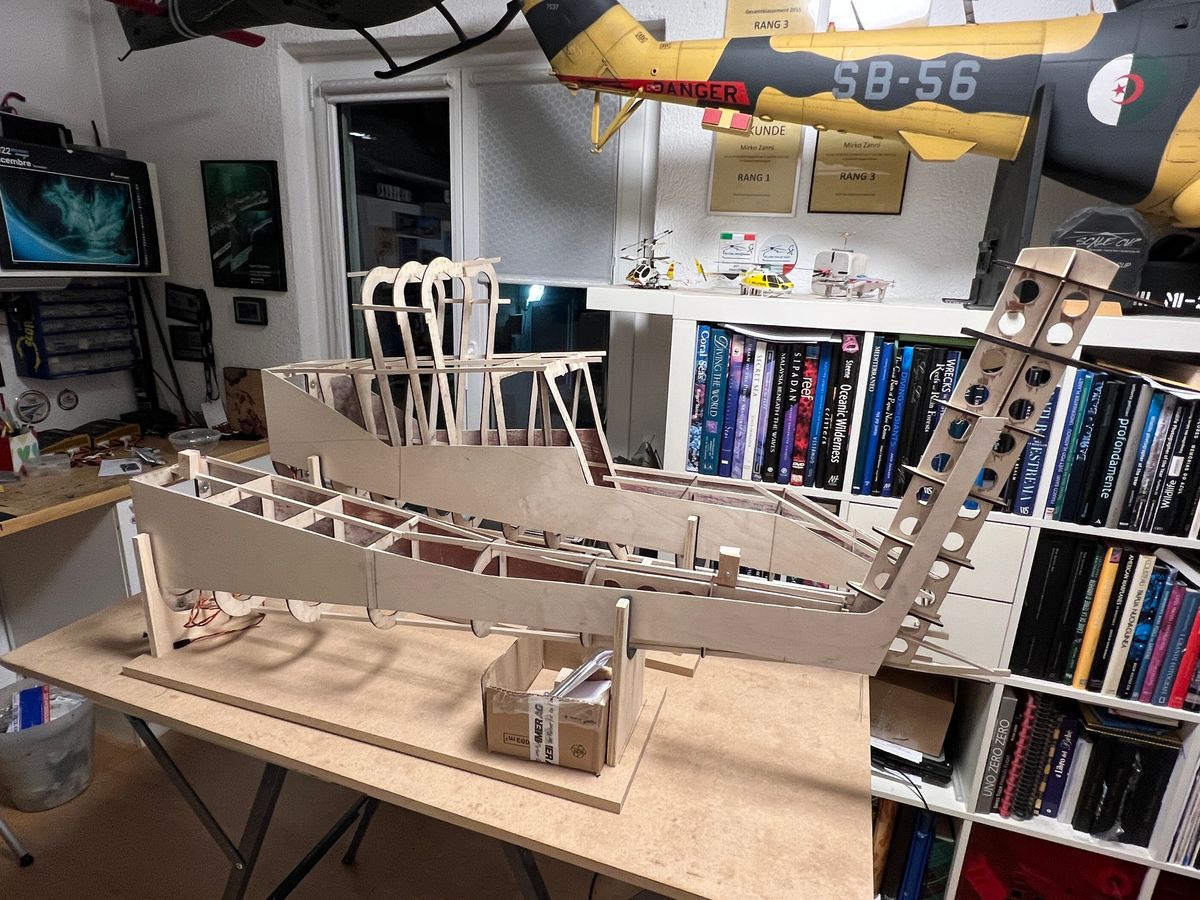

Chapter 1: Framing the Fuse
Chapter 1: Framing the FuseChapter 1: Framing the FuseChapter 1: Framing the Fuse
Chapter 2

ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameter.

Sep 6, 2023

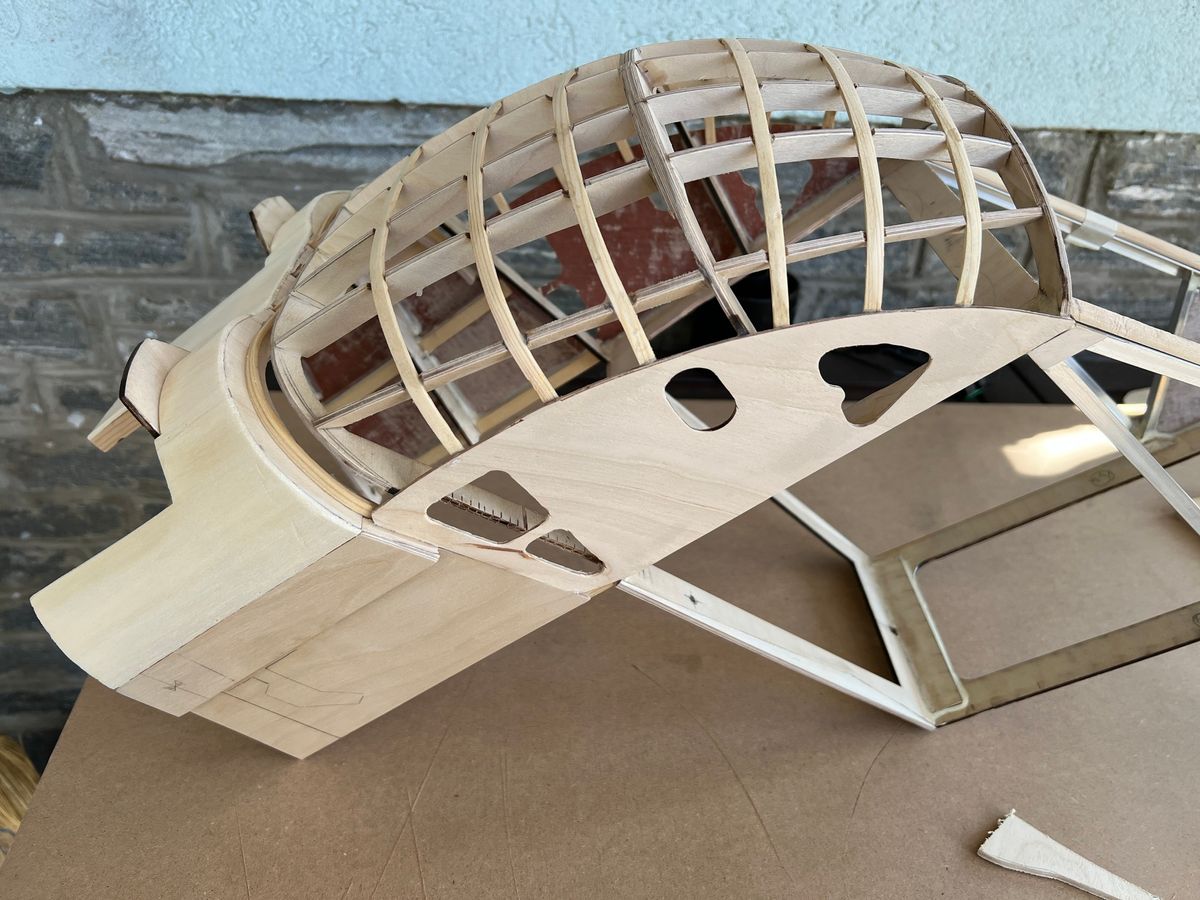

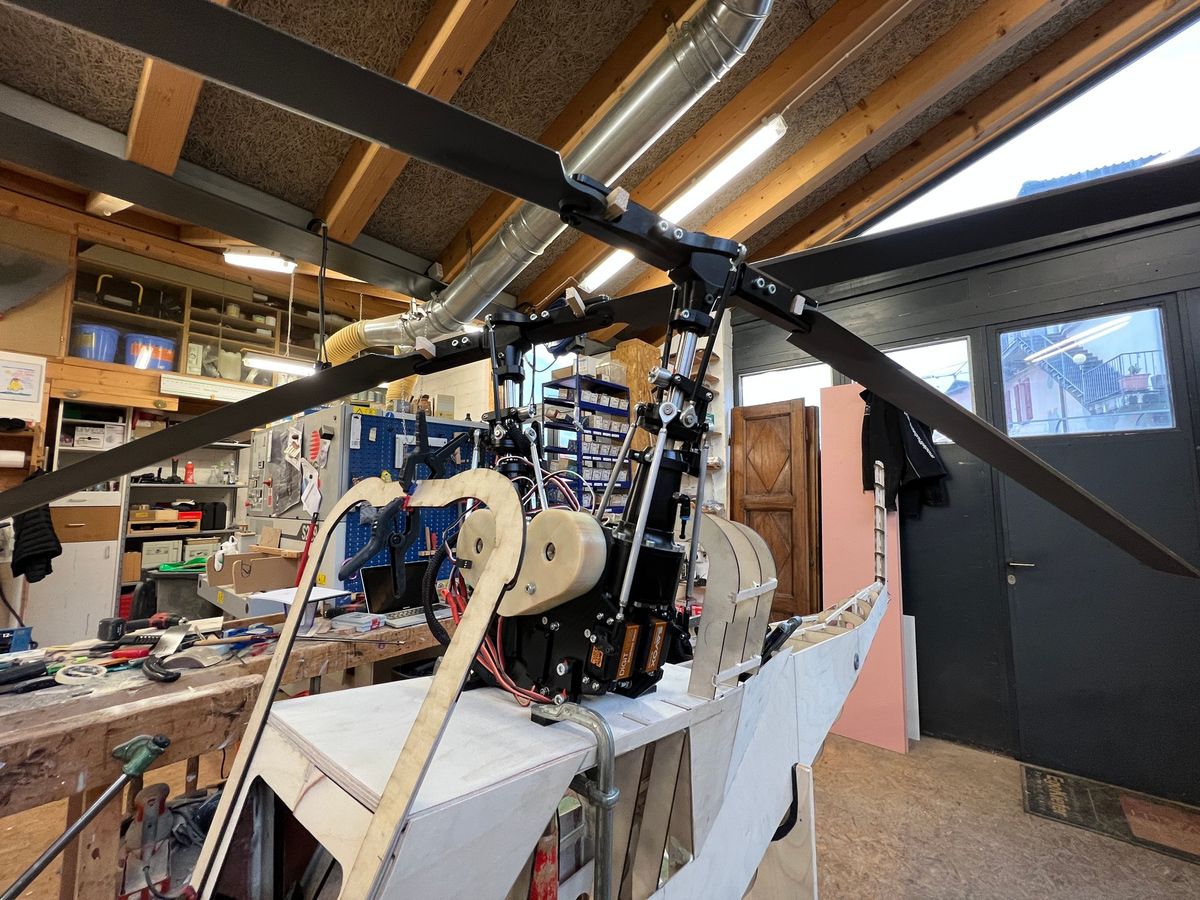

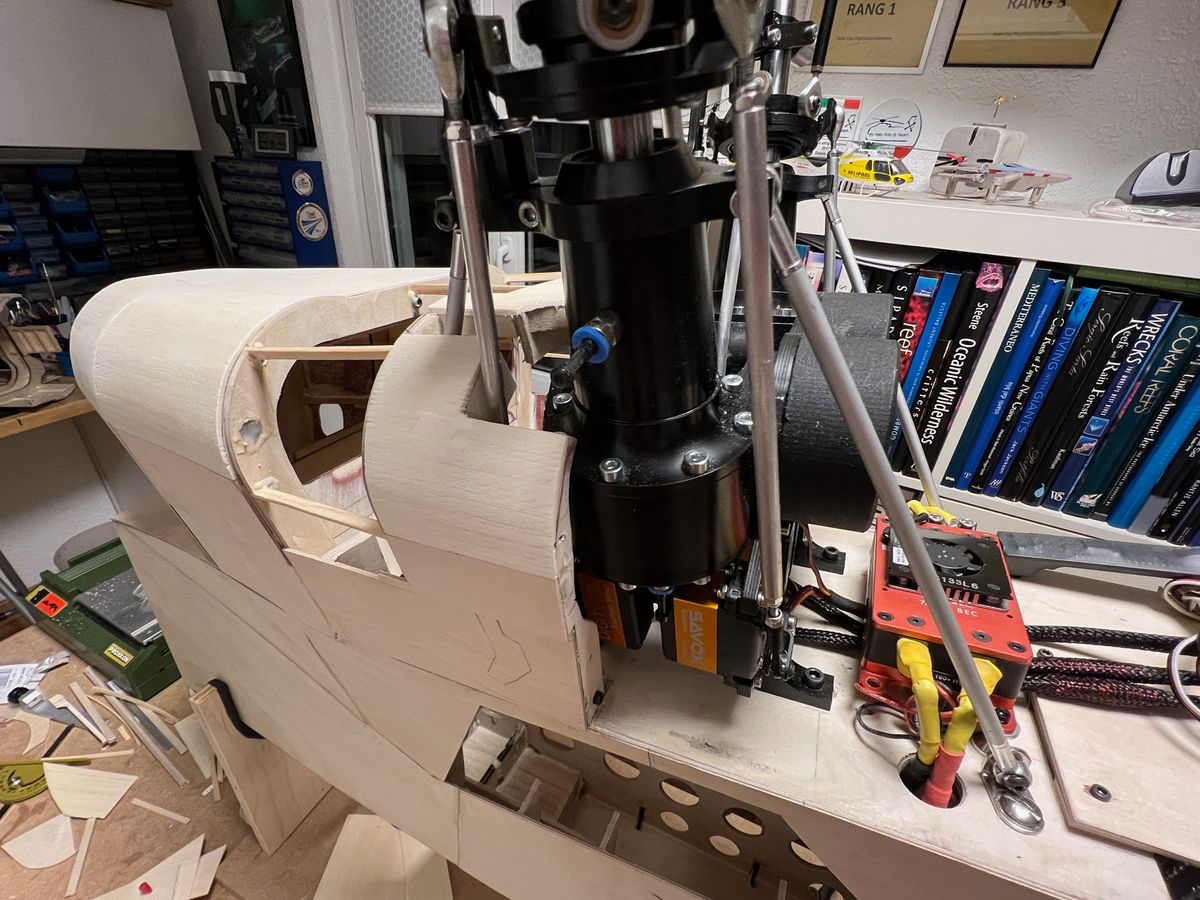

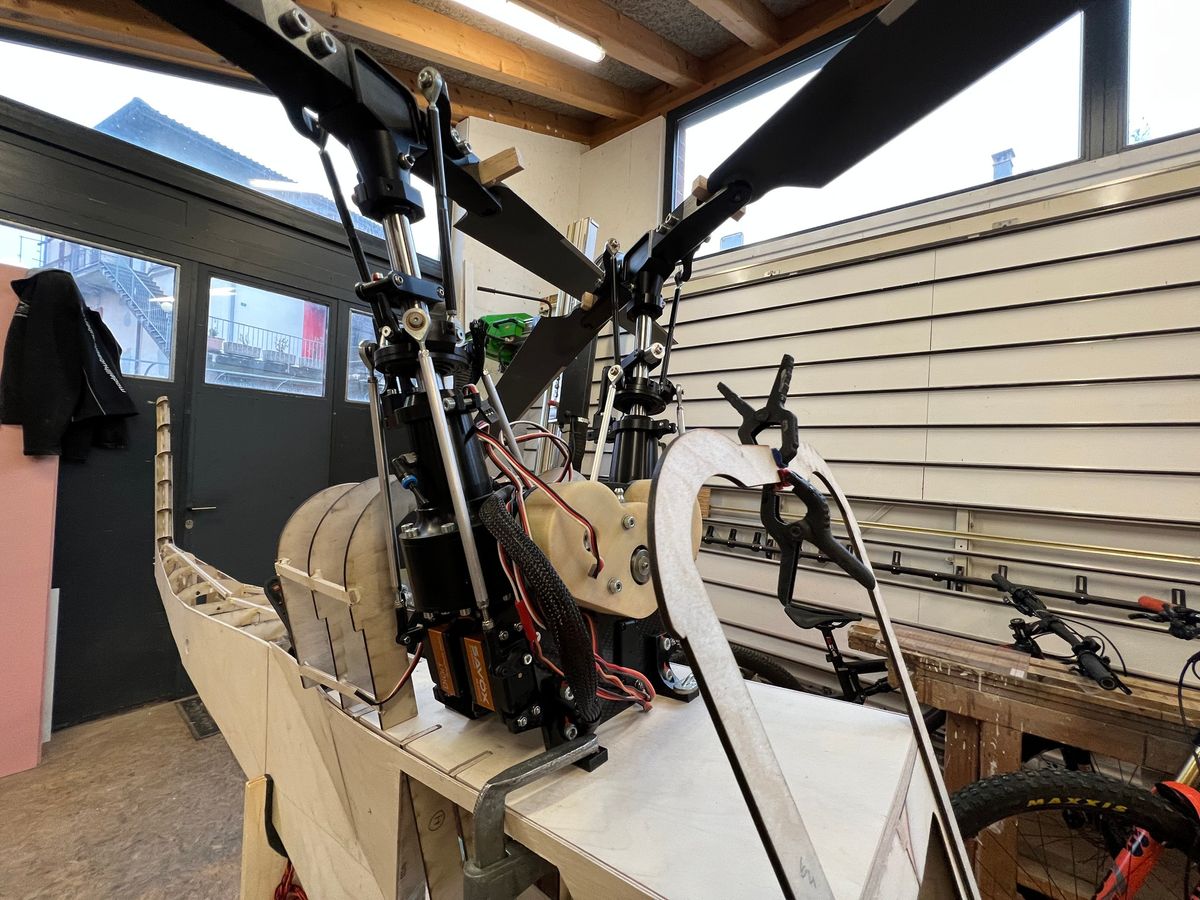

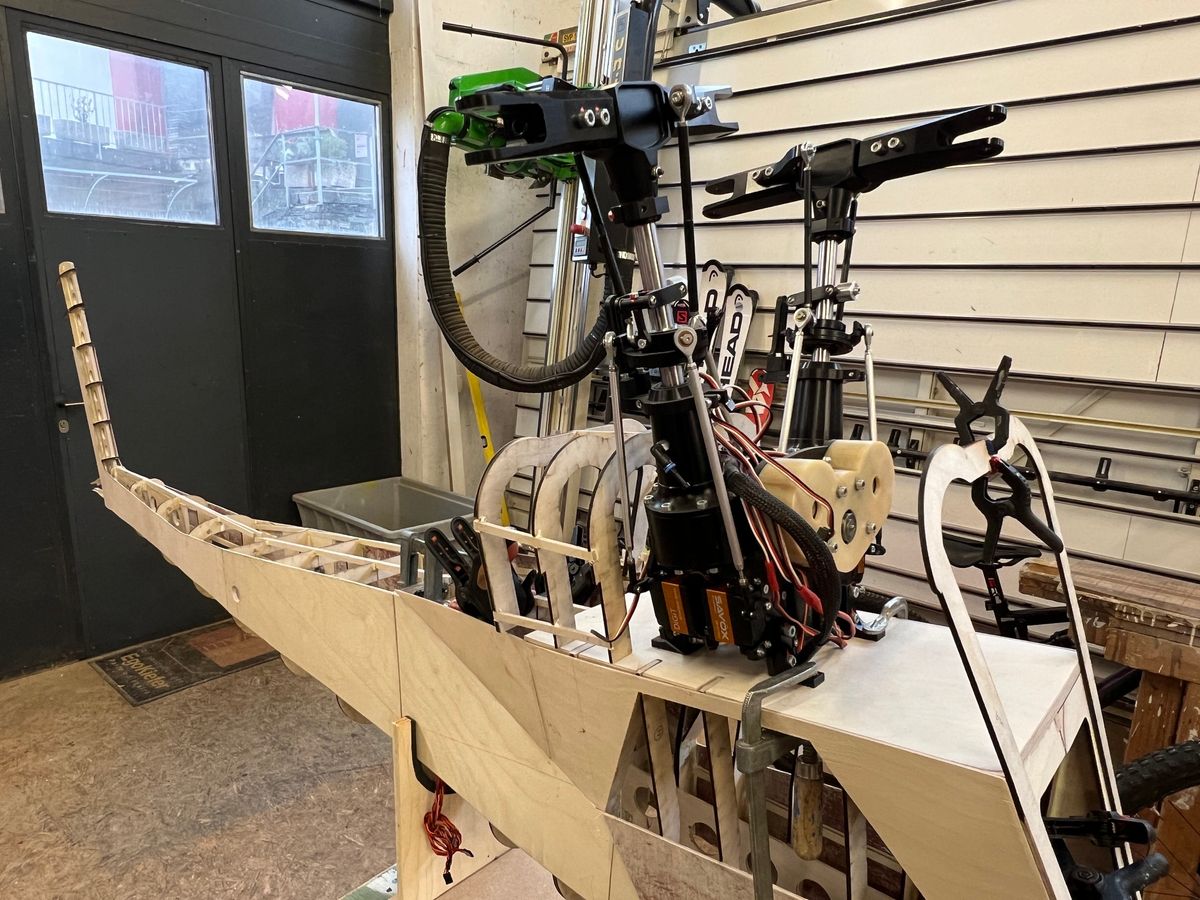

Work continues, mechanical positioning and first blade tests.
CAD+Modelltechnik Jung mechanic

Online-Shop der Fa. CAD+Modelltechnik JungKaman K-Max 1200
Chapter 2: ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameter.

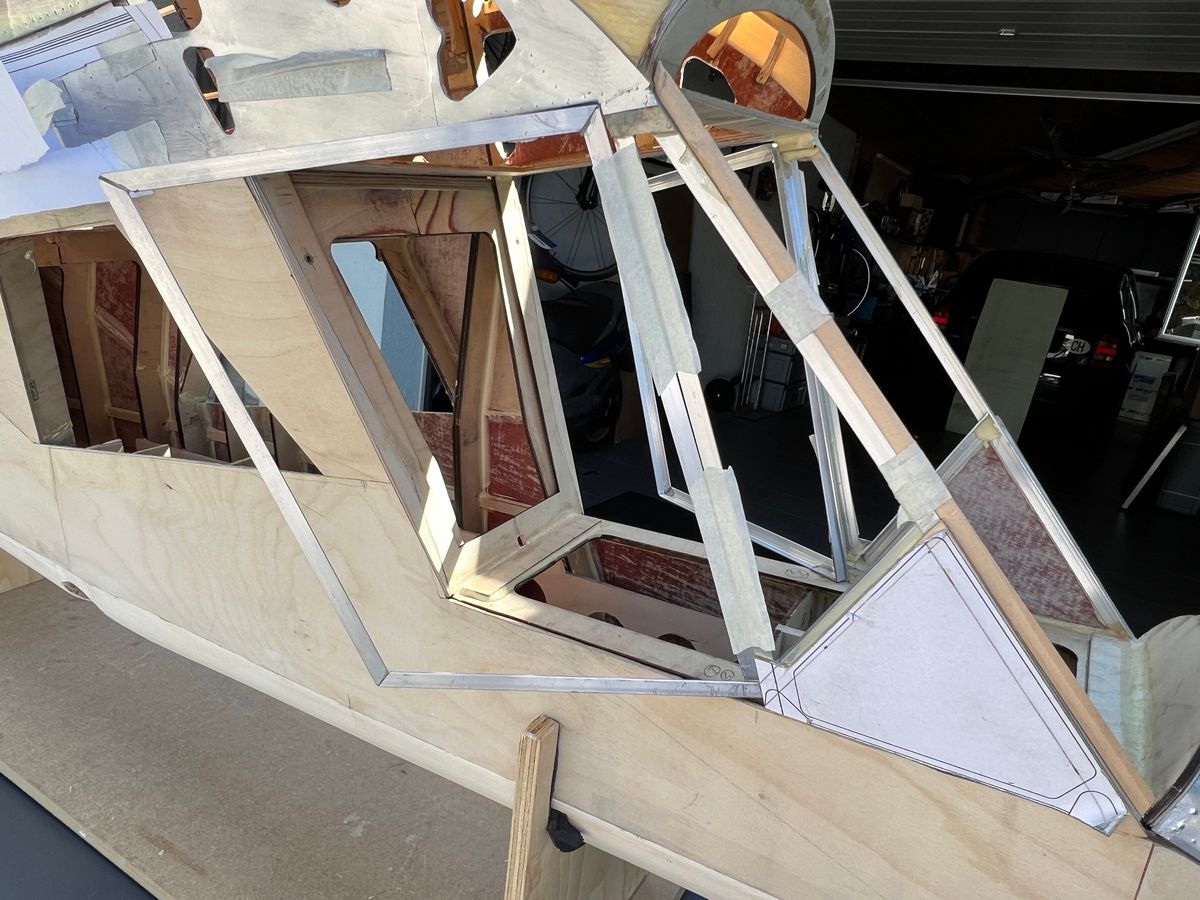

Chapter 2: ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameter.Chapter 2: ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameter.Chapter 2: ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameter.Chapter 2: ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameter.Chapter 2: ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameter.
Chapter 3

ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameter

Sep 7, 2023

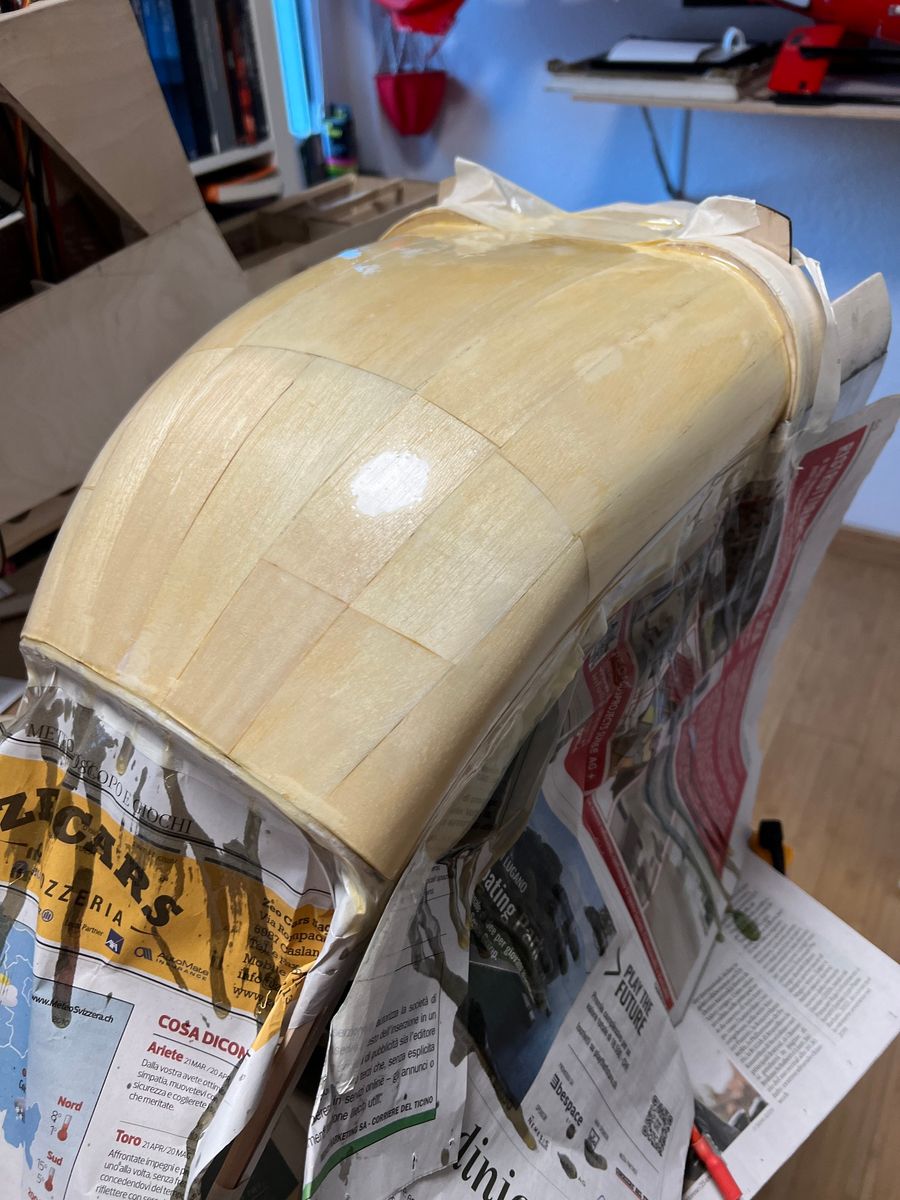

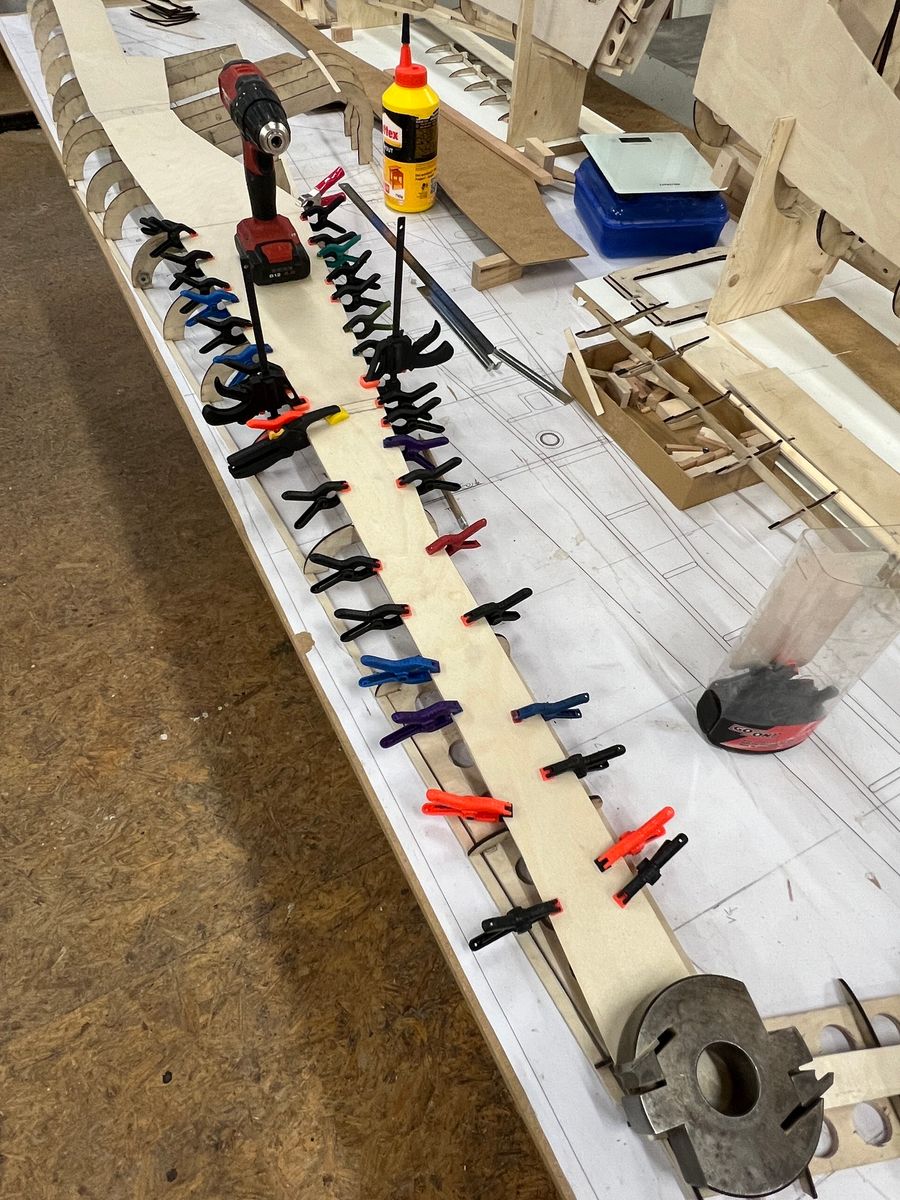

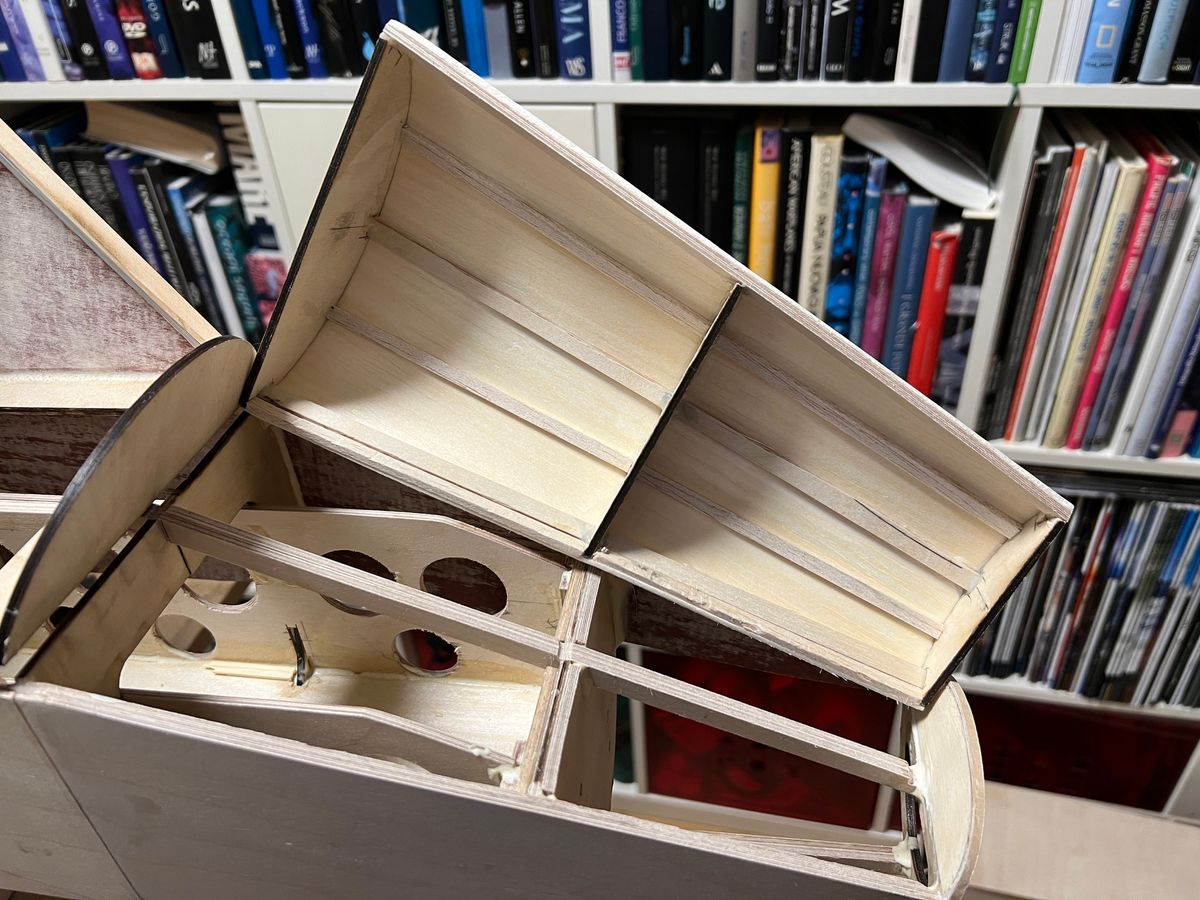

Mechanical fixing and work with balsa wood and plywood

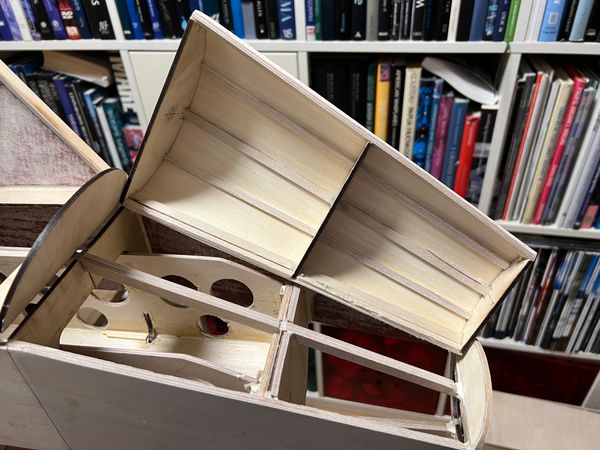

Chapter 3: ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameter
Chapter 3: ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameterChapter 3: ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameterChapter 3: ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameterChapter 3: ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameterChapter 3: ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameter
Chapter 4

ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameter

Sep 10, 2023

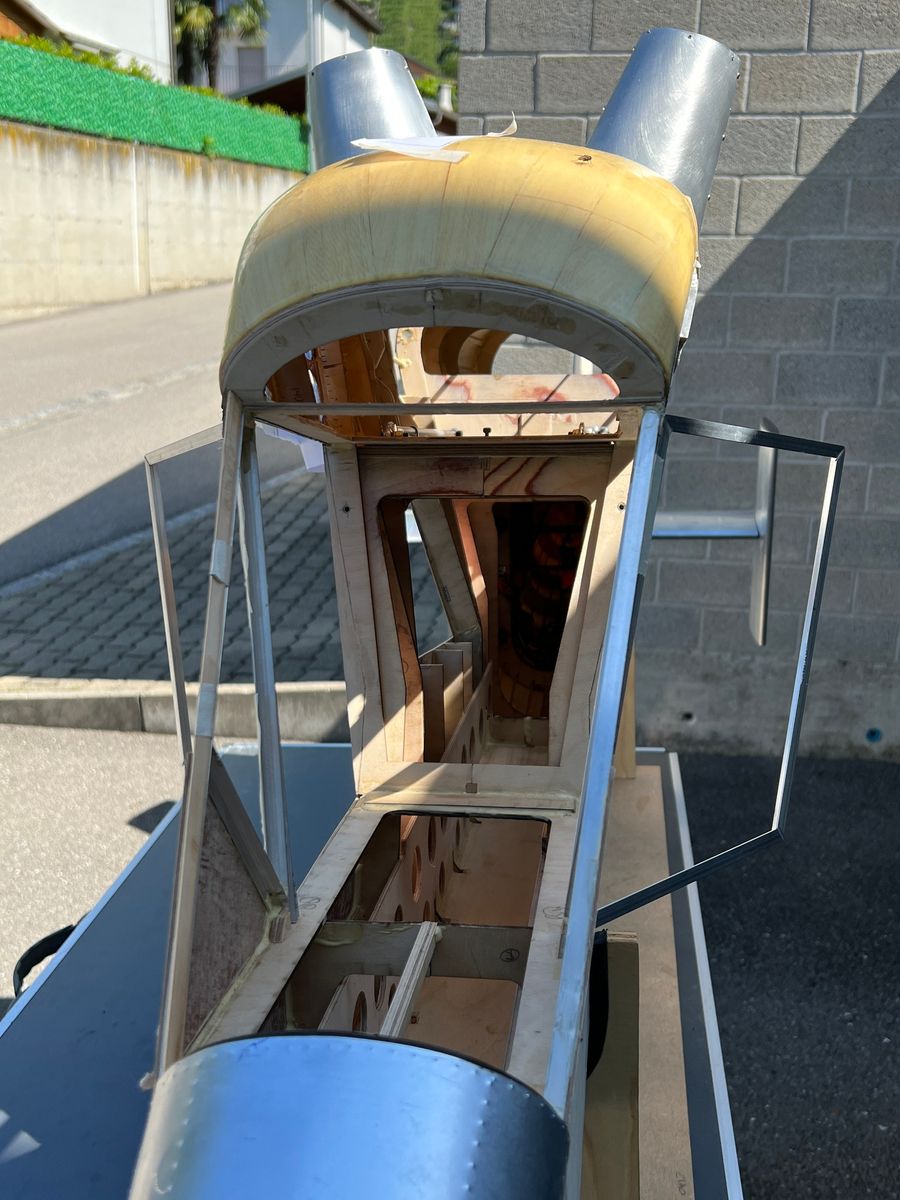

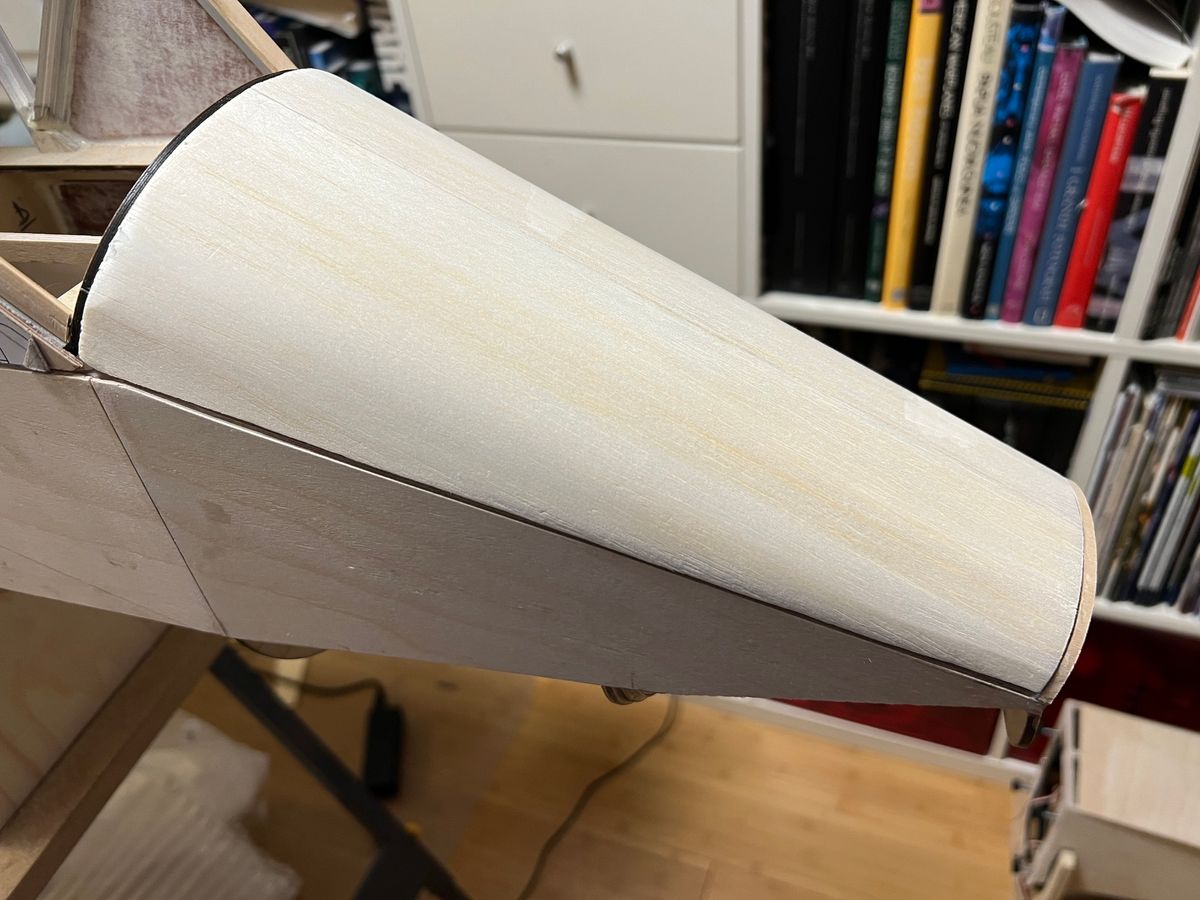

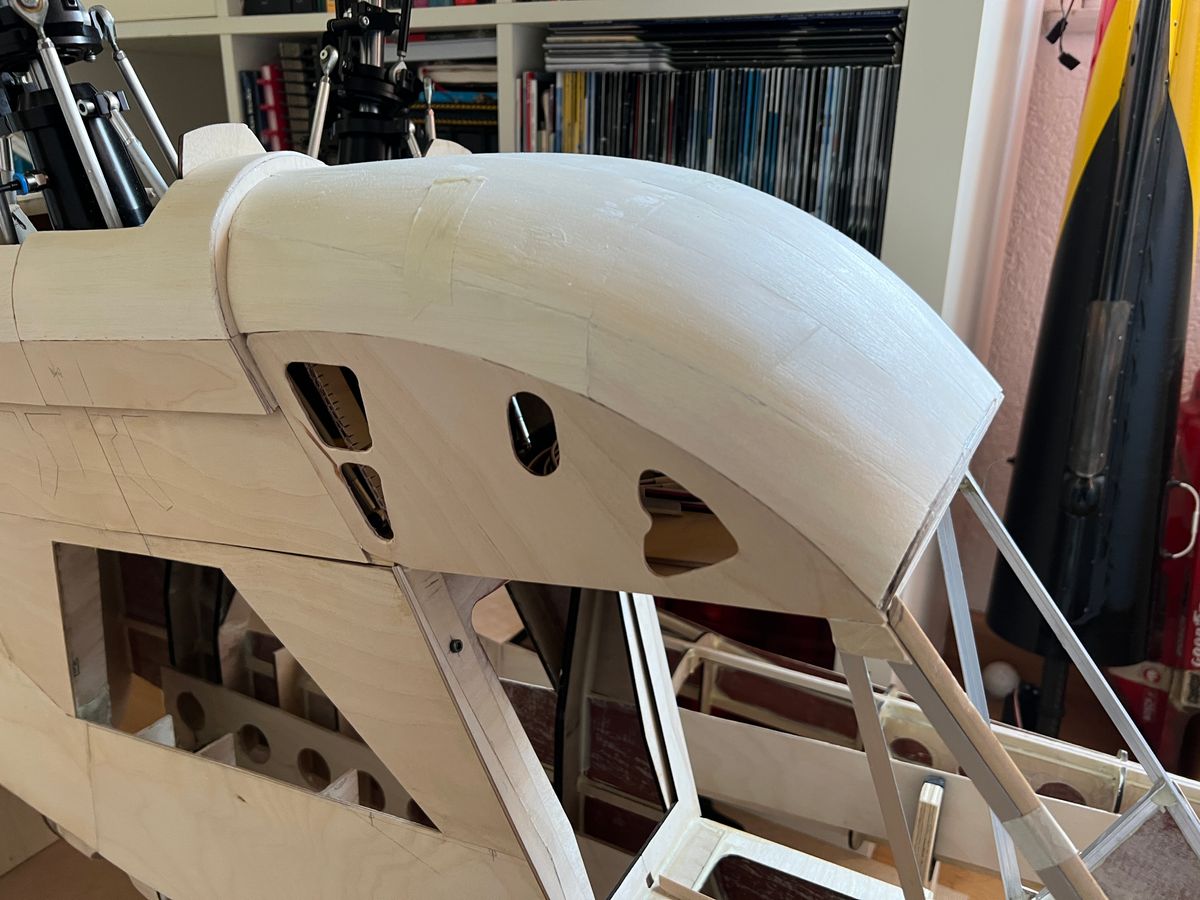

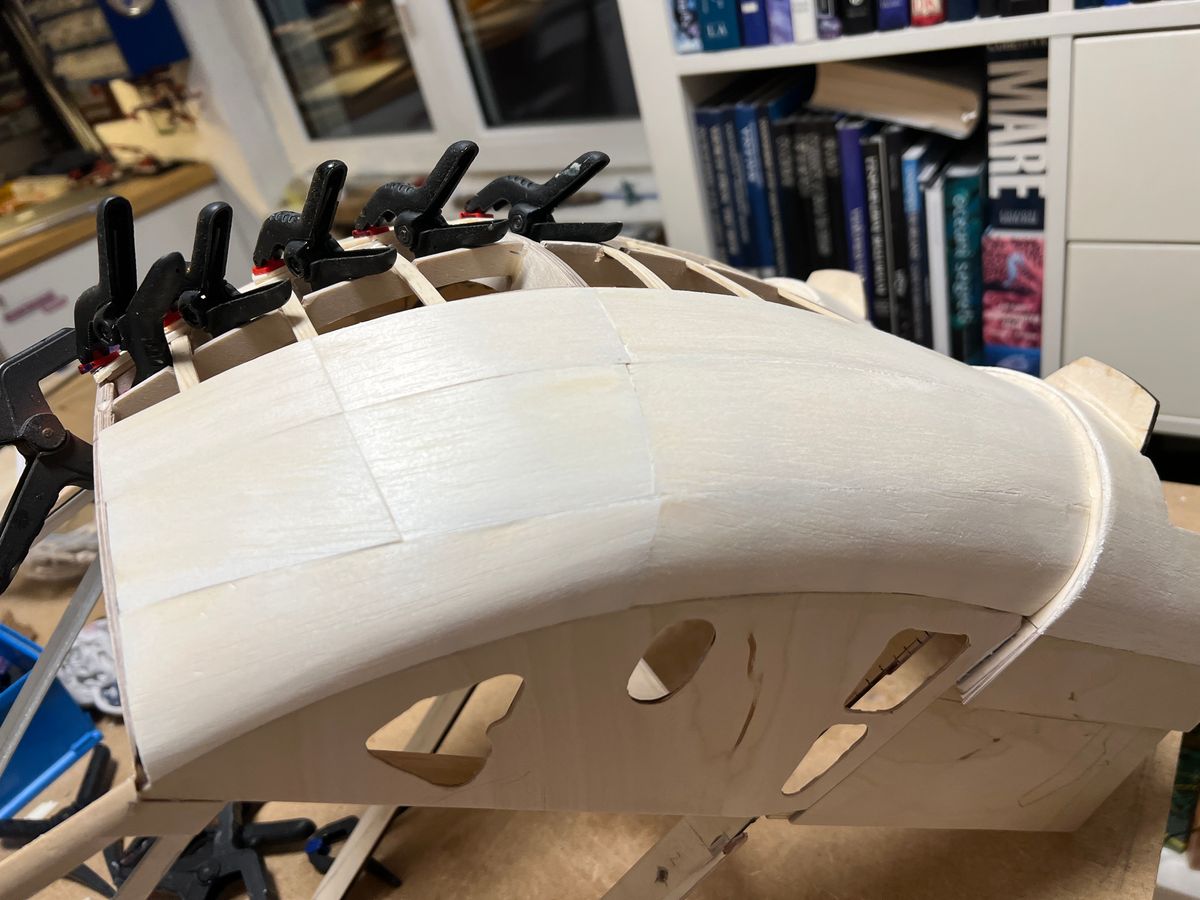

Cockpit top finish

Chapter 4: ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameter
Chapter 4: ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameterChapter 4: ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameterChapter 4: ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameter
Chapter 5

ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameter

Sep 24, 2023

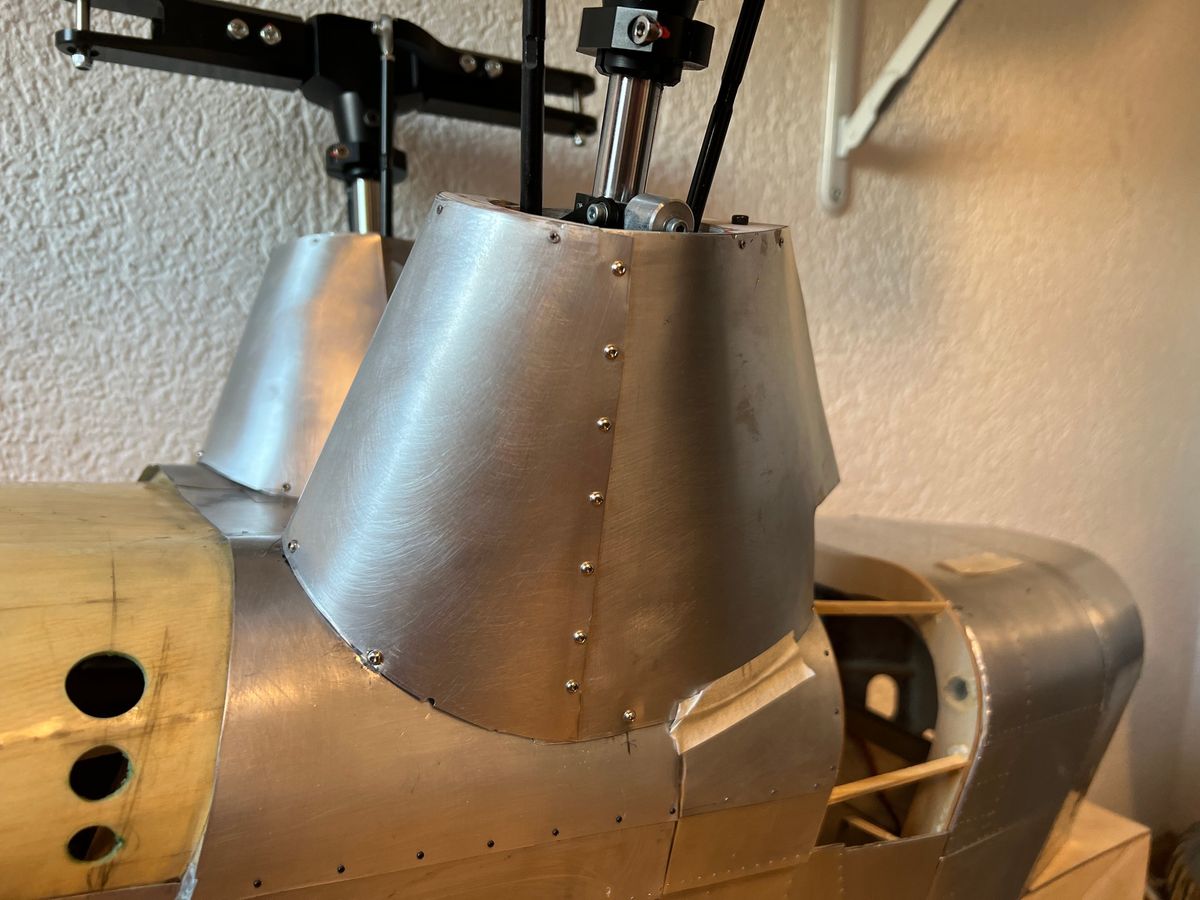

Creation of superion cones, and various aluminum covers,

Chapter 5: ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameter

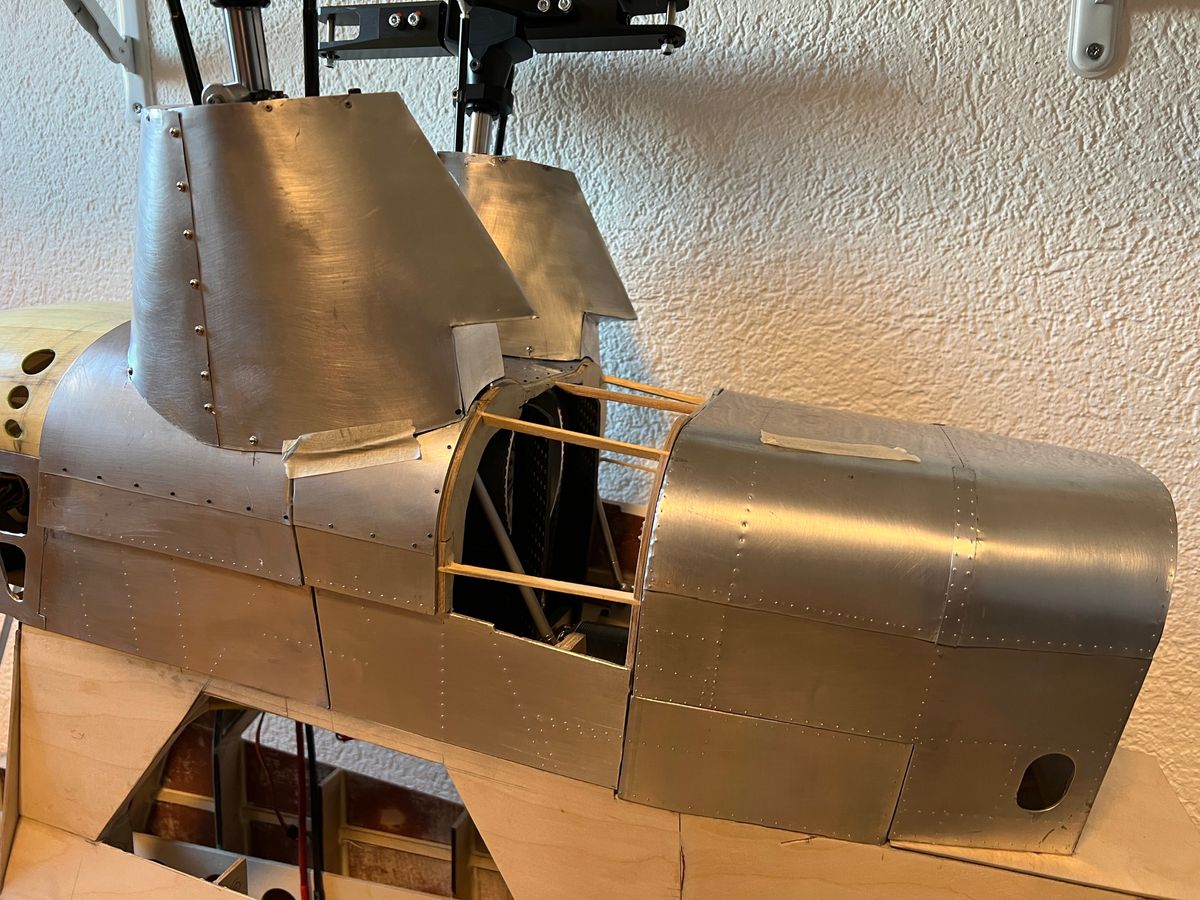

Chapter 5: ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameterChapter 5: ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameter
Chapter 6

ZAM Helicopters project Kaman K-Max Rotex 2,50m

Oct 11, 2023

Finished the work with plywood and balsa

Chapter 6: ZAM Helicopters project Kaman K-Max Rotex 2,50m
Chapter 6: ZAM Helicopters project Kaman K-Max Rotex 2,50mChapter 6: ZAM Helicopters project Kaman K-Max Rotex 2,50mChapter 6: ZAM Helicopters project Kaman K-Max Rotex 2,50mChapter 6: ZAM Helicopters project Kaman K-Max Rotex 2,50m
Chapter 7

ZAM Helicopters new project Kaman K-Max Rotak 2,50m fuselage, 2,80m rotor diameter

Nov 20, 2023

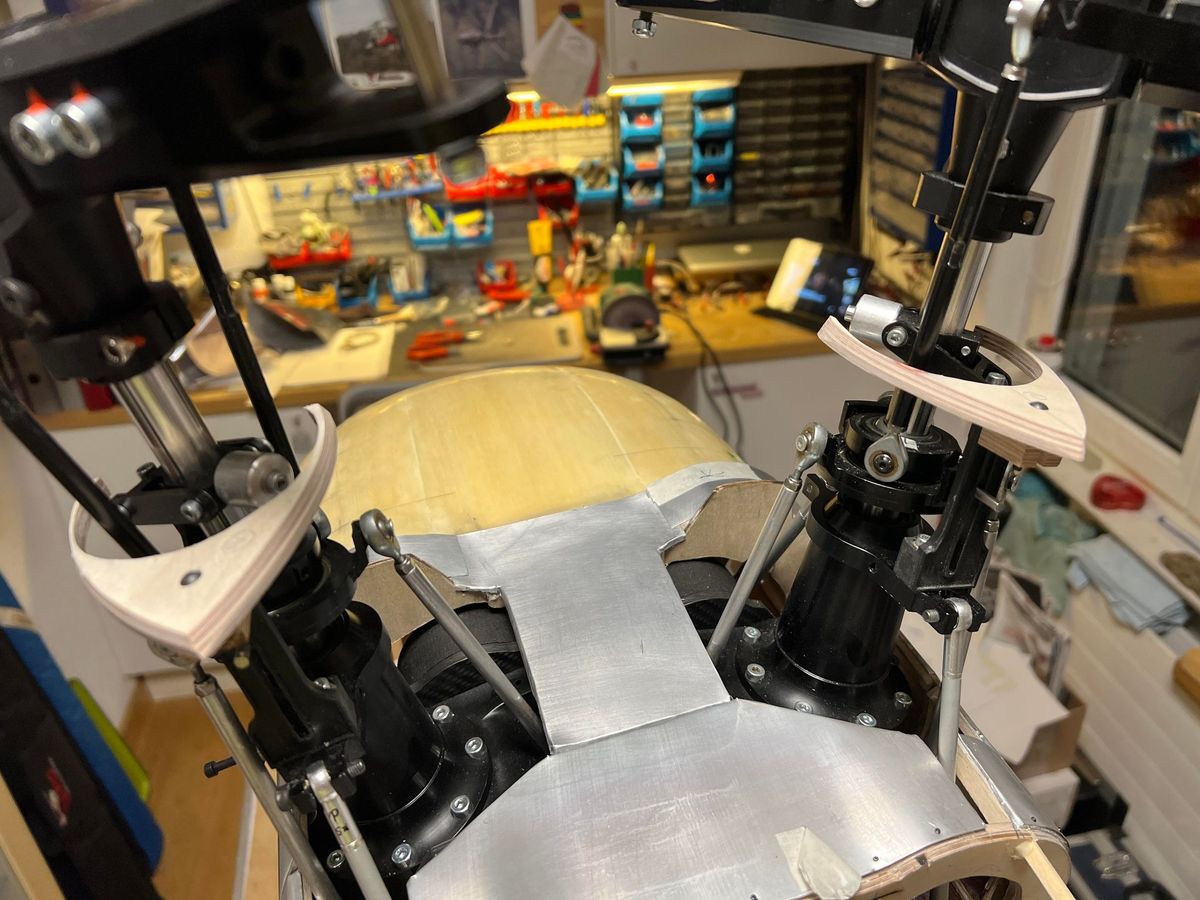

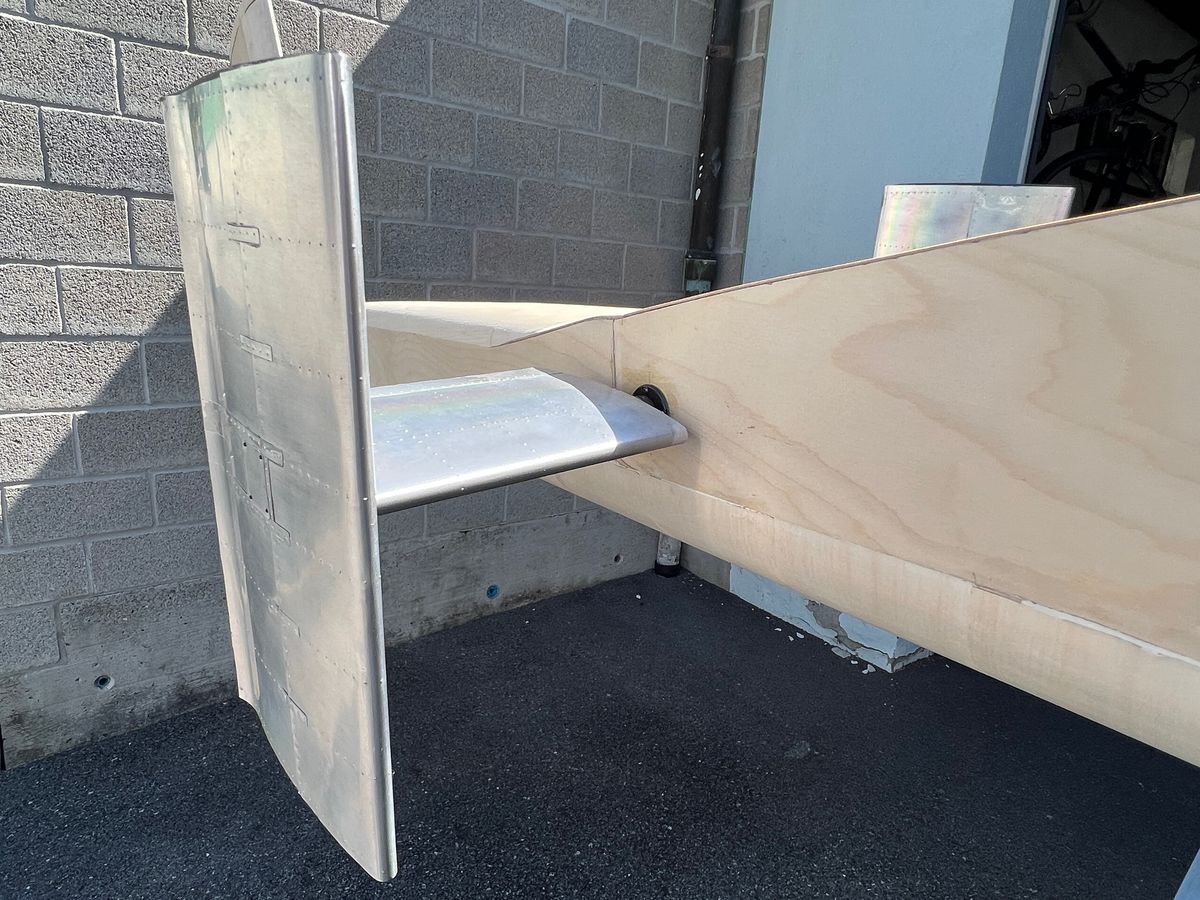

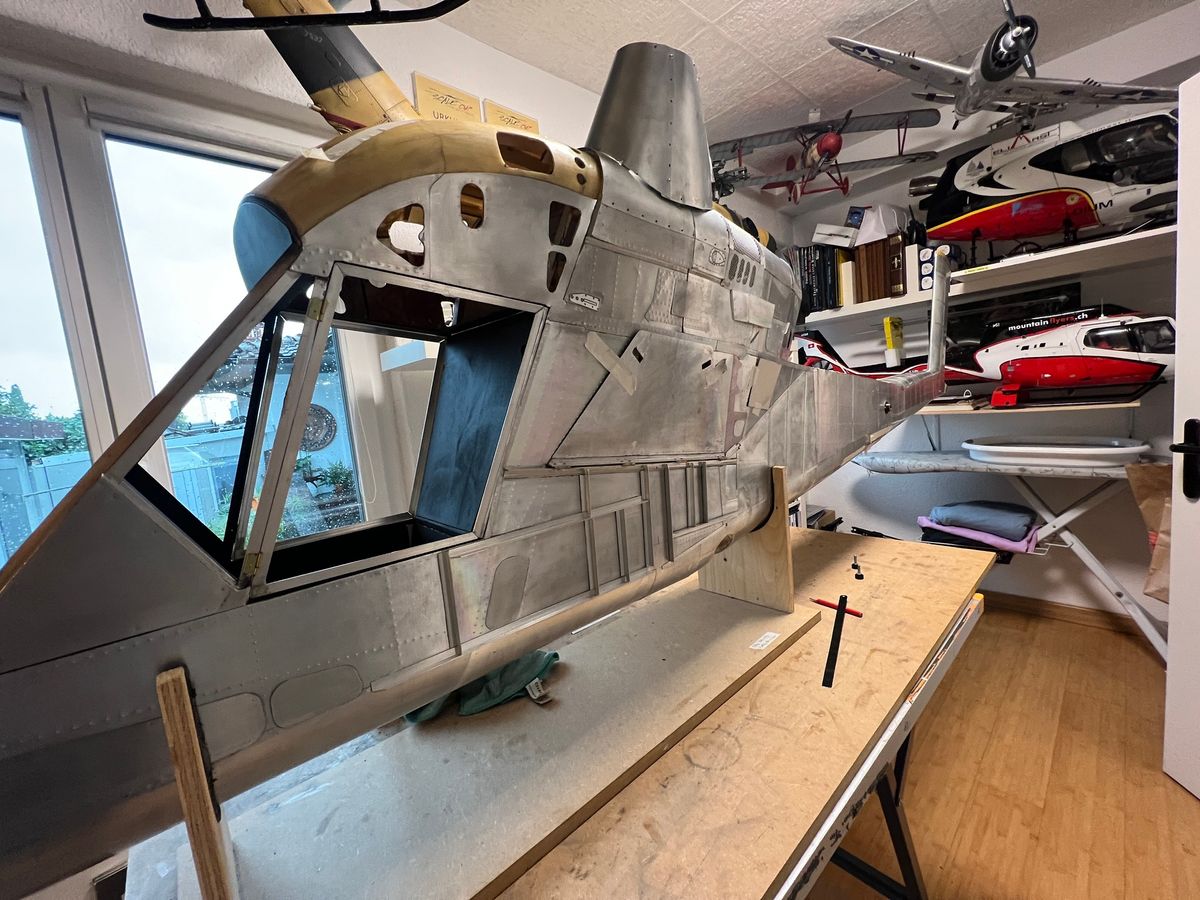

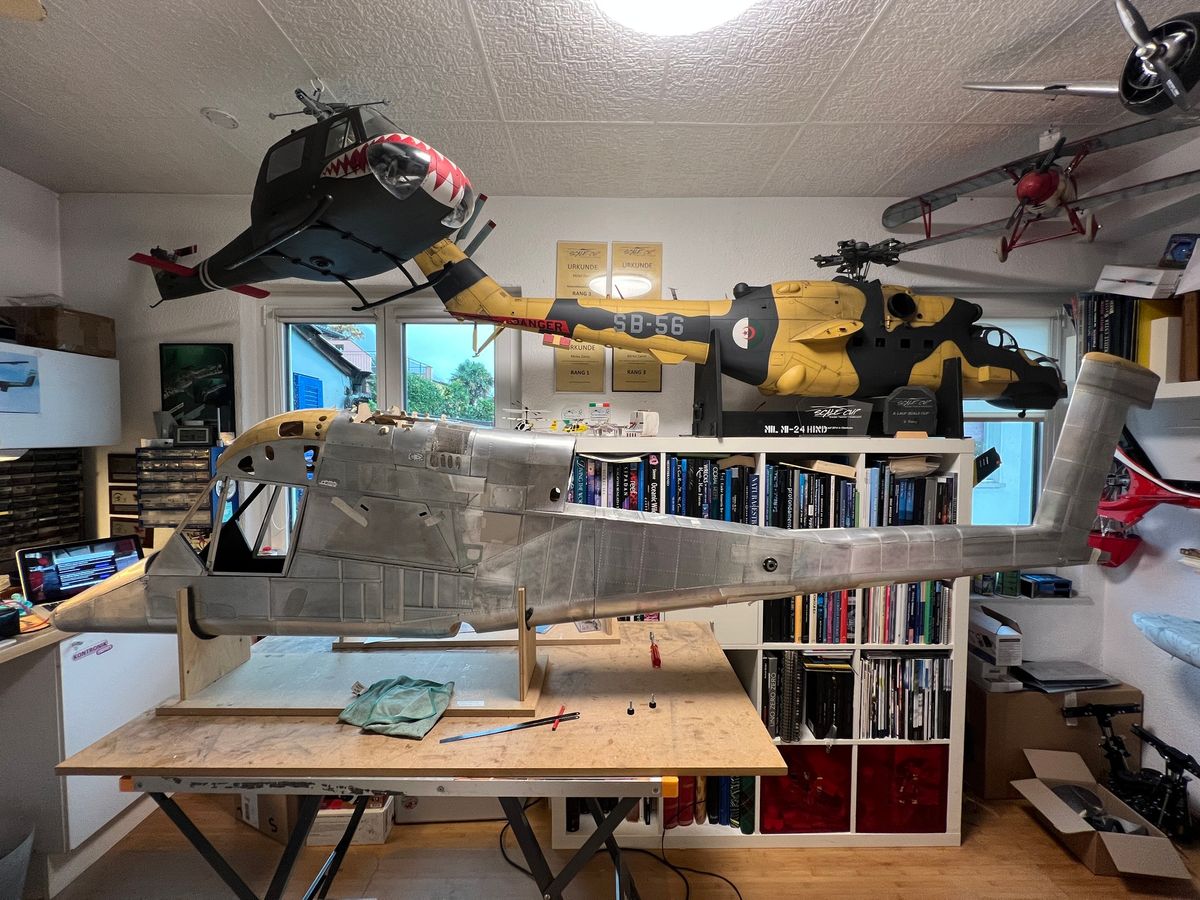

Gluing 0.15mm aluminum sheets, almost finished.

Chapter 7: ZAM Helicopters new project Kaman K-Max Rotak 2,50m fuselage, 2,80m rotor diameter
Chapter 7: ZAM Helicopters new project Kaman K-Max Rotak 2,50m fuselage, 2,80m rotor diameter
Chapter 8

ZAM Helicopters new project Kaman K-Max Rotak 2,50m fuselage, 2,80m rotor diameter

Nov 20, 2023

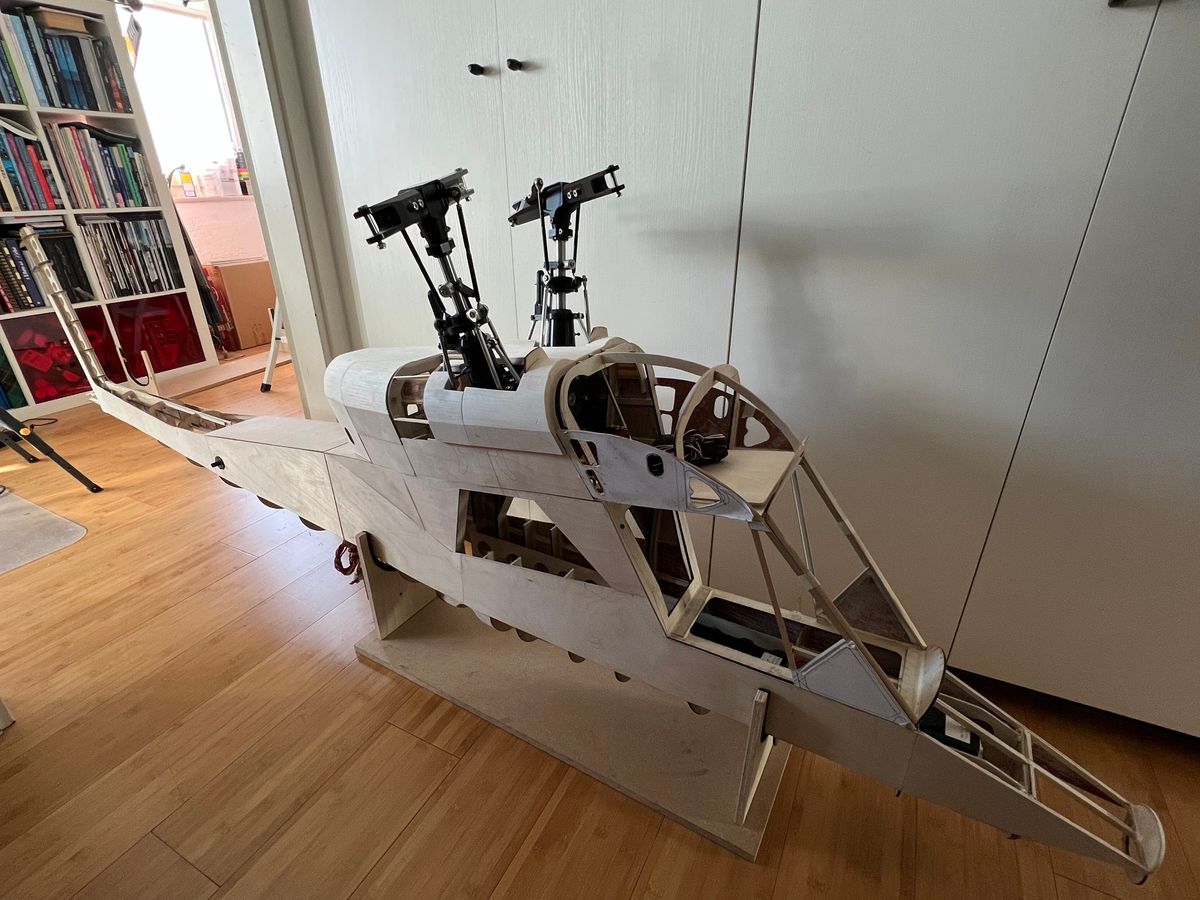

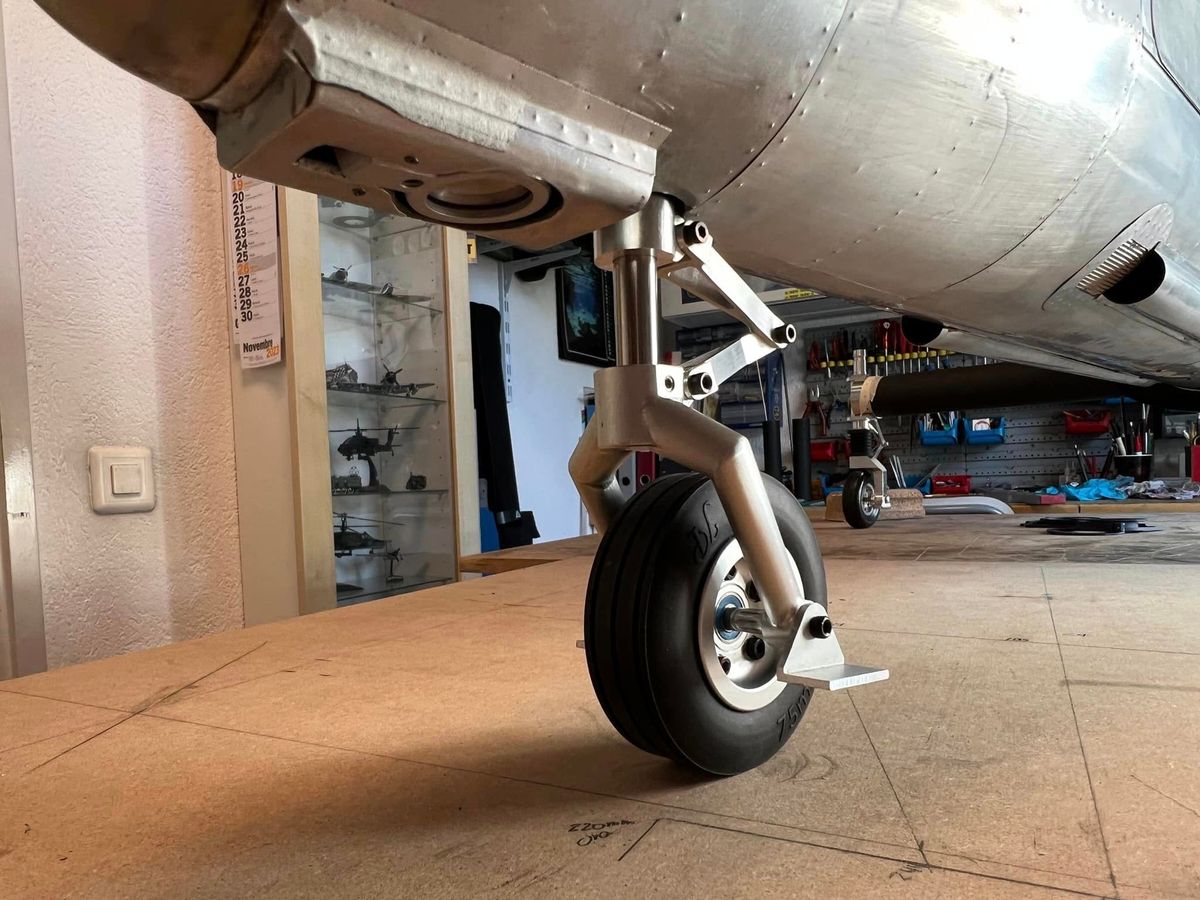

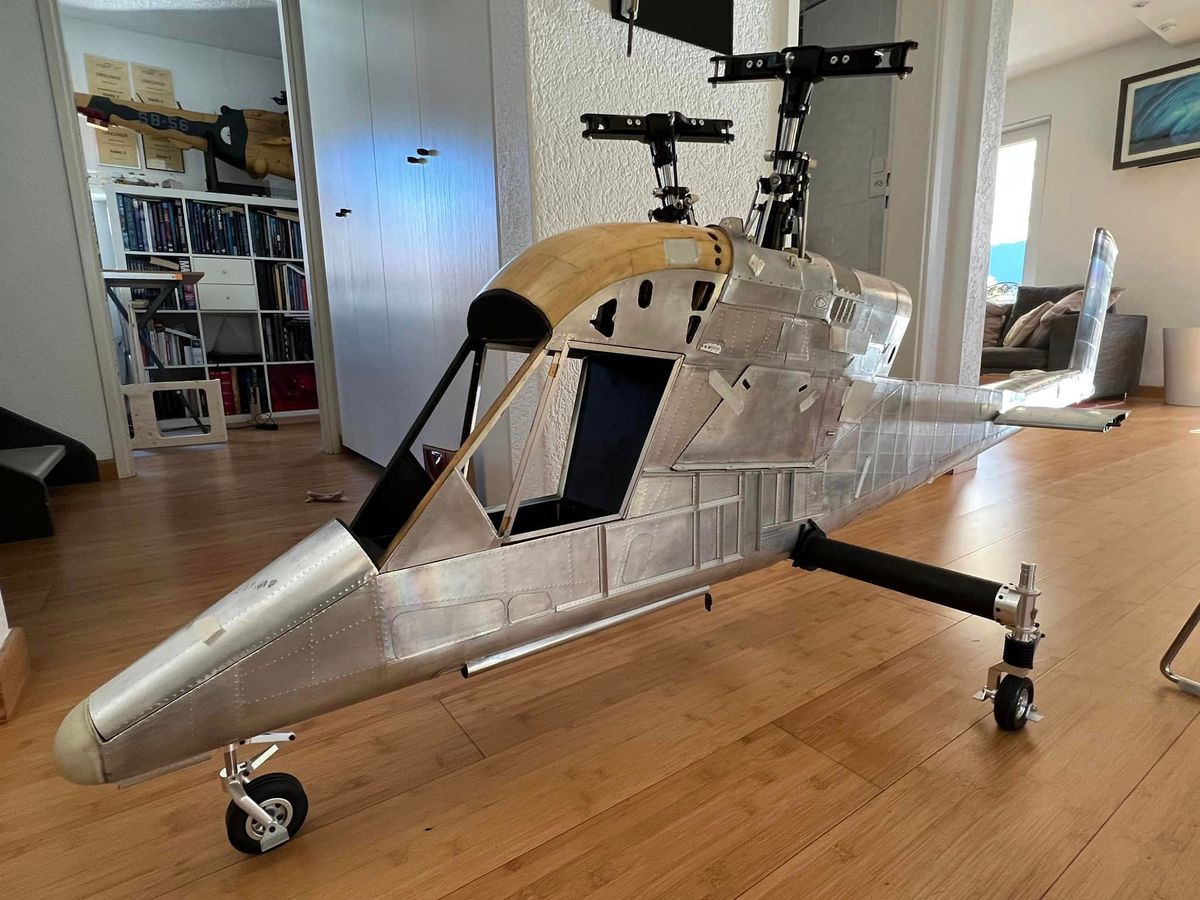

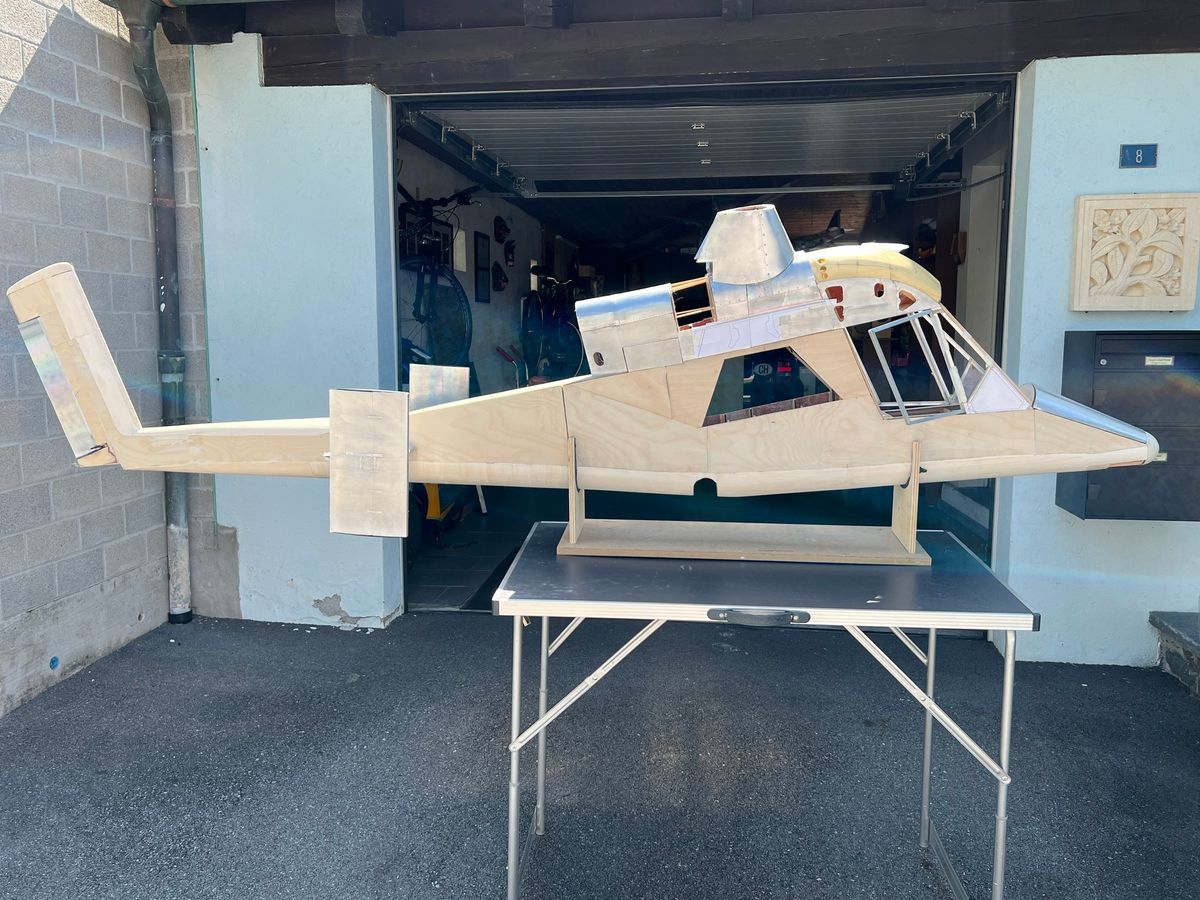

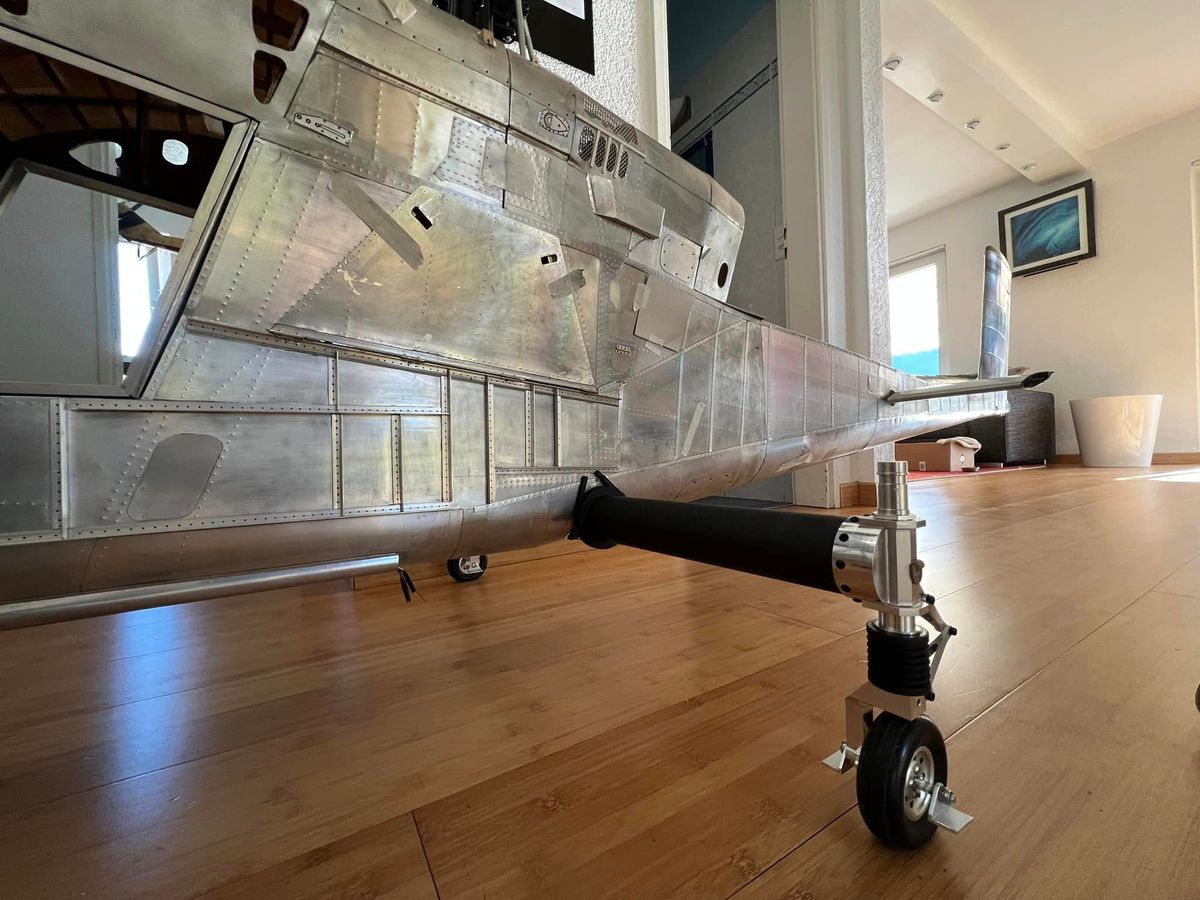

Landing gear finished, ready for the first flight!!

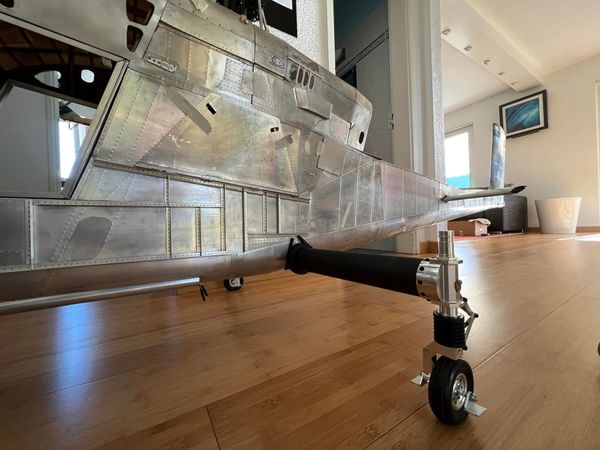

Chapter 8: ZAM Helicopters new project Kaman K-Max Rotak 2,50m fuselage, 2,80m rotor diameter

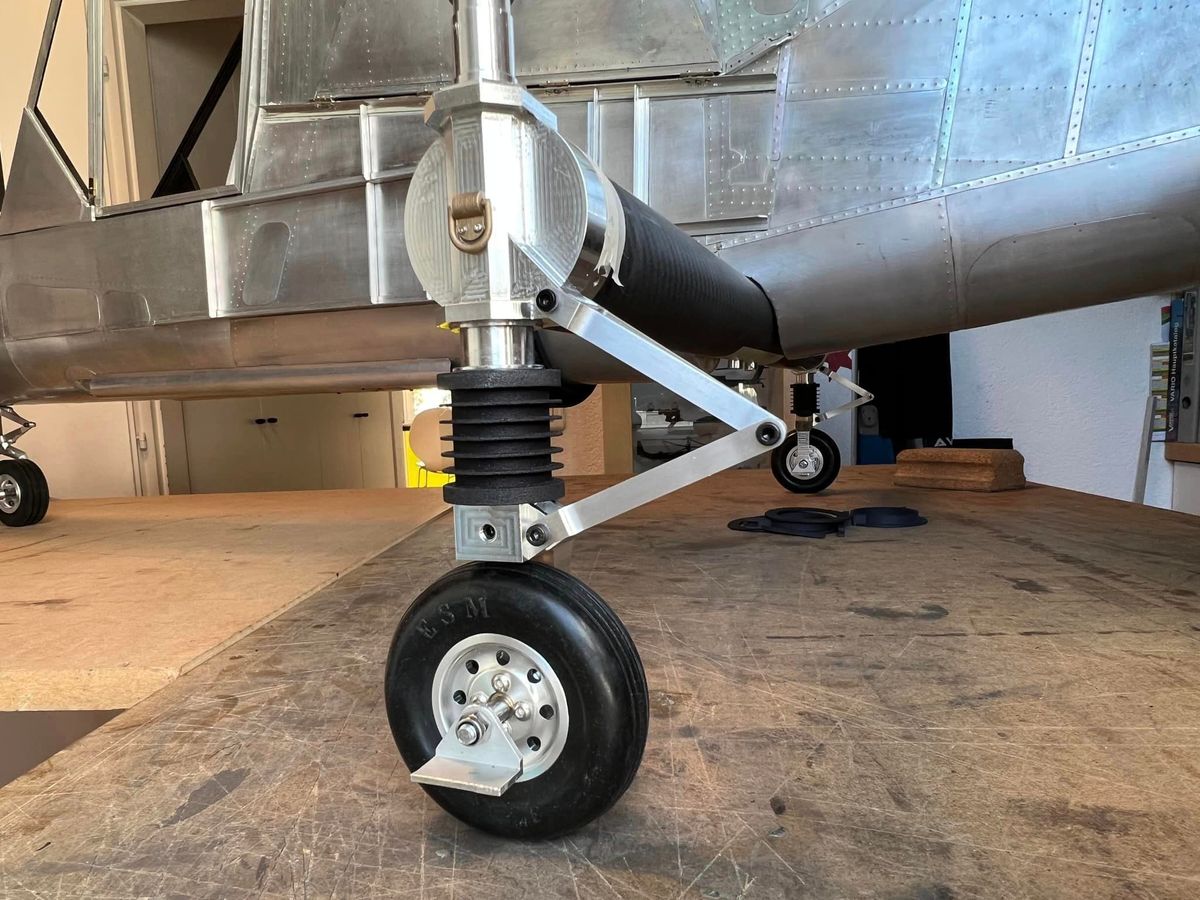

Chapter 8: ZAM Helicopters new project Kaman K-Max Rotak 2,50m fuselage, 2,80m rotor diameterChapter 8: ZAM Helicopters new project Kaman K-Max Rotak 2,50m fuselage, 2,80m rotor diameterChapter 8: ZAM Helicopters new project Kaman K-Max Rotak 2,50m fuselage, 2,80m rotor diameter
