Kontronik Power Jive 120 HV ESC inside

Anyone wondered what is inside a Kontronik Jive Pro ESC?

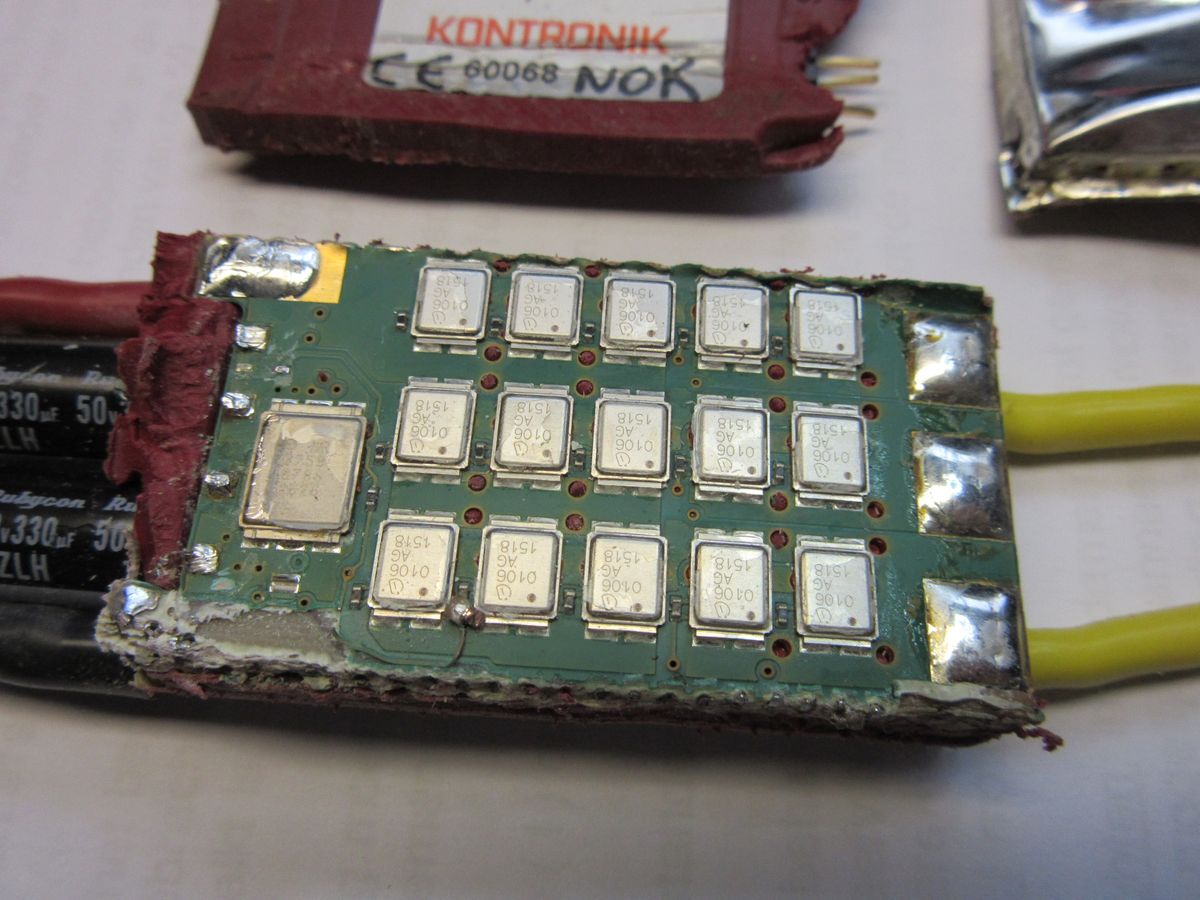

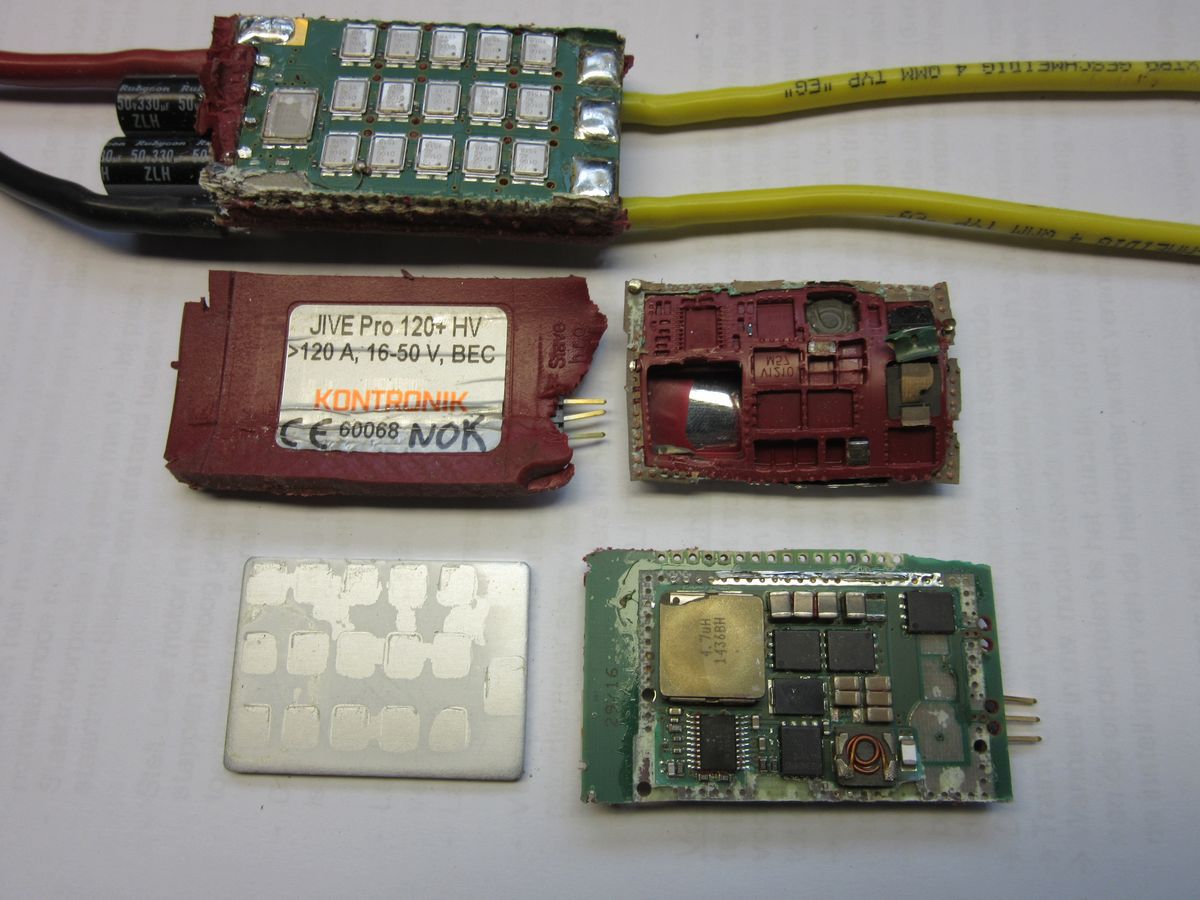

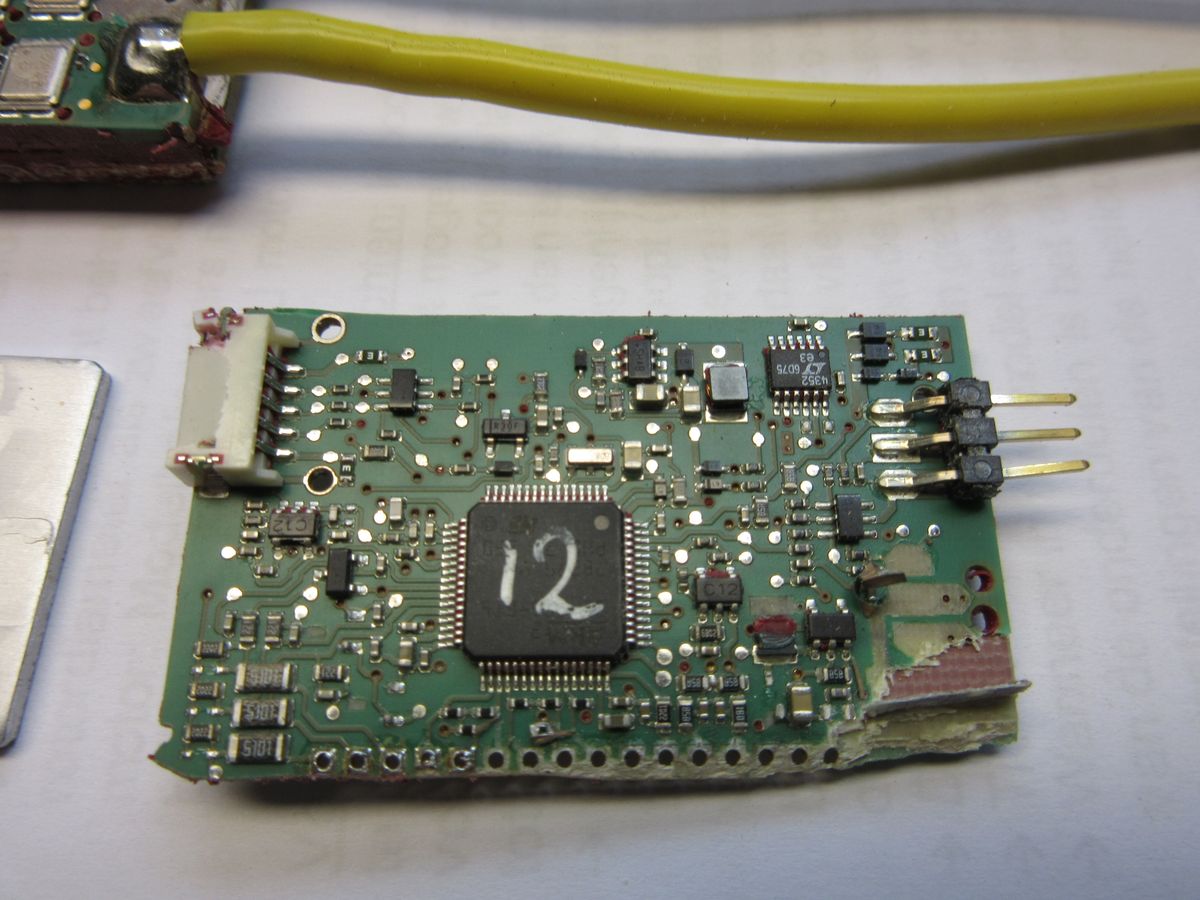

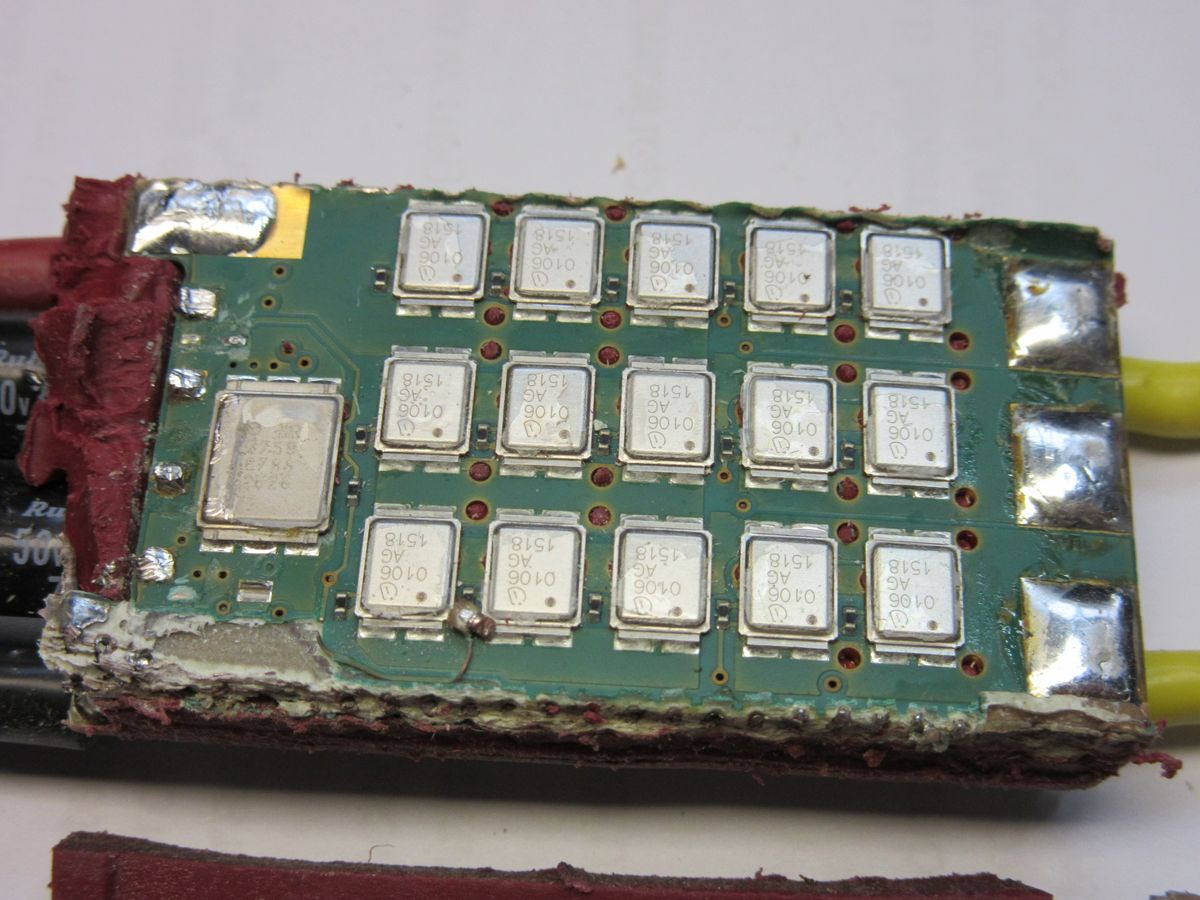

The dual stage power board with the mosfet's, the processor controller board with the BEC unit on the backside.

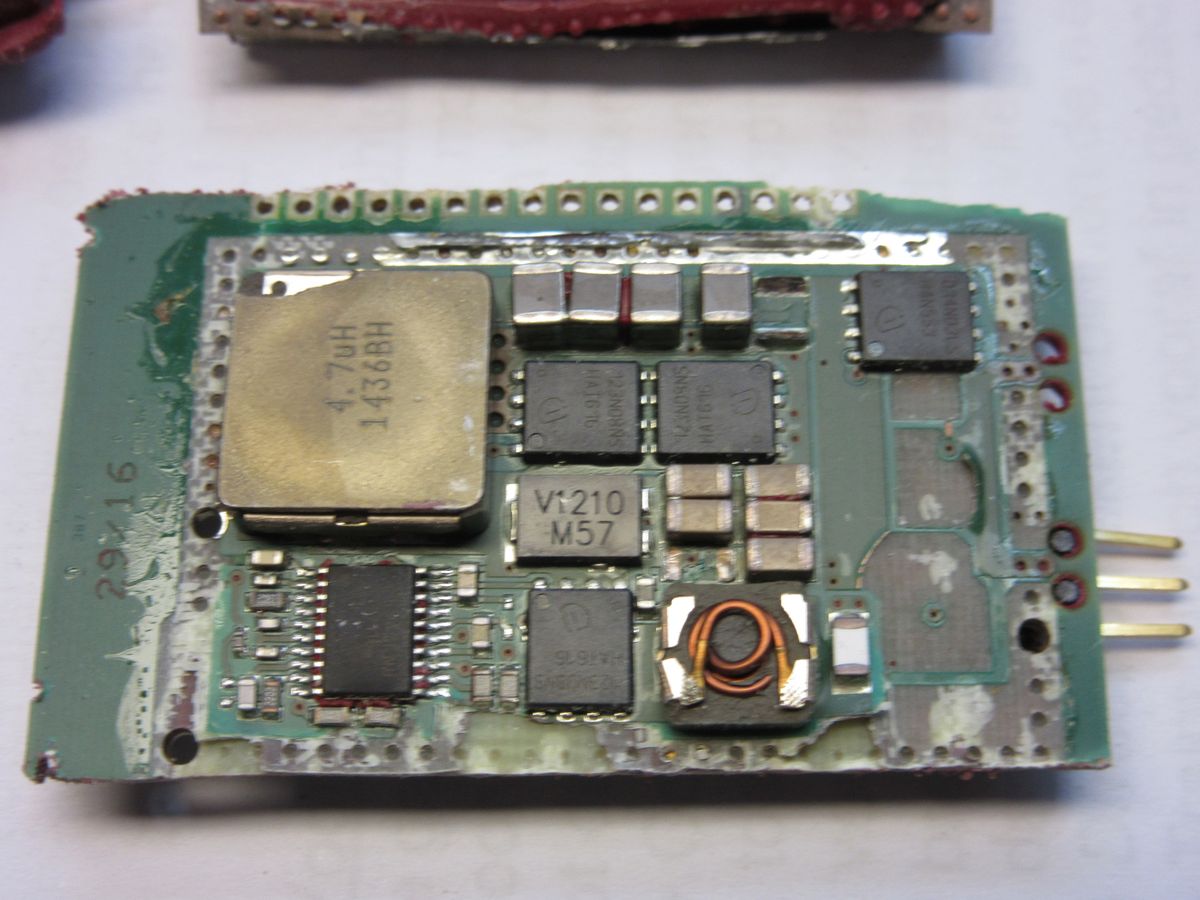

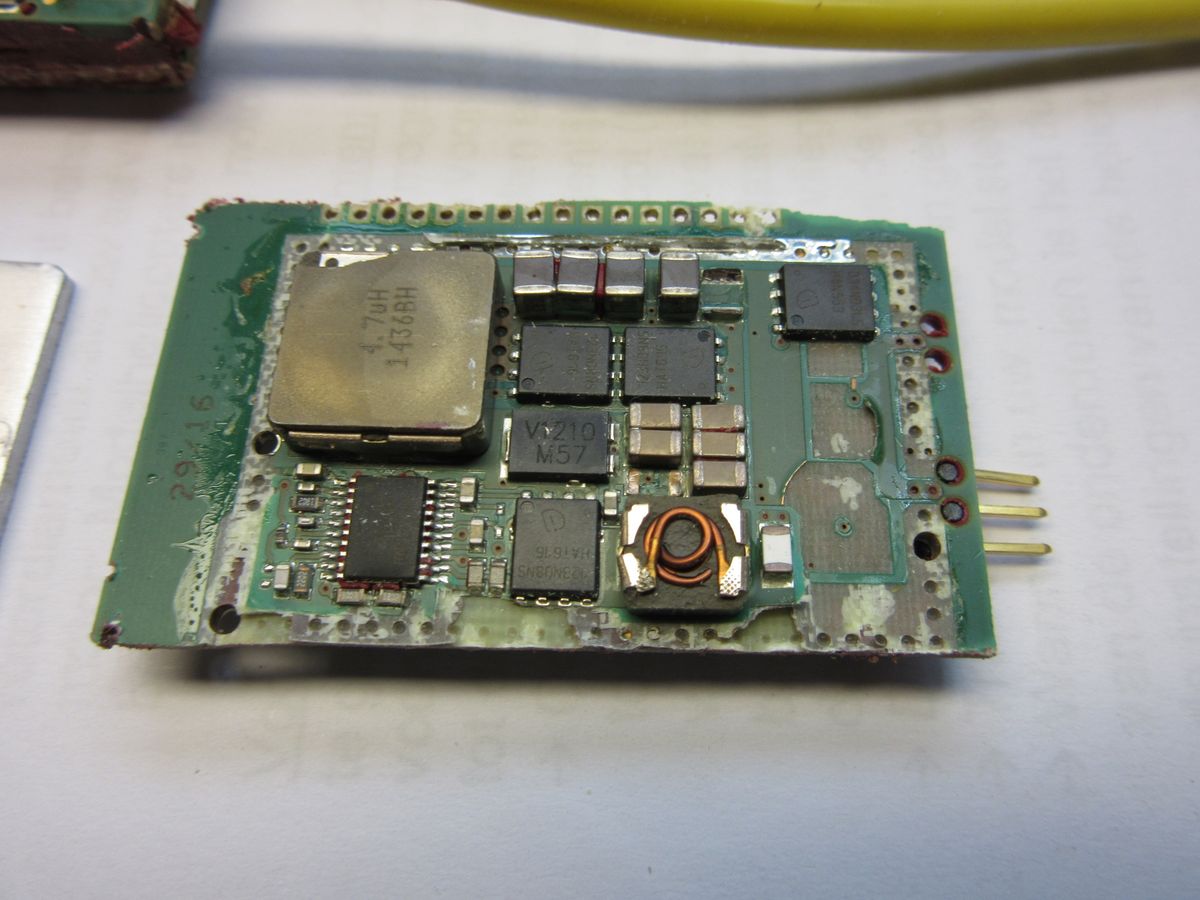

The BEC circuit is covered with a closed metal case to avoid interference with the ESC power stage.
Obviously the ESC was bad, so it was offered to science. 😄
