Build Story
ZAM Helicopters K-Max
Chapter 2 of 8
ZAM Helicopters new project Kaman K-Max Rotex 2,50m fuselage, 2,80m rotor diameter.
Sep 6, 2023

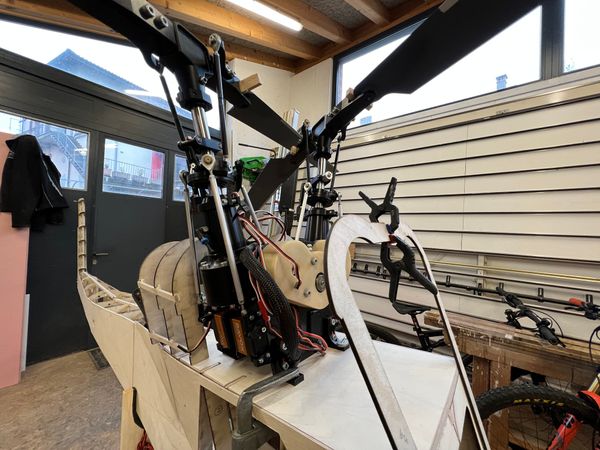

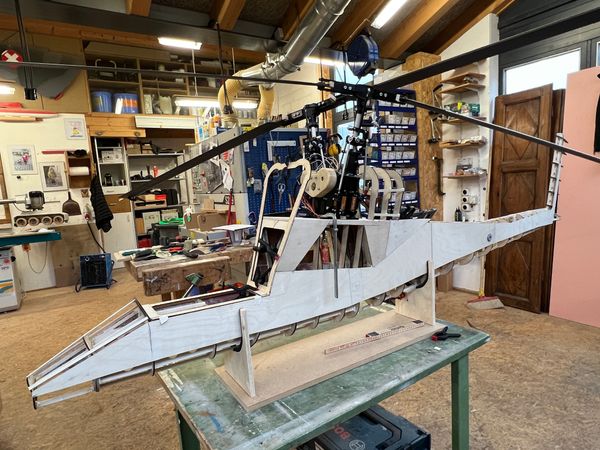

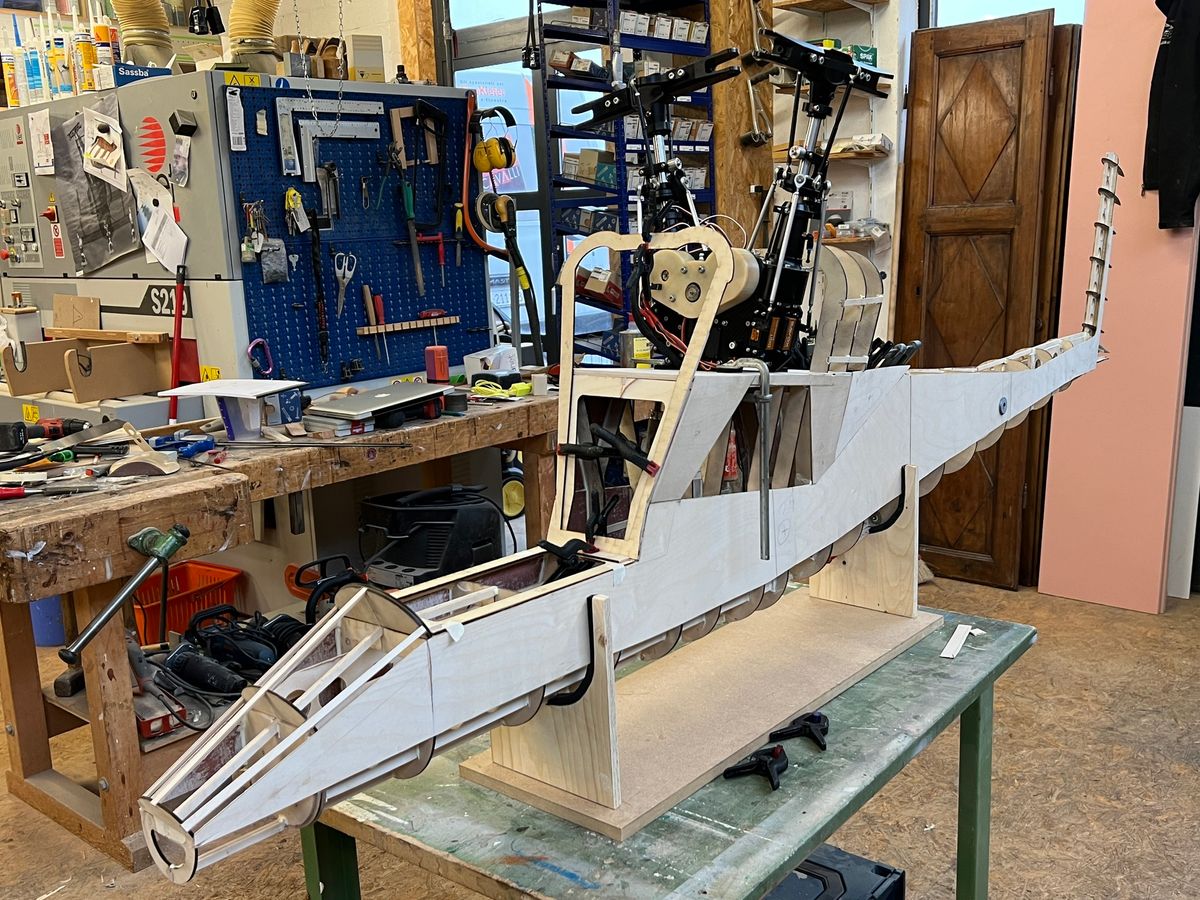

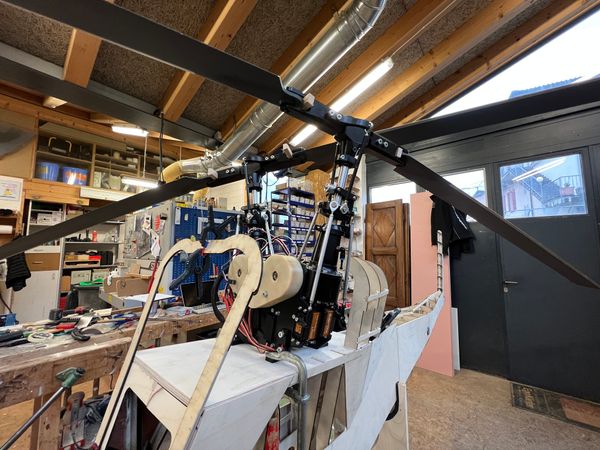

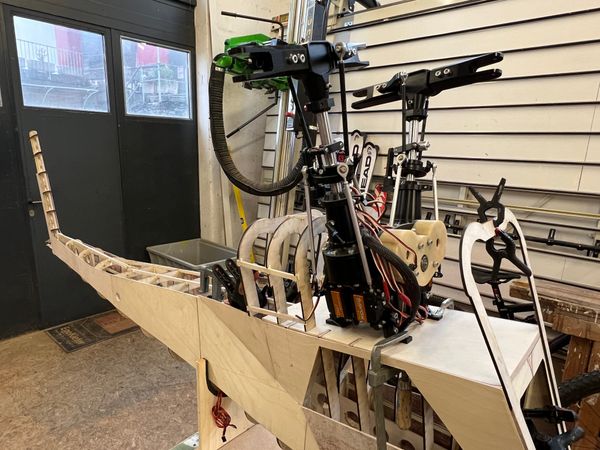

Work continues, mechanical positioning and first blade tests.
CAD+Modelltechnik Jung mechanic
21 Comments
Thank you for adding this to our build library! What a unique and fantastic project! We look forward to seeing this progress!
Hello, I just joined this forum. May I ask where did you get the mechanics for this heli?
CAD+Modelltechnik Jung mechanic
https://www.cad-modelltechnik-jung.de/kaman-k-max-1200.html
Will you add a fiberglass fuse around the wood or do you have another plan?
It will be covered with aluminum foil
Hello Mirko, you have a great project, ask where you can get the blueprints for the wooden hull or is that also a kit, many thanks and best regards
Hello, the drawings were provided to me by CAD+Modelltechnik Jung
Thank you 😊
The woodworking is incredible!!
Post your video of the mechanics lifting the wood pallet.
https://www.youtube.com/watch?v=6U2yKTNCdlc
This is an almost lost art form!
Building with the 3D printer was complicated for me...
Amazing.
Mirko,
This is amazing. The aluminum cladding is something I have yet to attempt. What is the process? Is it thin sheets of aluminum or an aluminum tape of sorts? Please explain.
Great job,
B
Hi, they are aluminum sheets used in offset printing.
They have a thickness of 0.15mm, then the rivets are made on the side where it is glued with contact glue.
WOW ... amazing
OMG WOW
OMG WOW!!!!!!
Brilliant, Just Brilliant.
Love the detail on this. Over the top!
