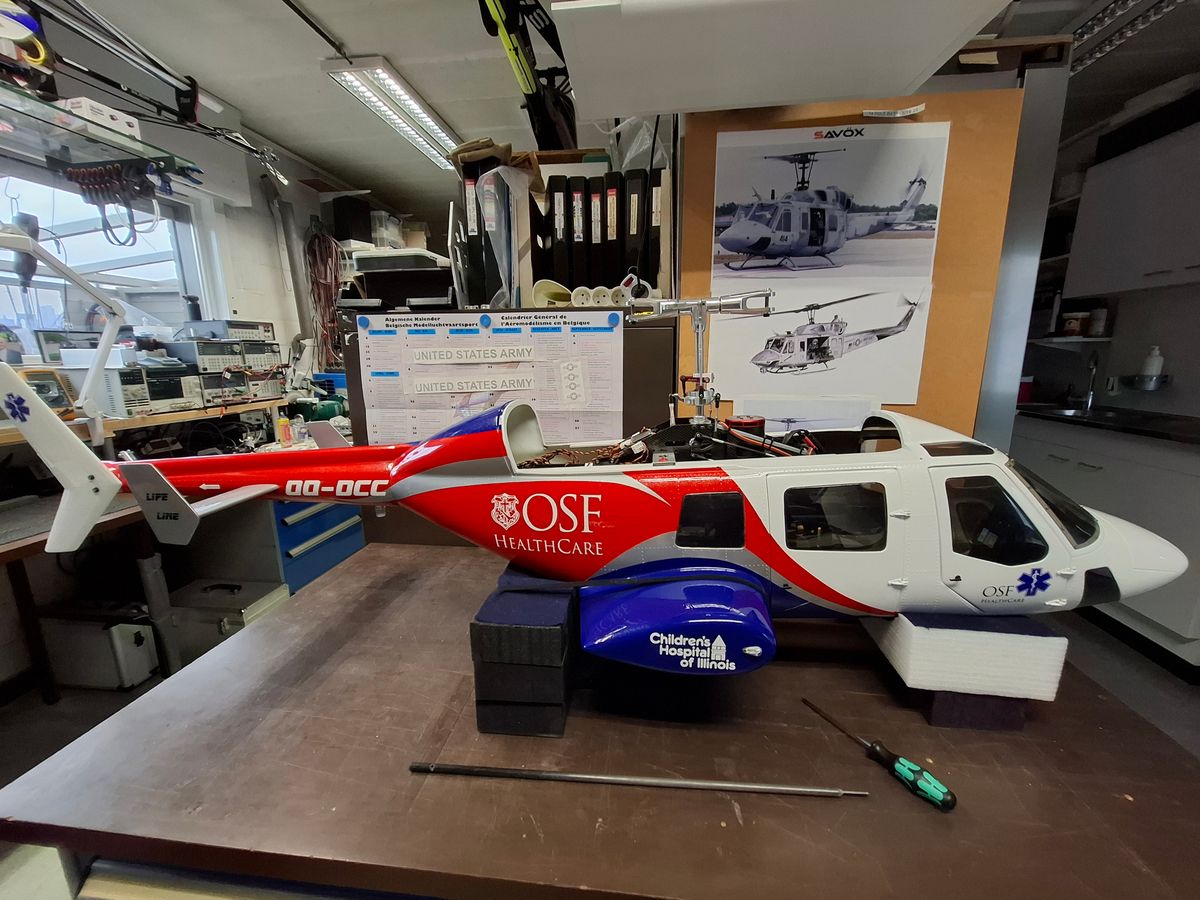

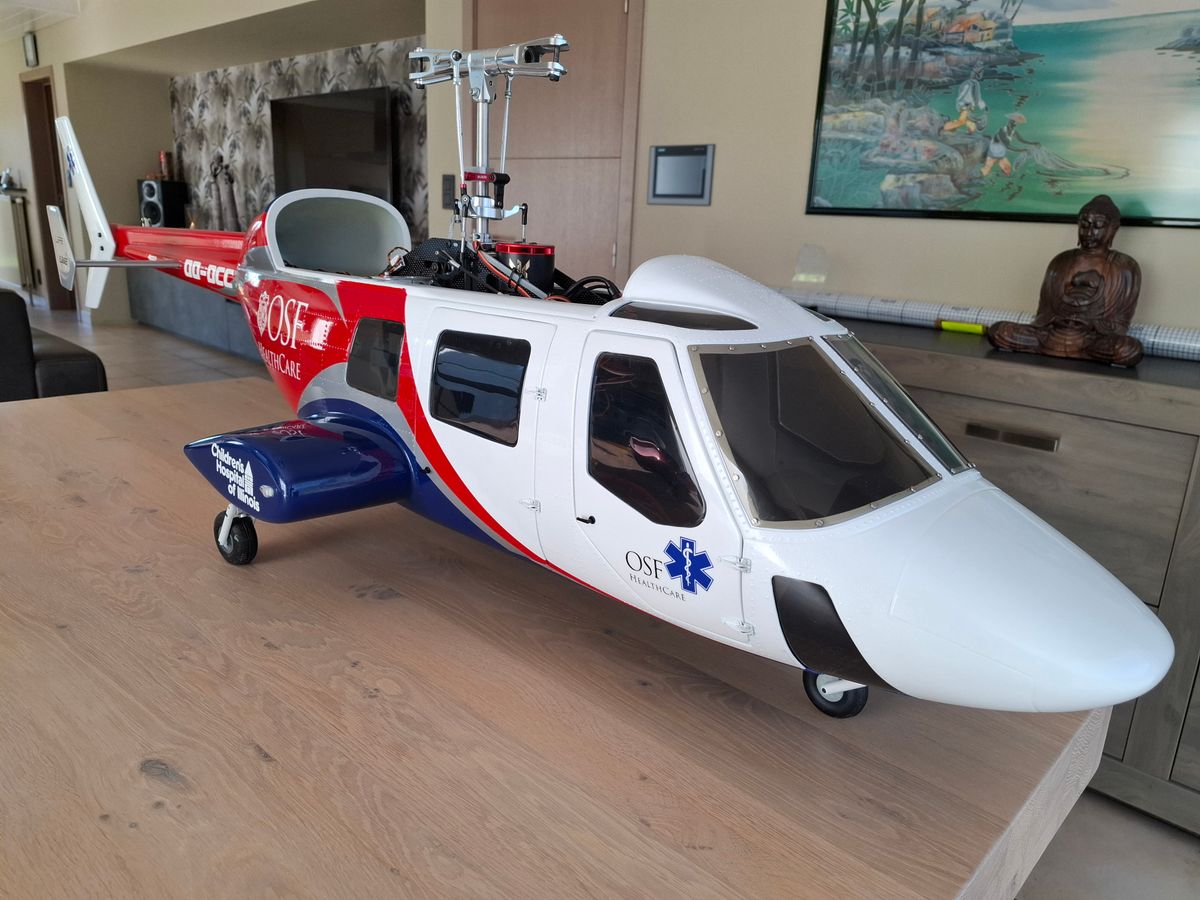

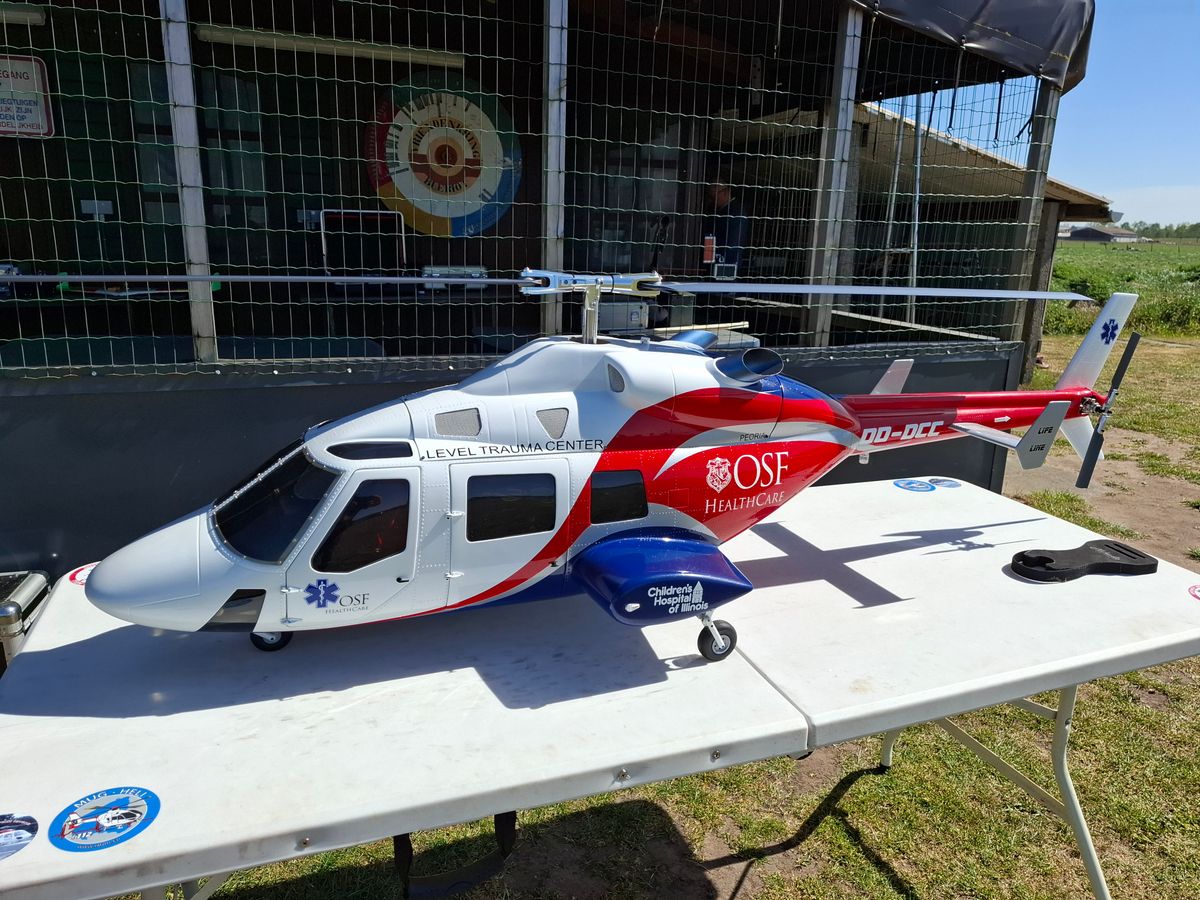

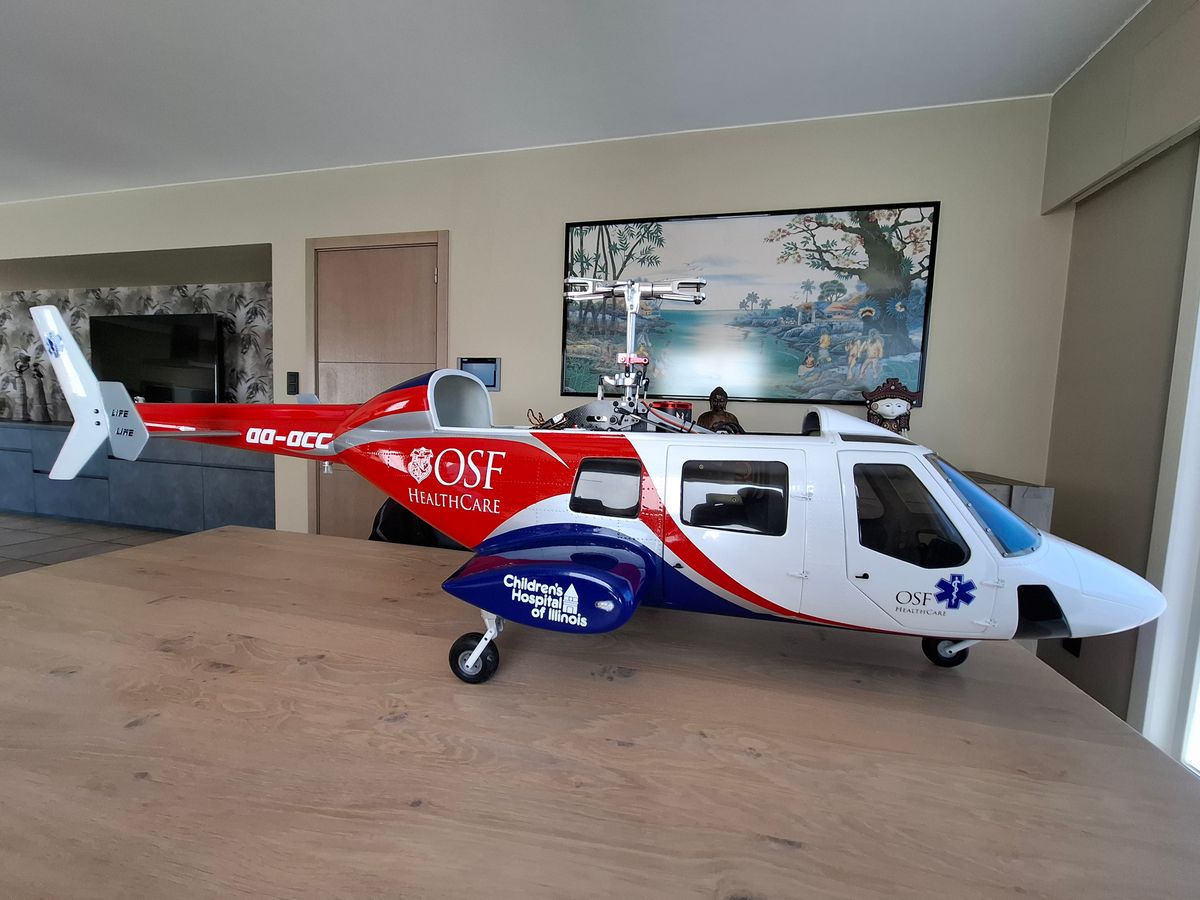

Final assembly Vario Bell 230

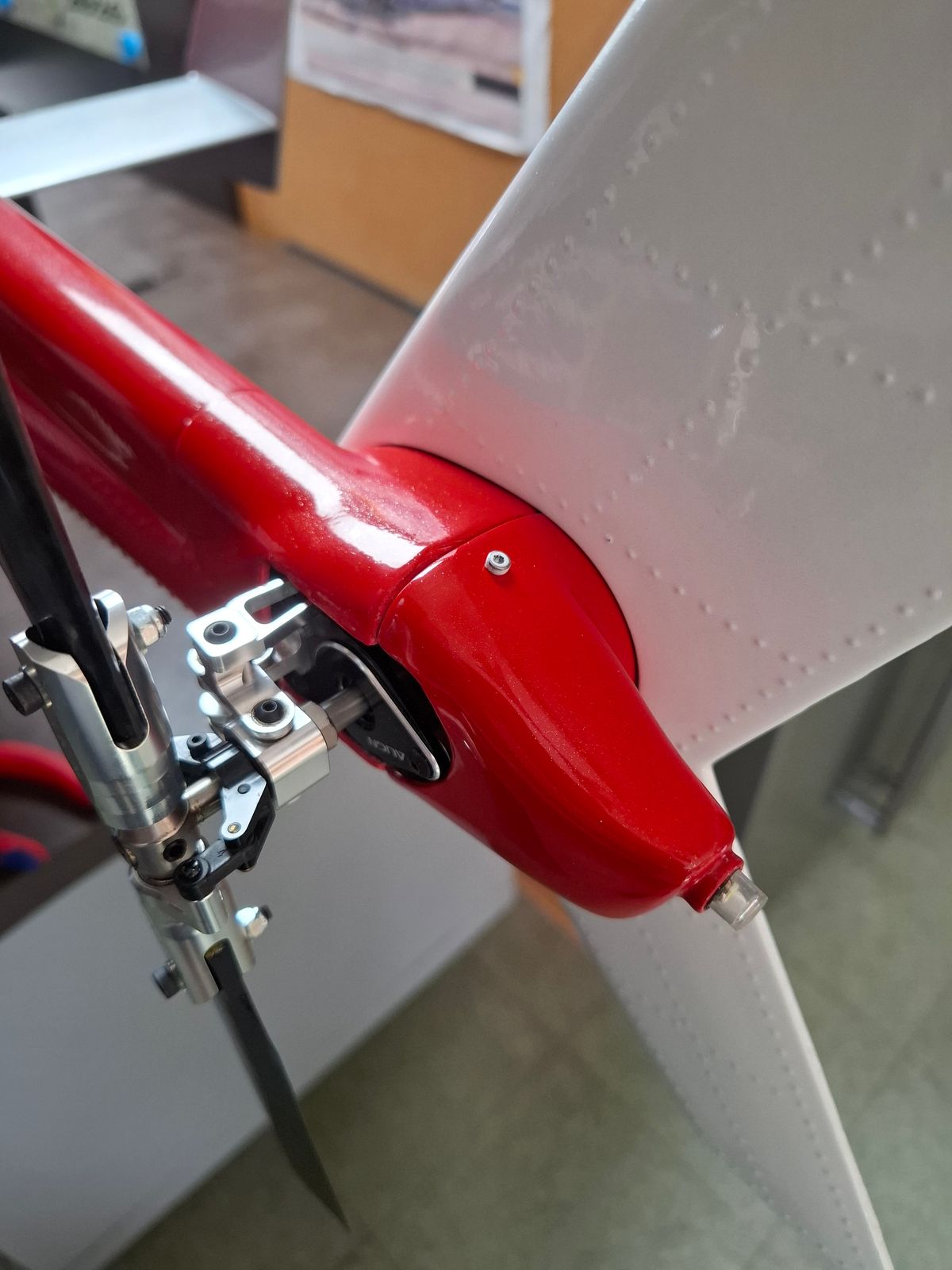

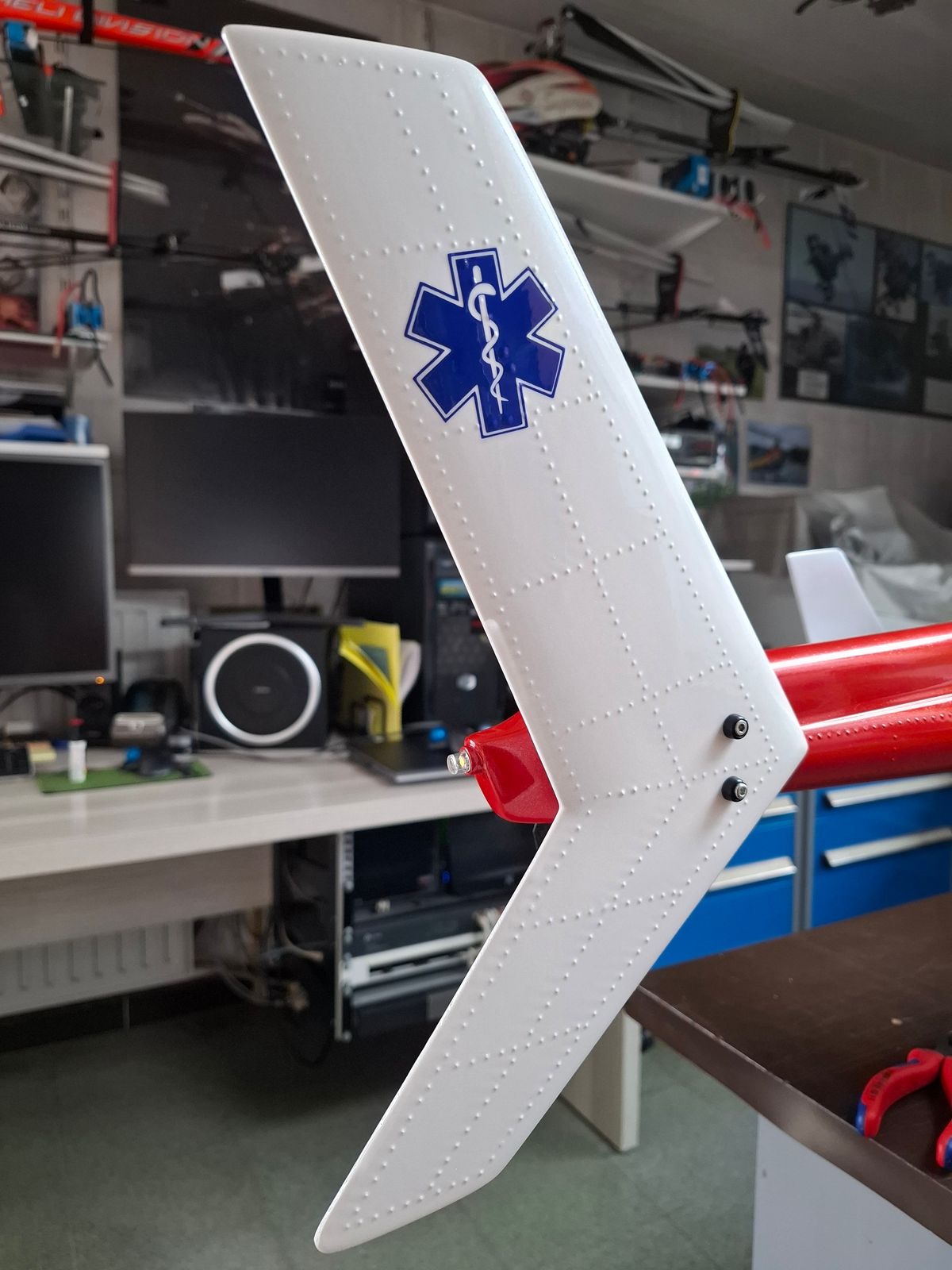

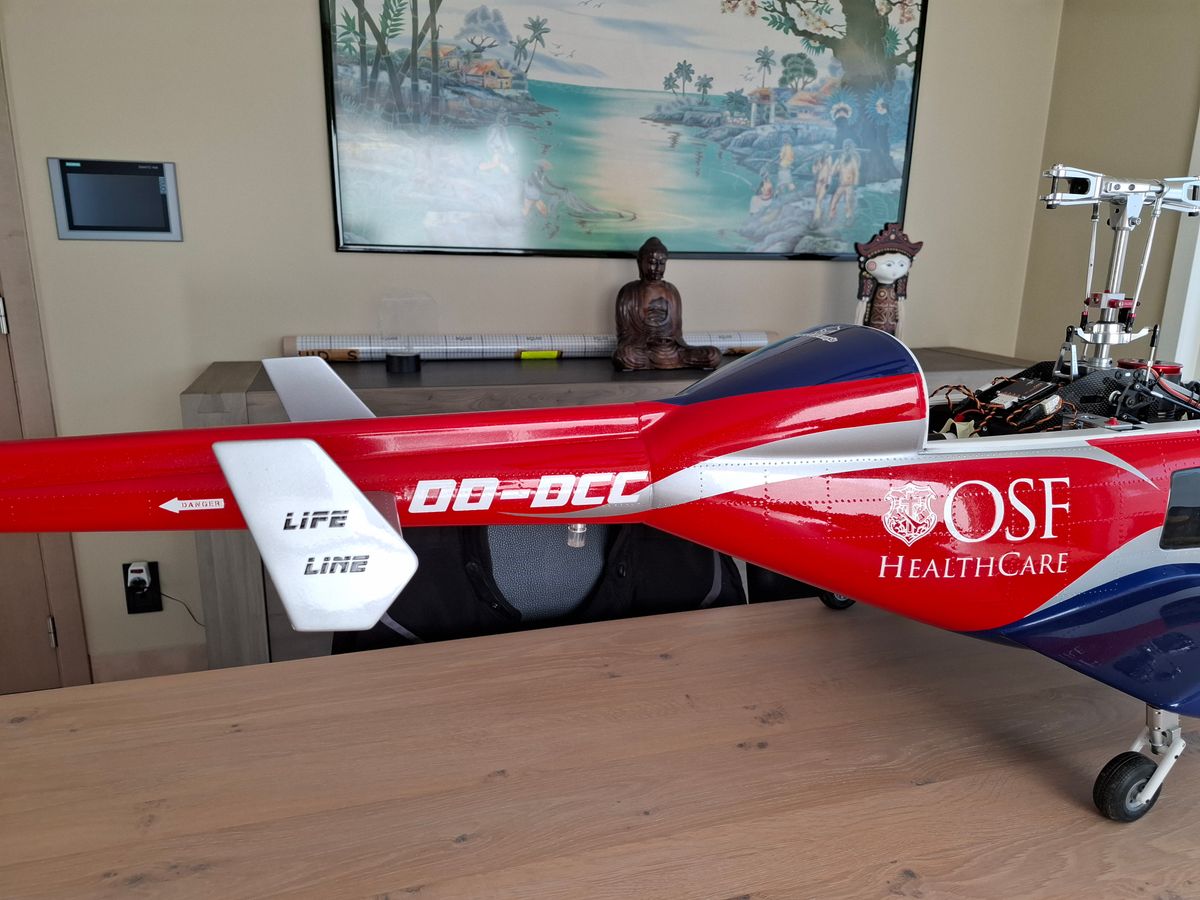

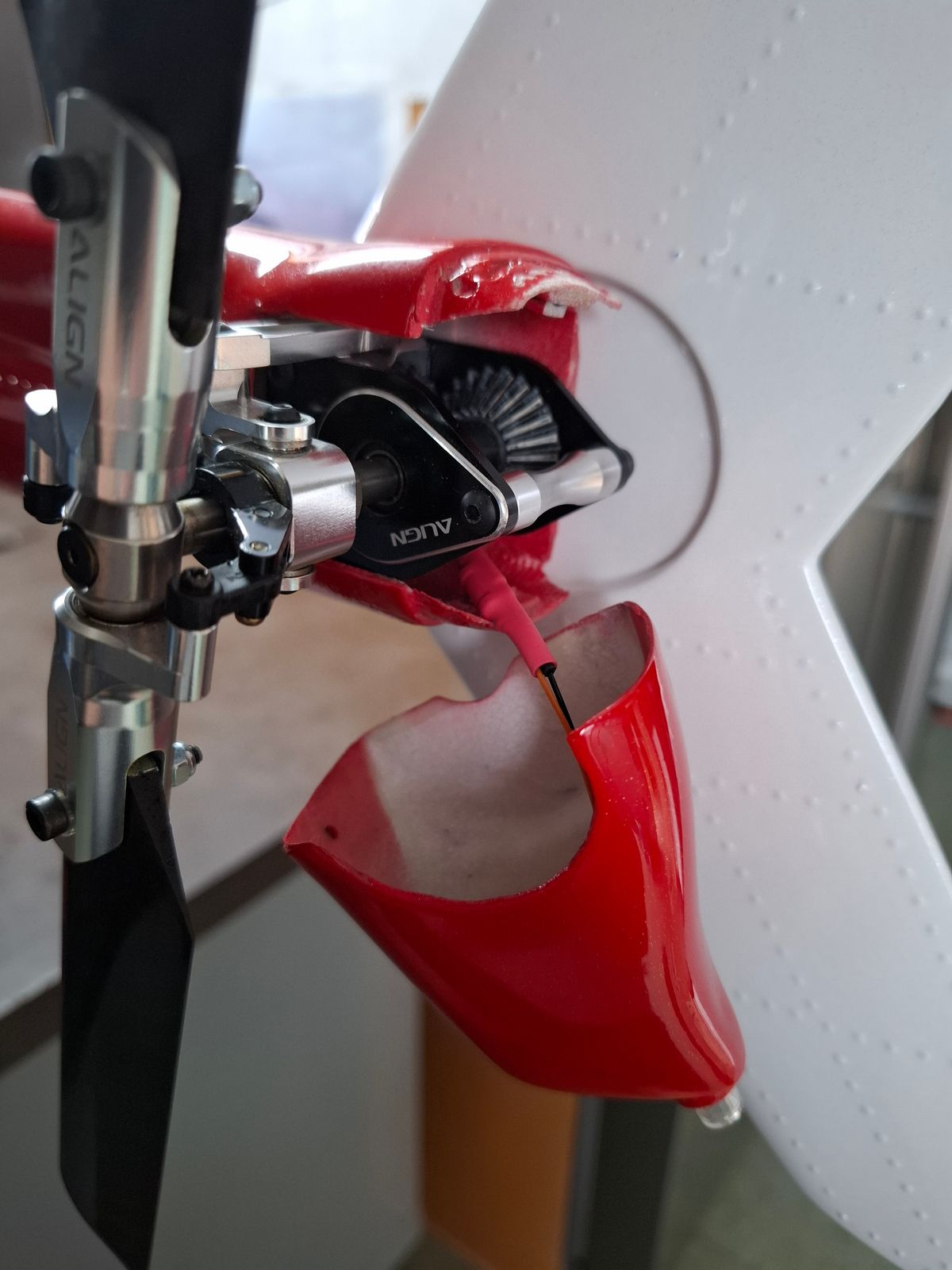

Tail rotor installation

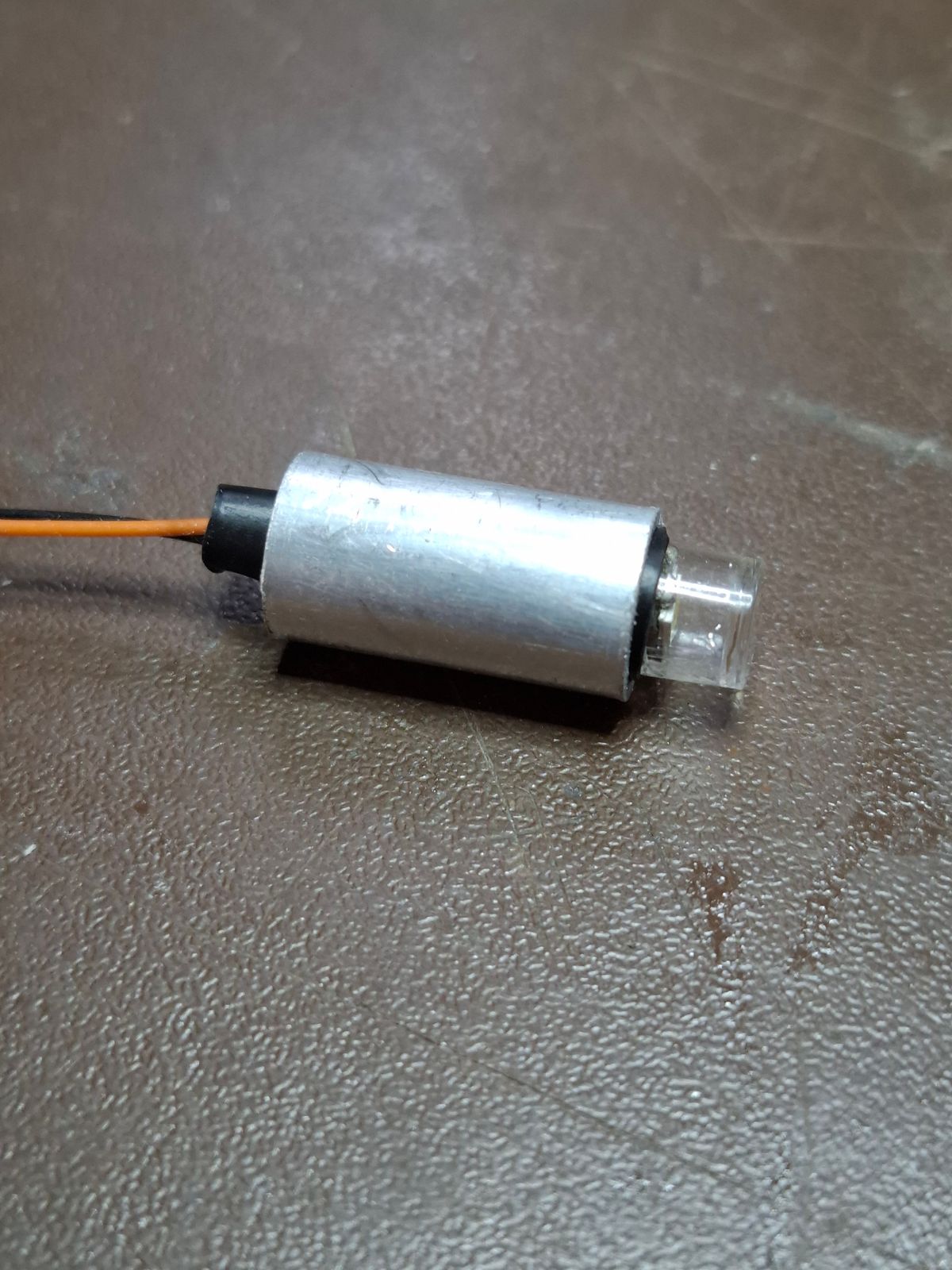

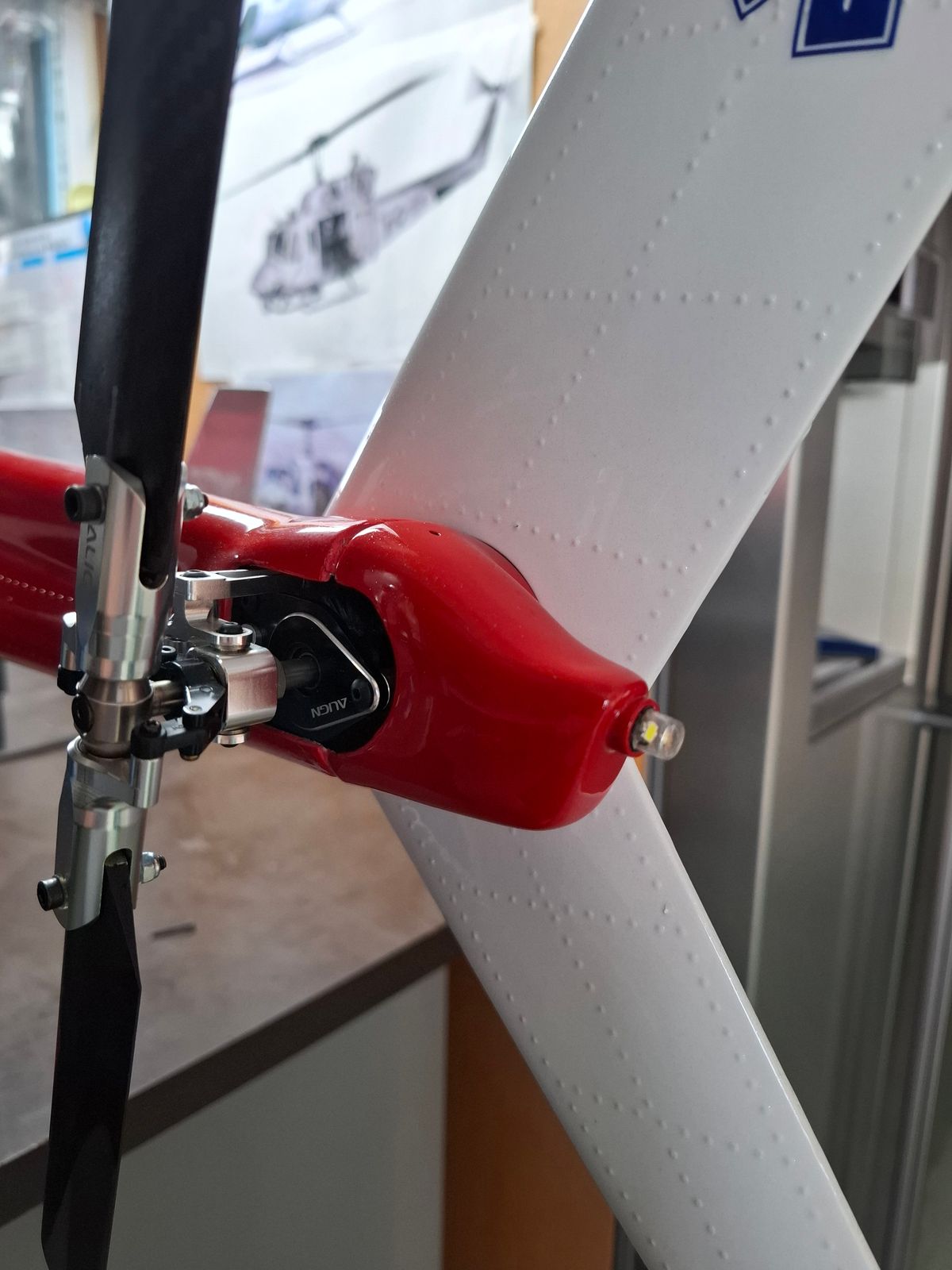

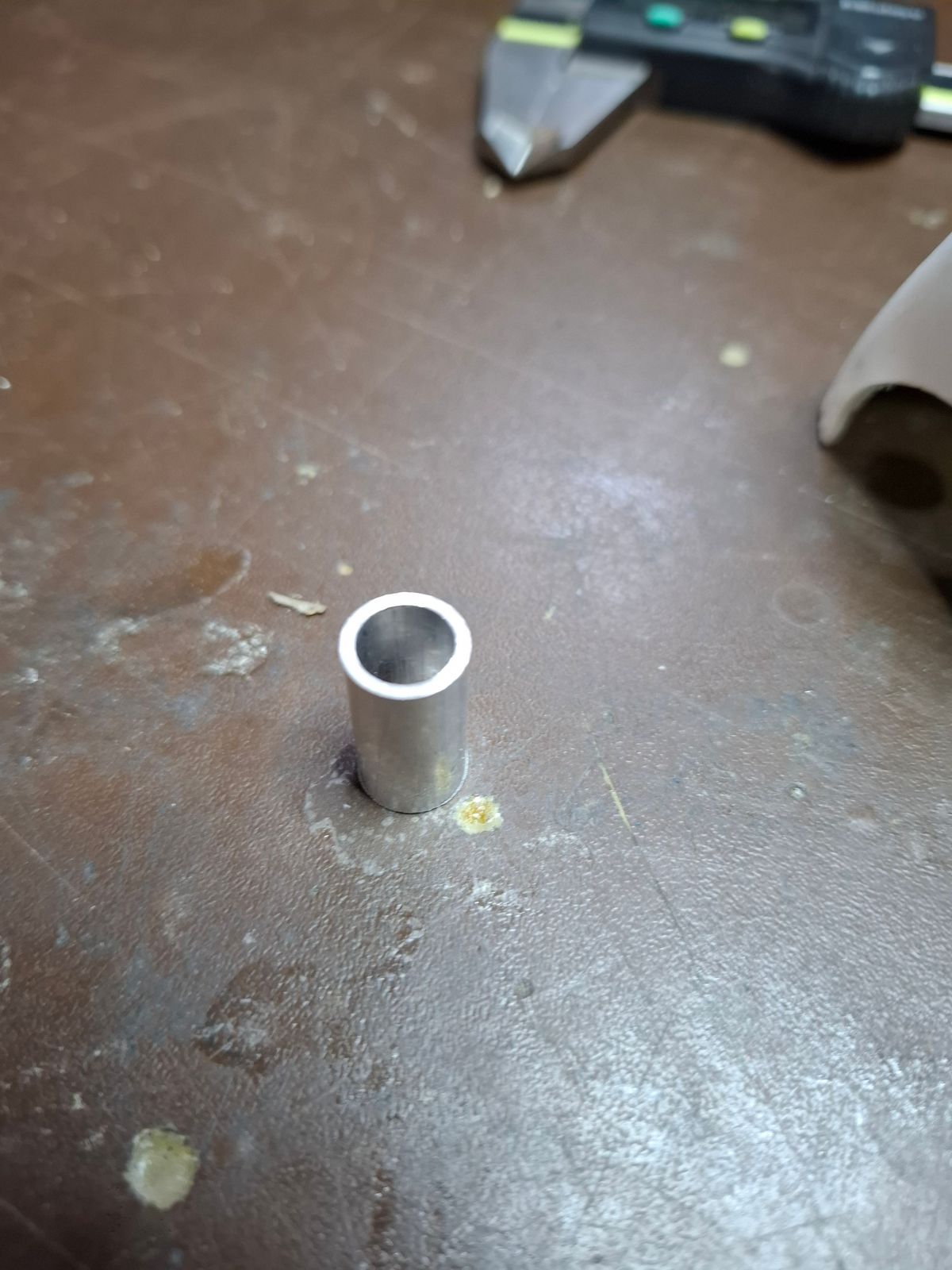

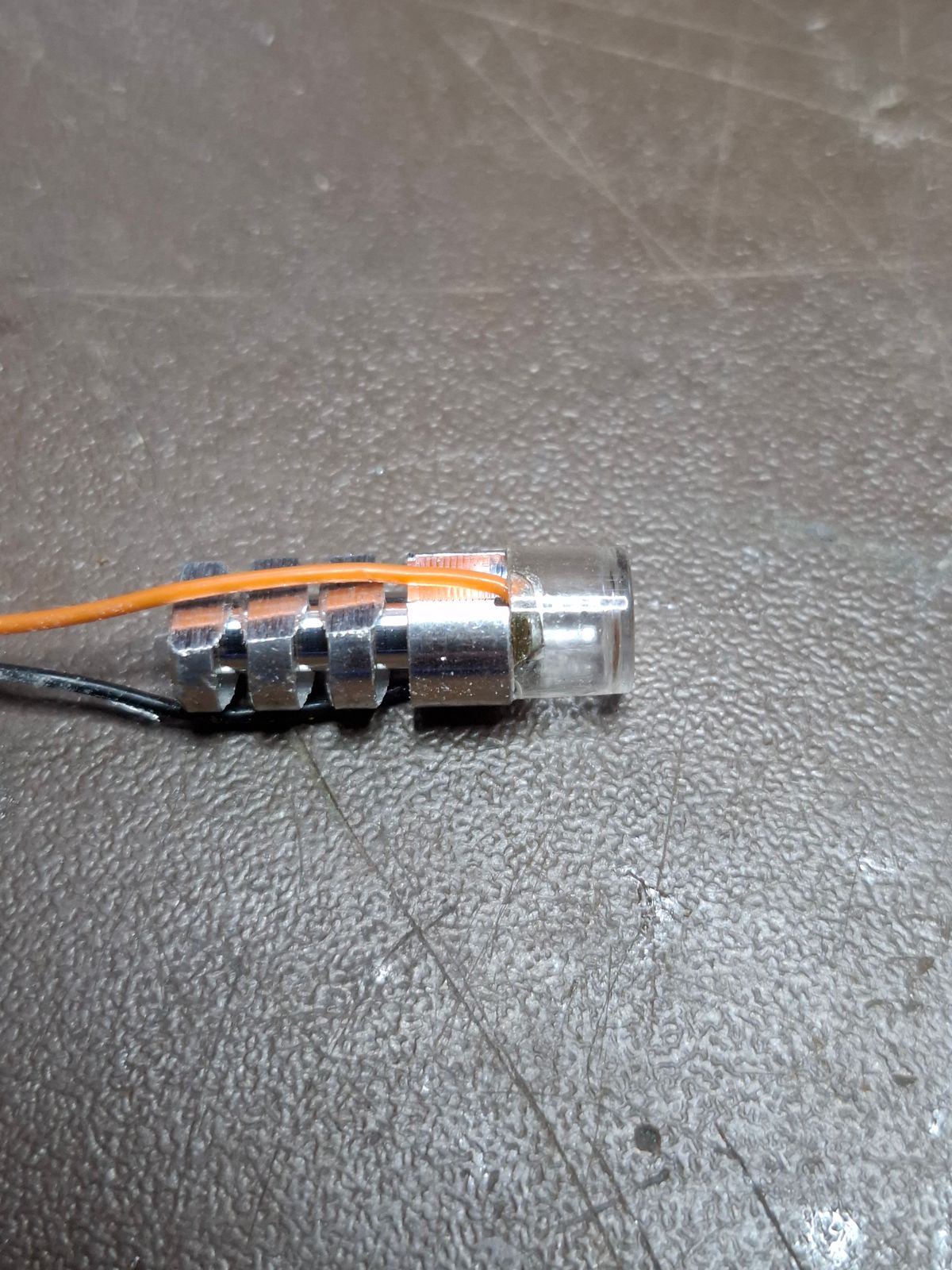

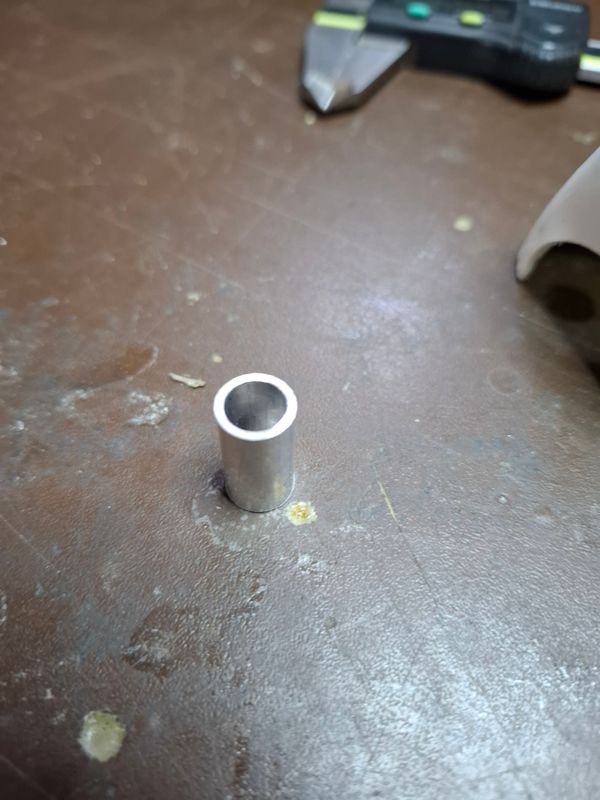

Rear navigation light installed in Alu tube for additional cooling.

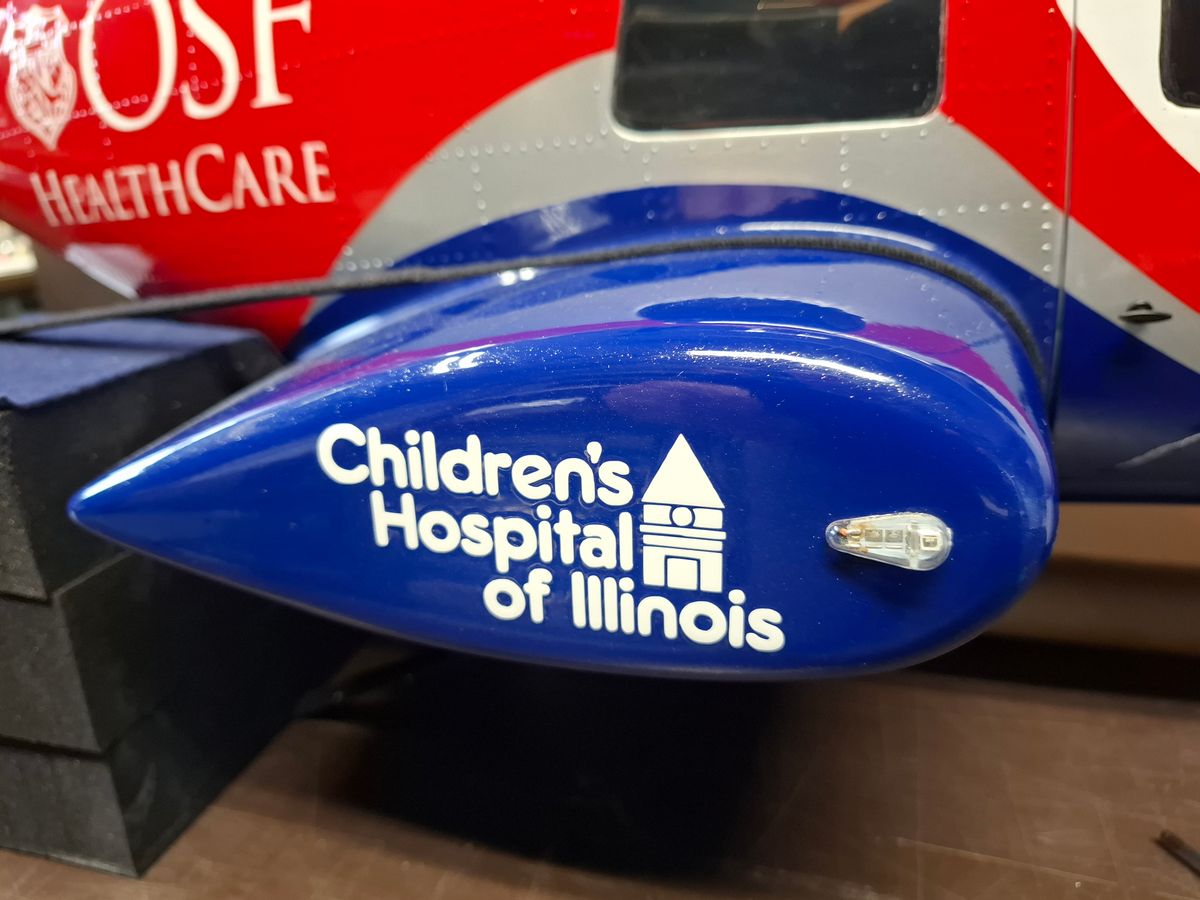

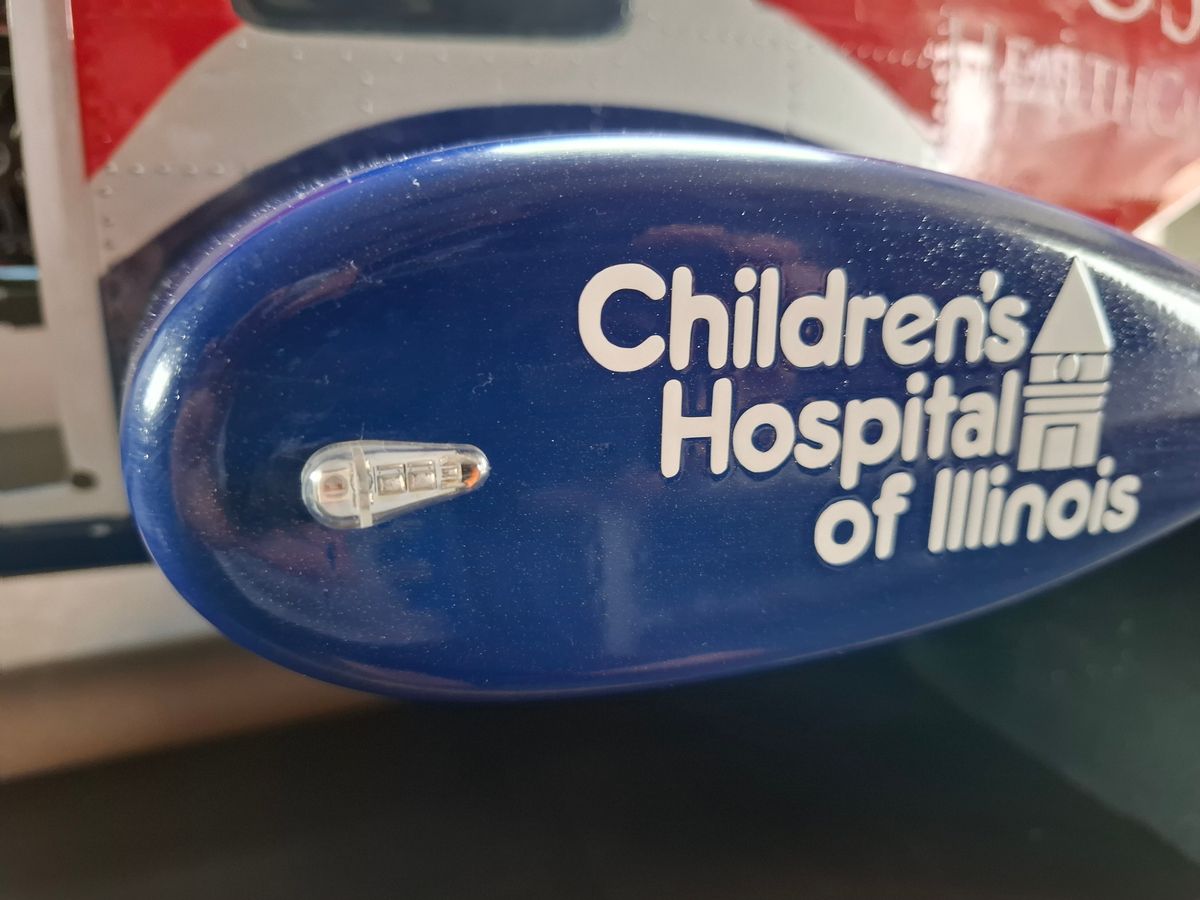

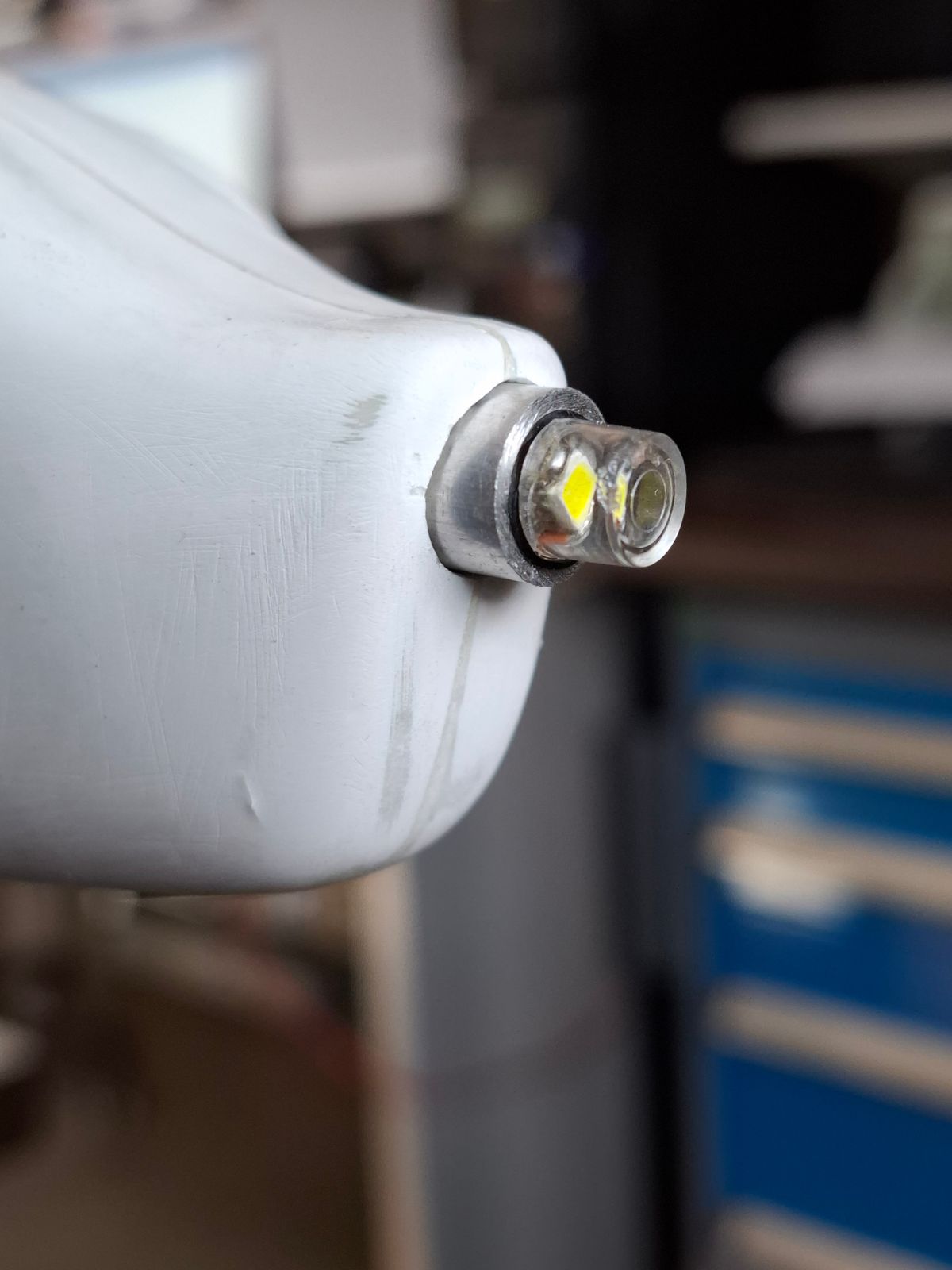

Wing lights.
All navigation light equipment is from Unilight Austria

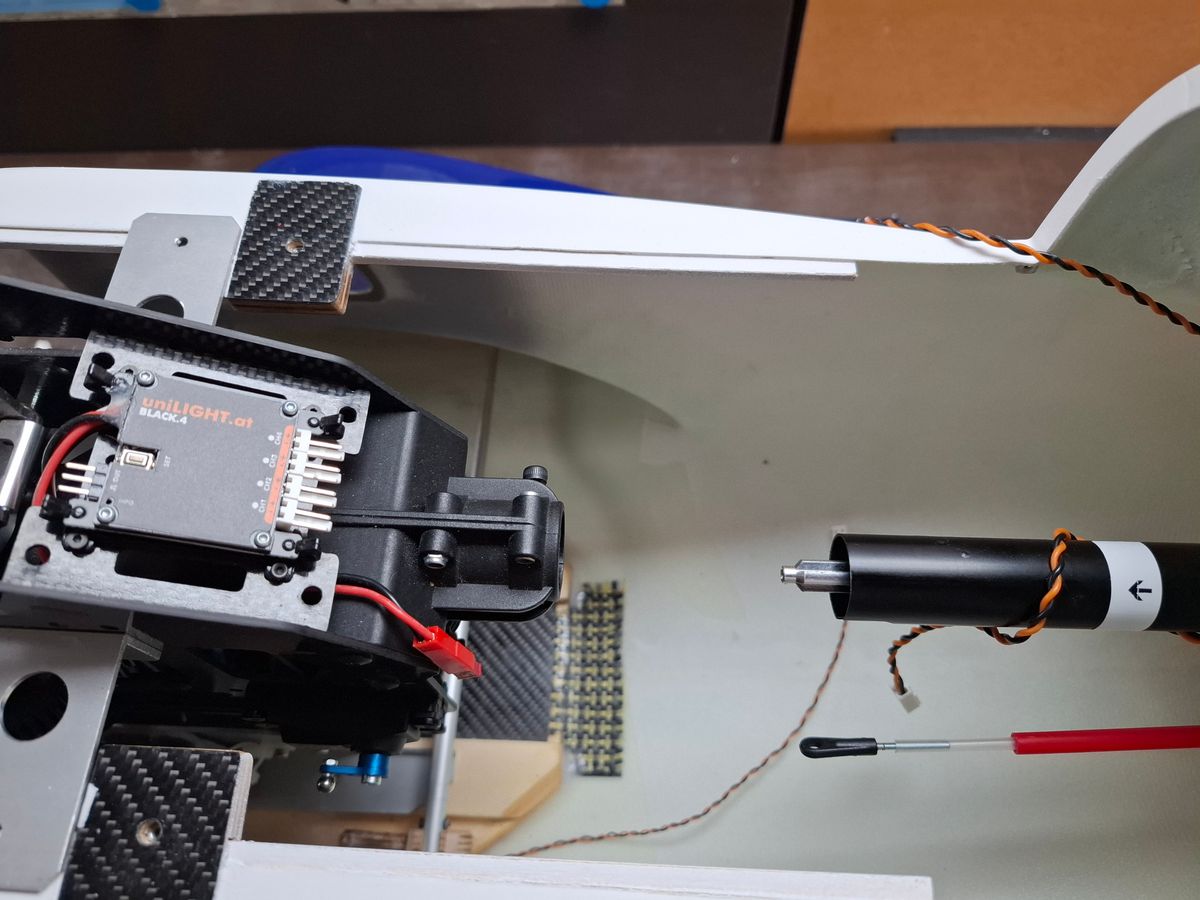

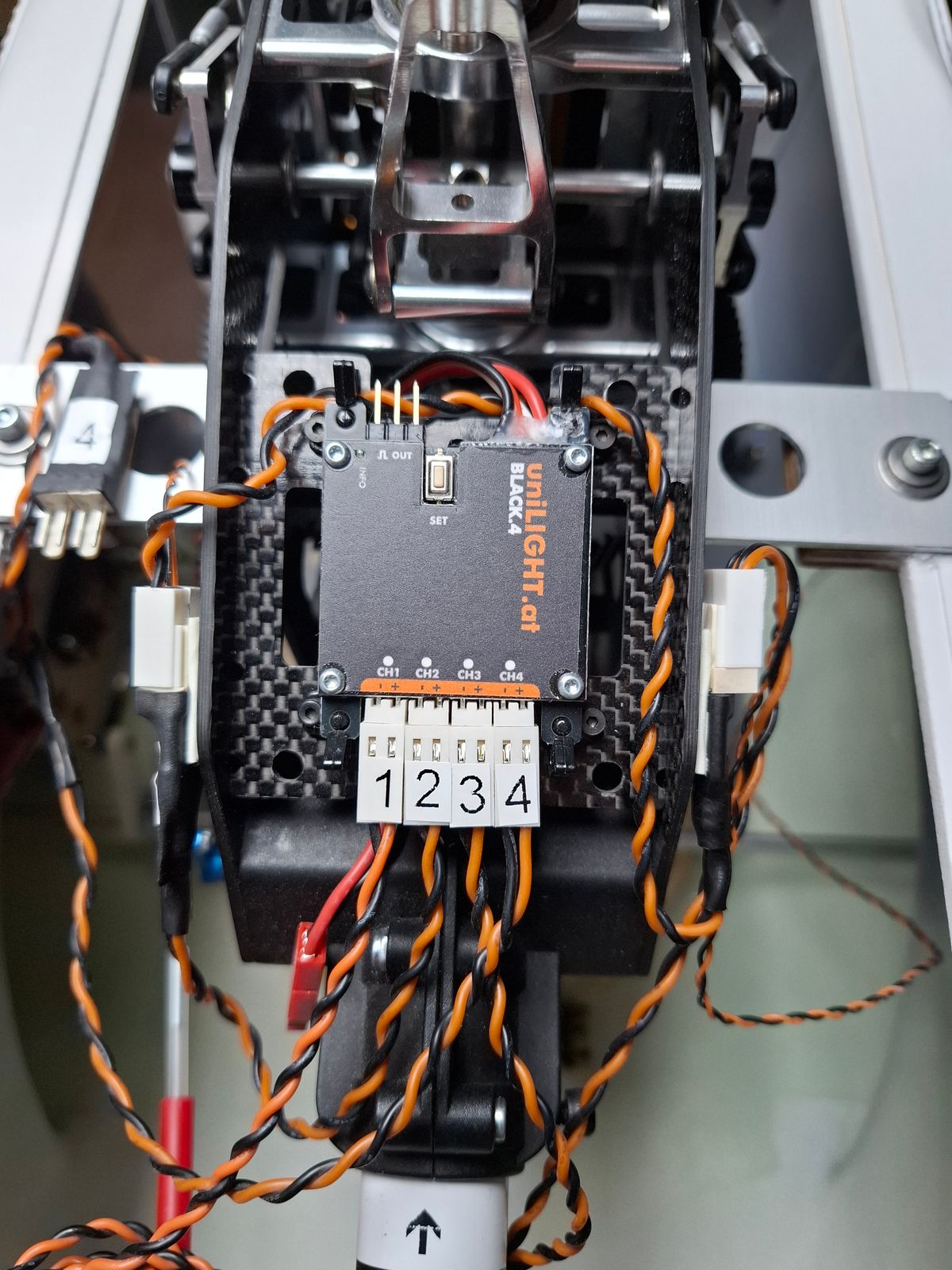

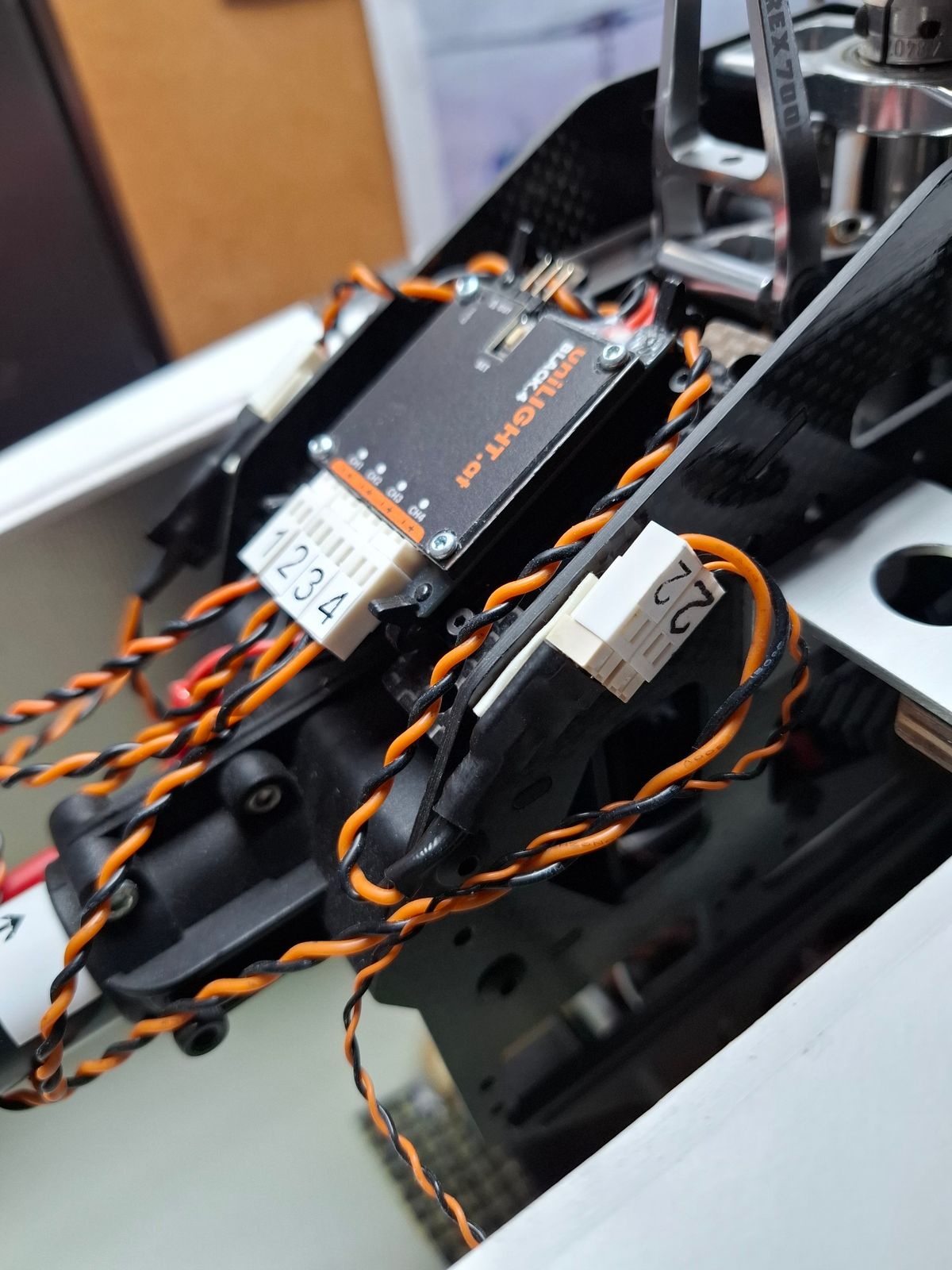

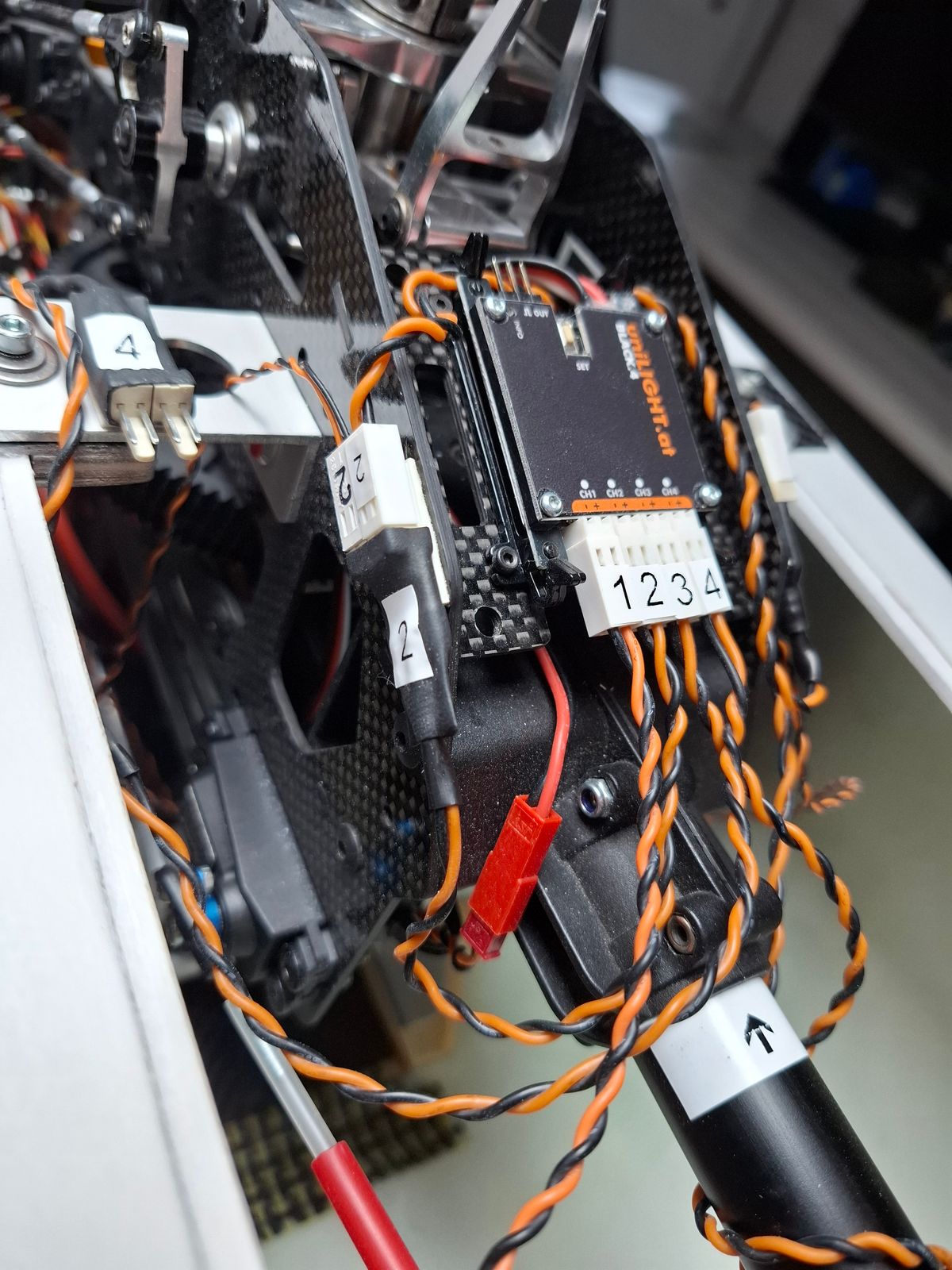

Navigation light controller and channel wiring.

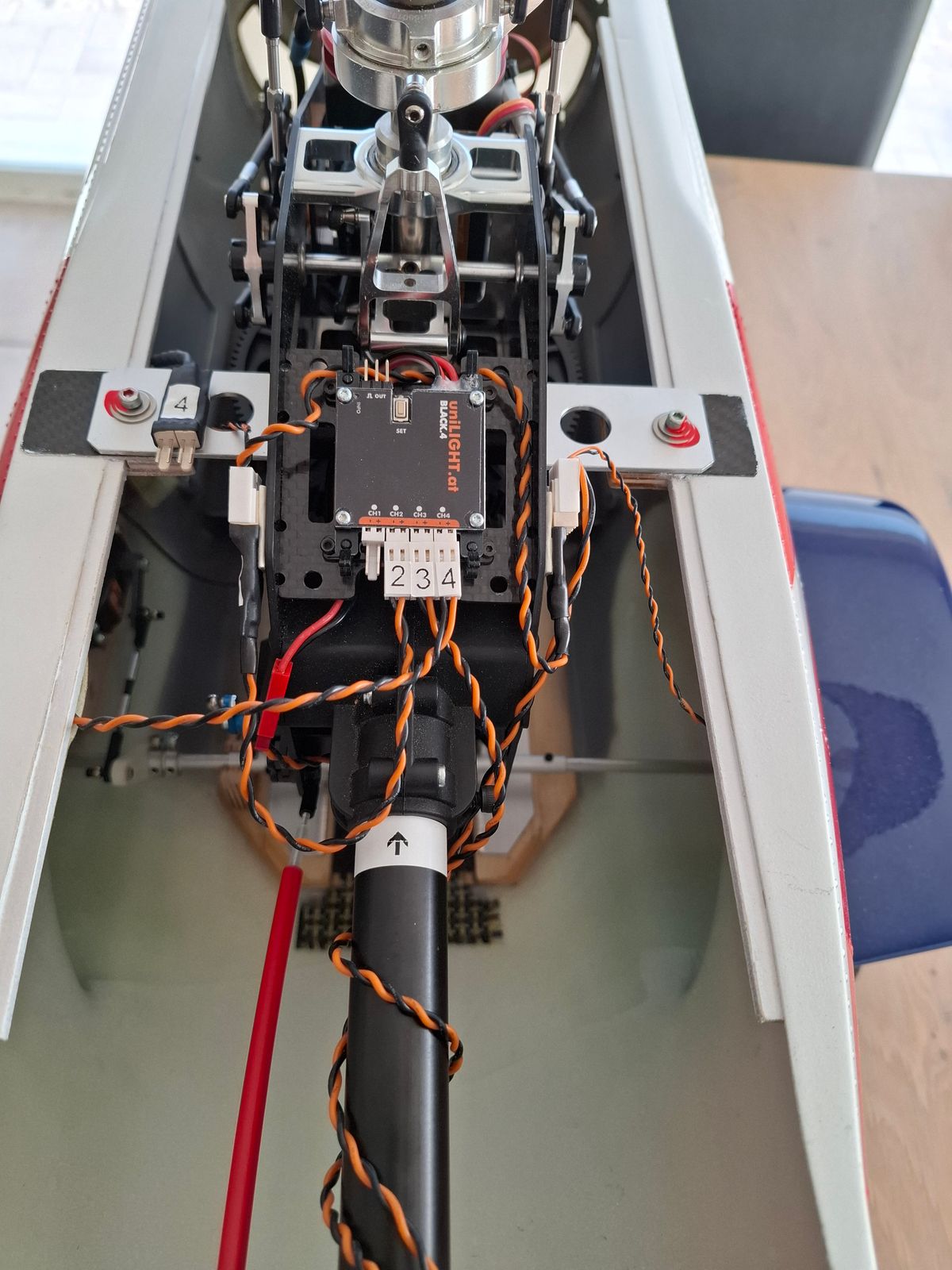

All wiring and controller unit attached to the base frame, so it comes with the mechanics in case of disassembly.
7 navigation leds on 4 channels, so some channels serve multiple leds.

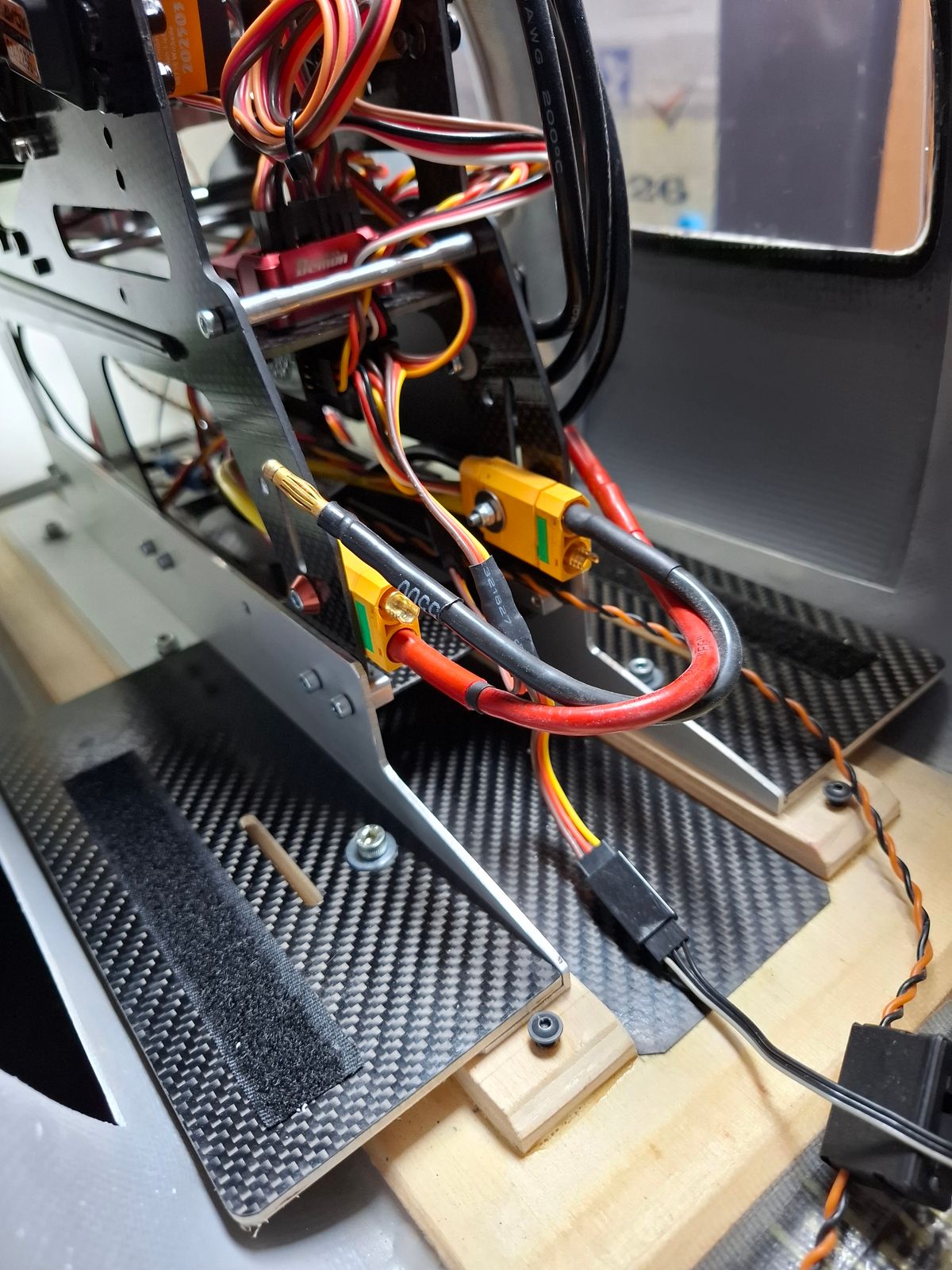

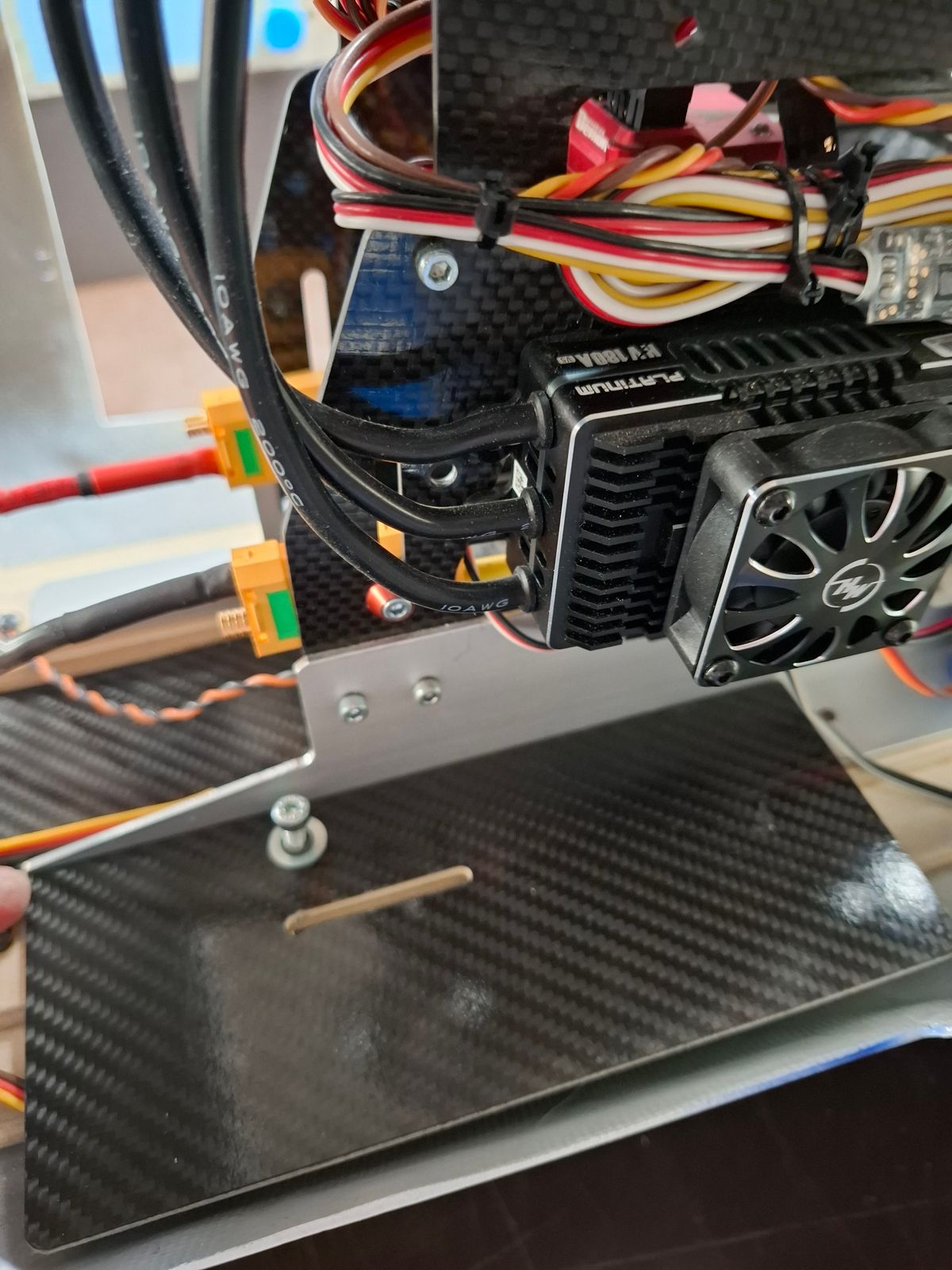

Slots milled in the CF battery plates for easy Velcro strap fixation

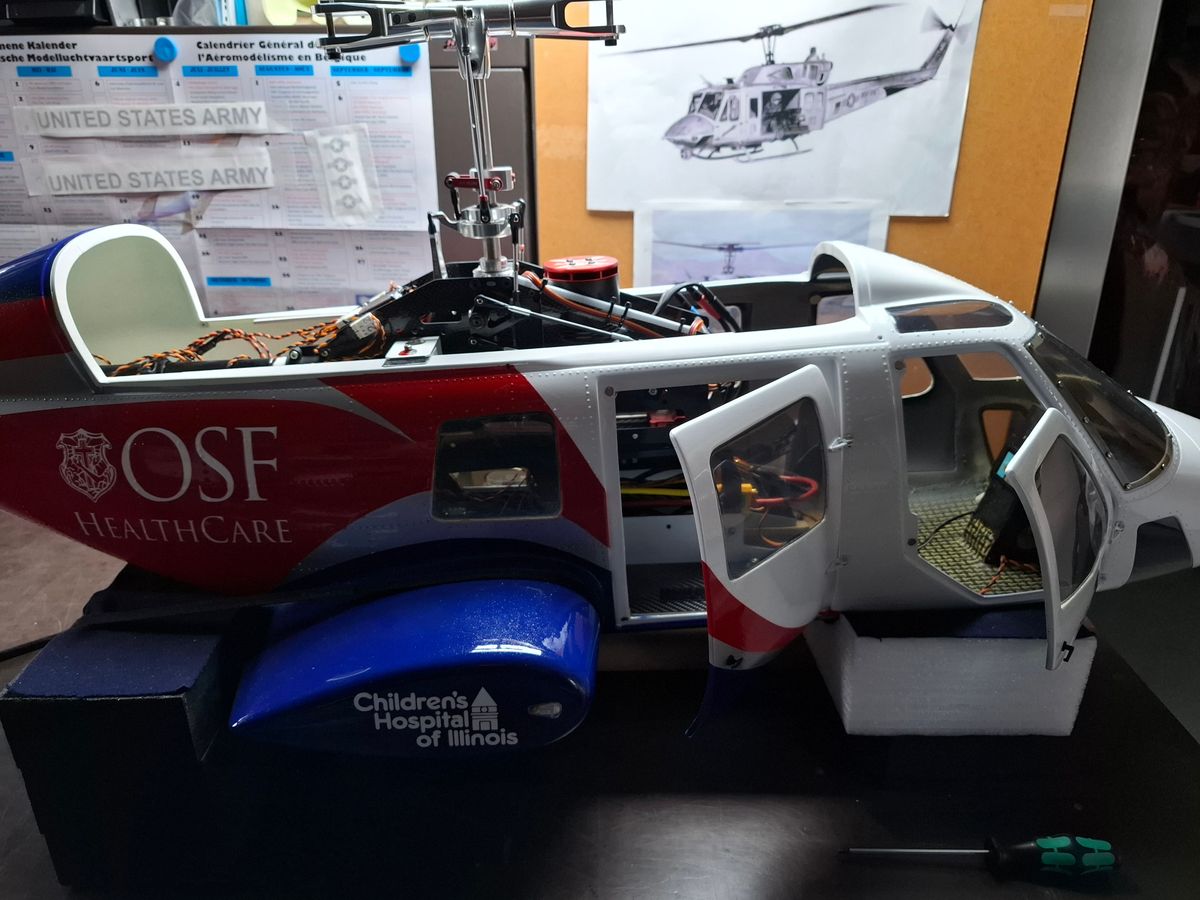

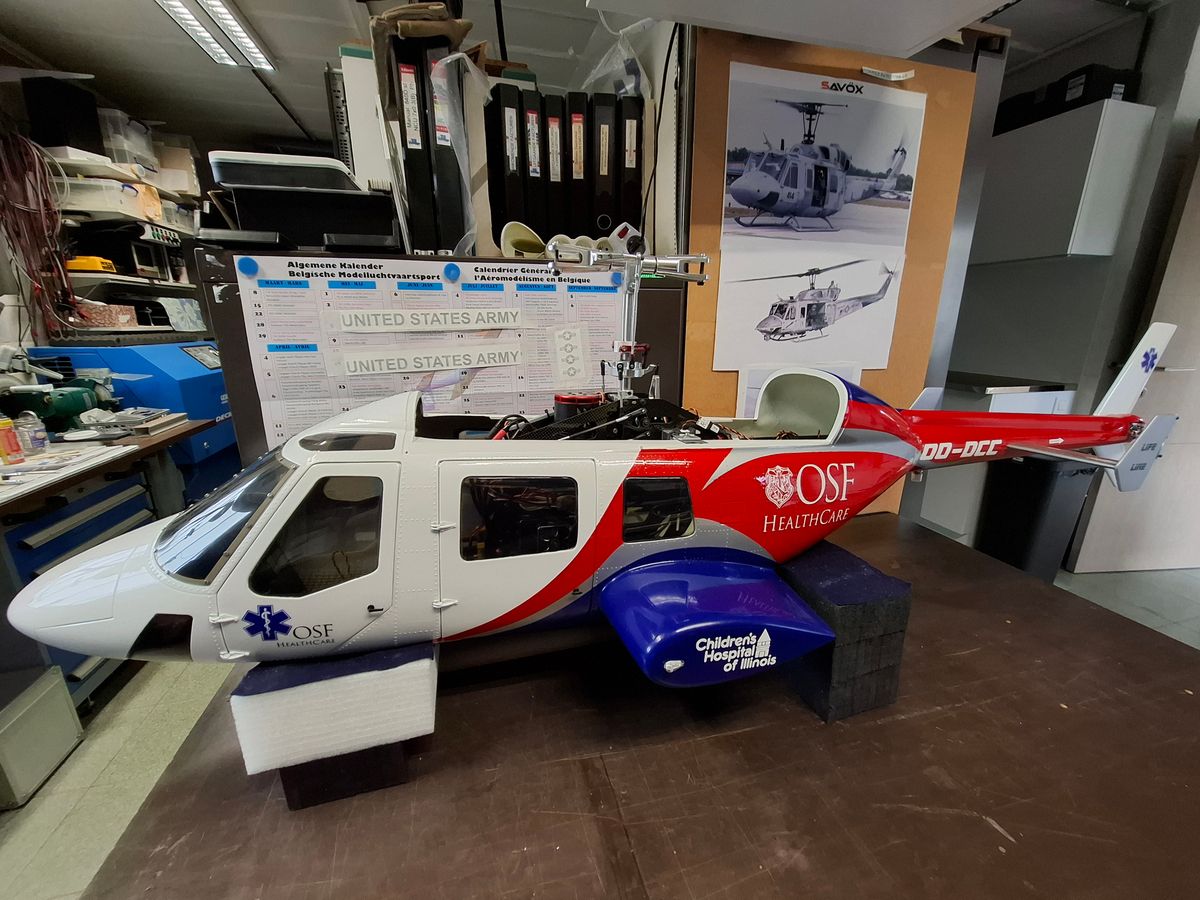

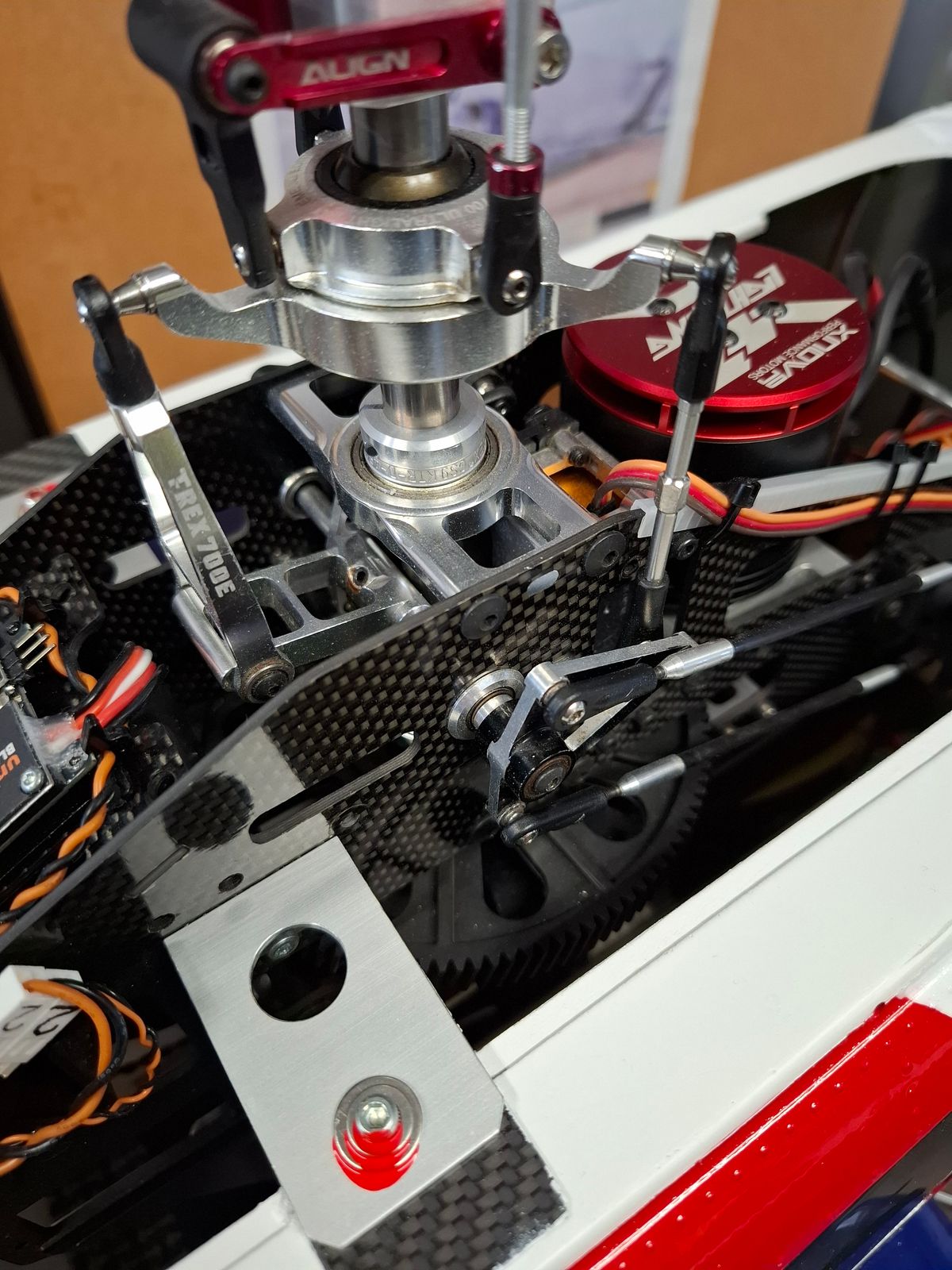

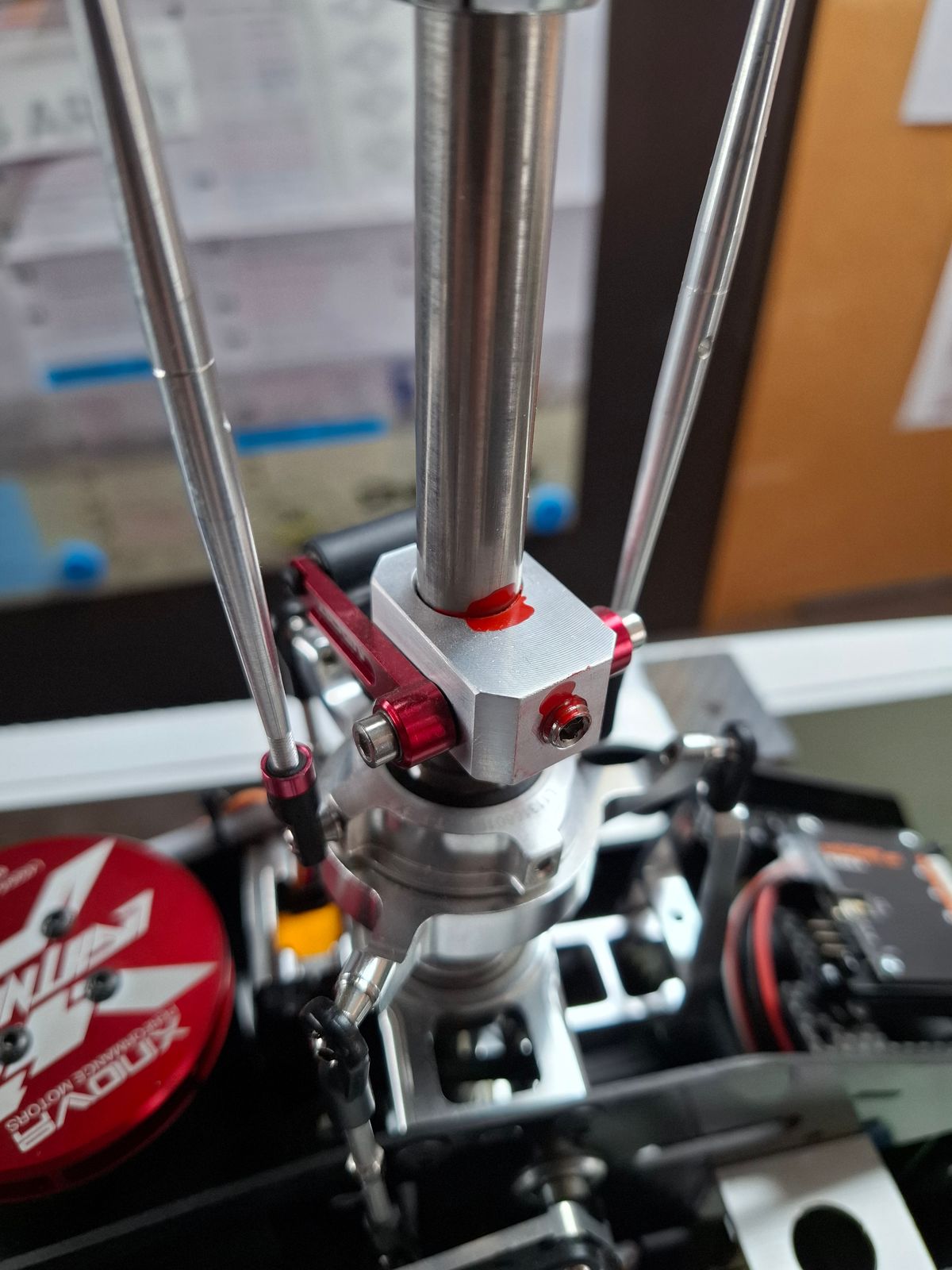

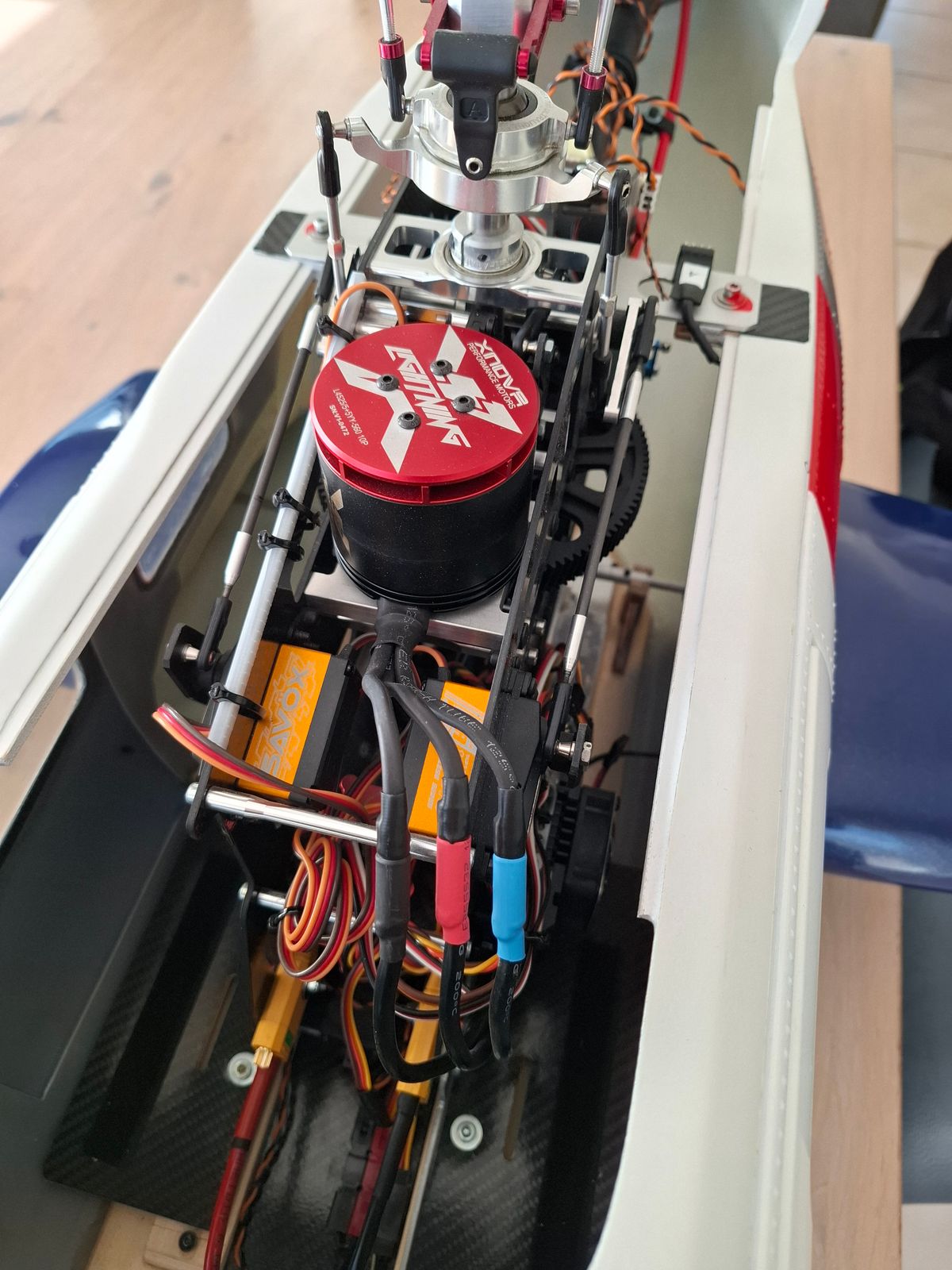

Installing mechanics

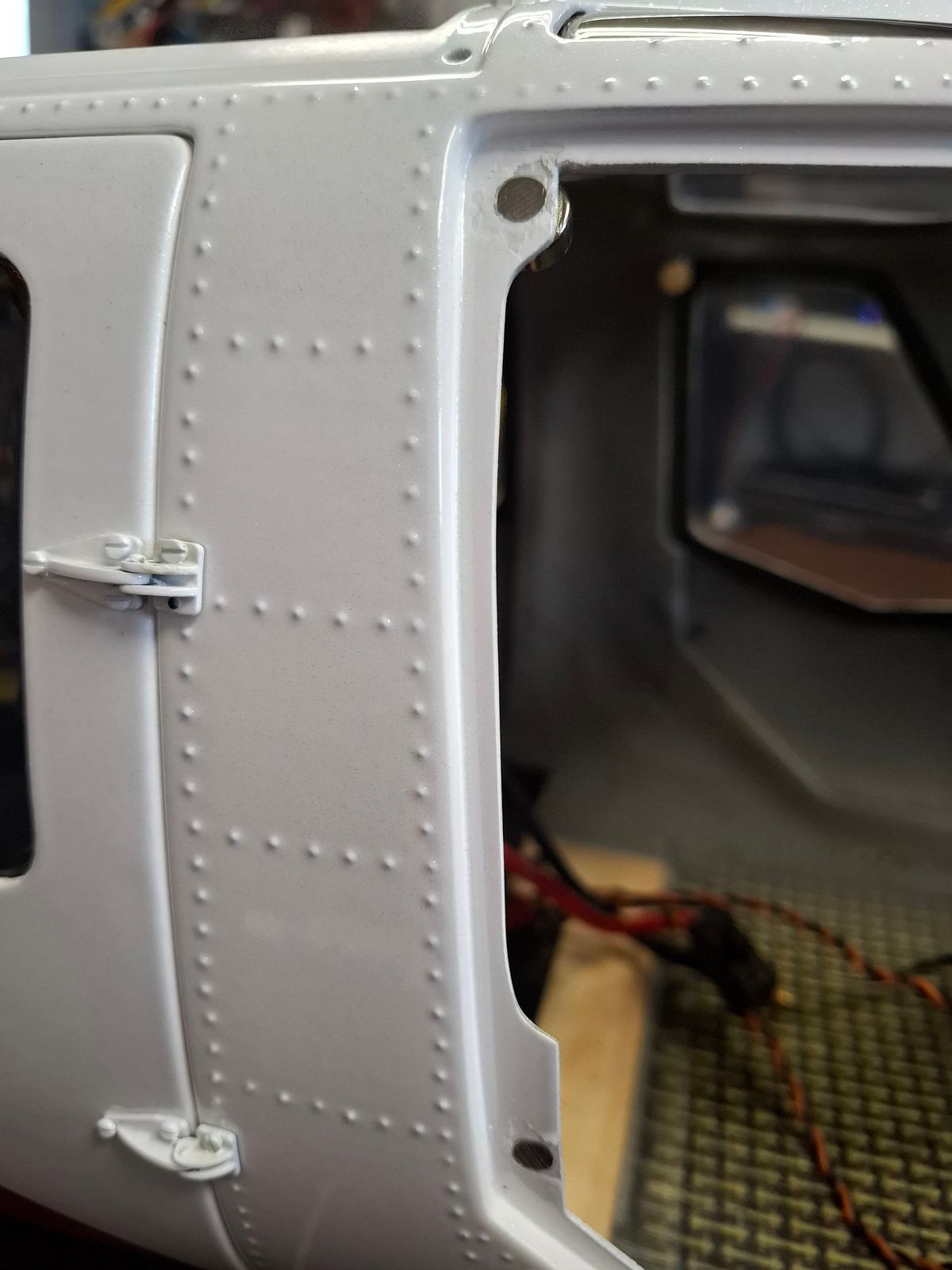

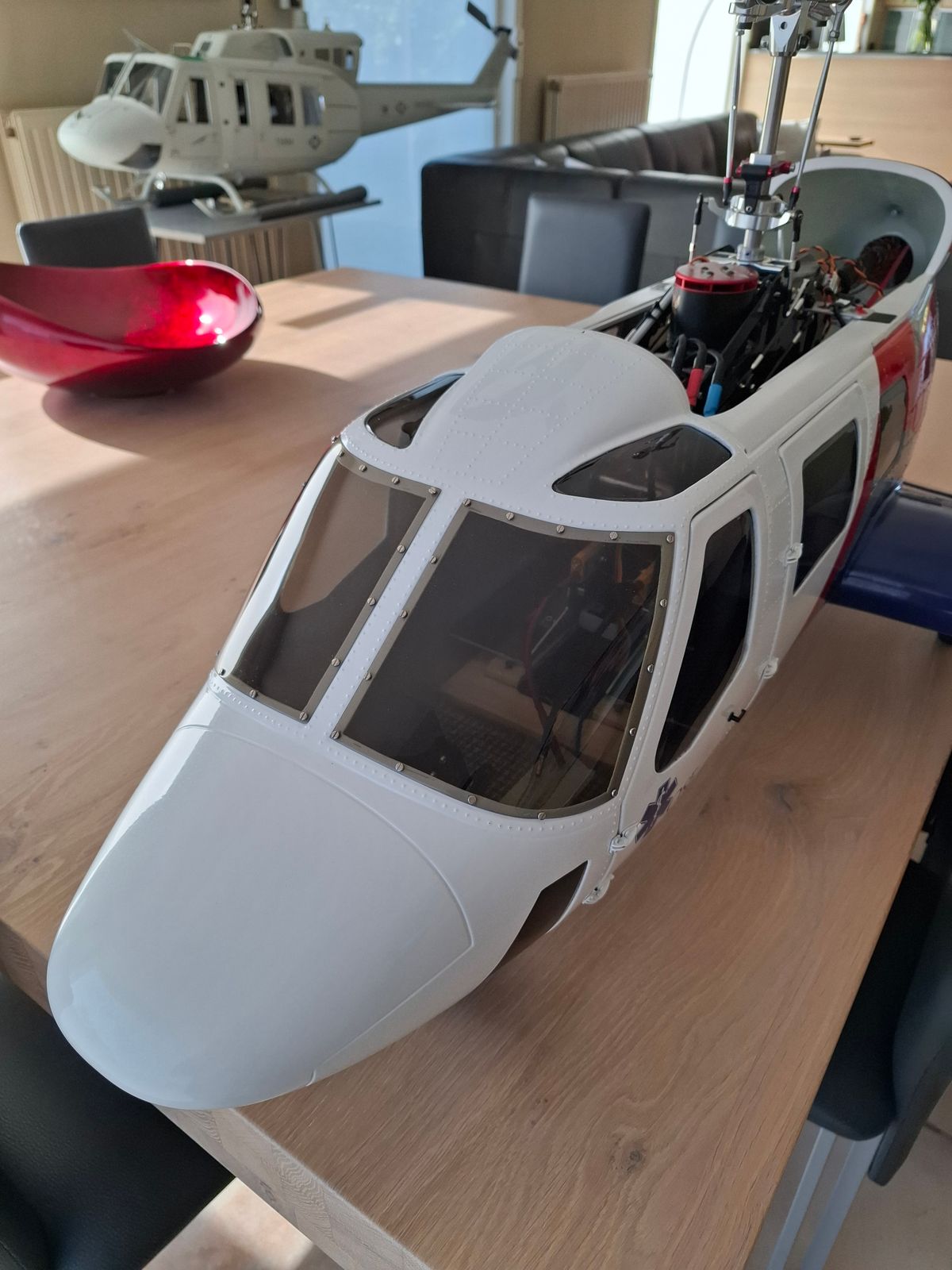

Fixation windows (Metrical 1.5mm screws)

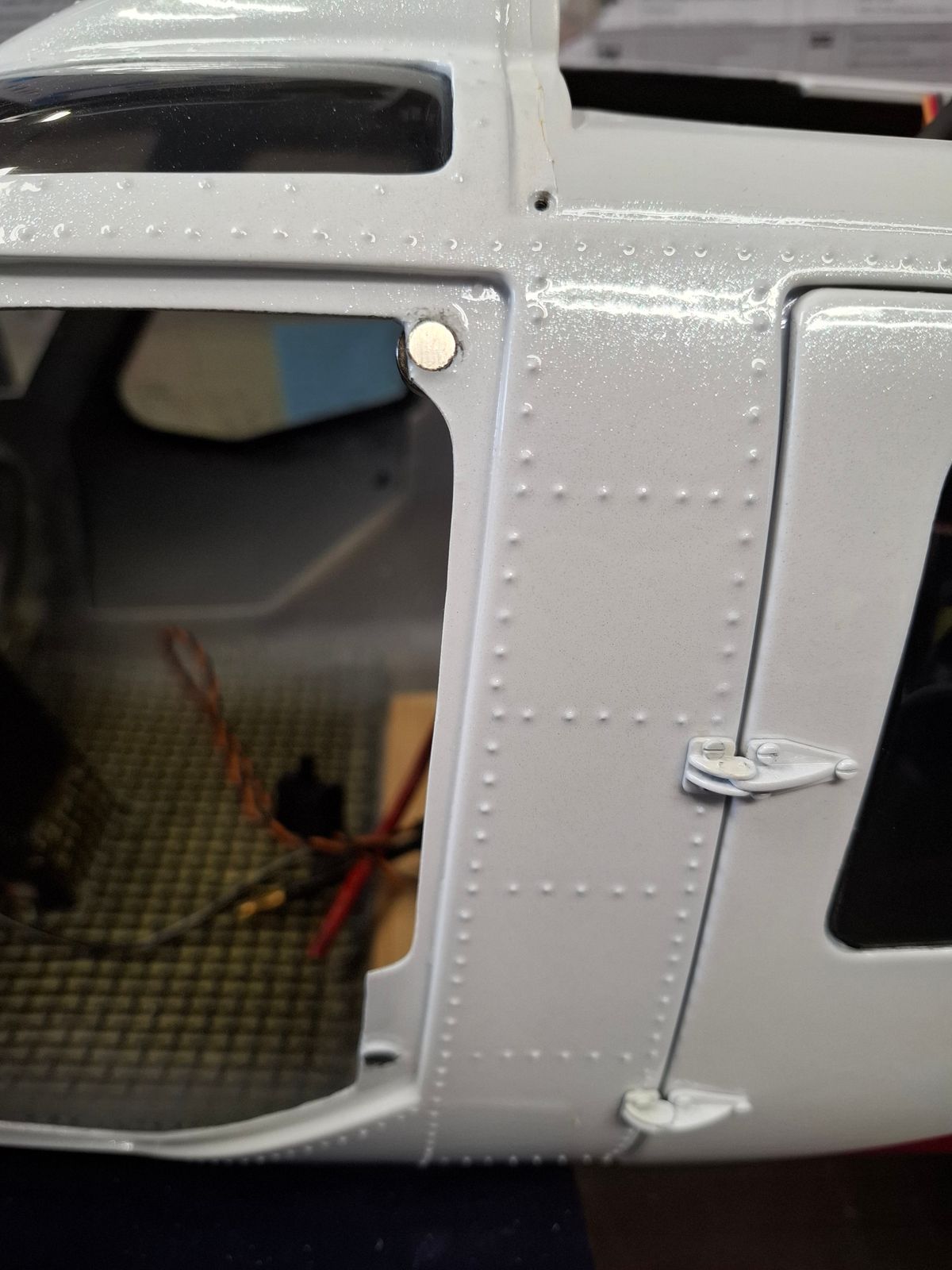

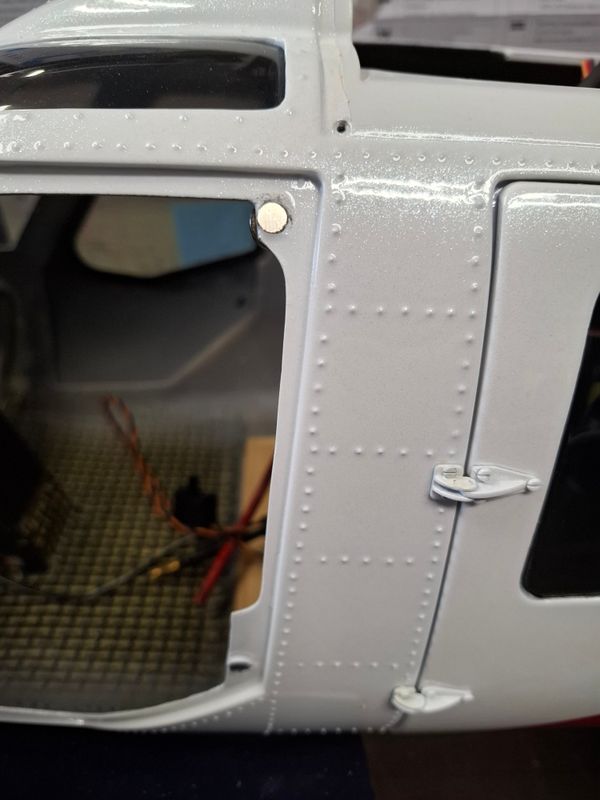

Assembly and fixation of the doors.
Final wiring and adjustment speed behavior retracts.

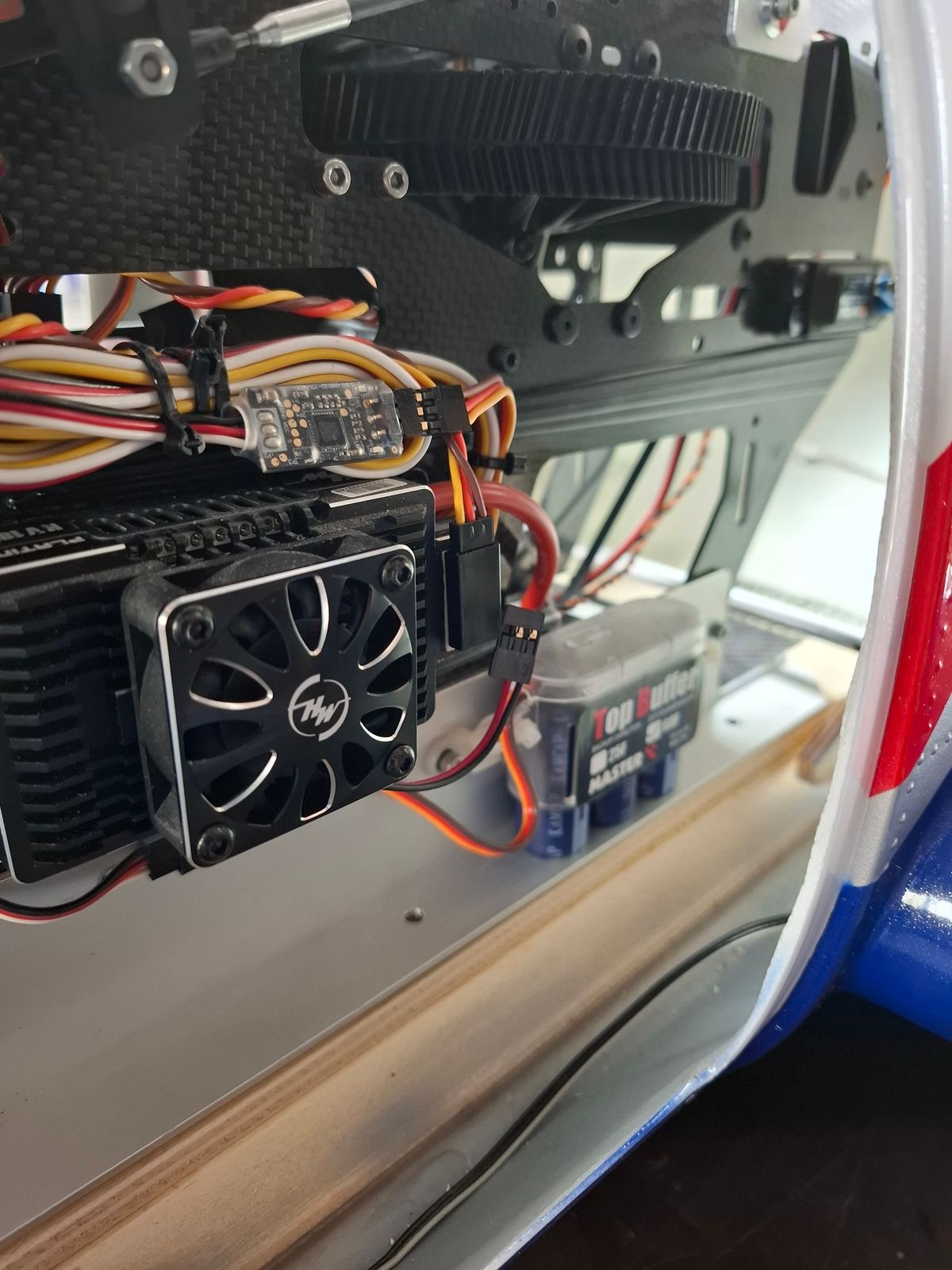

Installing capacitor backup system.
