Build Story

Funkey AS350 - Story

Chapter 4 of 8

Fitting the mechanic inside the fuselage

Nov 24, 2021

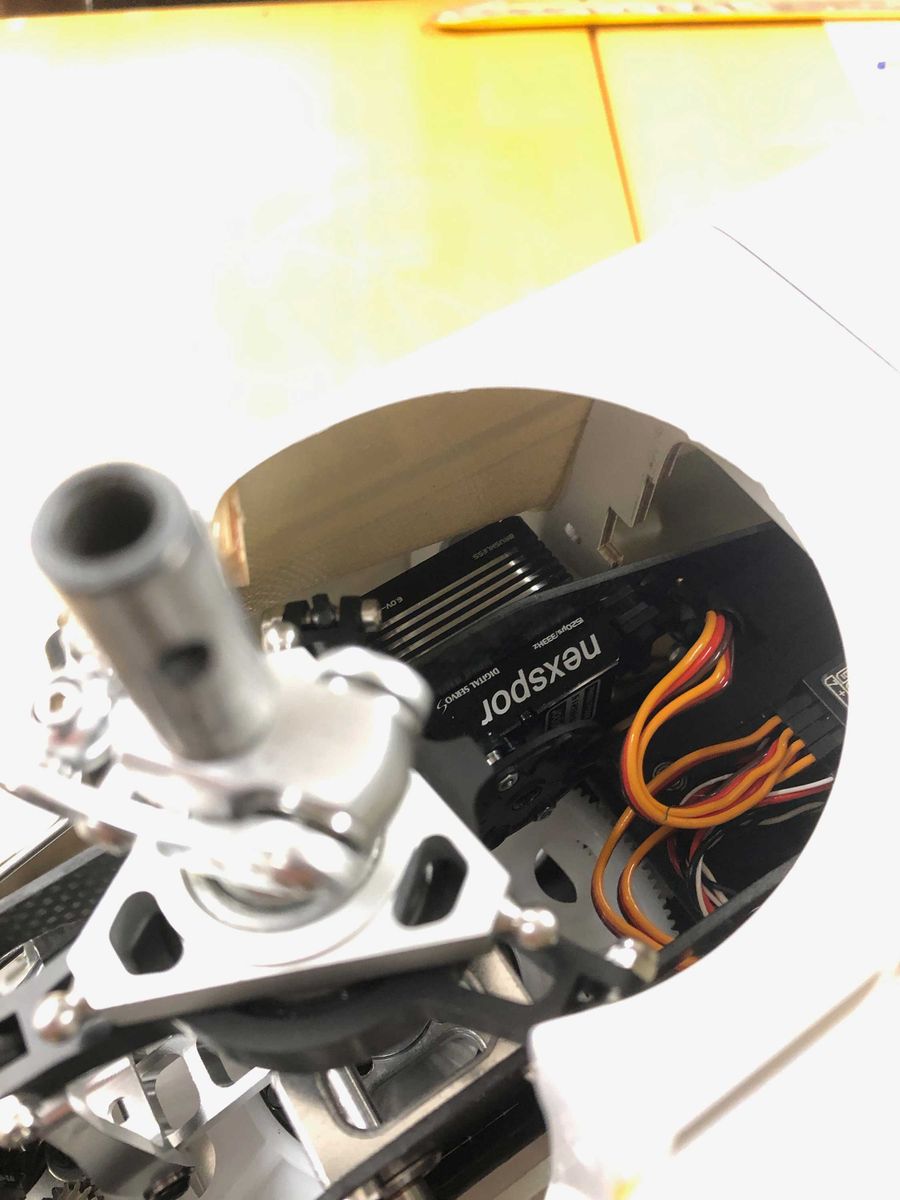

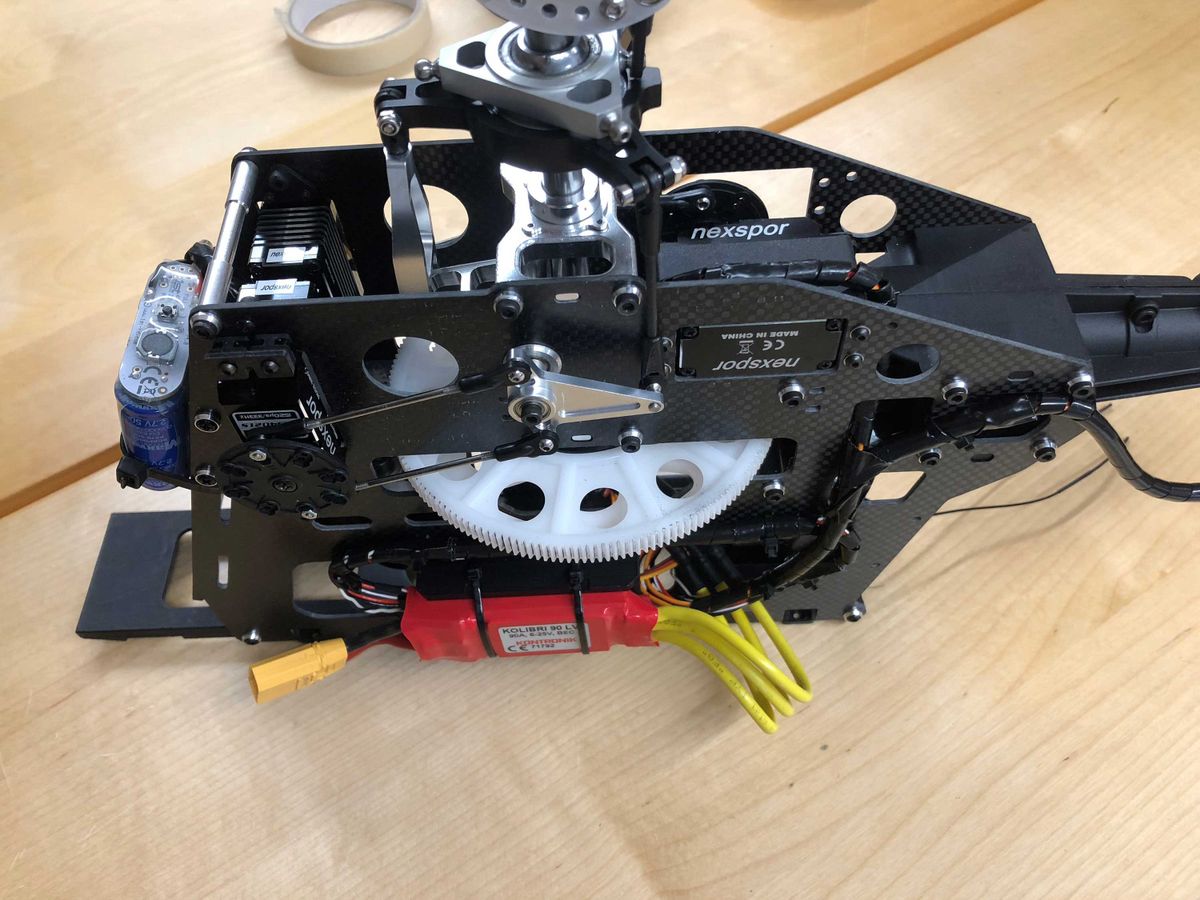

First thing I noticed: I had to move one servo to the inside of the mechanic.

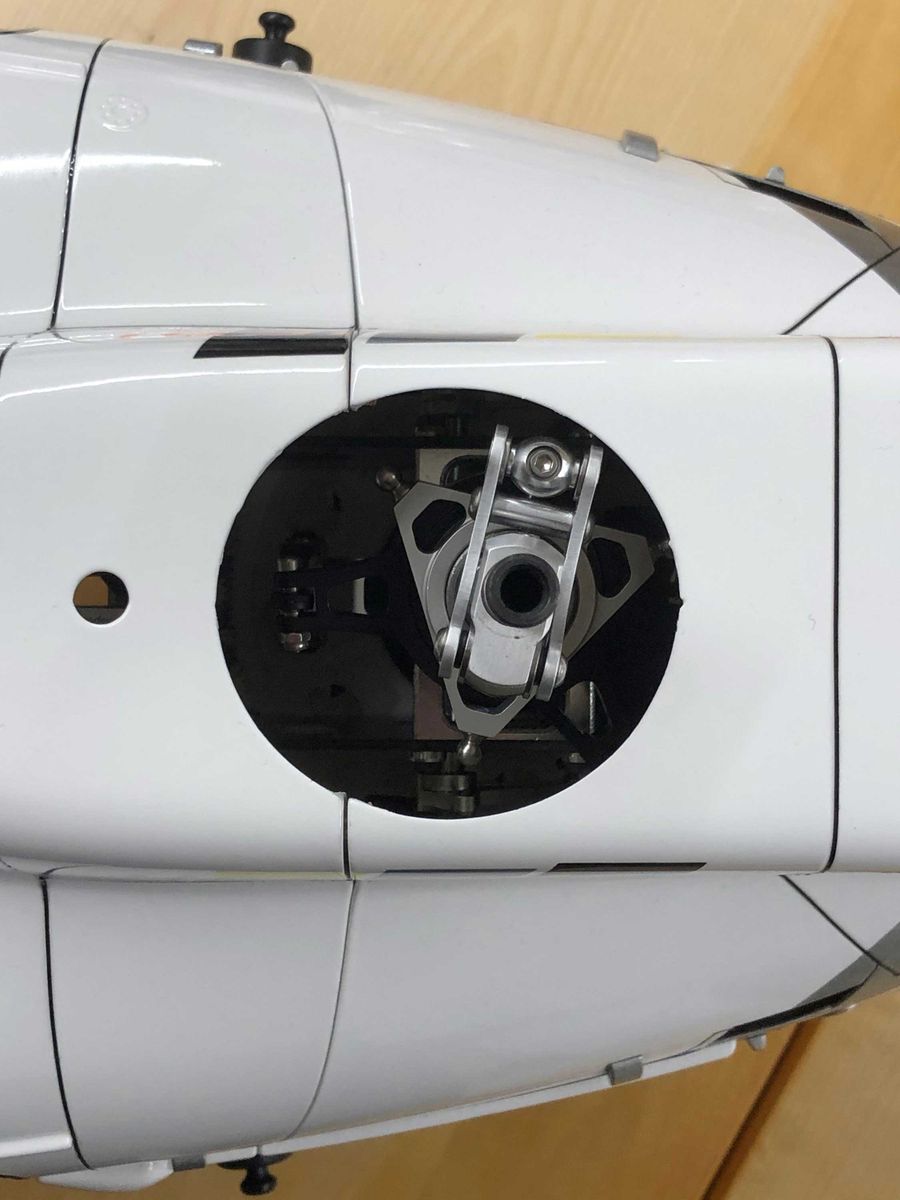

Second thing I noticed: Mechanic is 15mm too short for the main rotor shaft to be perfectly centered.

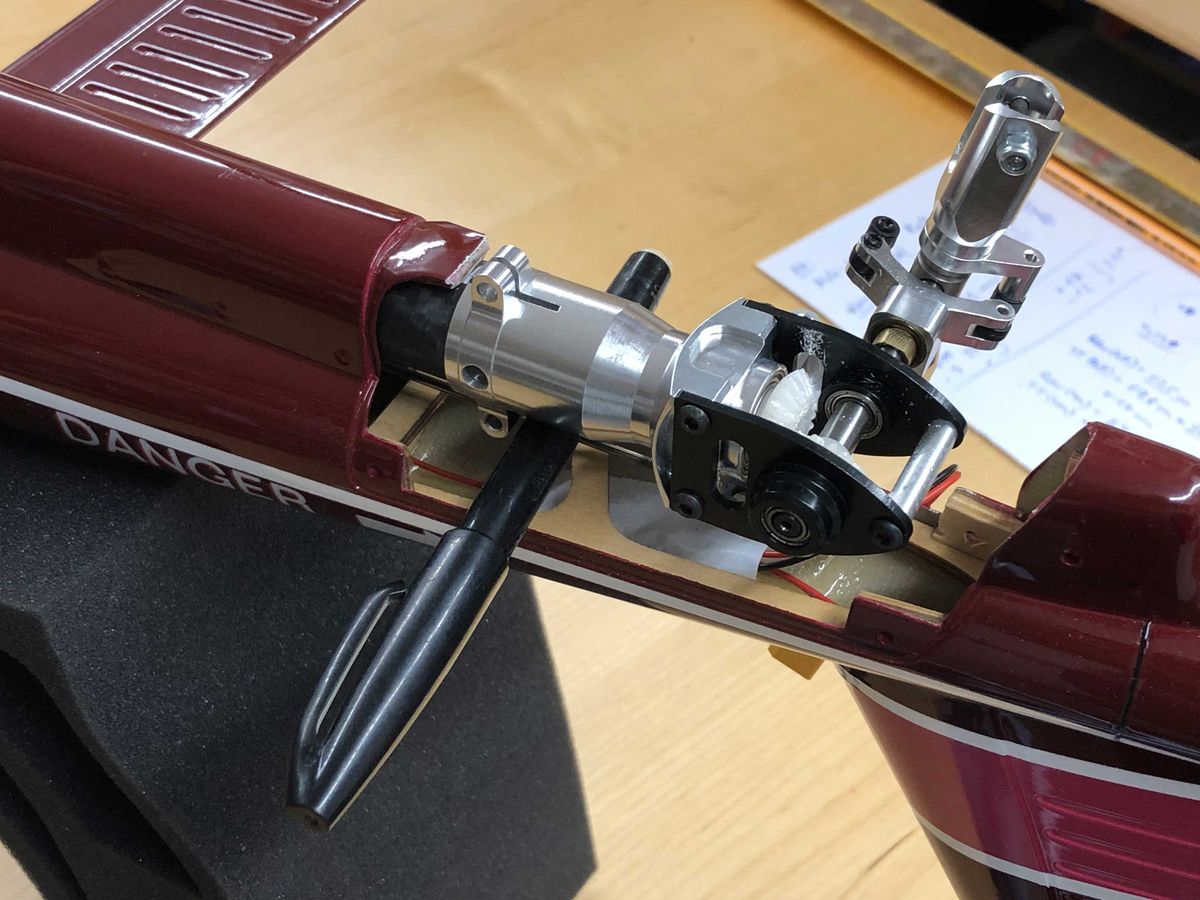

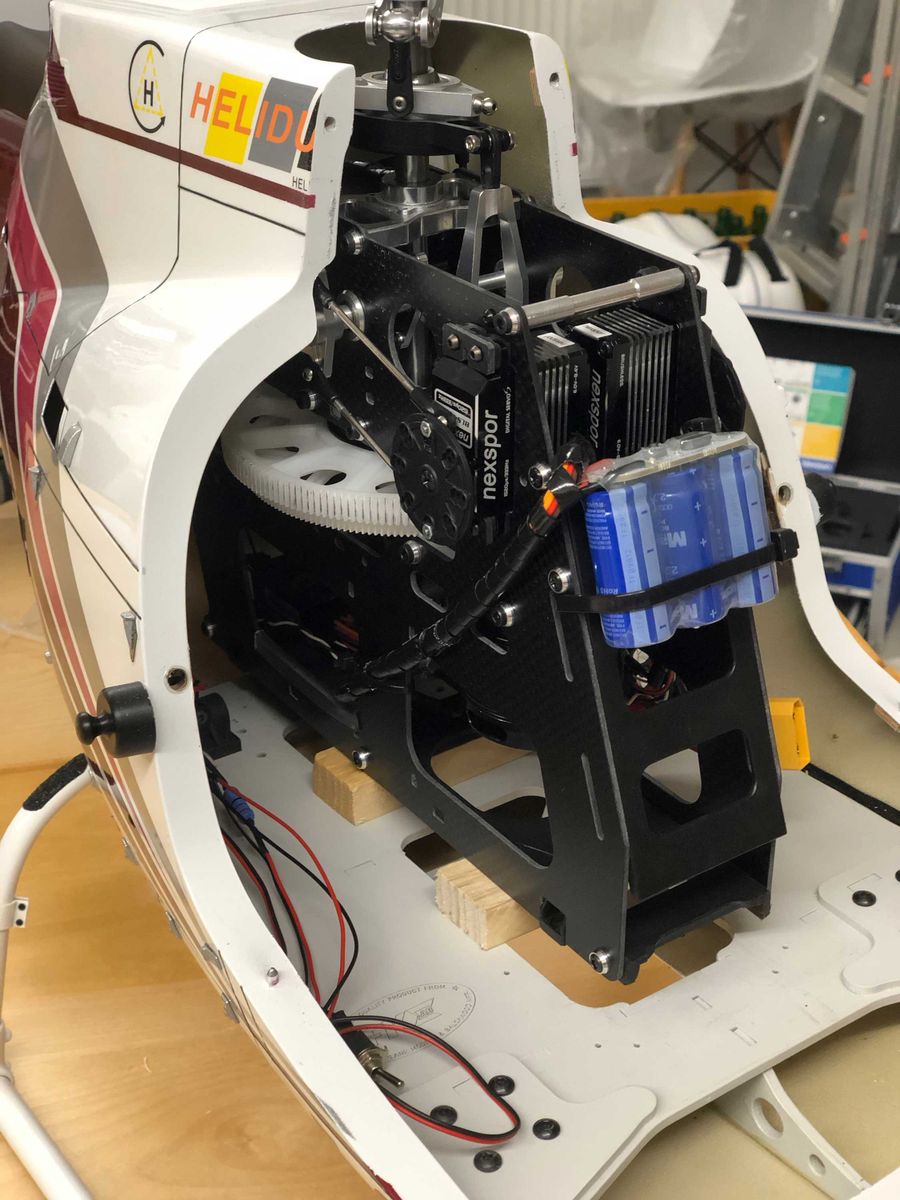

So I had to lengthen the tail boom. I bought a T-REX 700 tail boom and shortened it to the perfect size. Then it fitted quite nicely. I had to lift the mechanic by 18mm (small wood blocks in the last picture).

Chapter 4: Fitting the mechanic inside the fuselage
