Chapter 3: Swash, Rods & Motor
Aug 12, 2023

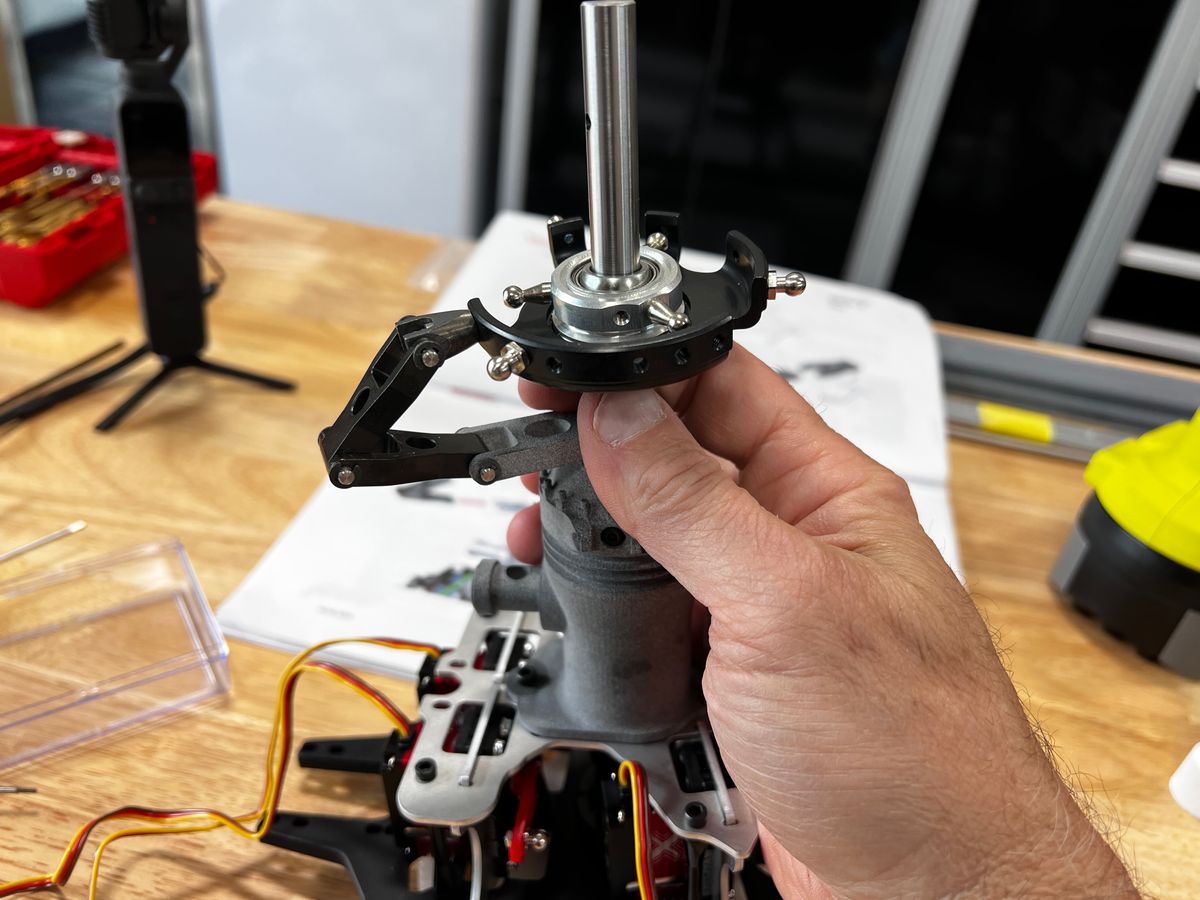

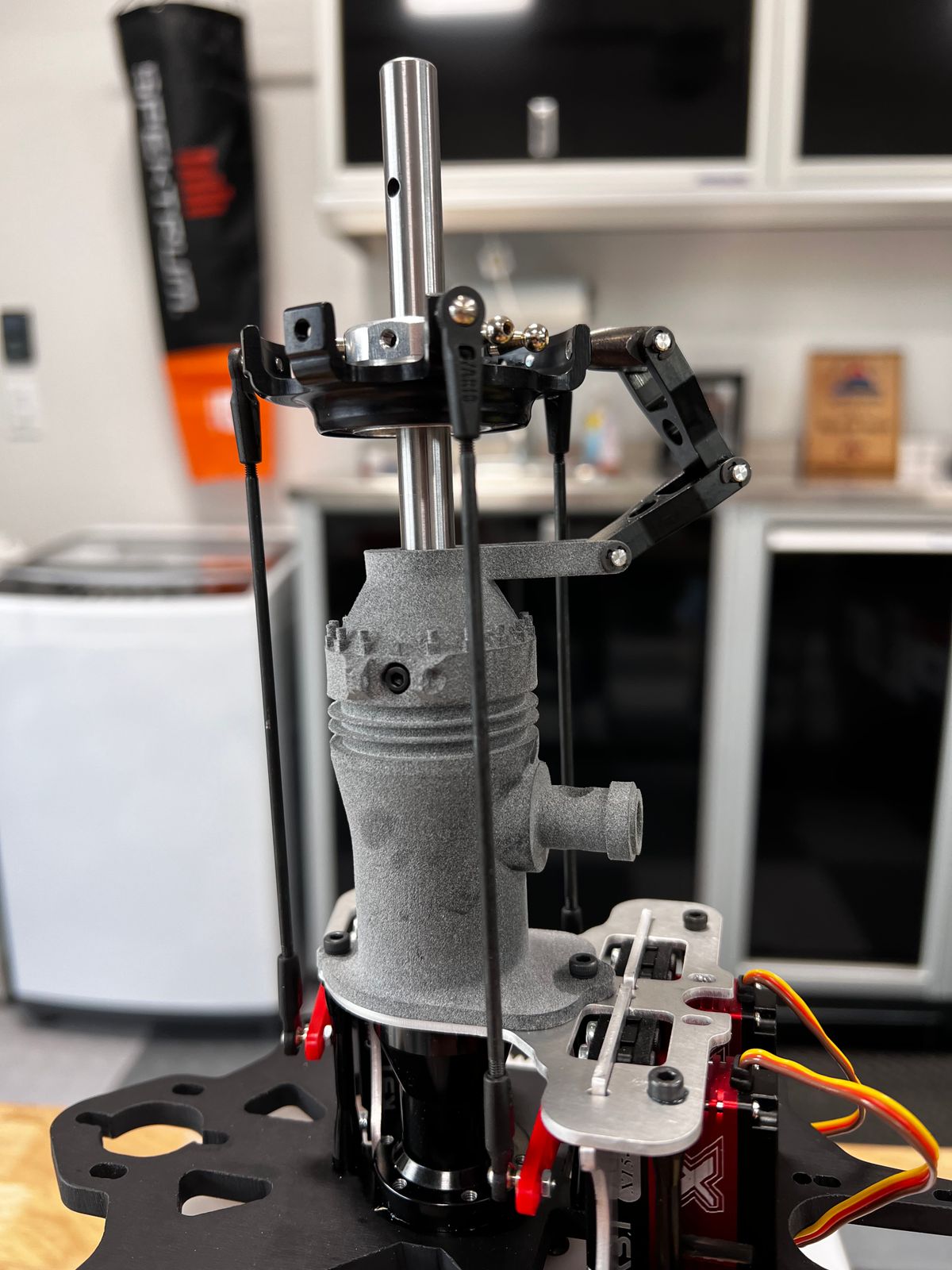

This part of the build is straightforward.

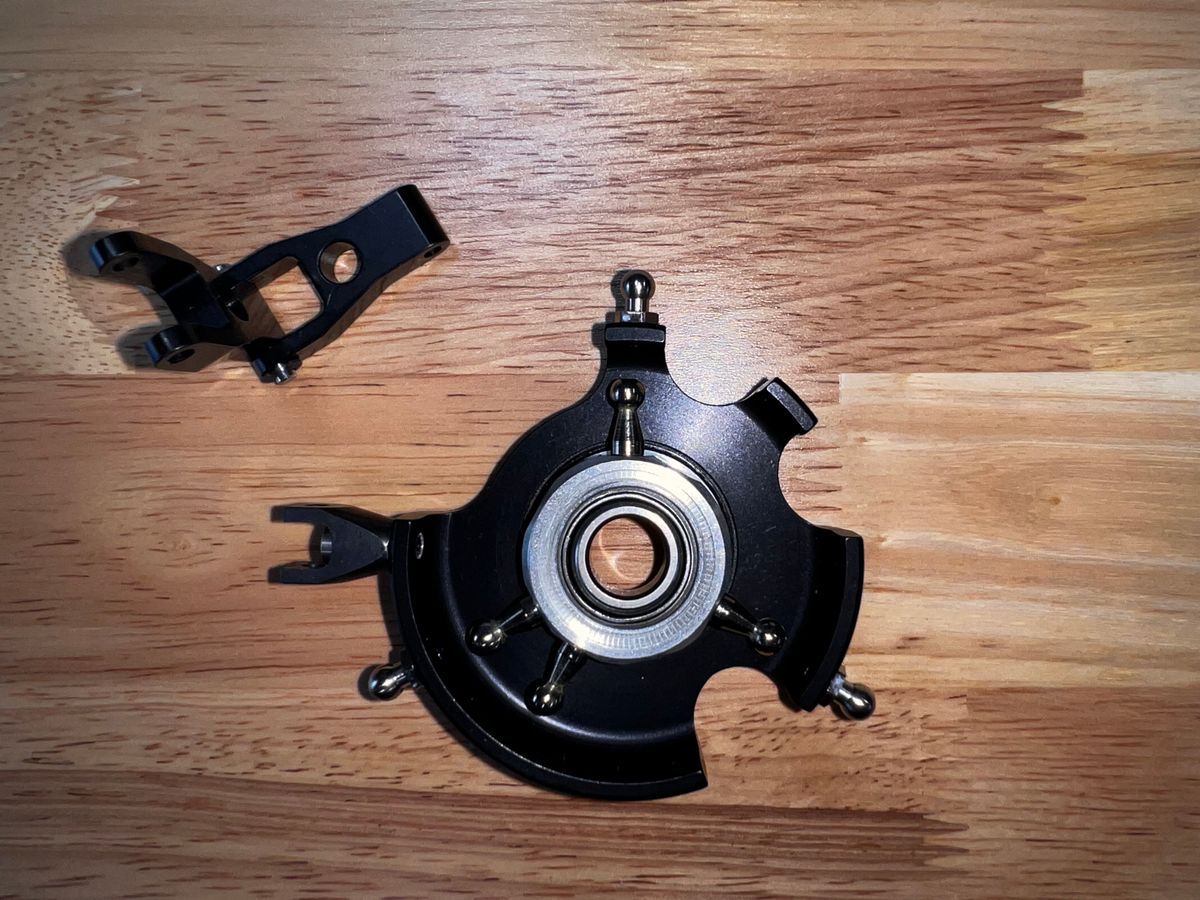

- You may need to enlarge the holes in the printed scale shaft housing to fit the swash anchor.

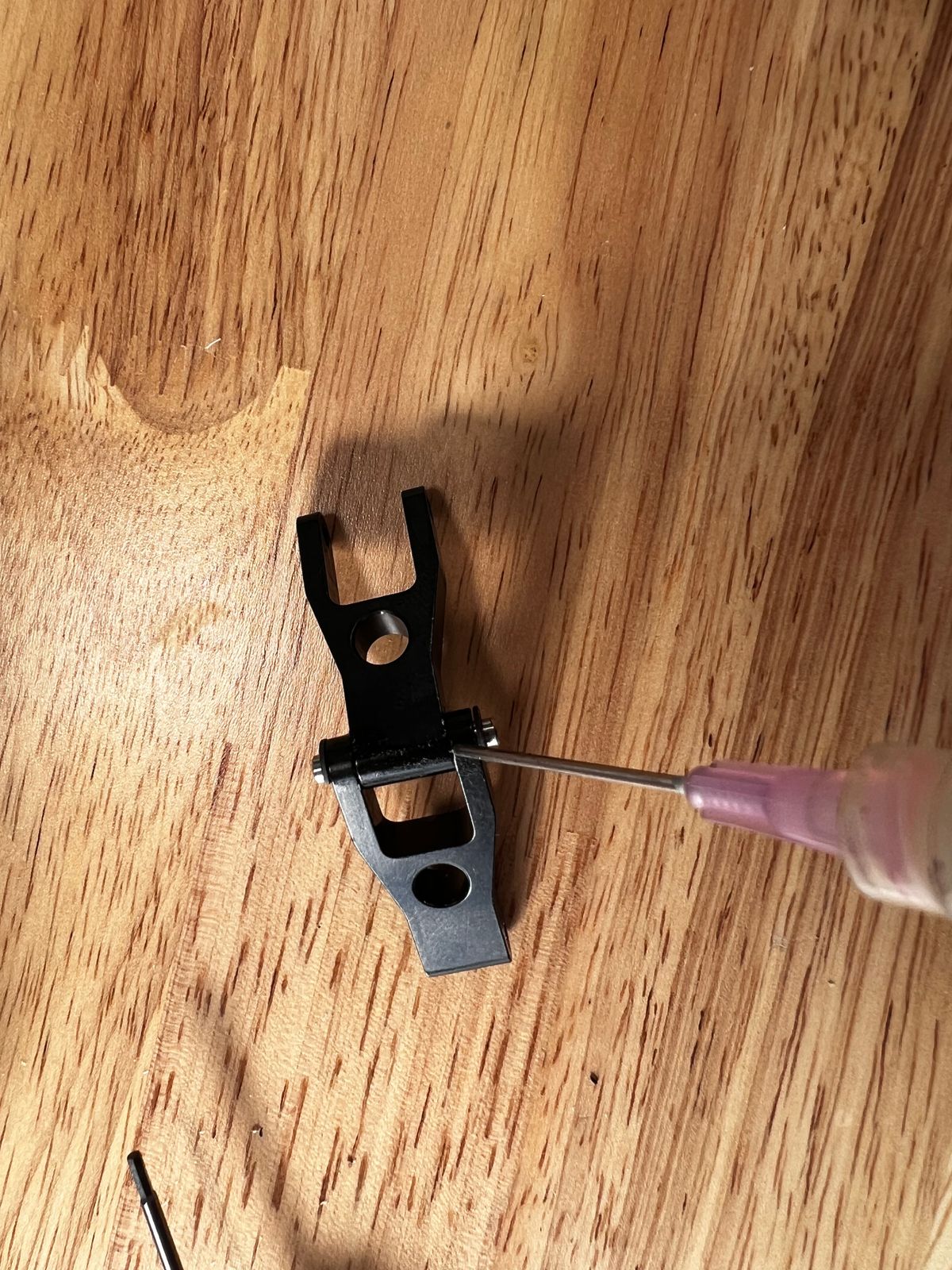

- Lube the swash anchor with a drop of oil to relieve friction

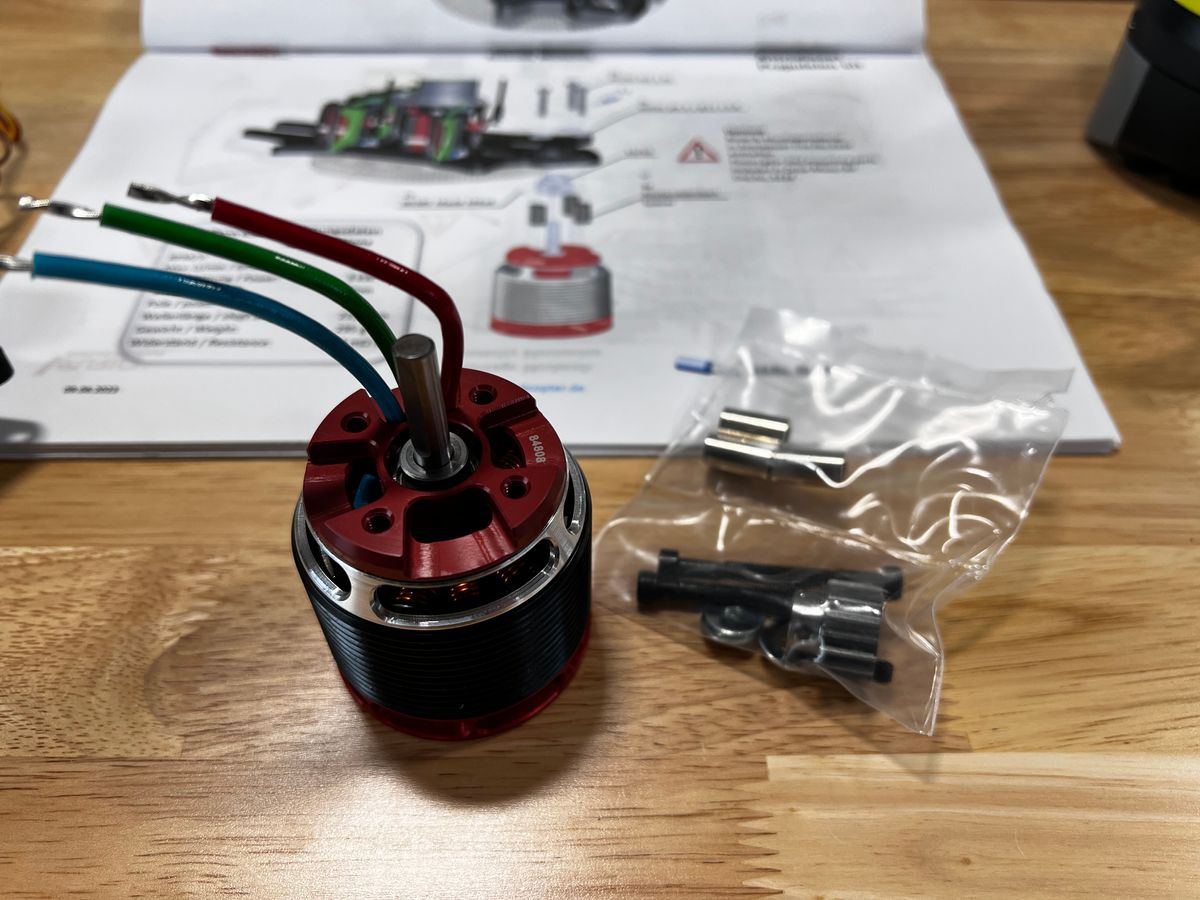

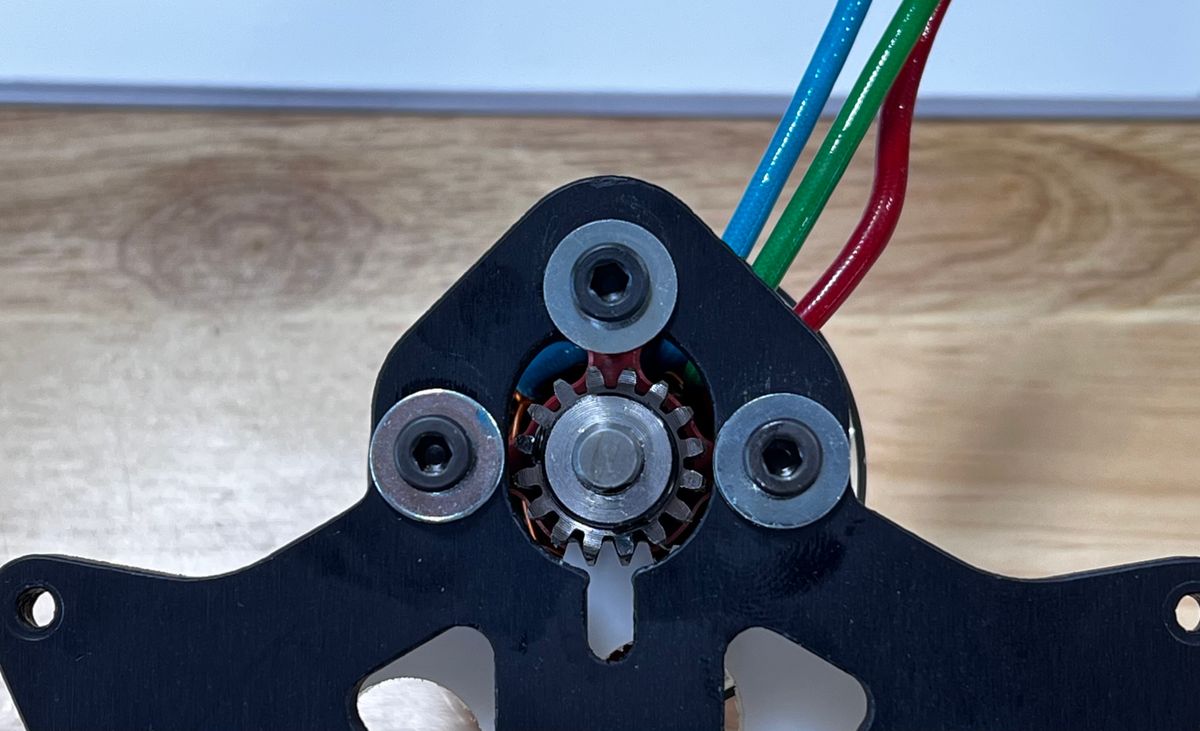

- When mounting the motor, partially seat the grub screws on the pinion gear before sliding it onto the motor shaft. Once in place, you will need a round-tip hex wrench to tighten the grubs with the pinion aligned properly with the main drive gear. A straight hex won’t clear the aluminum housing.

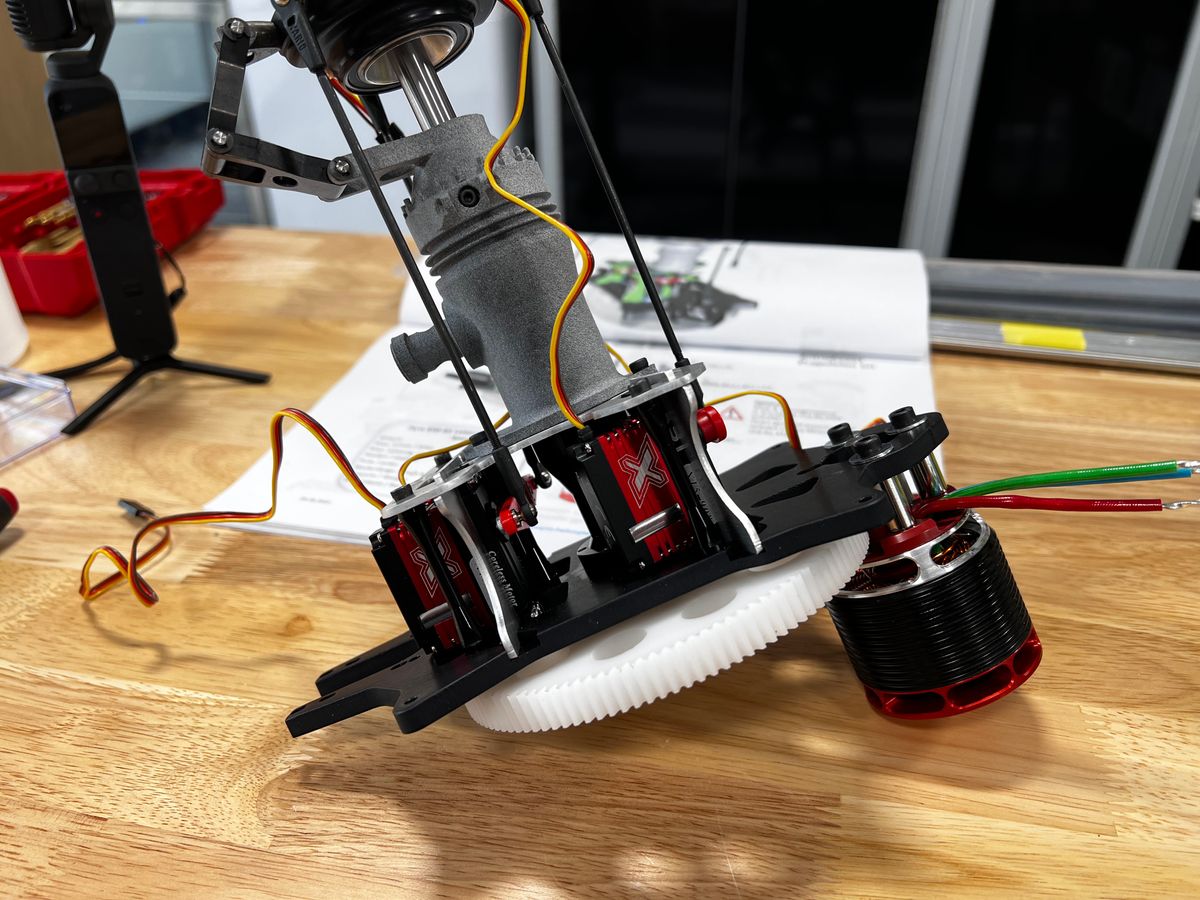

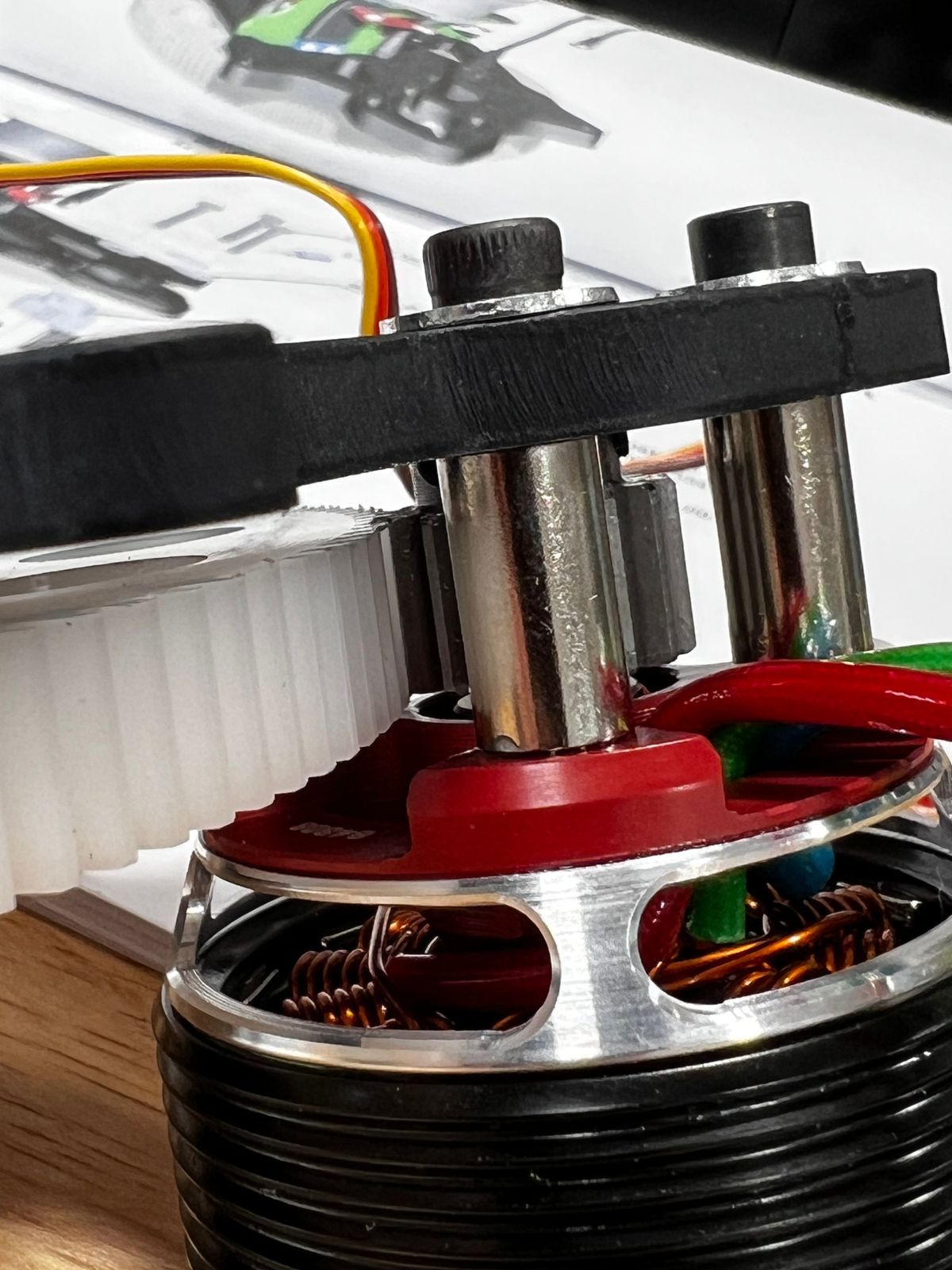

- Make sure your gear mesh is not too loose and not too tight. I use a piece of paper to test. See the picture below.
