Build Story
Bell 206L Long Ranger
Massimo C.
Chapter 6 of 21
Fuselage Tail fitting
Sep 27, 2023
This part was challenging for me.

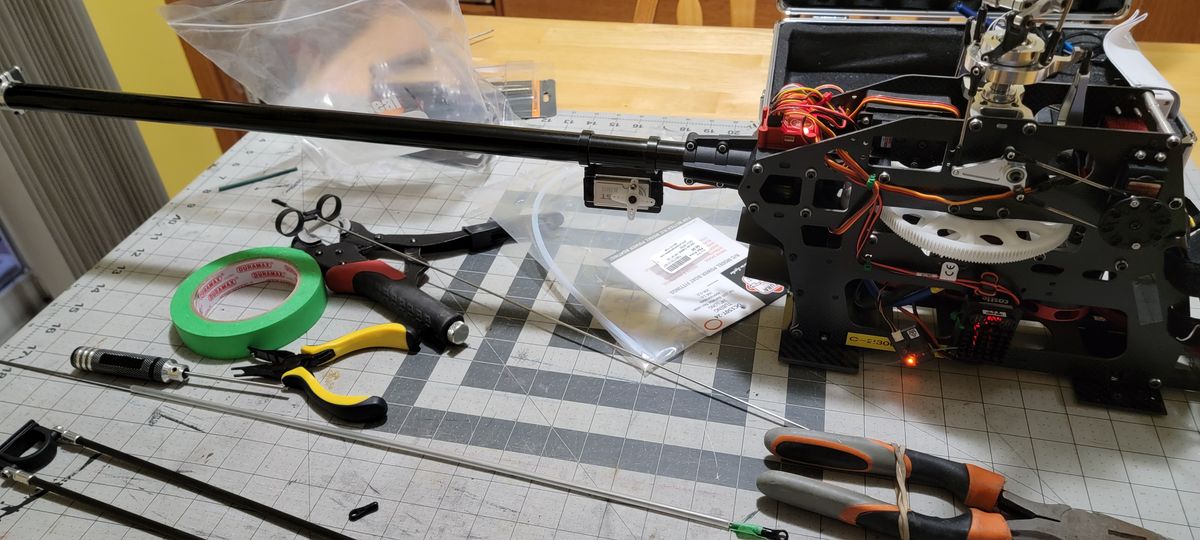

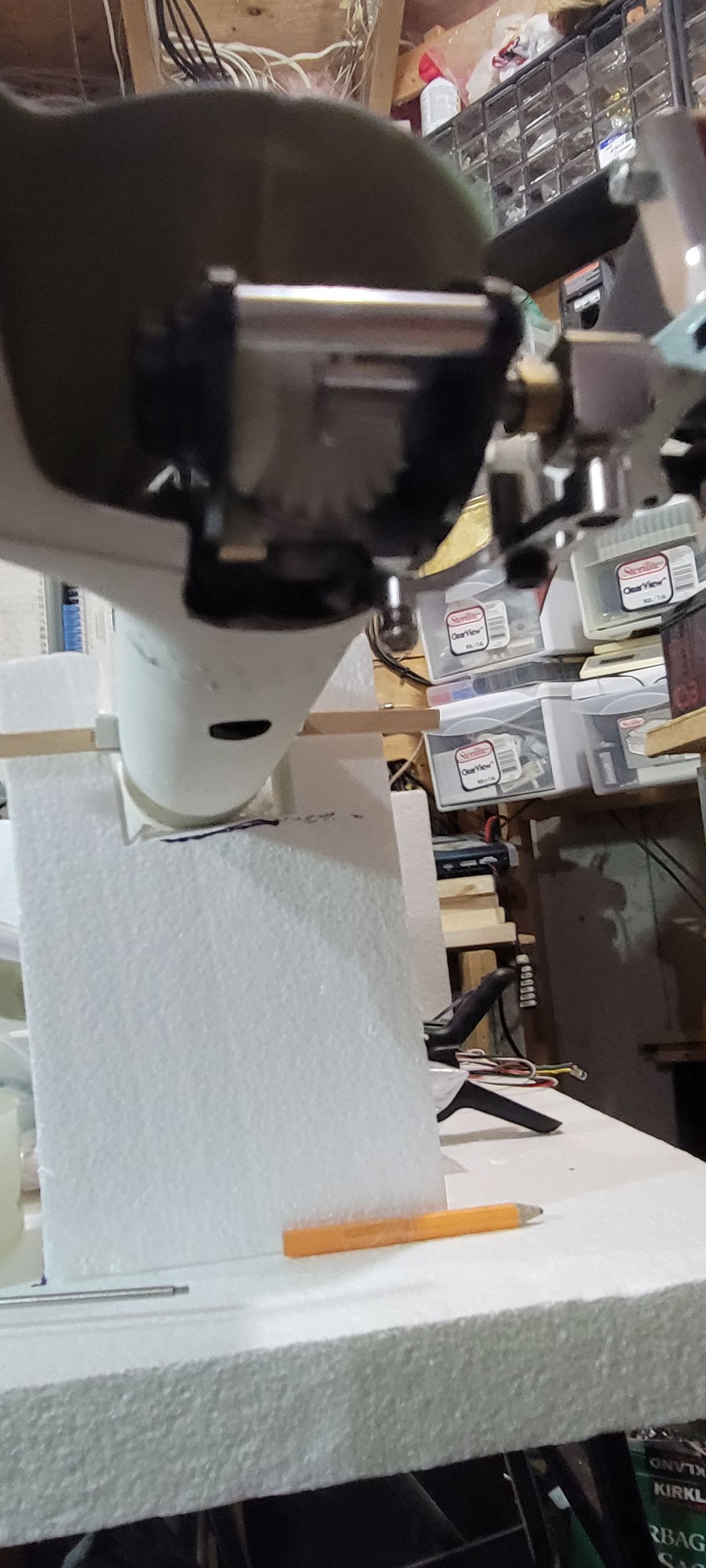

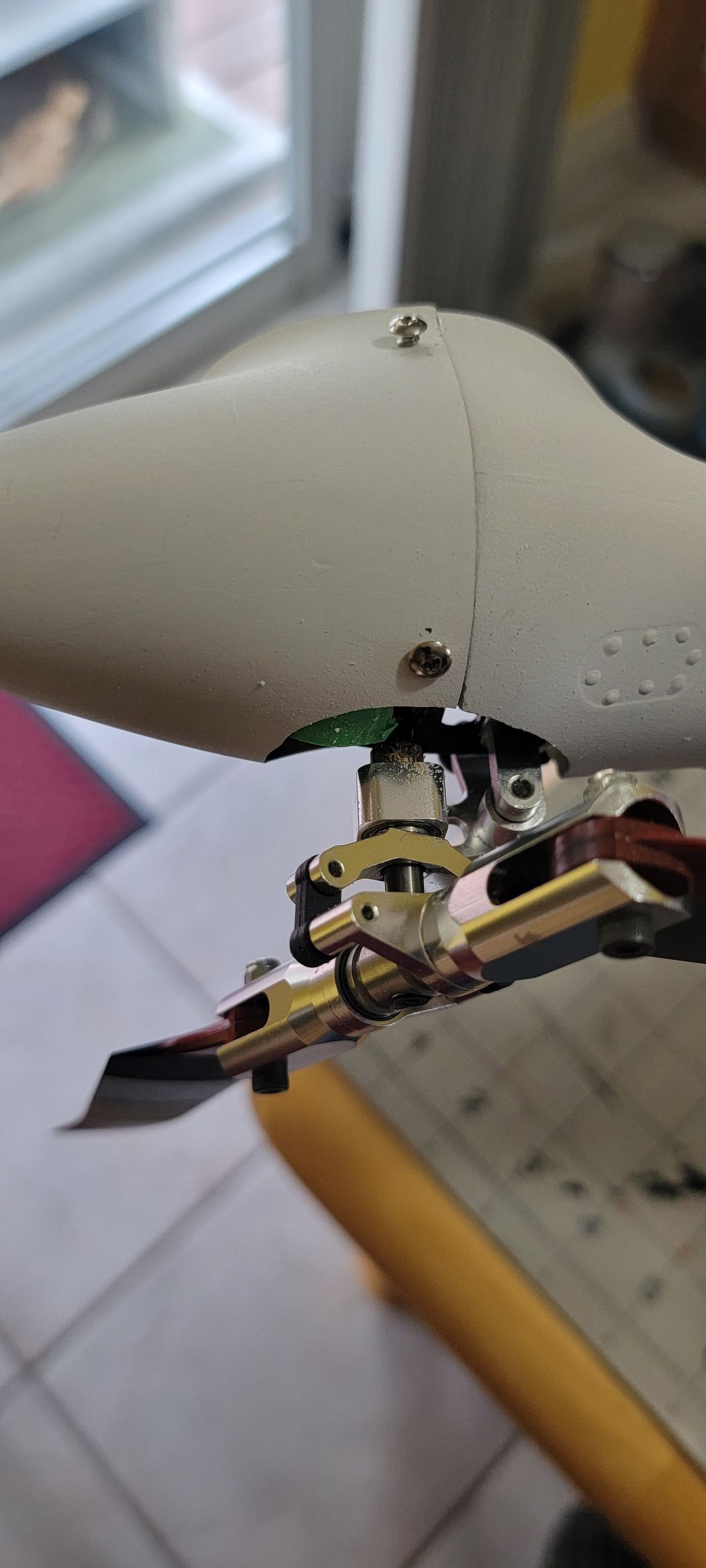

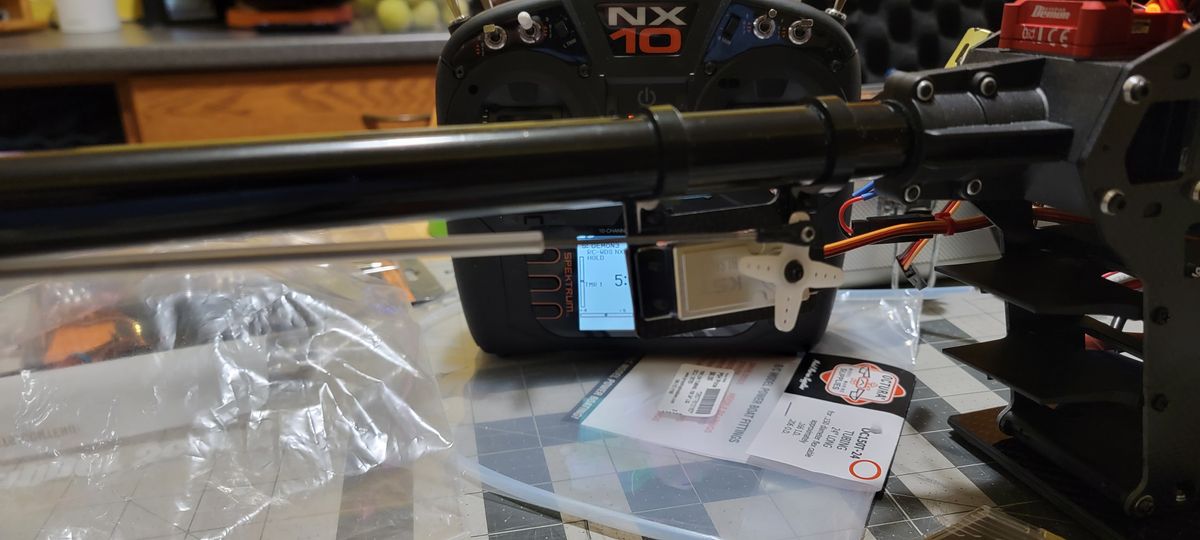

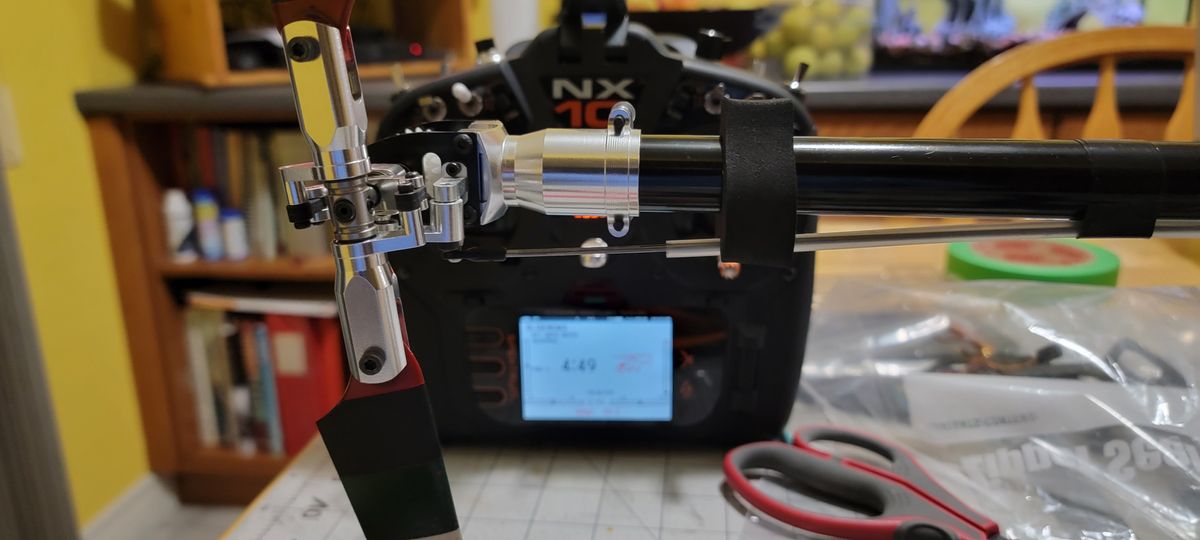

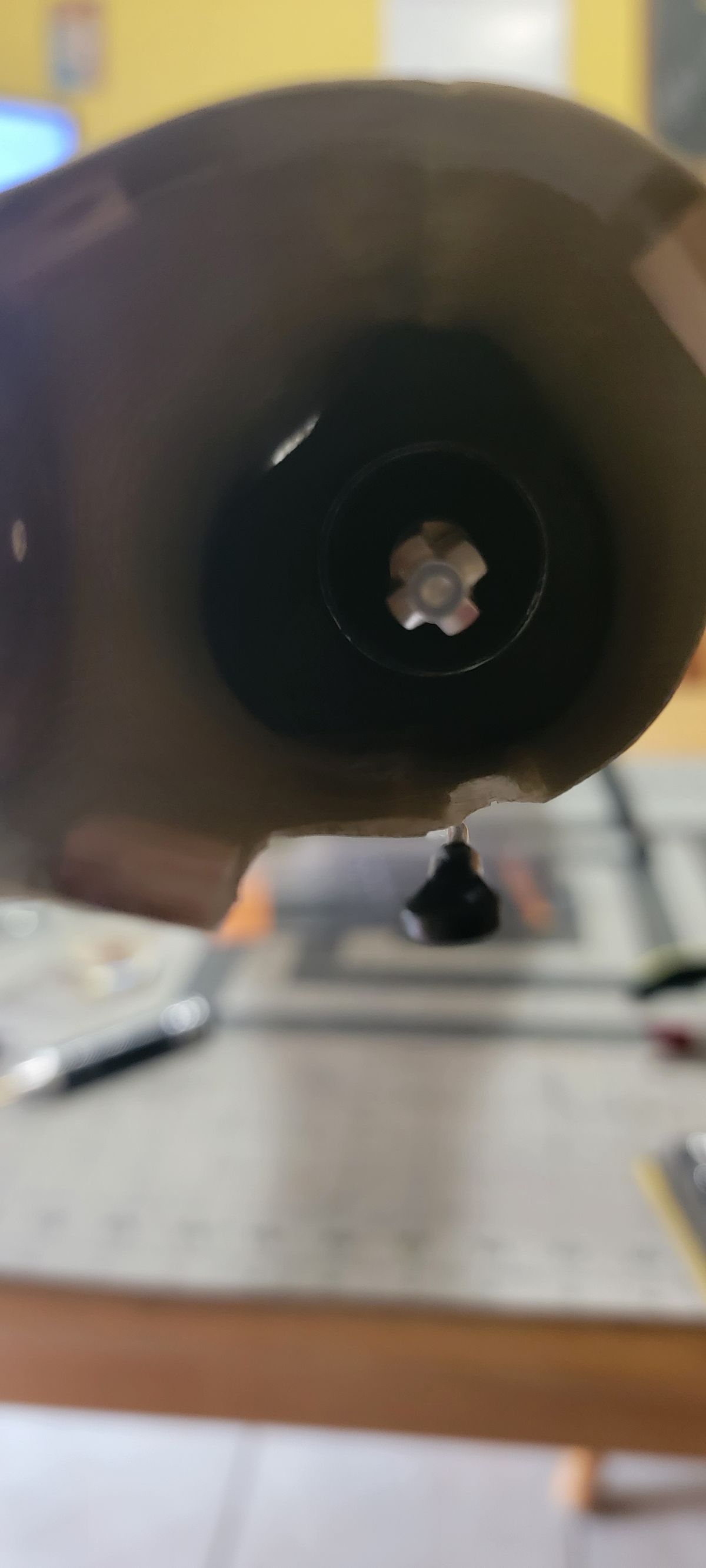

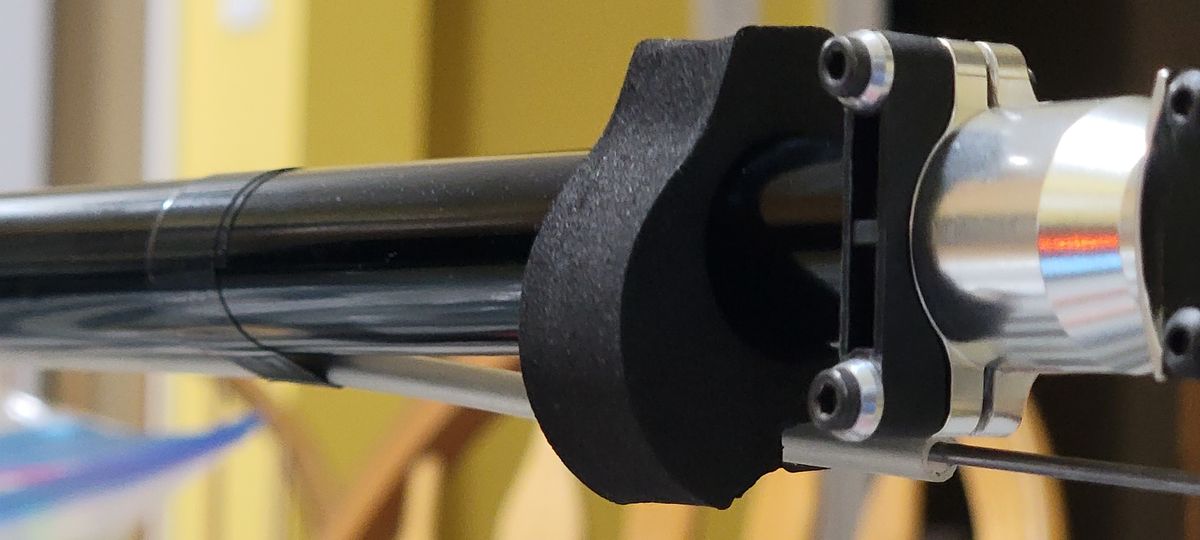

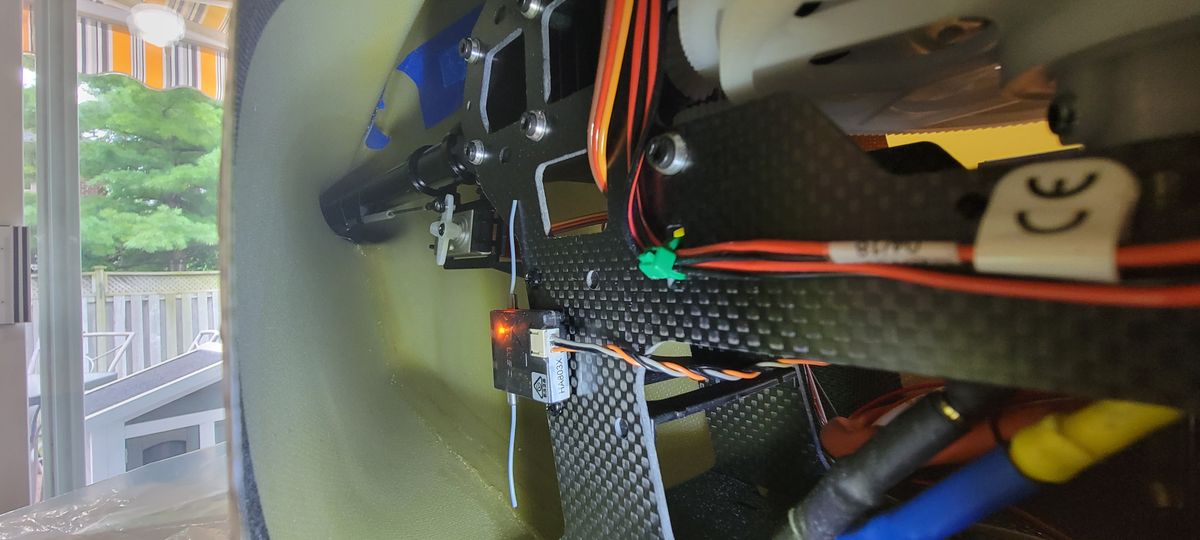

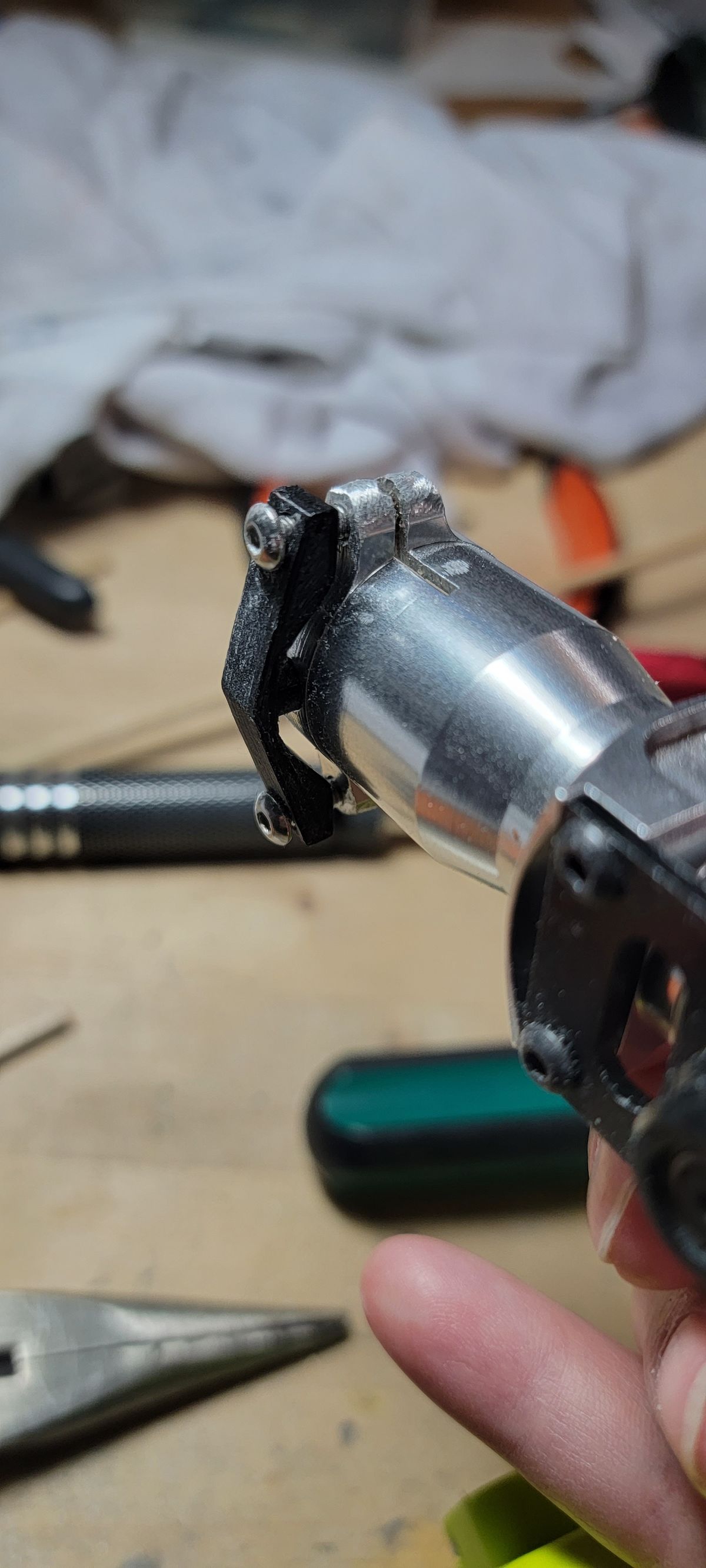

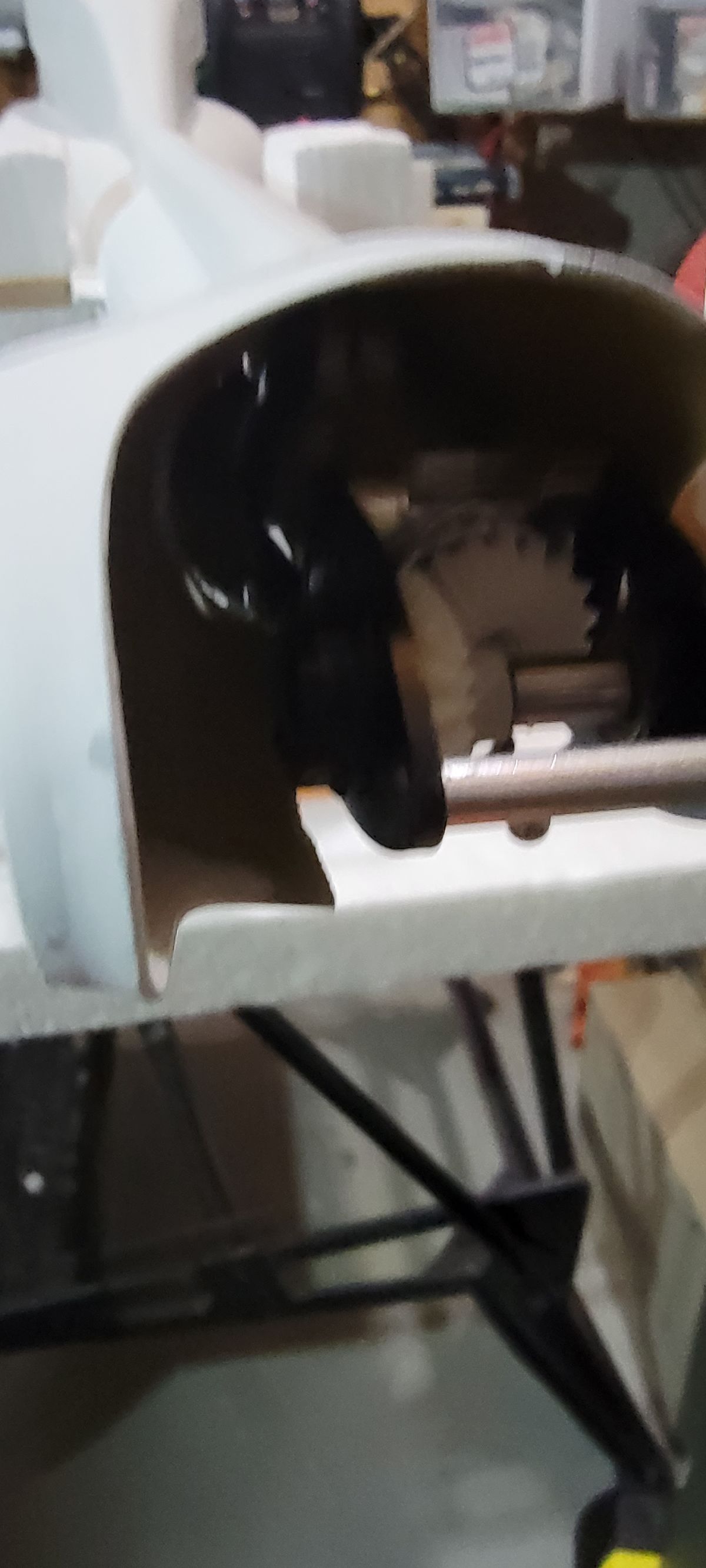

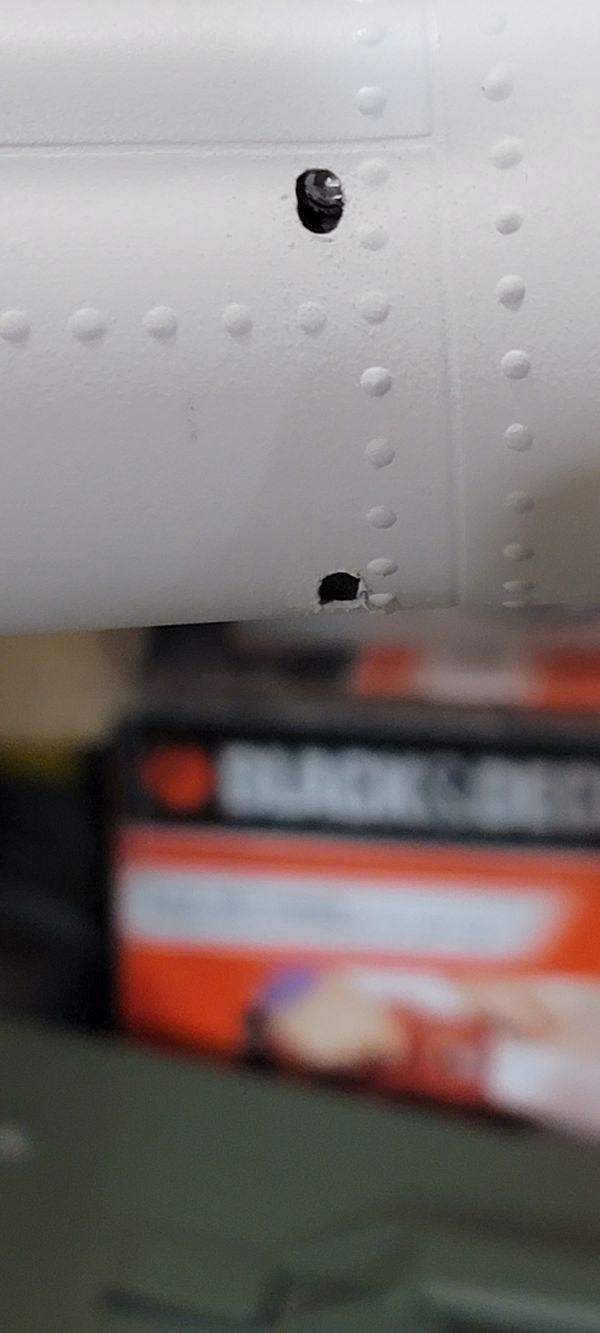

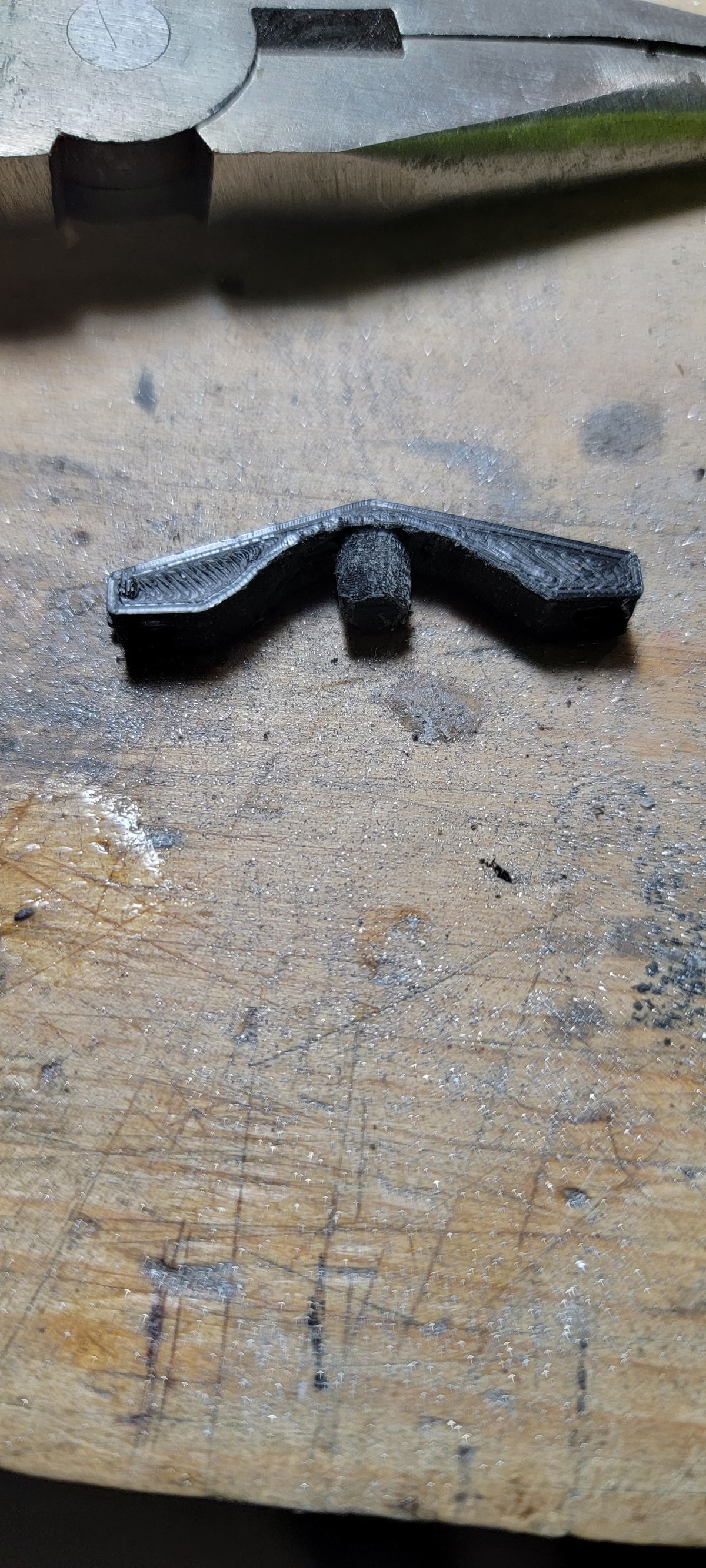

I had to 3D print a smaller Vertical Stabilizer Mount and find smaller screws to be able to squeeze everything into the fuselage. New servo pushrod and new opening in the tail to be able to lock everything in.
53 Comments
What are you thinking for mechanics? The options are pretty good. Many different paths you can go.
I have already a Phoenixtech 600ESP "ready" to go in it.
https://www.motionrc.com/products/phoenixtech-600esp-600-size-flyba...
BUT if you have some mechanics to suggest please do so, I'll may use that for my next project đ
That will be a nice project.
Thanks for the confidence... but my skill level is not close to what I see on this site; and especially see what you are doing with the S-92 build is a jaw-dropping every step for me.
Nice fuse , I turn one into this back a few years ago
You got this
As Butch says you got this, some days you just stare it until you come up w a plan
And so it starts! You can use high buildup automotive spray primer to to some bodywork also.
Thanks for the tip
Dang. Moving right along.

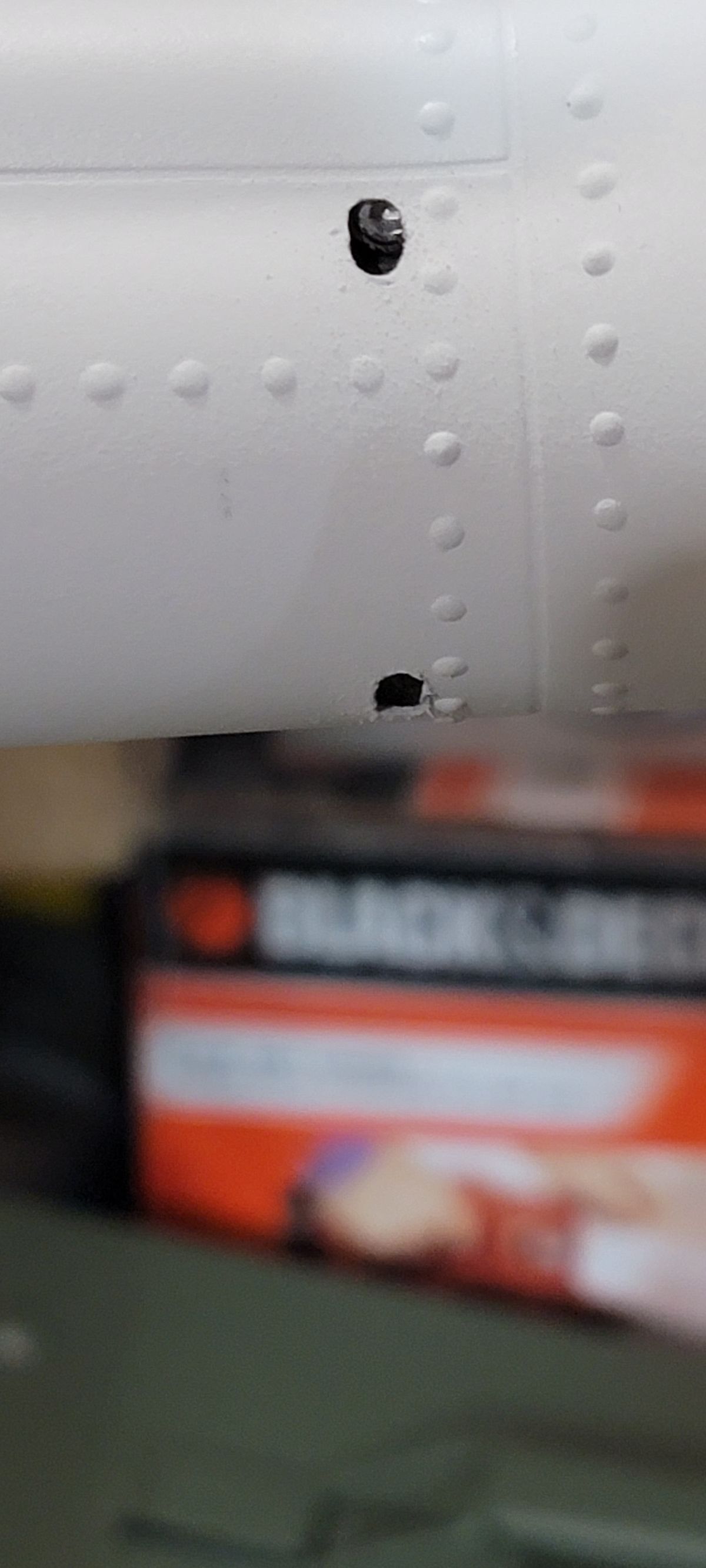

What method are you using for the rivets they look very uniform đ
