Bell 206L Long Ranger
Massimo C.
Chapter 7 of 21
Lights System
Oct 2, 2023

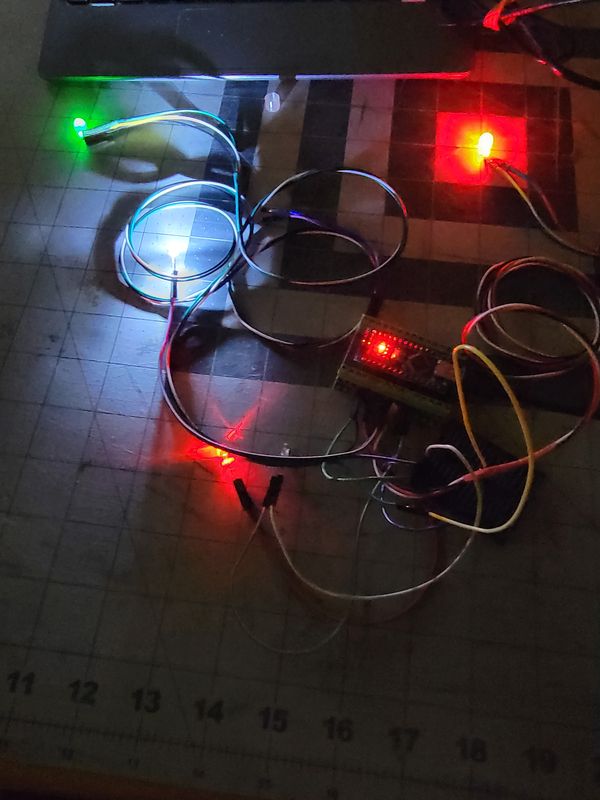

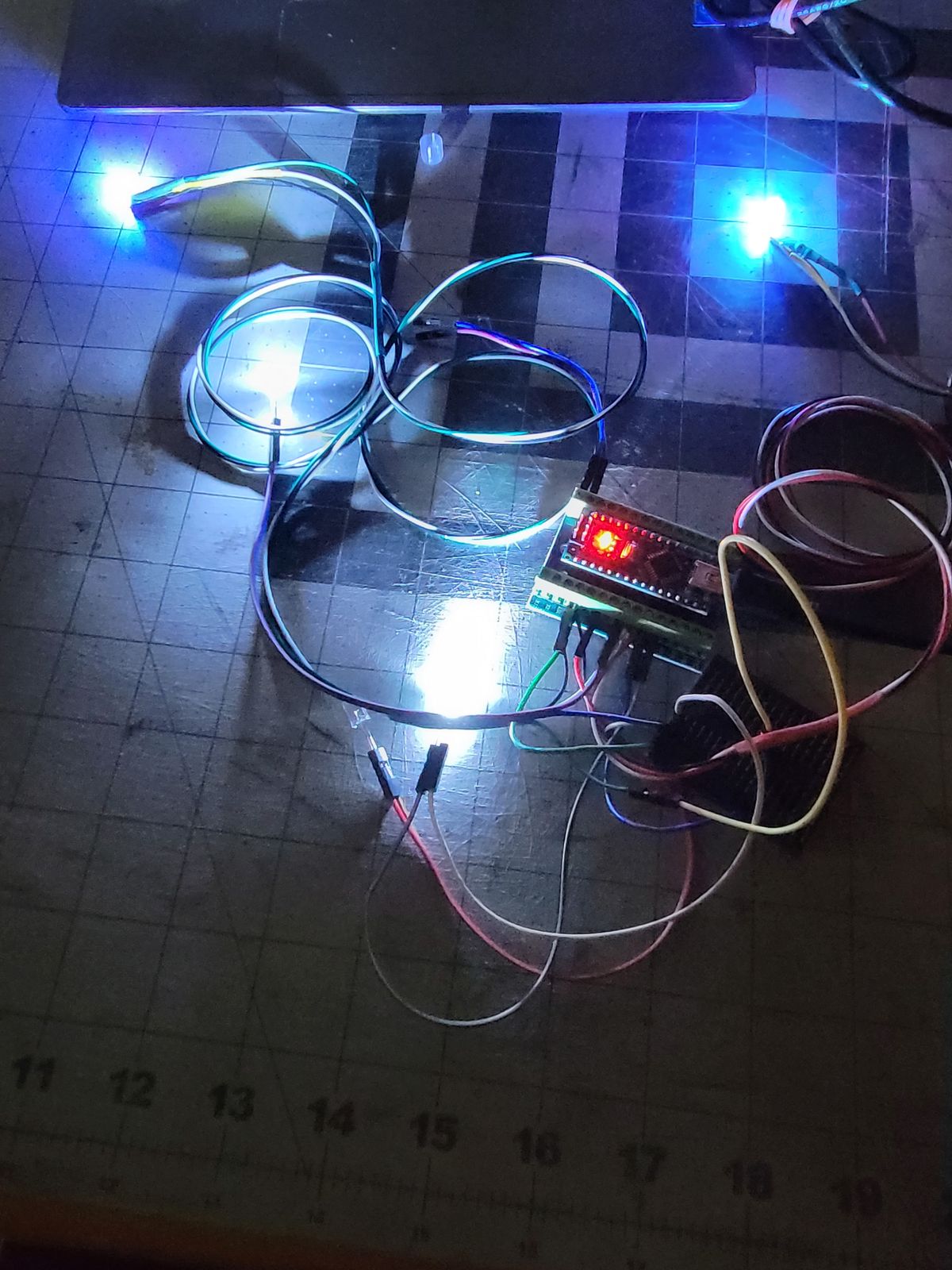

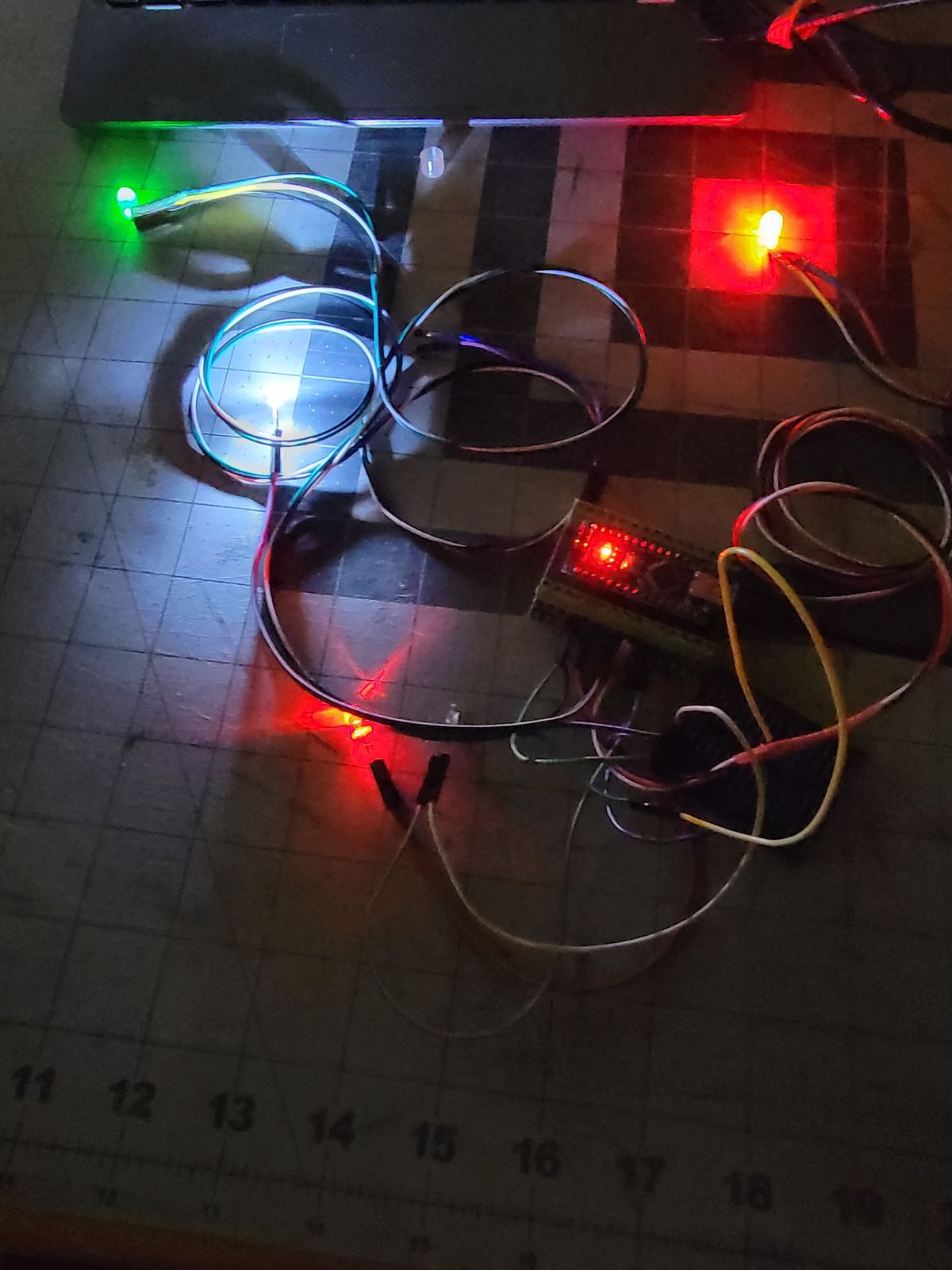

I'm working on the lights system. I decided to build my own with an Arduino and few LED's that I have left from other projects. I'll need to paint everything before the final installation but it's a starting point.
53 Comments
