Build Story
1/4 scale Jet ranger
Chapter 2 of 4
New landing gear and mechanics test fit
Apr 4, 2025
Updating this for the first time in a minute. I did not want to add chapters for every single thing I do, so i avoided it. But progress was made.
First up was designing the mechanics for this helicopter. I had posted some pictures on some of the Facebook pages as well. the mechanics are built around a 6KW/220KV neumotor and will also for an 850 RPM head speed as Vario recommends. will be buying the rotor head from Vario since I am running out of time to get done before helistorm.
I printed a plastic version of the mechanics to use as a placeholder so I can keep working while the parts for the mechanics are being made.

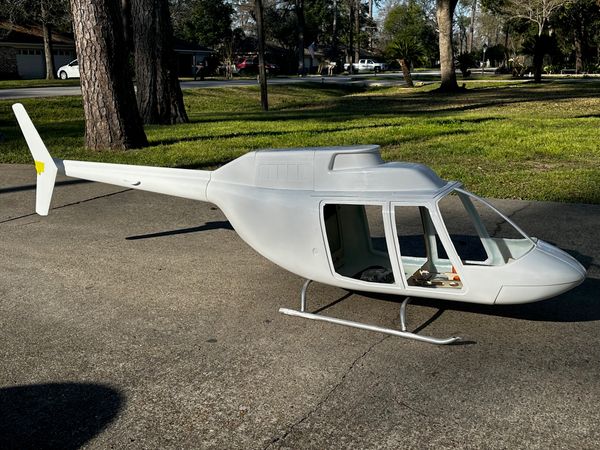

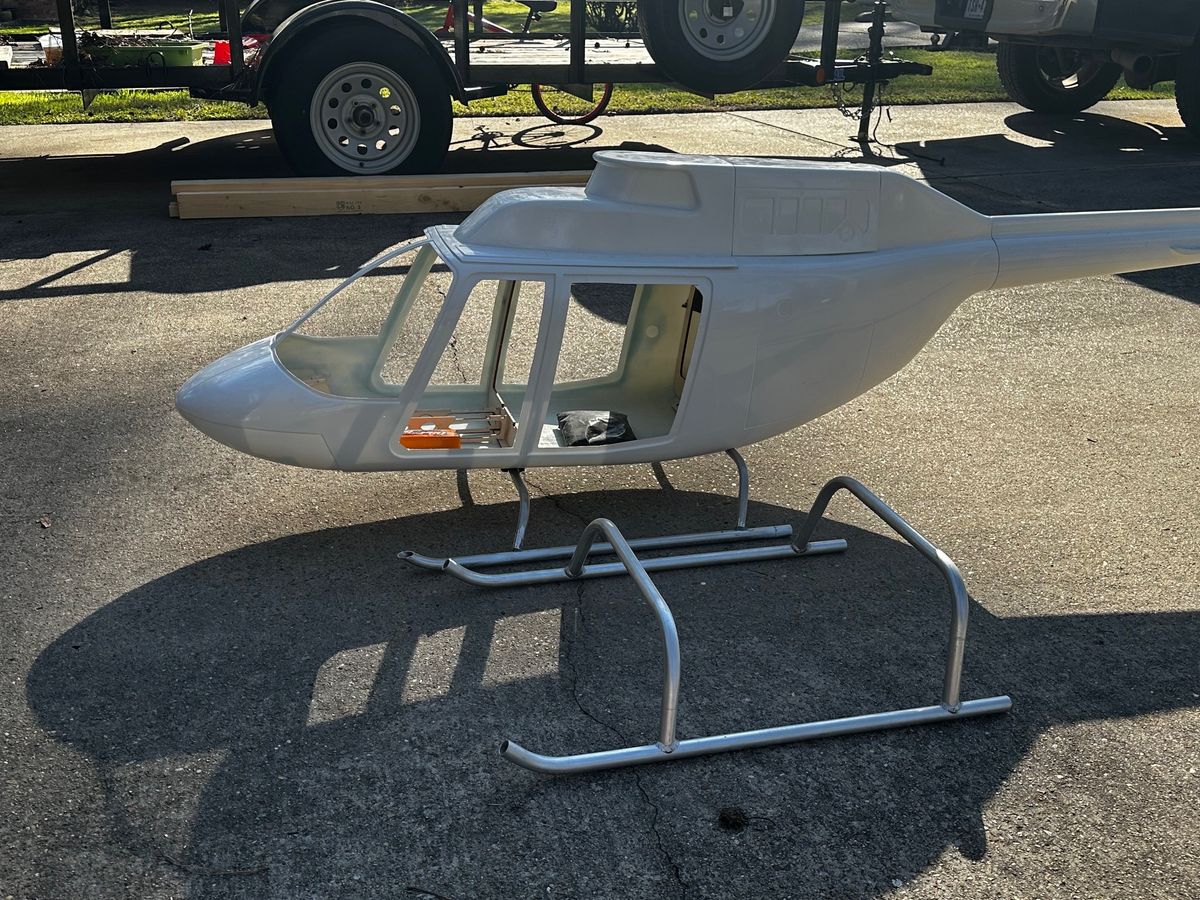

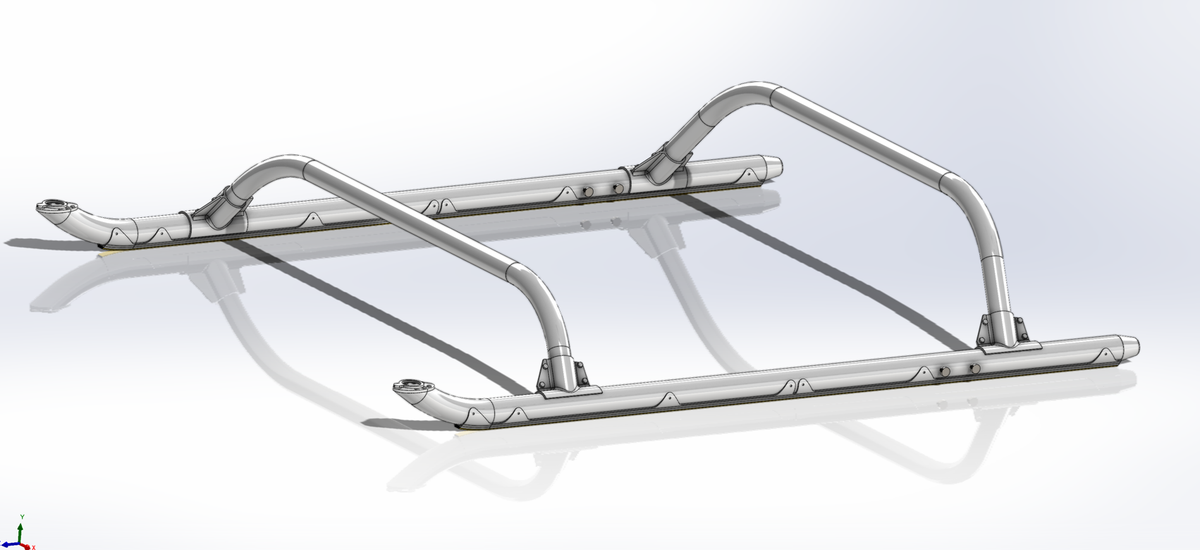

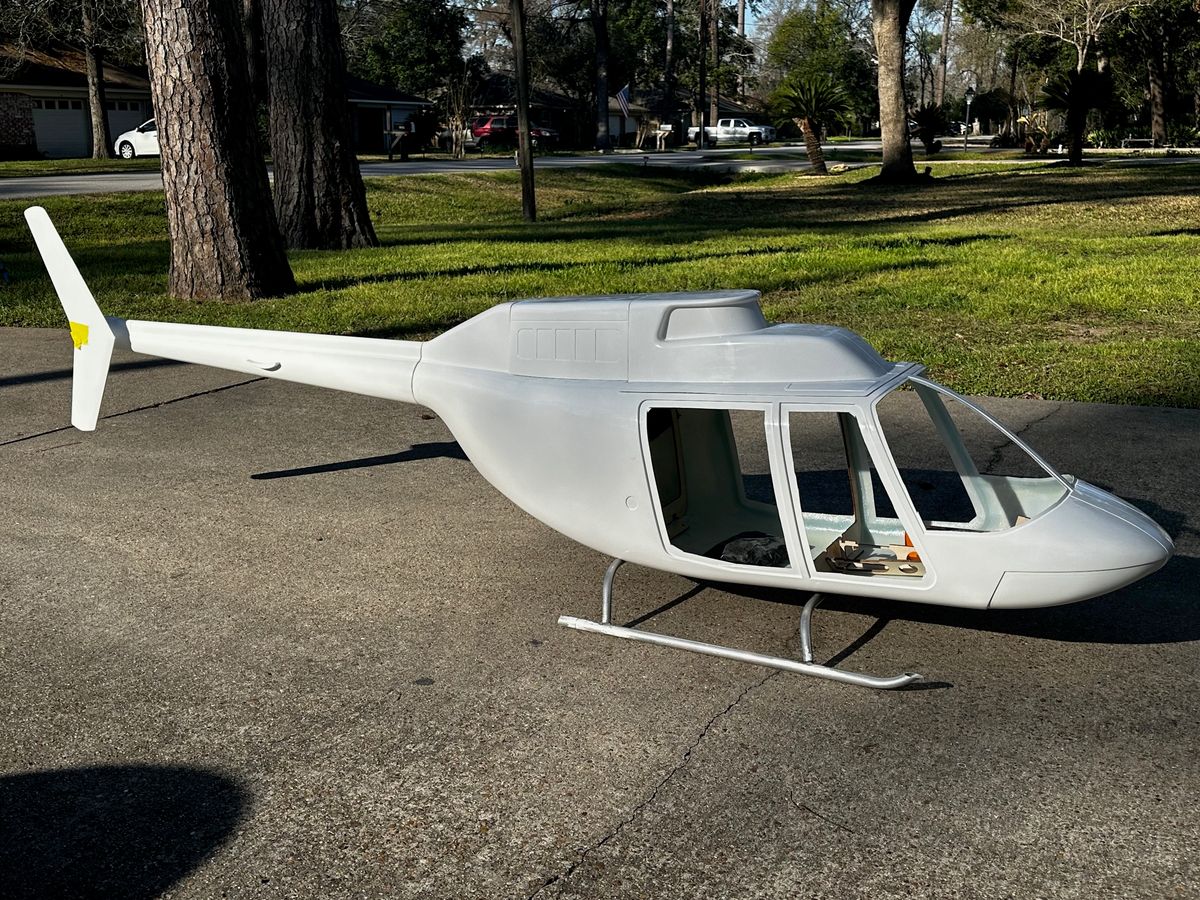

I also made new landing gear. the helicopter now has "low skids" and the boom now sits horizontal with the ground.
