Build Story
Lama Refurbishment Journey
Michael K.
Chapter 6 of 12
Servo Setup
Aug 7, 2025

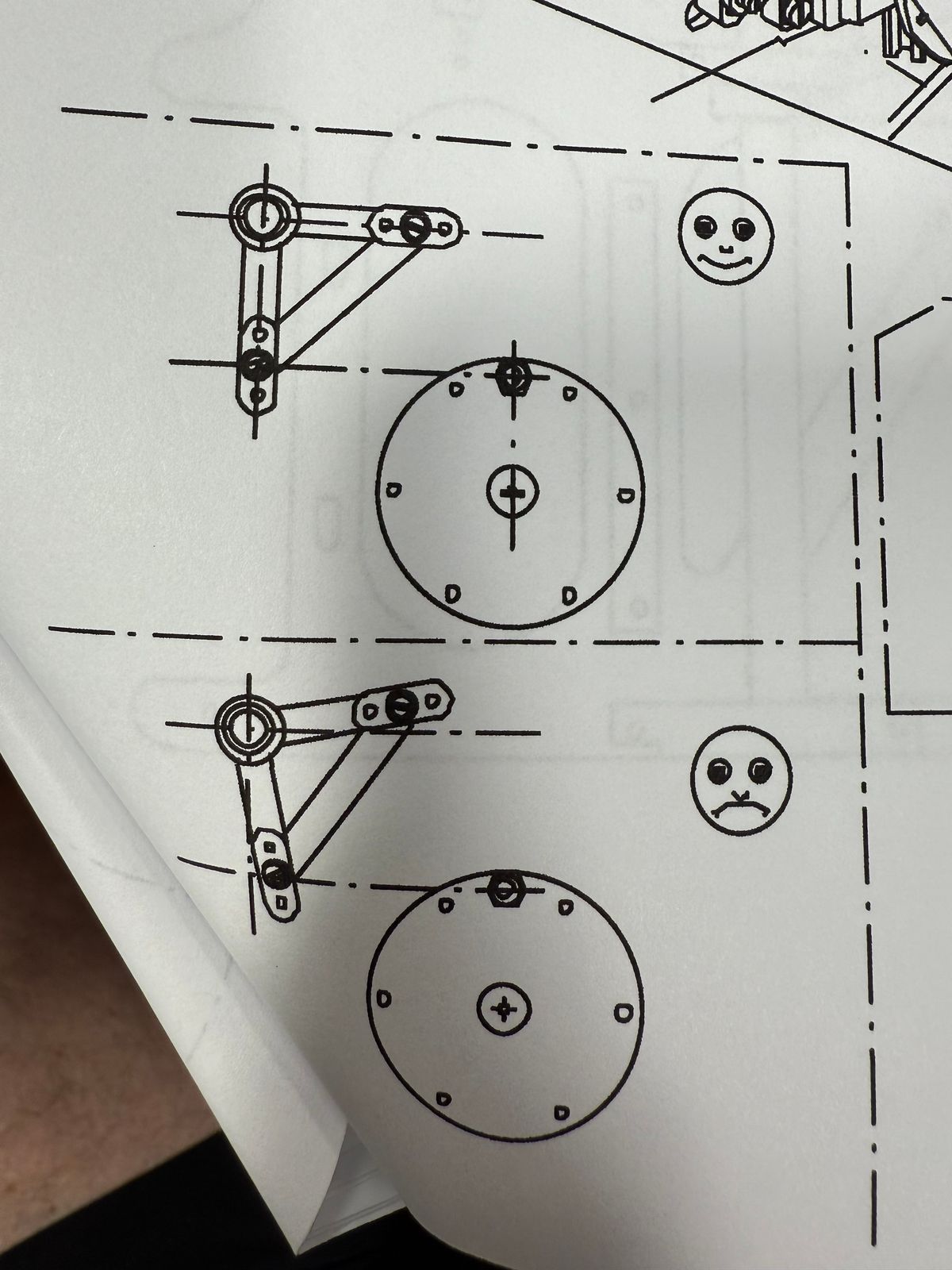

Getting your servos squared away early helps with a perfect setup later on. As the manual notes, having your linkages askew gives you a sad face. Even getting them perfect gives the German face a neutral sort of, “what, you think we are going to smile just because you did it the proper way?!”
