Today we had a try-on at SCALE PRINT. the turbine cover for the Vario Lama with a Jakadowsky turbine. Some small adjustments need to be done but at least everything fits well. One straight Festo connector needs to be exchanged with a 90° connector. The 3D printed rubber pipes which are included in the set were not installed today. Available in some days by www.scale-print.de

Last week I delivered a cockpit for BO105 in scale 1:4 from Heli-Factory. Cockpit and seats are copied from the original at the request of the customer. The rear seat I will make next, I'm still waiting for the original pictures.
For further information please send me a PM.

For the end of this year I made one more part for the Roban fans. This is the step framing for the 700 Bell 429 (scale 1:7). It will be installed as the original one with foru brackets underneath the fuselage.
For more infos please send a PM

Today I finally finished another cockpit for an AS 350 after some time. This time with LED diodes and backlit instrument pictures.
For further questions please contact me.

I have drawn a cockpit for the Hughes 500E. Of course, the matching instrument pictures will be available later. In addition, the cockpit is already prepared for the installation of small LED diodes.
For further information please contact me.

At the Heli-Factory (www.heli-factory.com) another Alouette II in 1:4 scale has been completed. A lot of scale parts from SCALE PRINT were used. Among other things, the turbine fairing of the Jakadofsky turbine. The complete interior is also from SCALE PRINT.
Delivery for sure world wide :-)
www.scale-print.de

Here is another customer request. A cockpit of the EC 145 / EC 135 where the cockpit dome was shortened. It also exists in the original. I think to get space to transport a stretcher or other long objects.

Now the first parts for the AH-1 Cobra in 1:6,2 scale (Baumann). The missile launcher is designed so that the parts can be positively plugged together with a little glue. Some of the parts are also screwed together.

The cockpit for the Vario Airwolf in 1:5 scale is now also painted and the displays are mounted.
www.scale-print.de

A little bit unusual. This winch for the Bell 204 is rarely seen, but it is a customer request and the customer is king. The Bell in scale 1/5 is currently under construction at the Heli-Factory.

For the Vario EC 120 in 1:4 scale, I drew the windshield wipers at the request of a customer. The wiper lip is of course printed from rubber

Especially for the Alouette II, I have constructed another shock absorber at the request of a customer. This has 5 rings less than the Lama's shock damper and the set also includes the lower clamp as well.

For the Alouette II in scale 1/4 I drew the oval antenna on the cockpit which is mounted on some military versions. The lamp base (in overlength) is also part of the set and is prepared to integrate an LED. The struts still need to be cut from length and adapted to the cockpit. Tubes are included with the set.
www.scale-print.de

For a US customer I have constructed the cockpit for the Vario Airwolf M.1:5. This version is prepared to take 3 large displays from Kai Neugebauer . The green part is the mount for the nose wheel and is included with the hull manufacturer's kit.
www.scale-print.de

For the Lama, the side cargo basket is now available as a kit. All parts are printed in plastic and weigh 29g without wire mesh. The dimensions can be shortened as desired in all directions.

For the big Hughes 500 from Vario I have just constructed new skid fairings with the corresponding flanges for a customer. This is the short version of the legs.

Installation of the gunship weapons are nearly completed. Only the feed belts are left. Scale of this model is 1:5 build at www.heli-factory.com and scale parts printed in laser Sinter technique are from SCALE PRINT www.scale-print.de

This morning I got the matching photo of the wheels from an Alouette II. I have adapted the drawing to it once again. Now it is correctly scale.
www.scale-print.de

For the 1:4 scale AS 350, the matching ski basket is now available as an assembly set including all brackets.

For my small Lama from Vario (M 1:6) I have constructed a battery box with an integrated switch and now also mounted it on the helicopter. Unfortunately, it turned out afterwards that you need a 3-cell LiFe for the new electronics of the PHT2 and therefore it does not fit into the printed box. But I can adapt it later at the customer's request.

The new functional hook which includes a servo is working and had past the testing phase. It works without any problem with 2kg weight.
https://www.scale-print.de/en/heli-allgemein/1088-carrier-hook-with...

Here is a short video how it works

This morning I routed a template to thermoform the air-in hood on the side window from the Lama which you will find in near future in my Shop.
www.scale-print.de

Some small items before I will start my next bigger project. I have now a patrol can and the landing spot lights for the Robinson R22. In scale 1:3.5 some LED lights from Innoflying will fit. Other scales needs to work out if there is a request.

www.scale-print.de

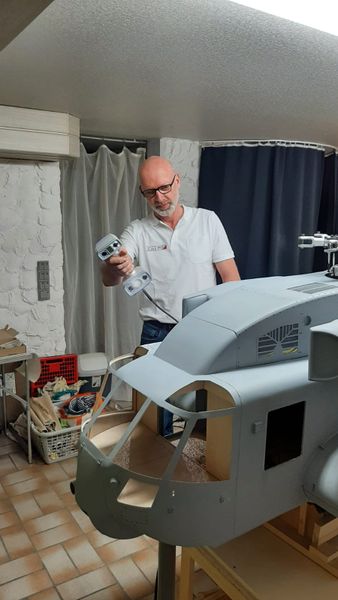

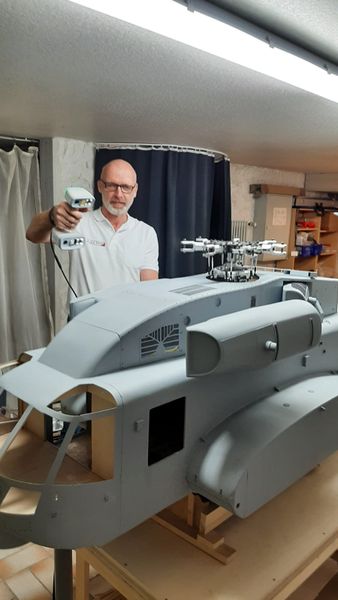

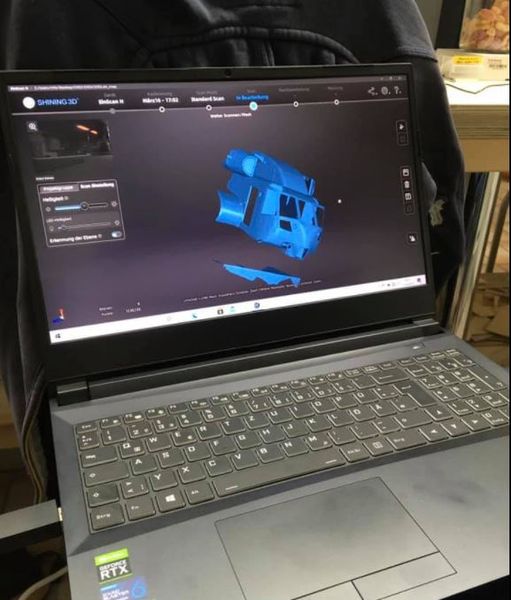

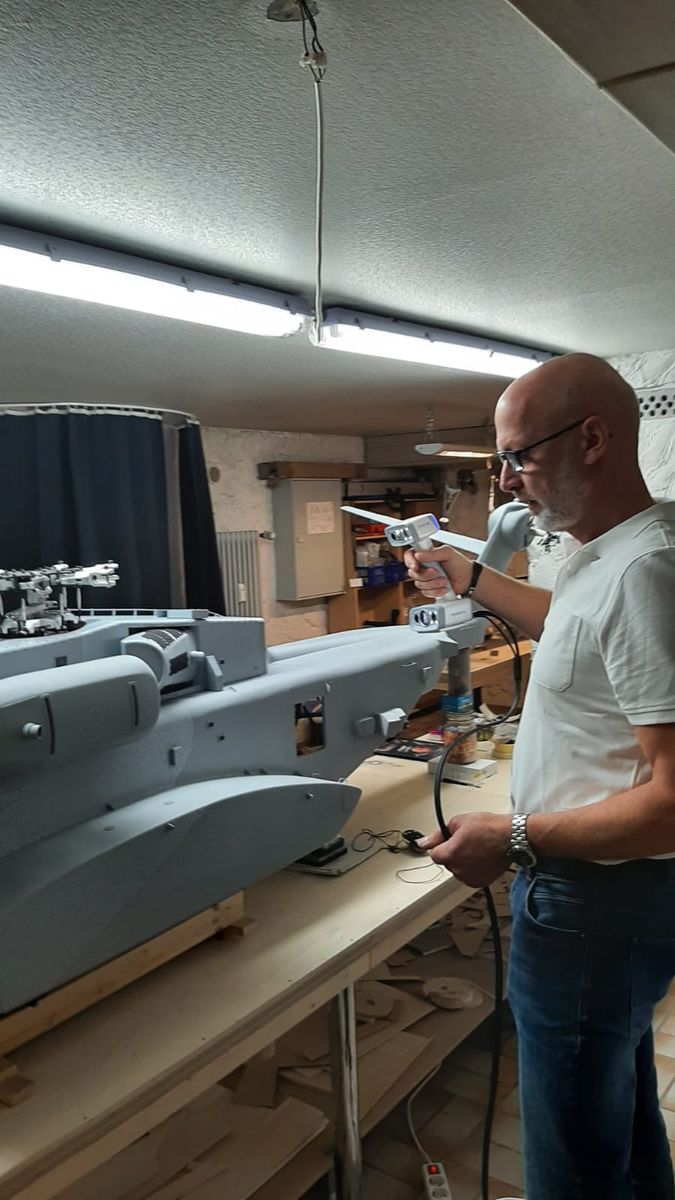

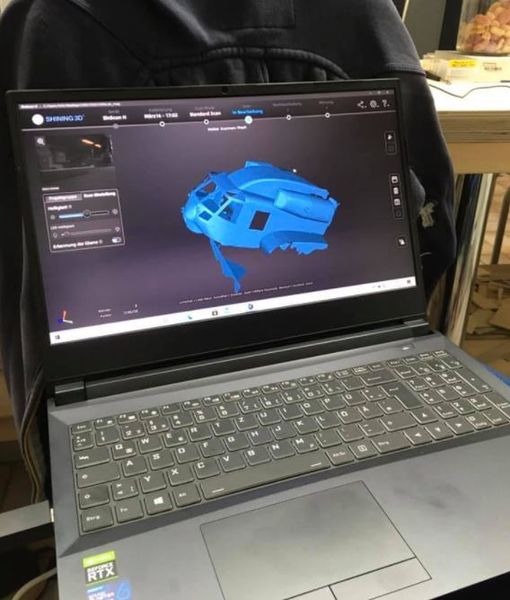

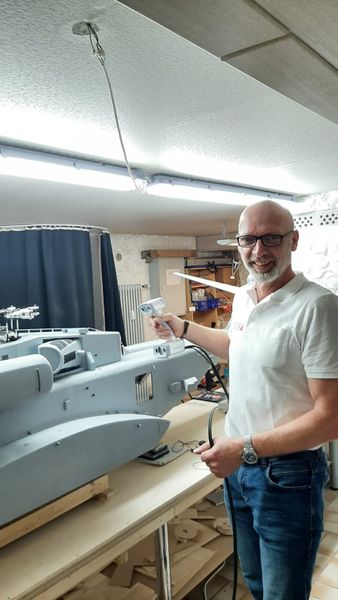

Today I visited Frank Wedekind who is just building a big CH53, 3m long to make a scan. Now I can design the cockpit and other add-on parts and can be sure, that they will fit perfectly.
