Bell 360 Invictus
Evan S.
Chapter 6 of 19
Digging into mechanic
Jun 3, 2023

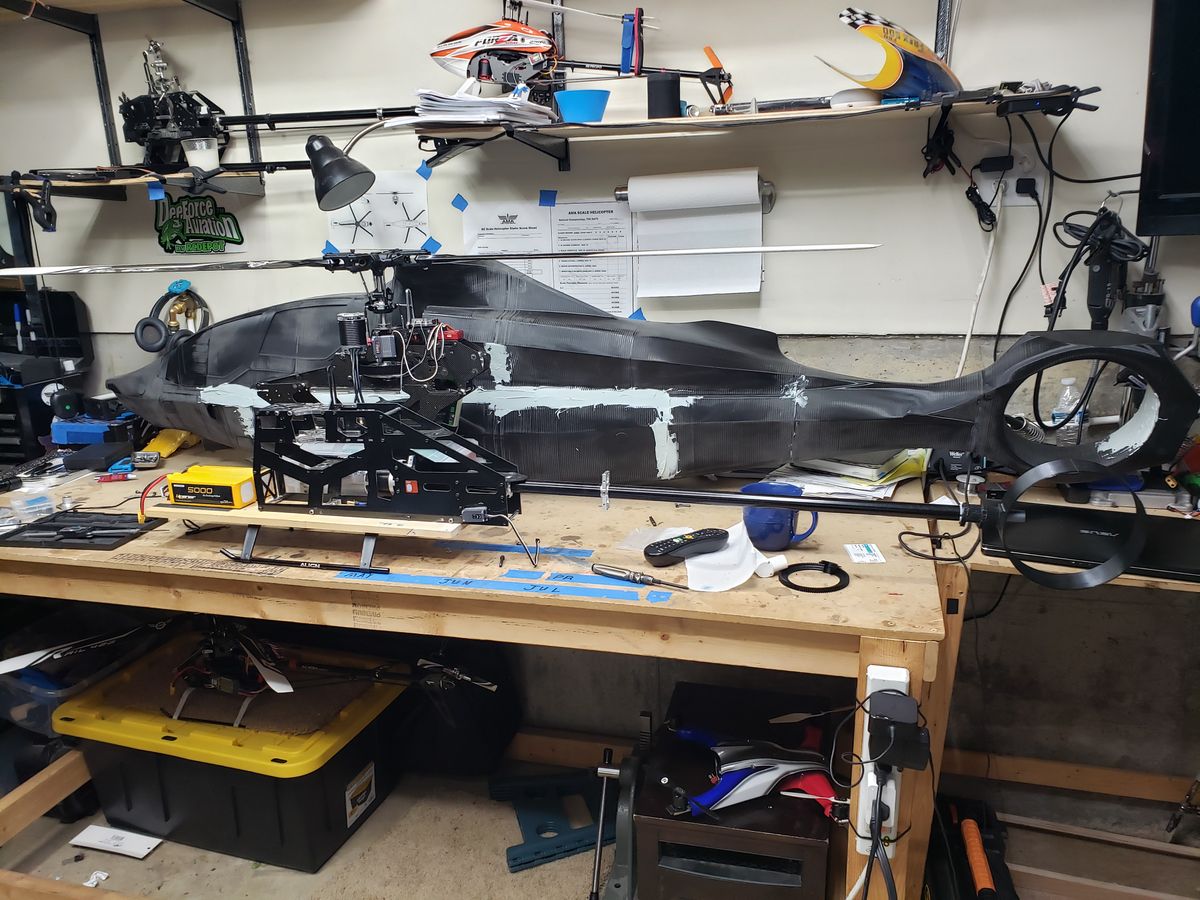

With increasing the size from 1/7 to 1/6, i need to re work a few things. Today i got serious about getting a test bed worked out.

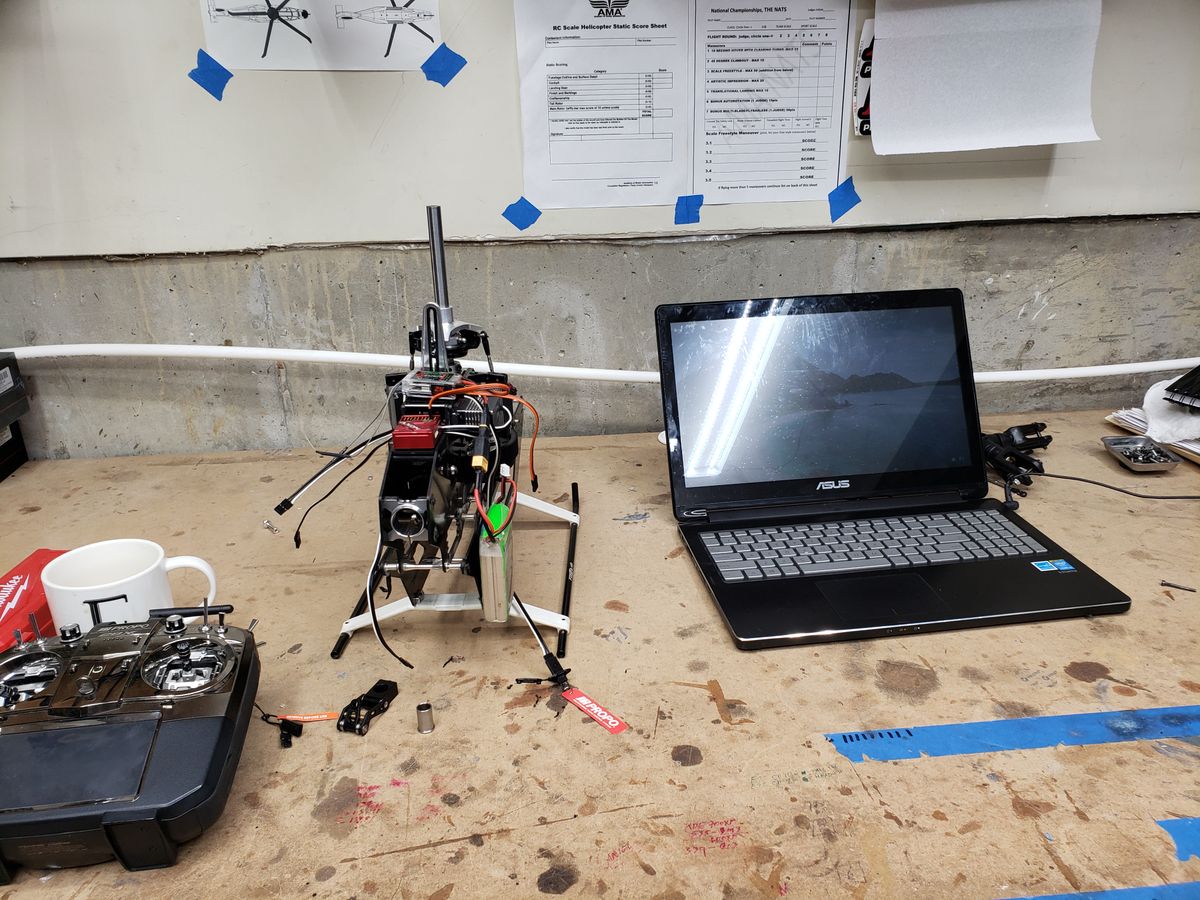

I got the reciever and Axon set up to what i call level1. Next i will work on the tail-fenestron system. Normally i would have the ESC"s included. But with the new seperated systems i will need to work out the tie in of the main and tail side rails.

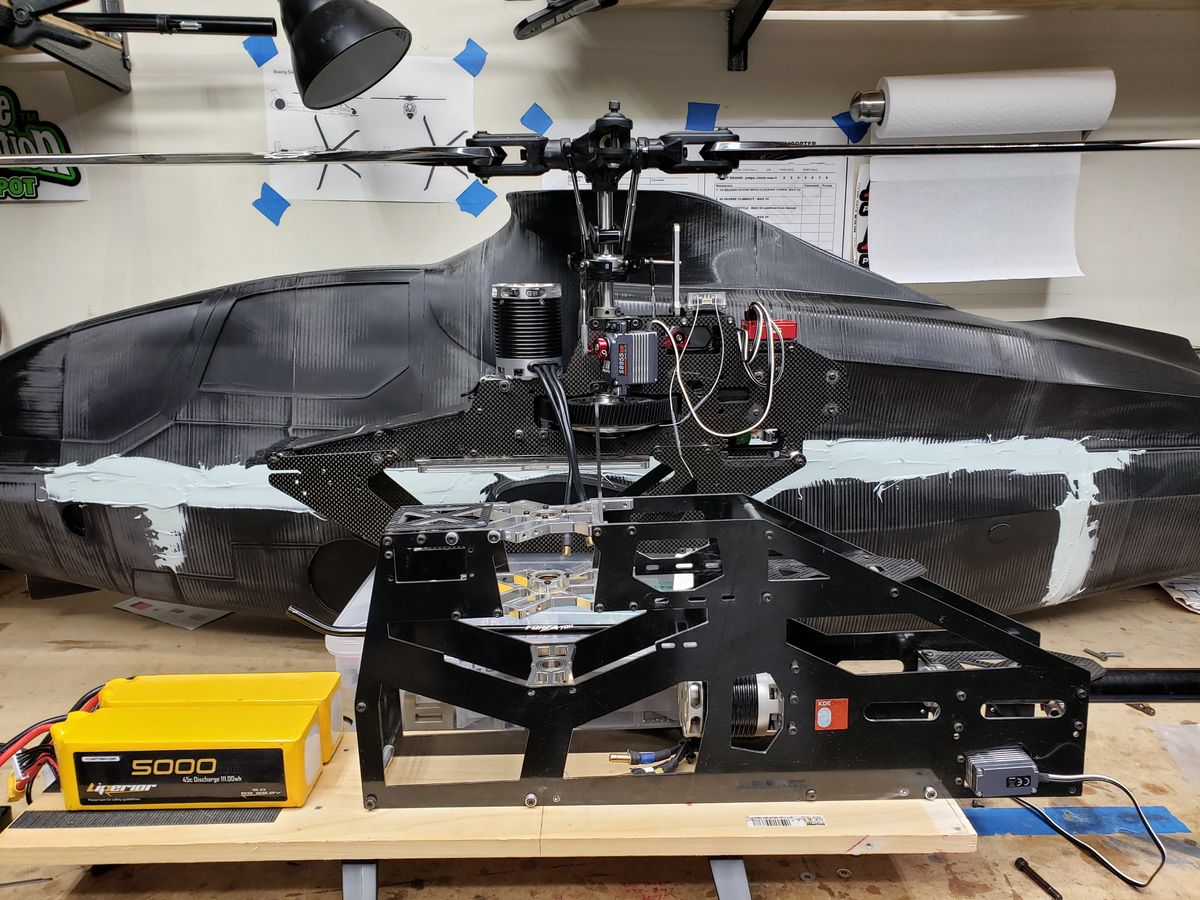

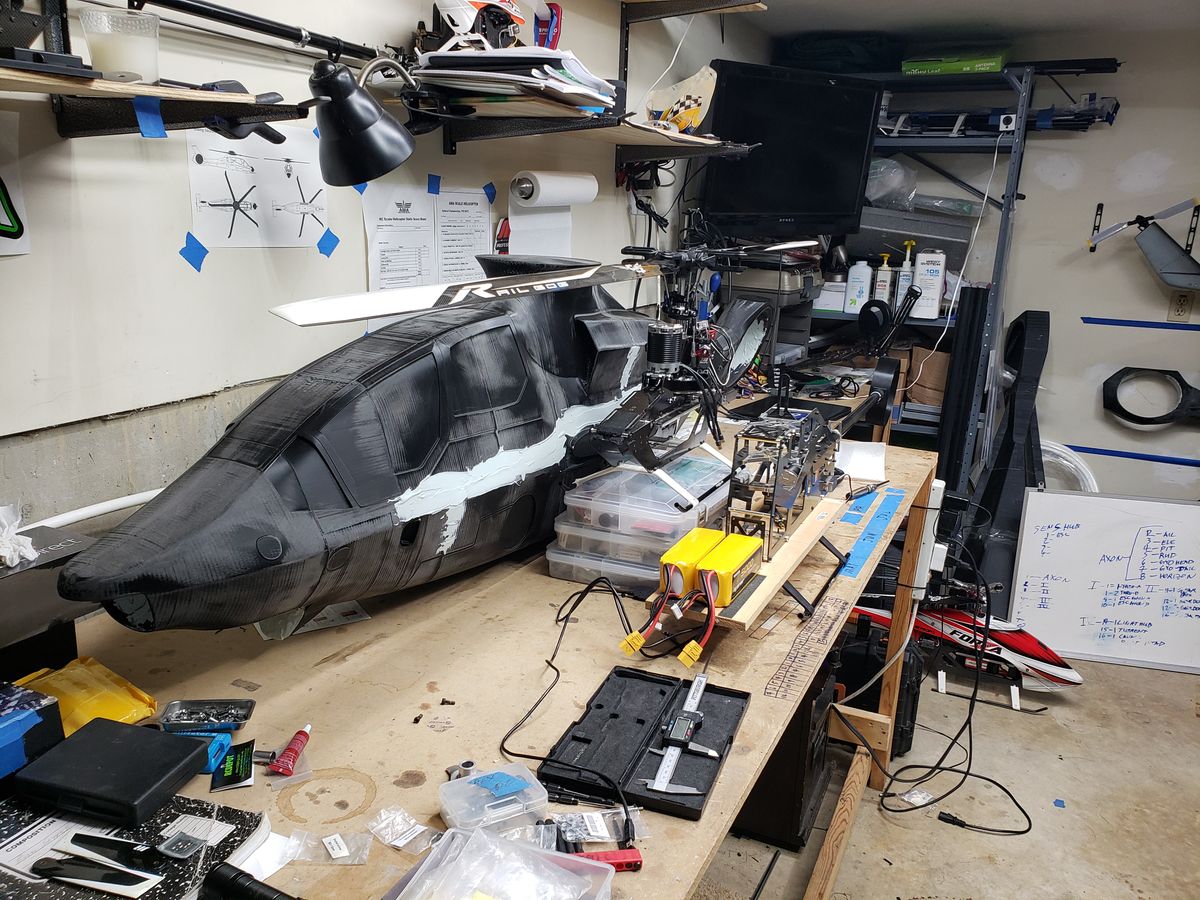

Looking at all three side by side. Im going to have a couple drinks stare some more and get back at it.
I seriously hope to have a flying prototype this weekend.
If you have questions or requests on the how, what, where. Please let me know.
