Bell 360 Invictus
Evan S.
Details of the Mechanics

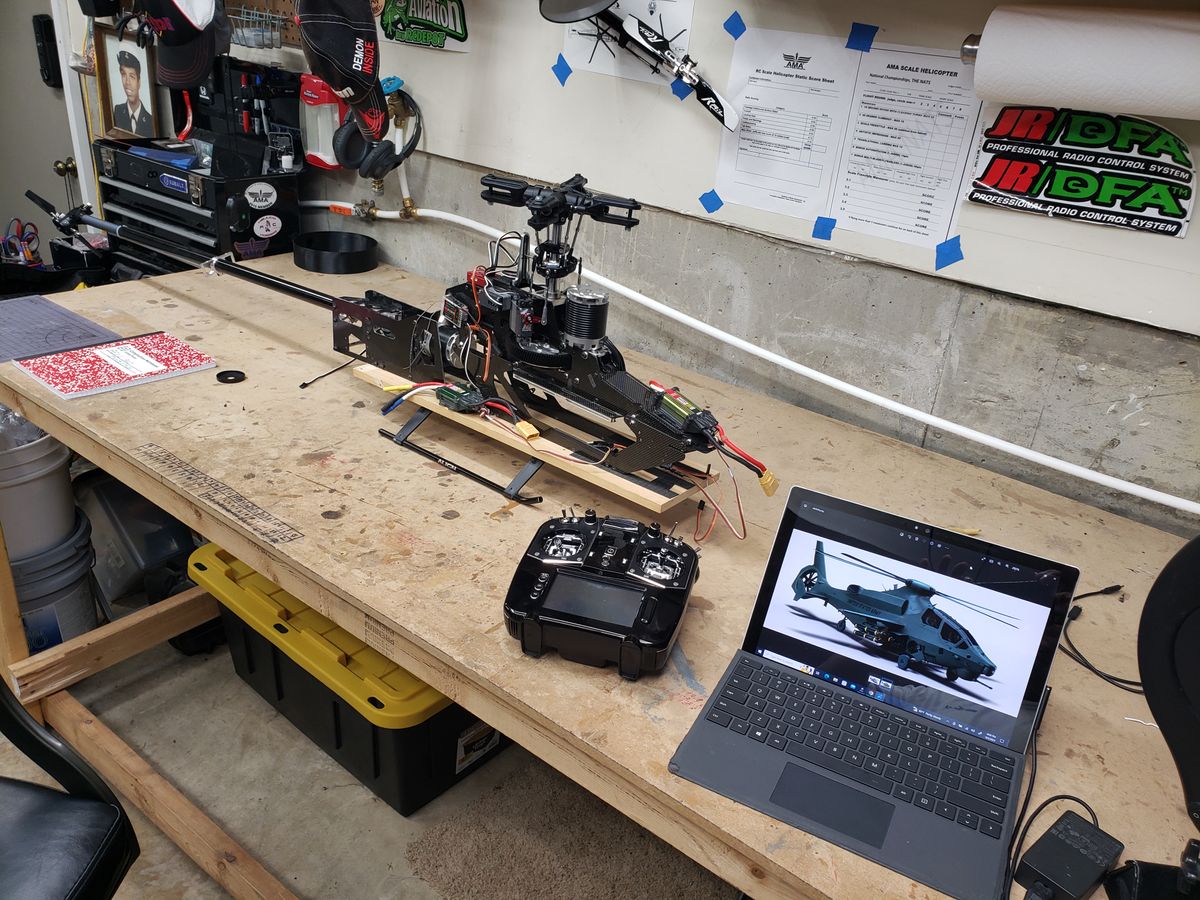

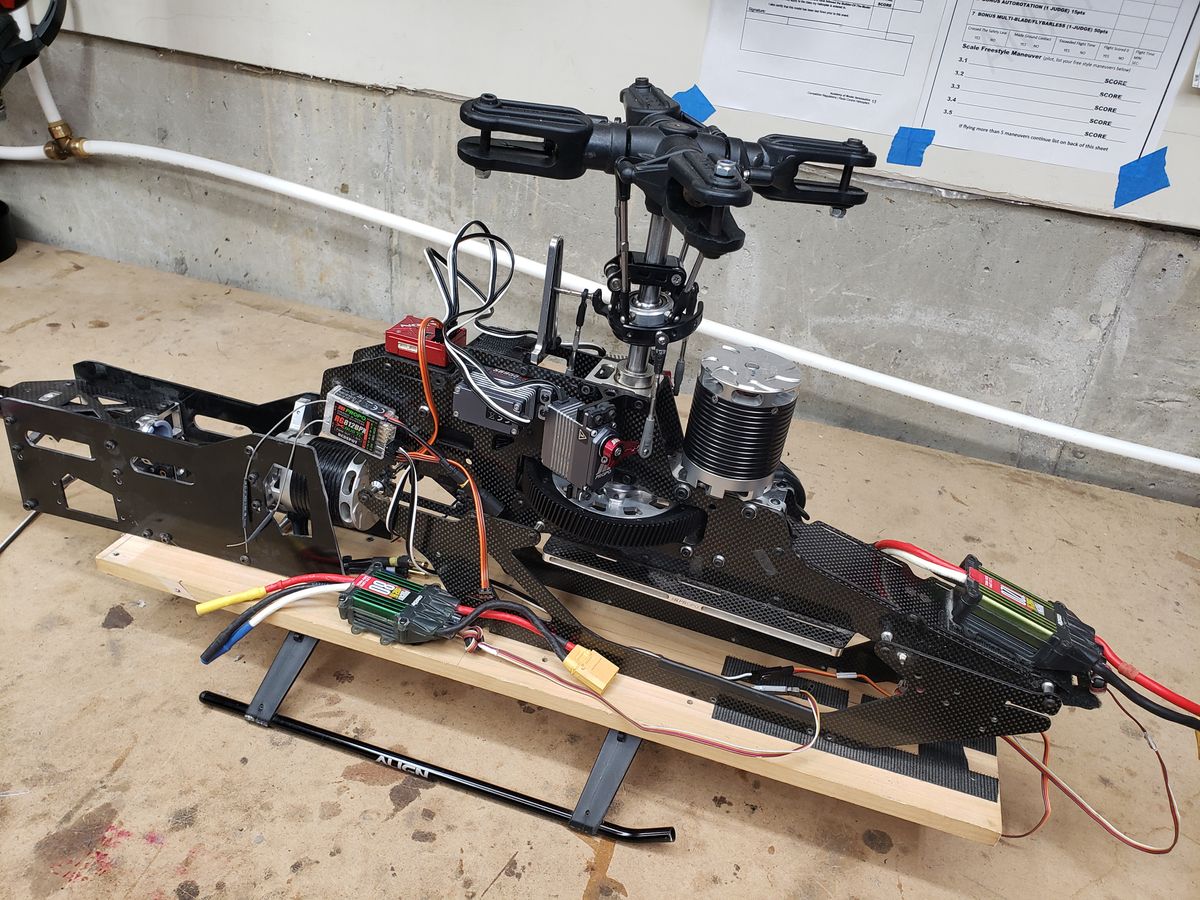

Well it is time to dig into getting these parts put together and see if we can get something off the ground.
Tail / Vario 8 blade fenestron target 9500 RPM. Direct drive 6S.
Main / Vario 4 blade 2000mm dia. target 1100 RPM 12S
I'm going to start with the Castle brand ESC's because of familiarity of being able to program in specific numeric rpm choices. i have inquired for years both reps and manufactures only to get back. they can not or do not have this feature. I am either asking the wrong questions or this is just going to have to be the direction I must follow.
THE QUESTION: Can your ESC store a specific RPM in the Components and not the radio. Example I can tell a castle to run 1000rpm(normal), 1200rpm(idle 1), 1300rpm(idle 2) ?
The FBL/ Flight Controller will be a Bavarian Demon AXON with a JRPROP Xbus system.
Please give comments and questions as to this is going to be a unique and fun project.
