How to build a Helicopter Refueling System
Uwe B.
Chapter 1 of 10
From the idea to the prototype
Oct 1, 2022
After all, refueling turbine helis should also be fun. It's just a prototype but actually works
Here I would like to present my latest project for reliable people who enjoy building it themselves. An RC Fuel Station on the one hand, but then maybe one with an automatic switch-off and measuring device are rarely found. Whether you need it is up to you? But because I can't really see how much I've fueled with some helis, e.g. scale helis, the idea arose to develop and build something myself.
14 Comments
I MUST have one of these!! Do you sell them? If not, can you list the components? I like the design too.
First of all, I want to present a construction manual and of course the parts list as well. I'm still looking into the possibility of offering a kit.
When you do, let me know so we can review and promote it!!
I Like.
I'm going to buy these parts, which is also a DIY set. It's great. Thanks for sharing.
Impressive work. I'm excited in following your progress.
is it possible to ad a preassure sensor for tankbags ?

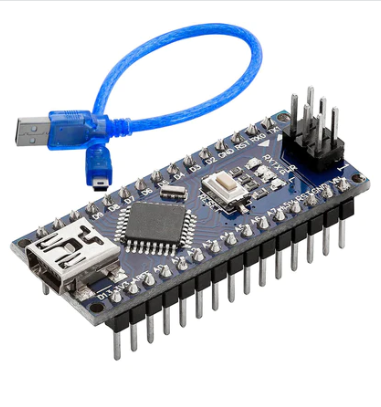

That would certainly work too. The Arduino has even more inputs. Here you only have to choose whether it should be a digital or an analog pressure sensor.
I can't find the right pressure sensor for this application,do you have a hint ?
I'll research what's available on the market
Uwe, did you find any fitting pressure sensor?
Most interested!

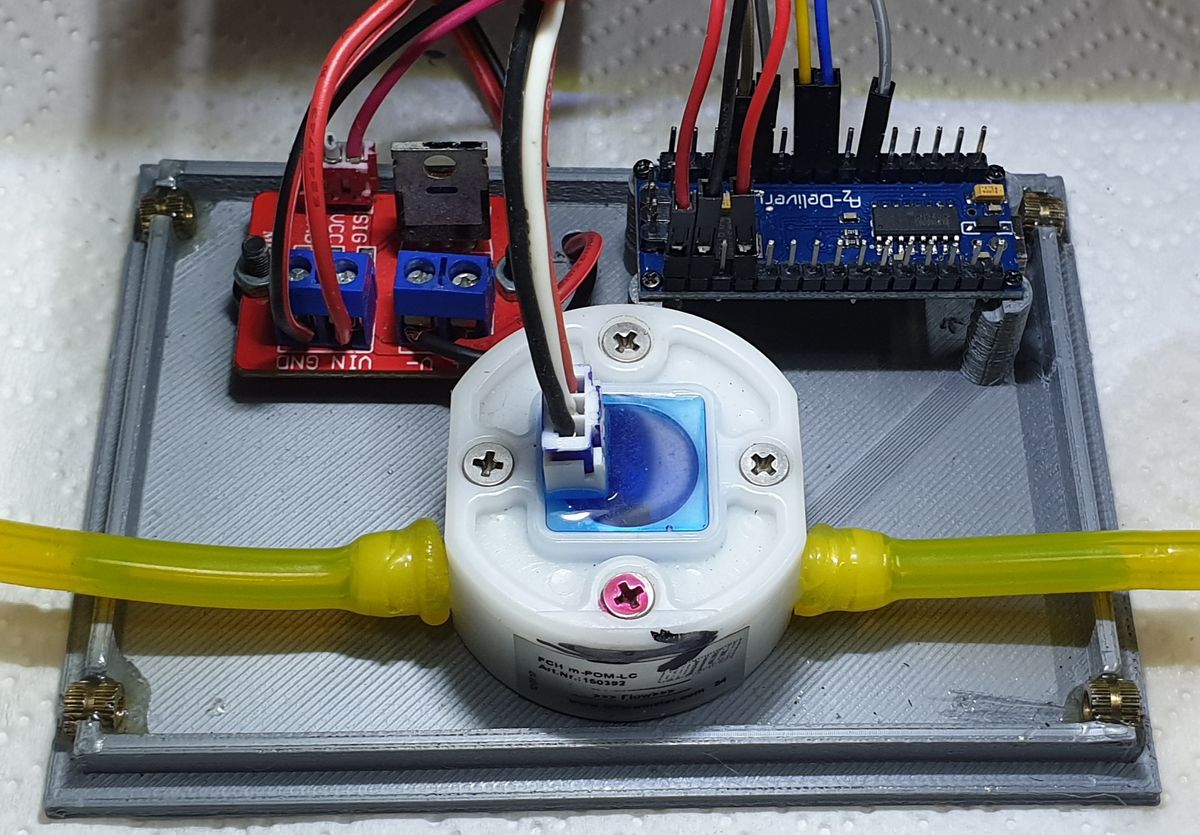

Uwe, Thank you. In Ch 2 you noted “ The flow meter I use has a flow range of 0.05 -3.0 L/min and the repeatability of frequency response is +-0.5% (at the same operating condition)”. Can I assume this accuracy is representative of the total volume delivered over time?
I might consider building one using your data. If so, how can one reimburse you for your efforts? Are you considering selling them as a kit?
Thomas, the accuracy is described in the manufacturer's data sheet. I can also say that it is absolutely reliable. You can draw good conclusions from the amounts of fuel refueled after each flight.
I don't offer it as a kit. But you can send me a PM. I'm sure we can find a good solution.
