Build Story
How to build a Helicopter Refueling System
Uwe B.
Chapter 6 of 10
Interconnection of the individual components
Oct 2, 2022

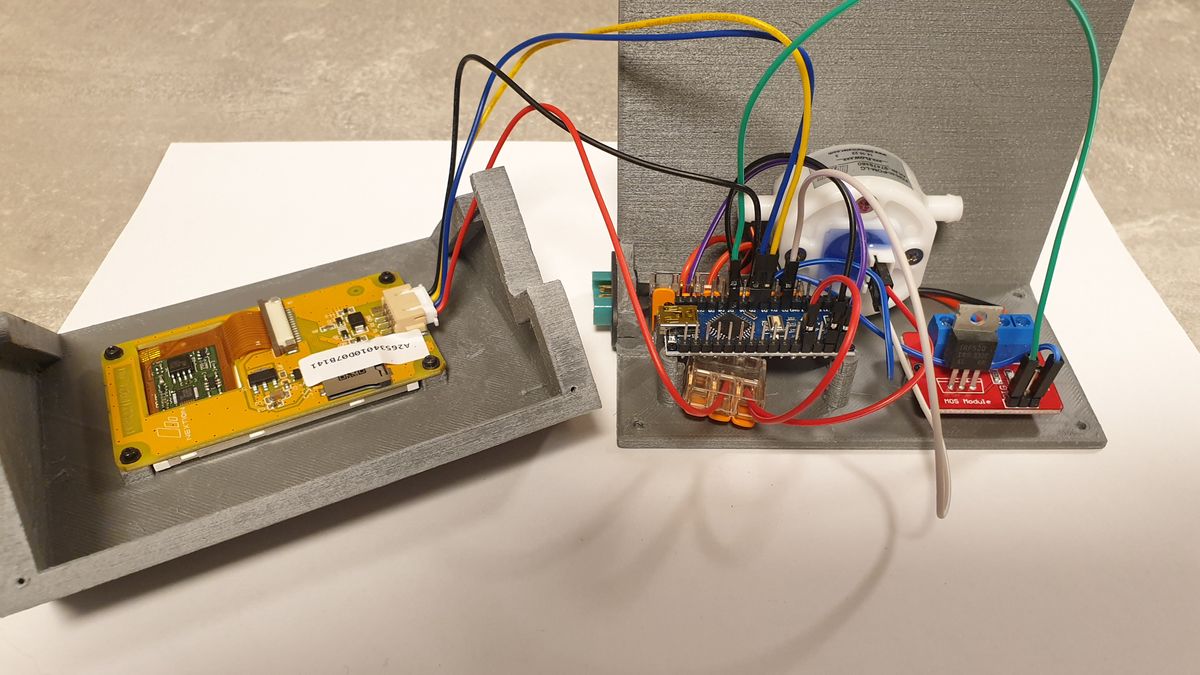

Now all you have to do is connect the units together.
I used jumper wire cables because they are very suitable.
The many different colors make it easy to understand and build circuits.

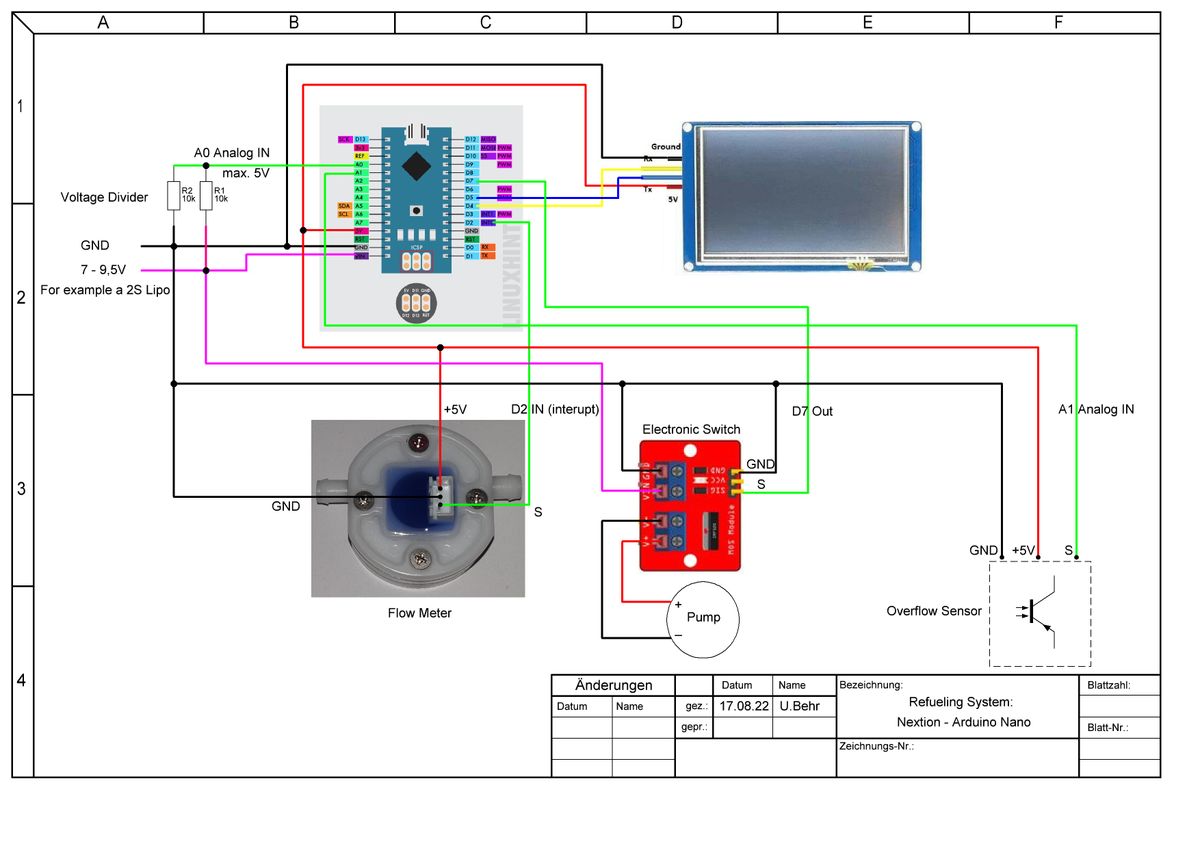

For this reason, I used different colors for the respective connections in the electrical circuit diagram.
-->
