Vario Chinook XL
Gonzalo M.
Chapter 1 of 20
Vario Chinook XL out of the box
Jul 14, 2024

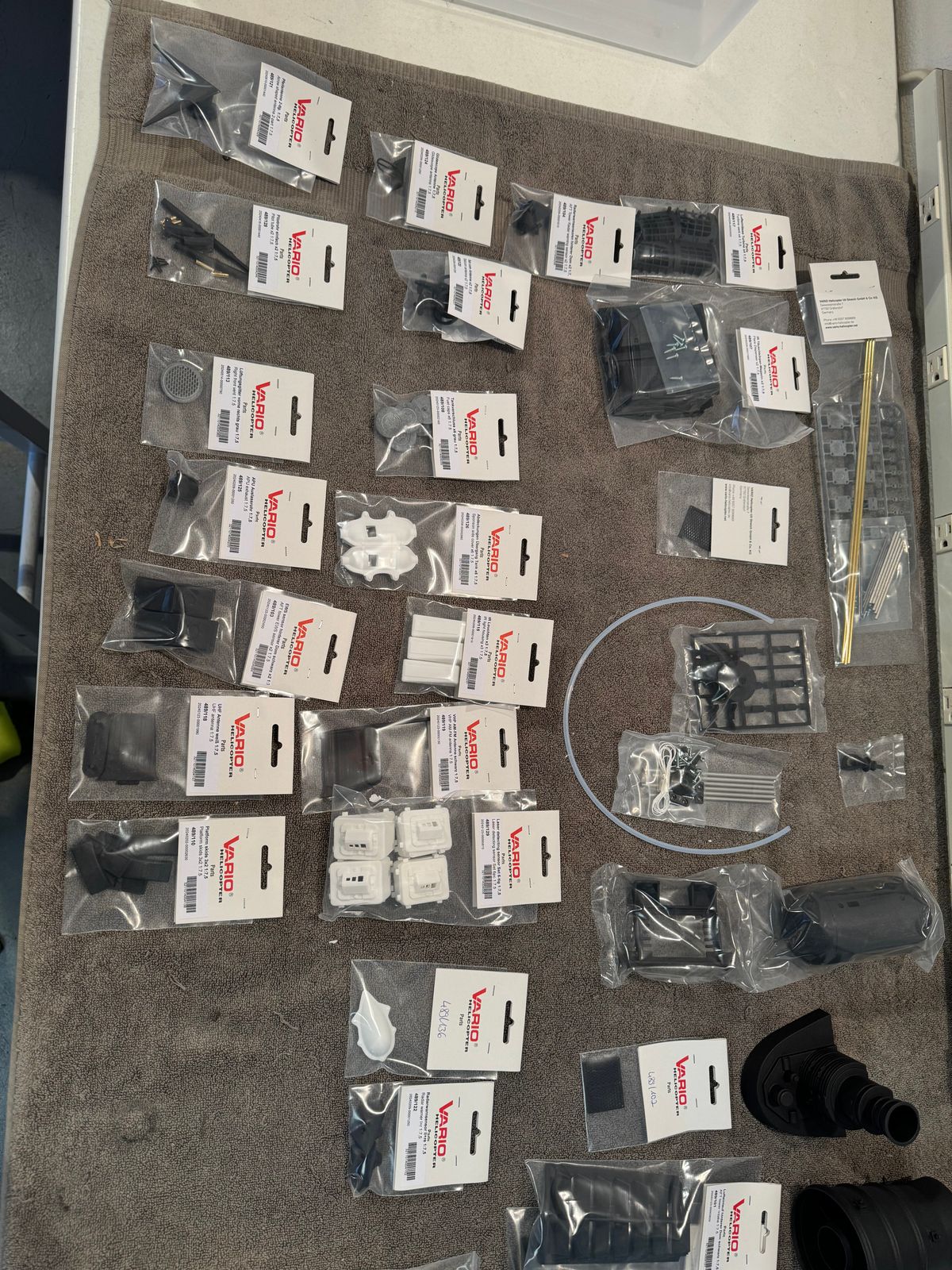

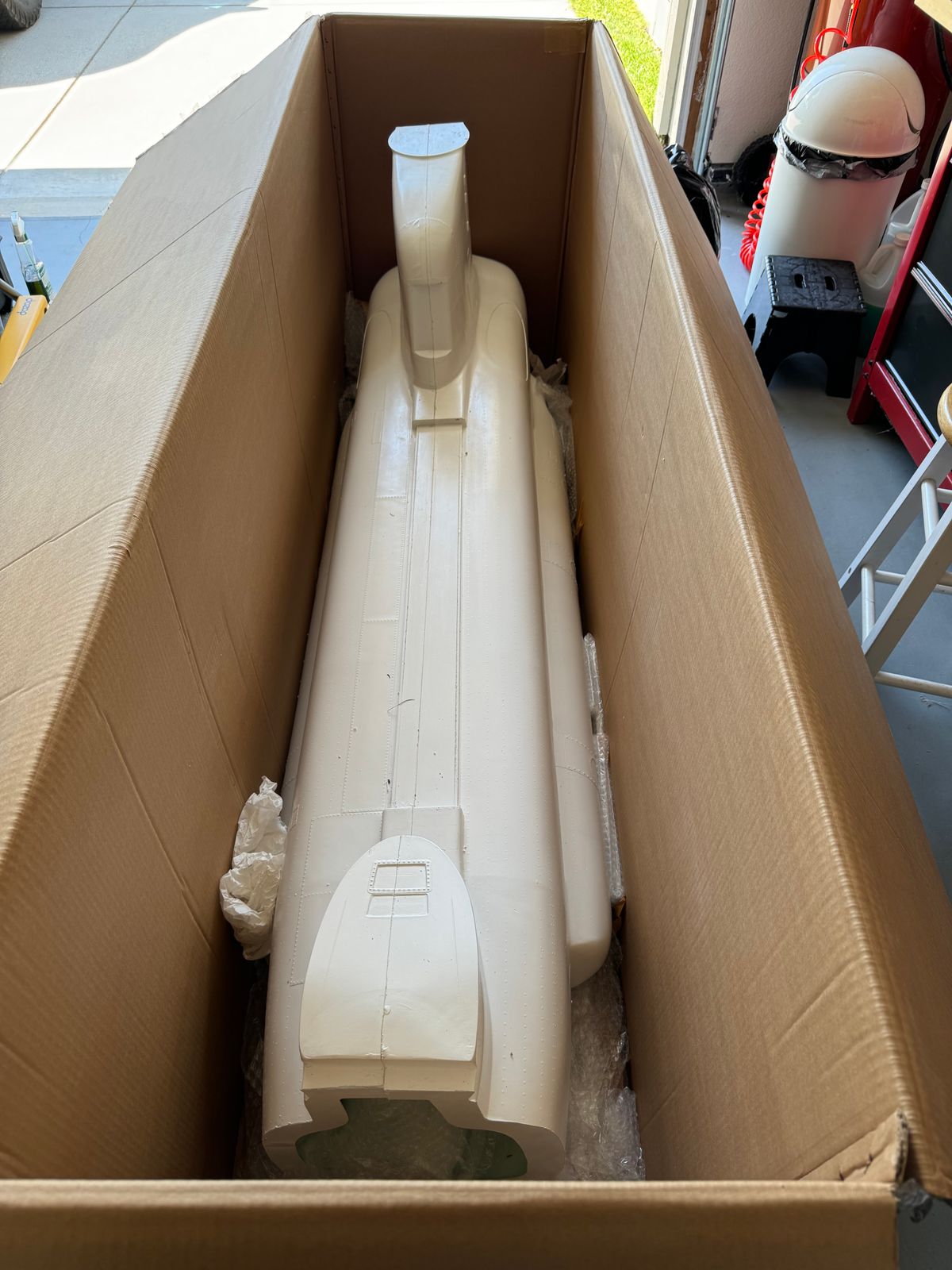

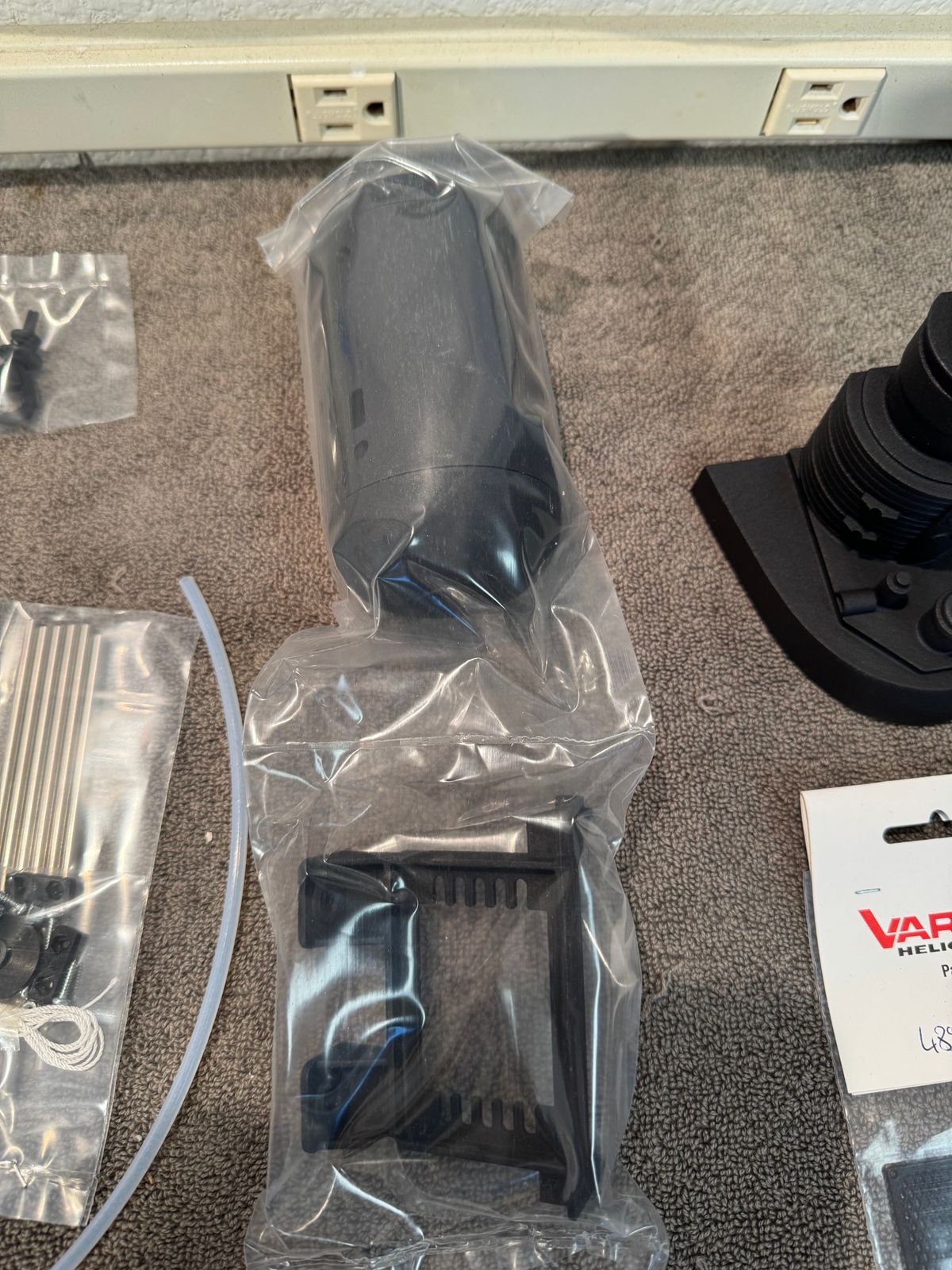

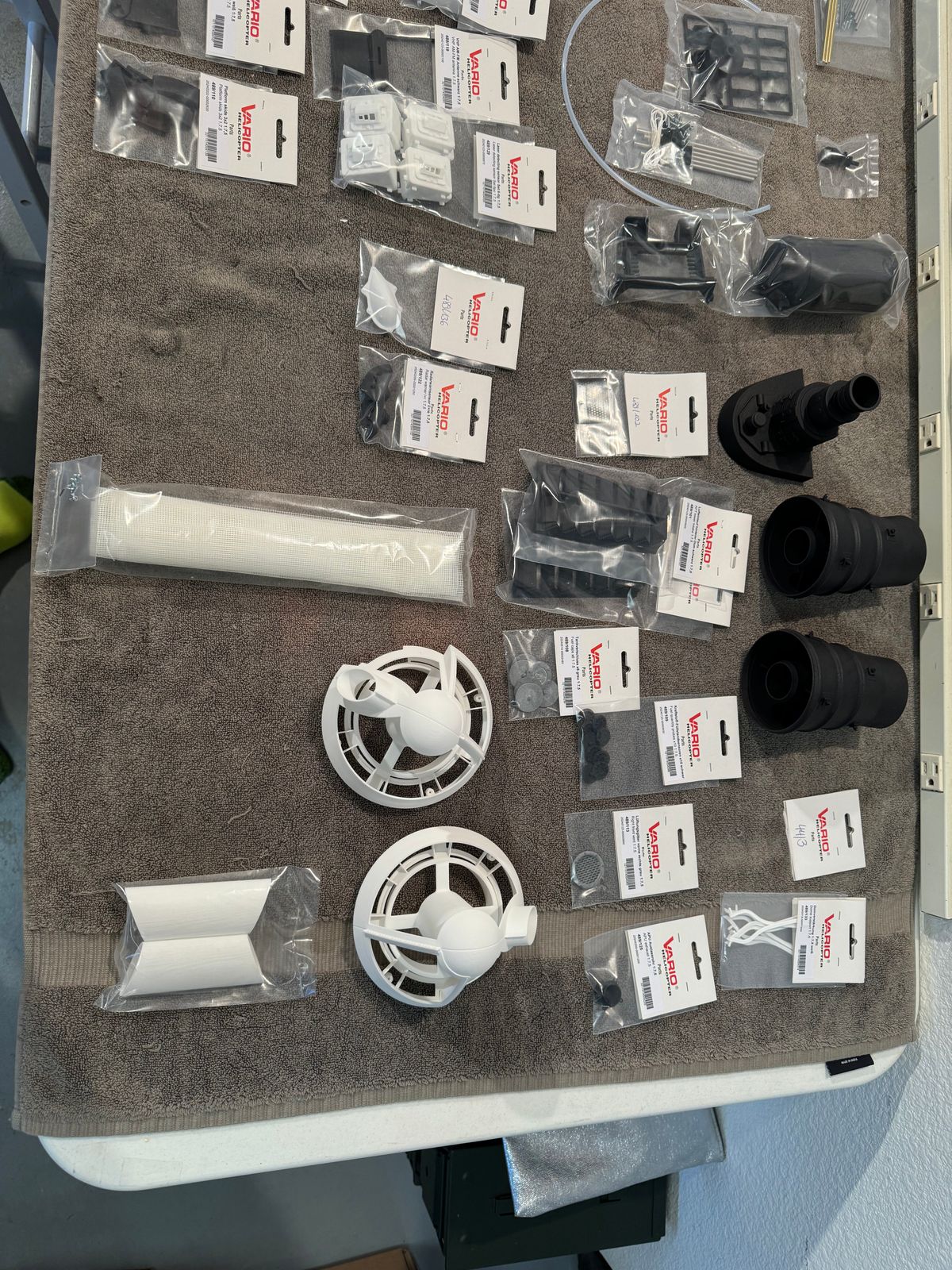

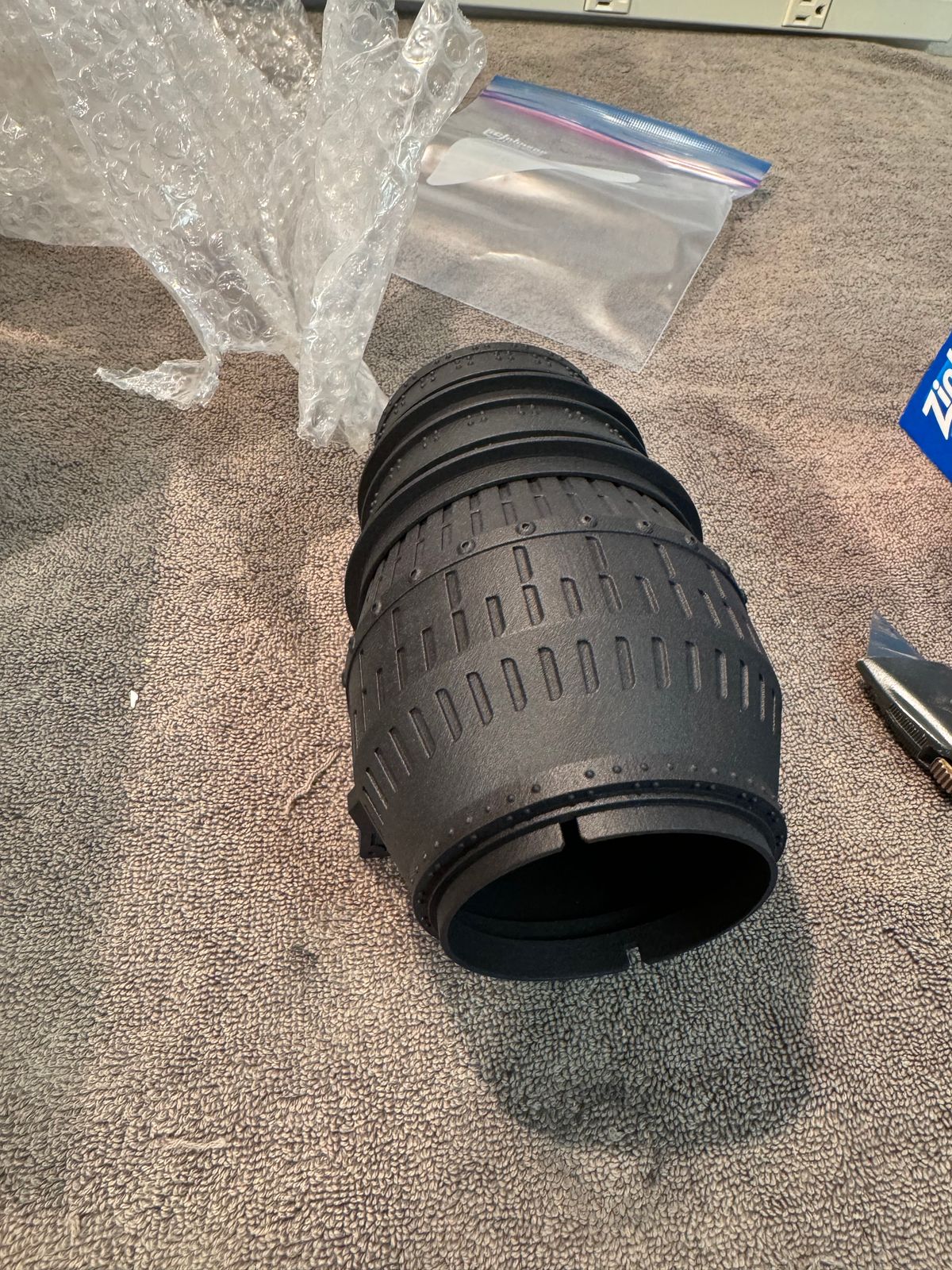

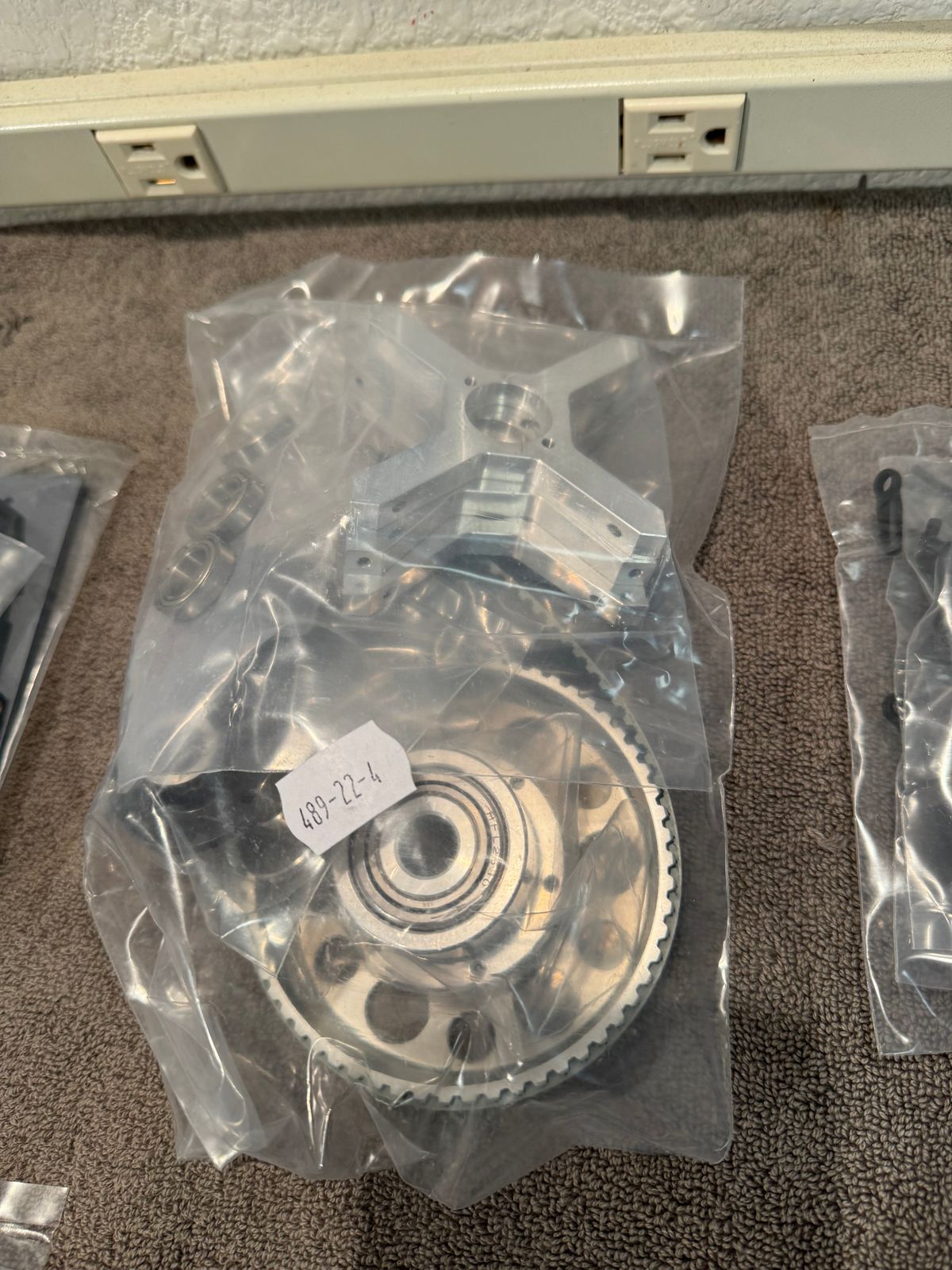

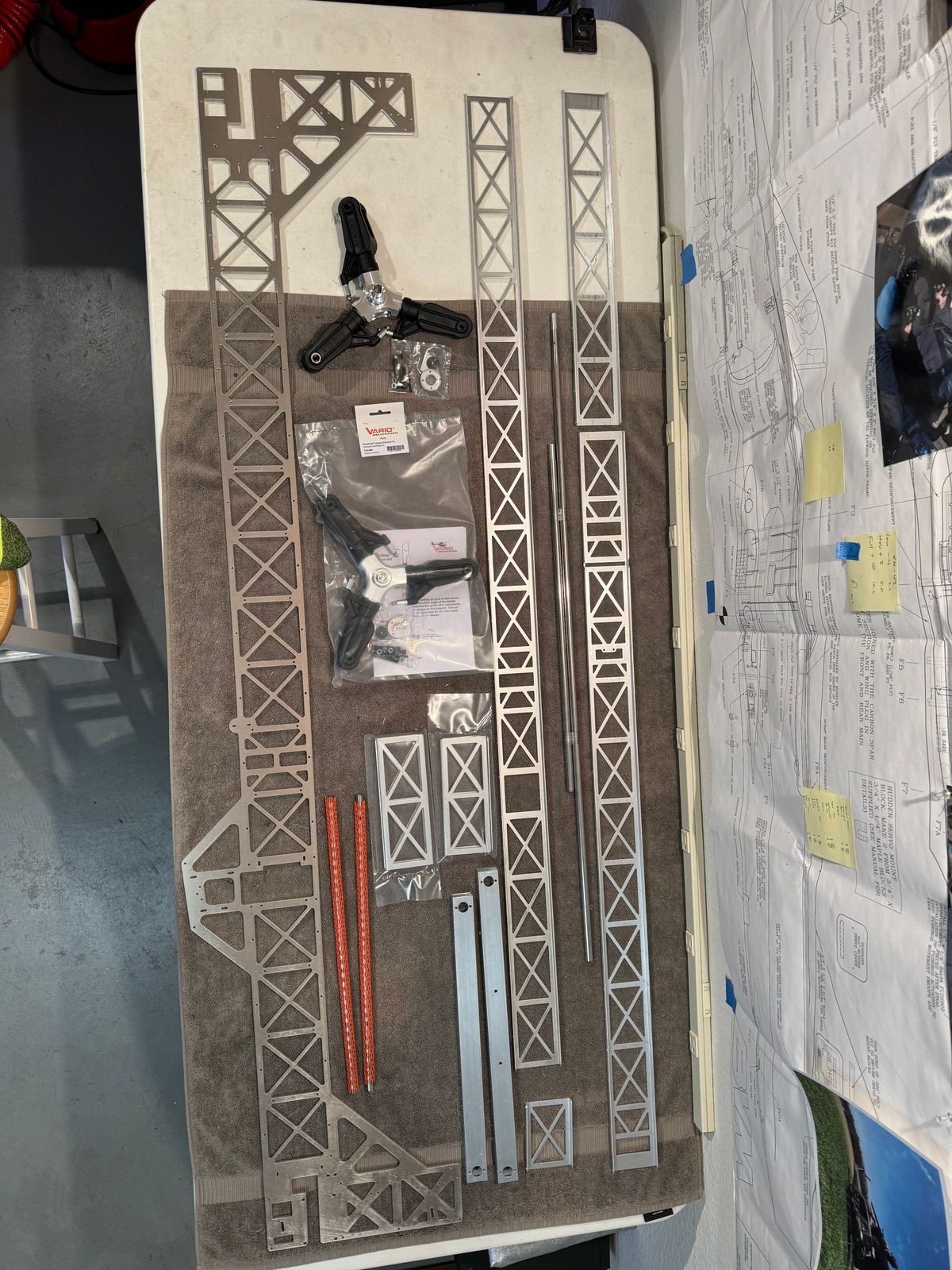

The new Vario Chinook XL, arrived in a large box with mechanics and some additional parts made by 3D laser powder sintering with excellent resolution.
71 Comments

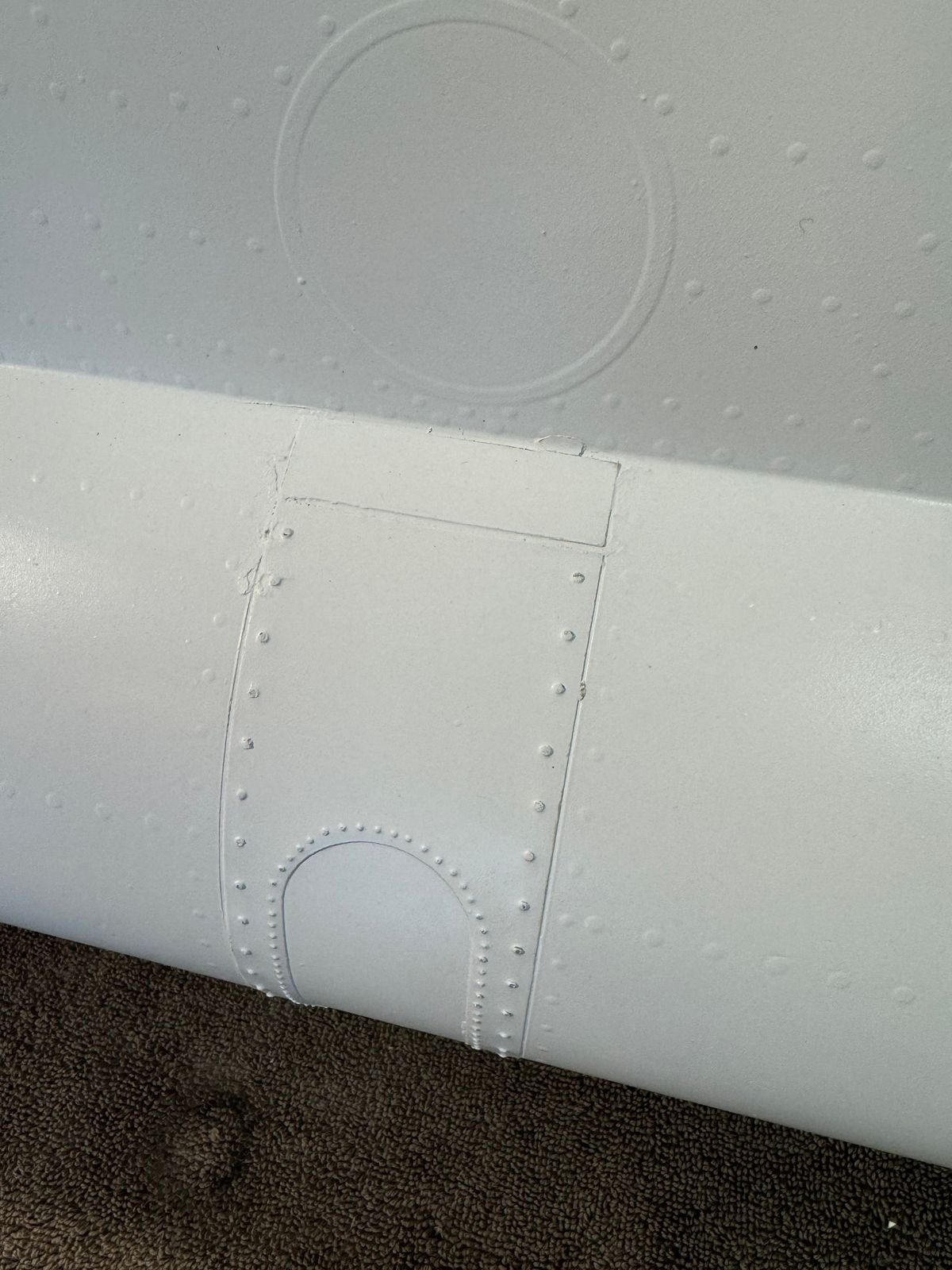

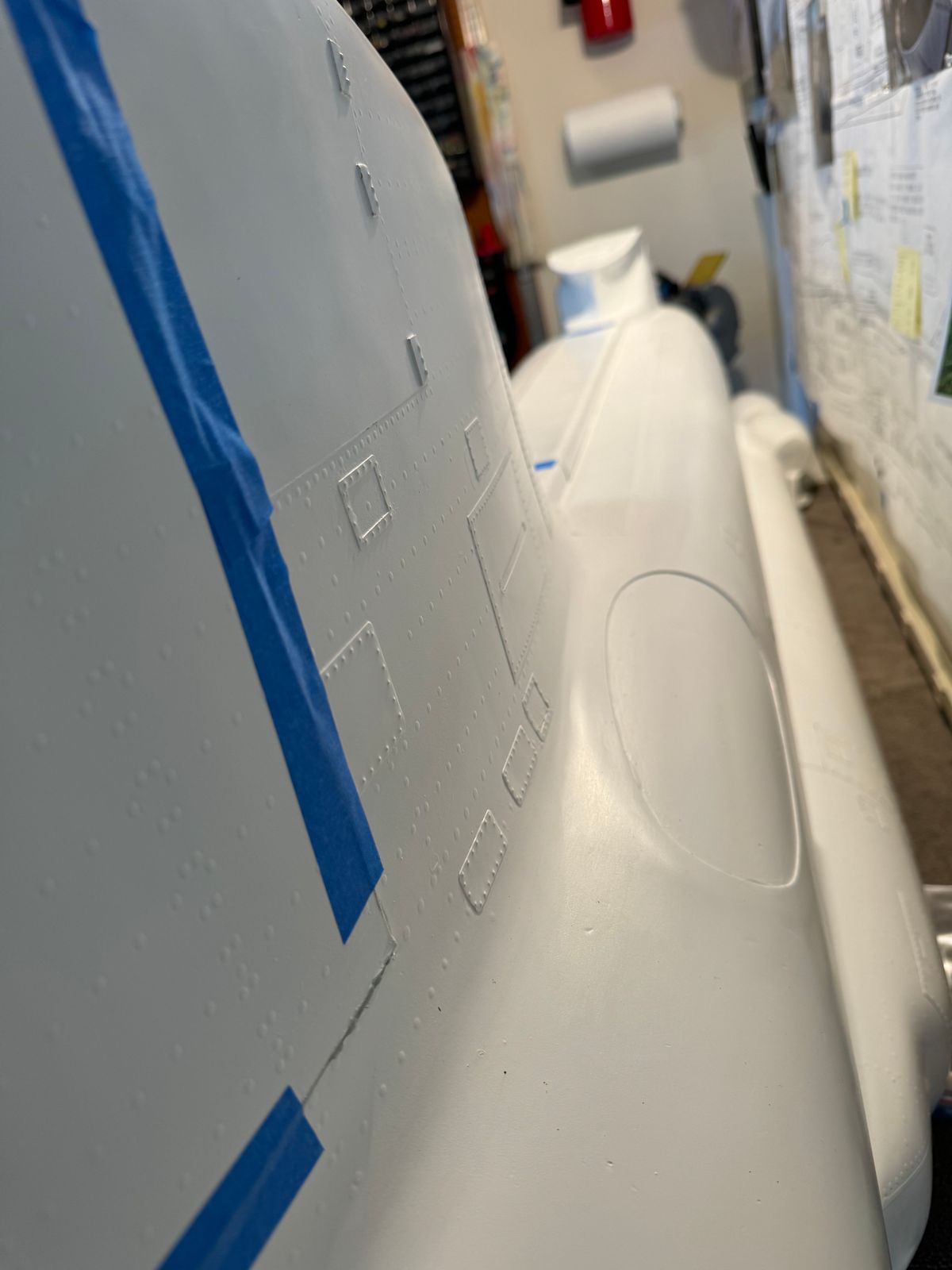

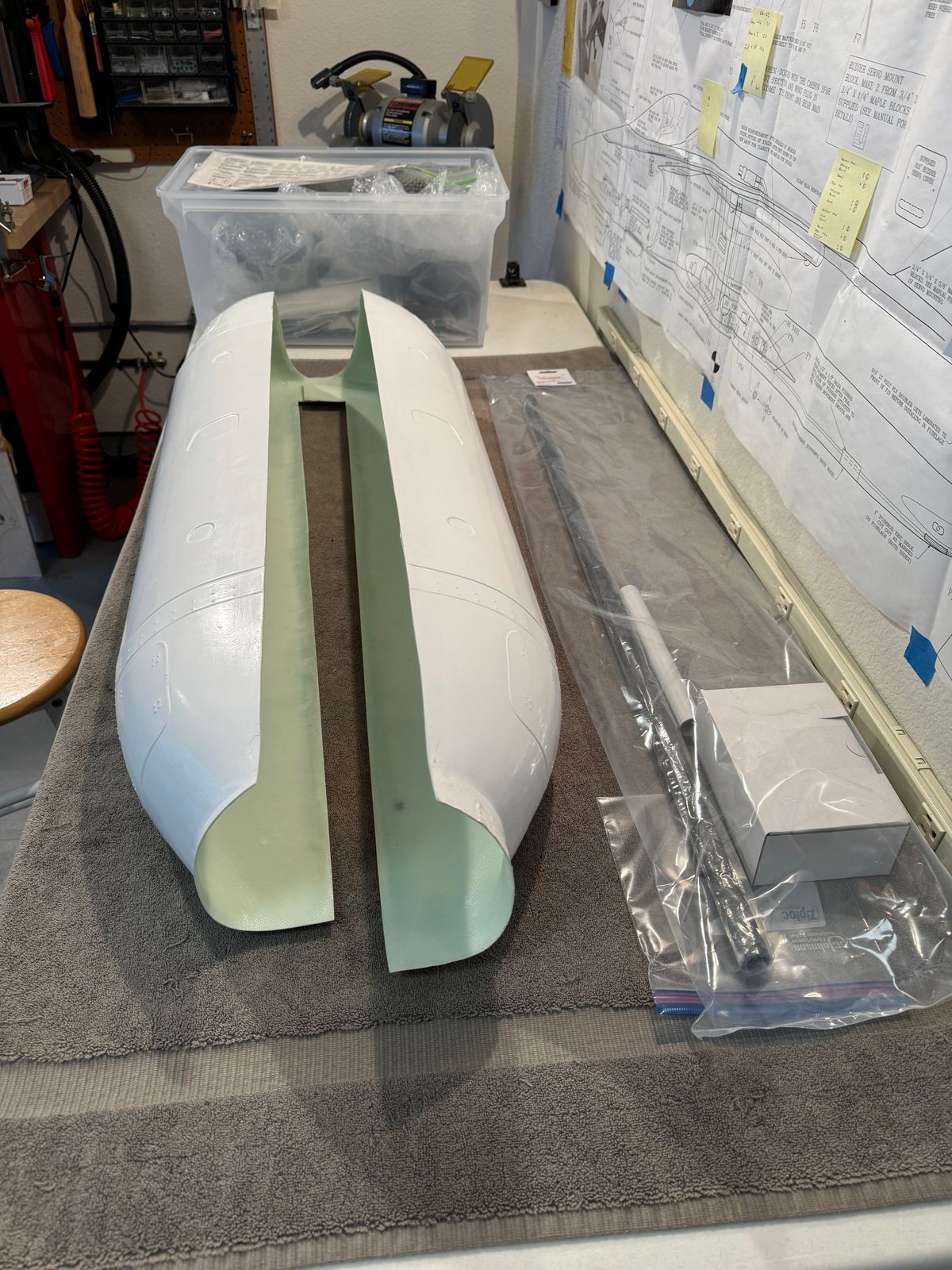

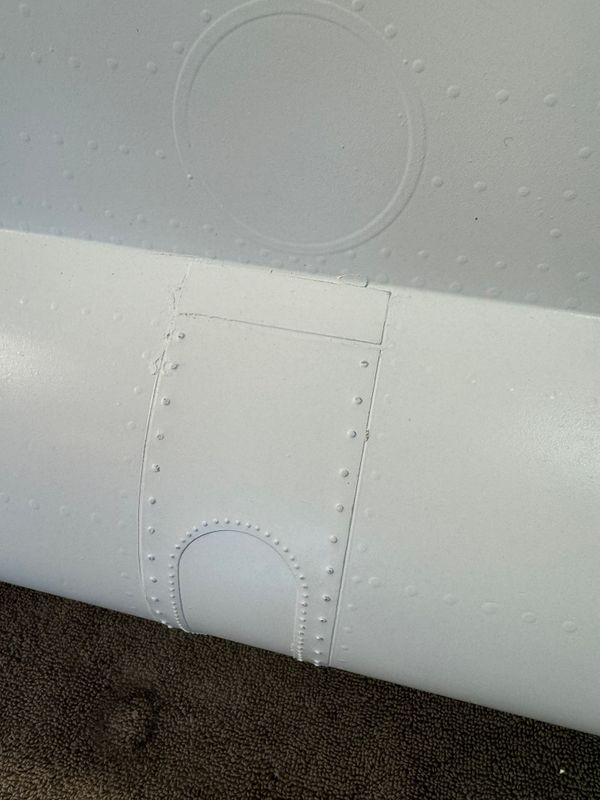

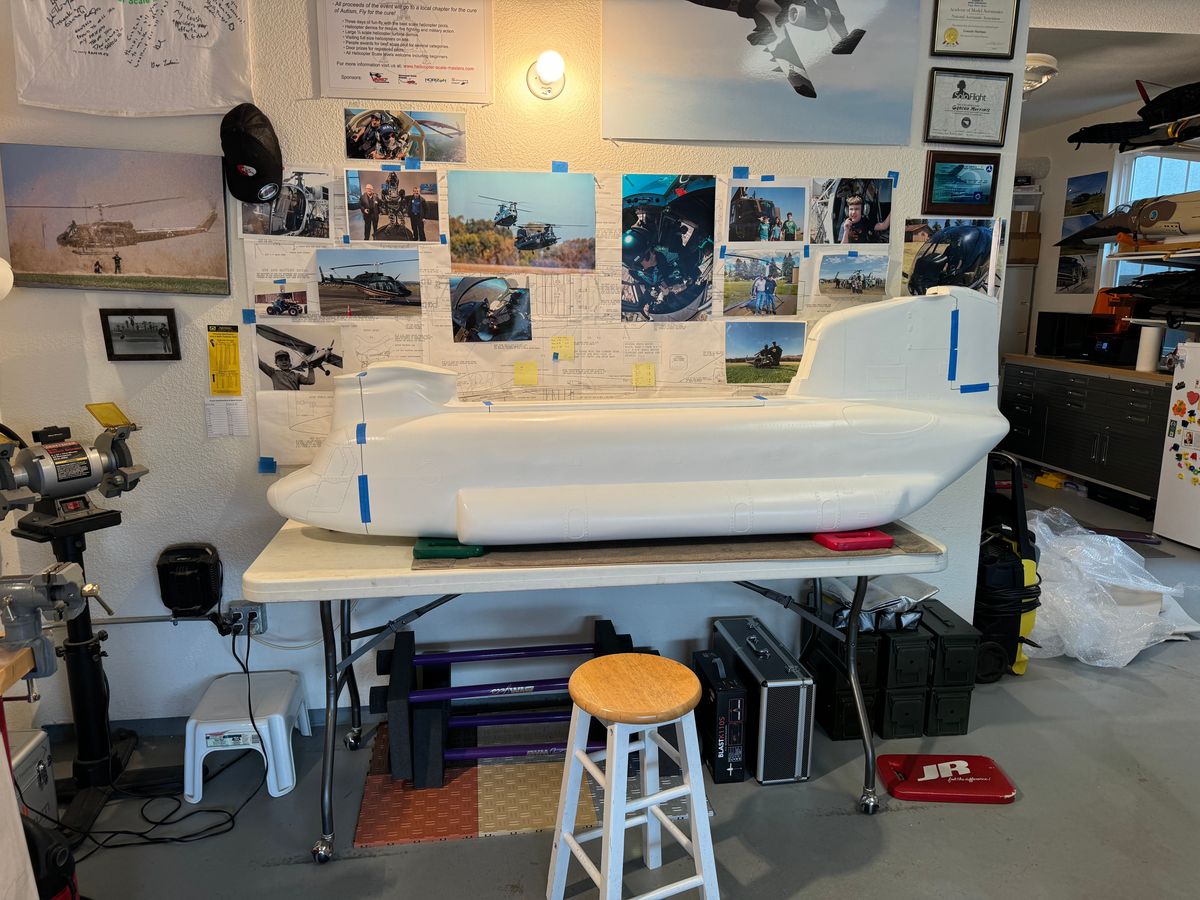

Theo sure made a fine scale fuselage...
Wow....
Outstanding, which model is this? looks like the MH version by the nose chin glass, not the F model
The plan is for an MH-47
My understanding is that fuselage fitment will be easier than on the 1:11 model, yes?
So far it looks like but I am far from that step at the moment.
Also wondering, given the quantity of bolts, whether you are applying thread lock as you go or after you are satisfied with the final assembly?
It all depends.... I do a lot of alignments before I apply thread lock. You always need to be a few steps in advance.
That is one bad mamma jamma š³
Looking Good Gonzalo!š
Gustave Eiffel would have loved this engineering š
That bridge can get airborne with a few Vario modifications
Looking like the smaller version but with bigger parts so old guys can see them!

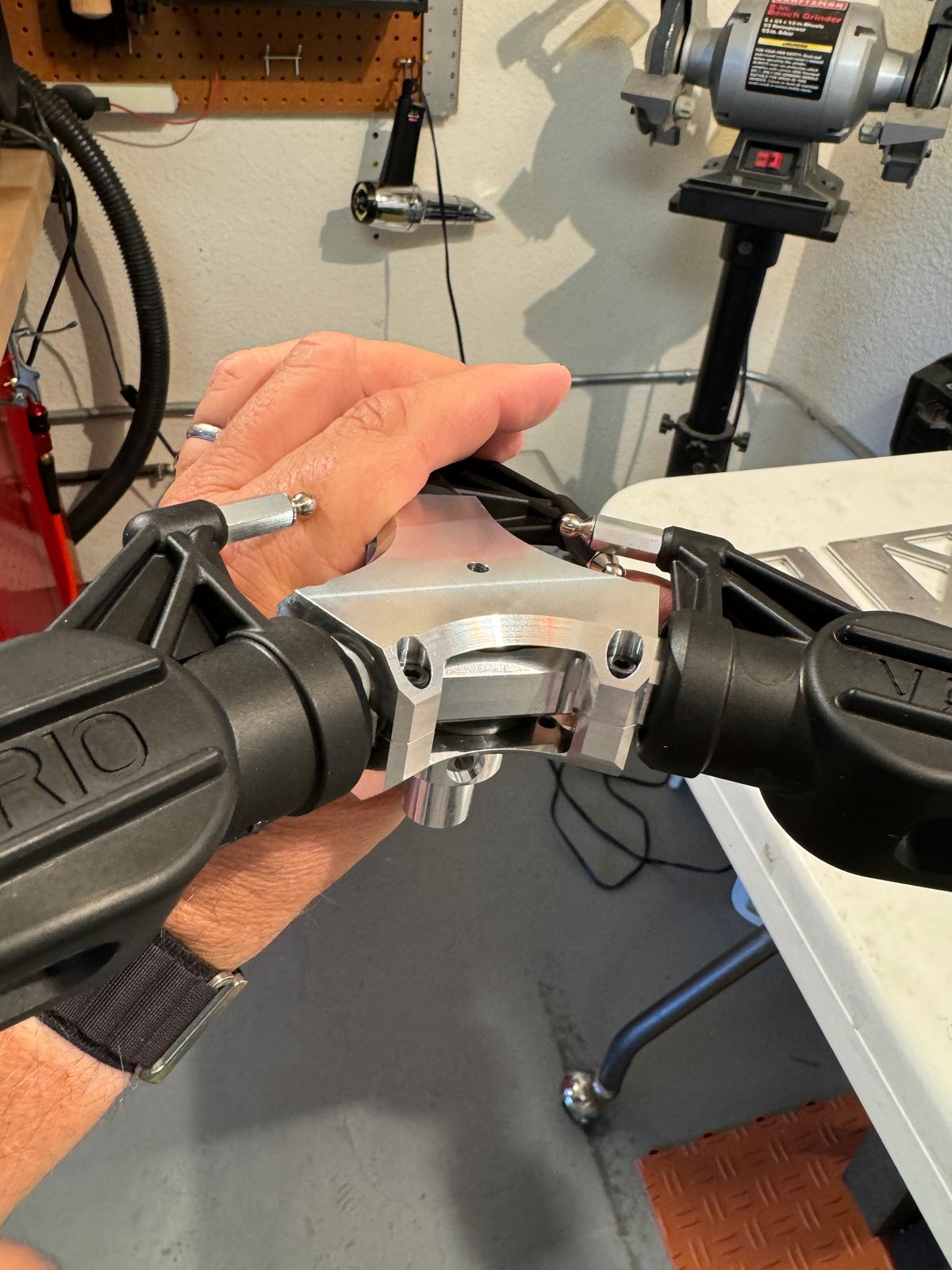

I also like how you pull out the shafts to get the mechanics into the fuselage.... a lot more simple
I like the jig! I assume one of the main shafts is tilted so you would need to elevate the front to get it vertical before setting up the swash?
Oh, and Iām proud of you for keeping this build going here! Future Chinook builders will be able to use this as a resource (just as I used your 1:11 pictures to help me with mine)!

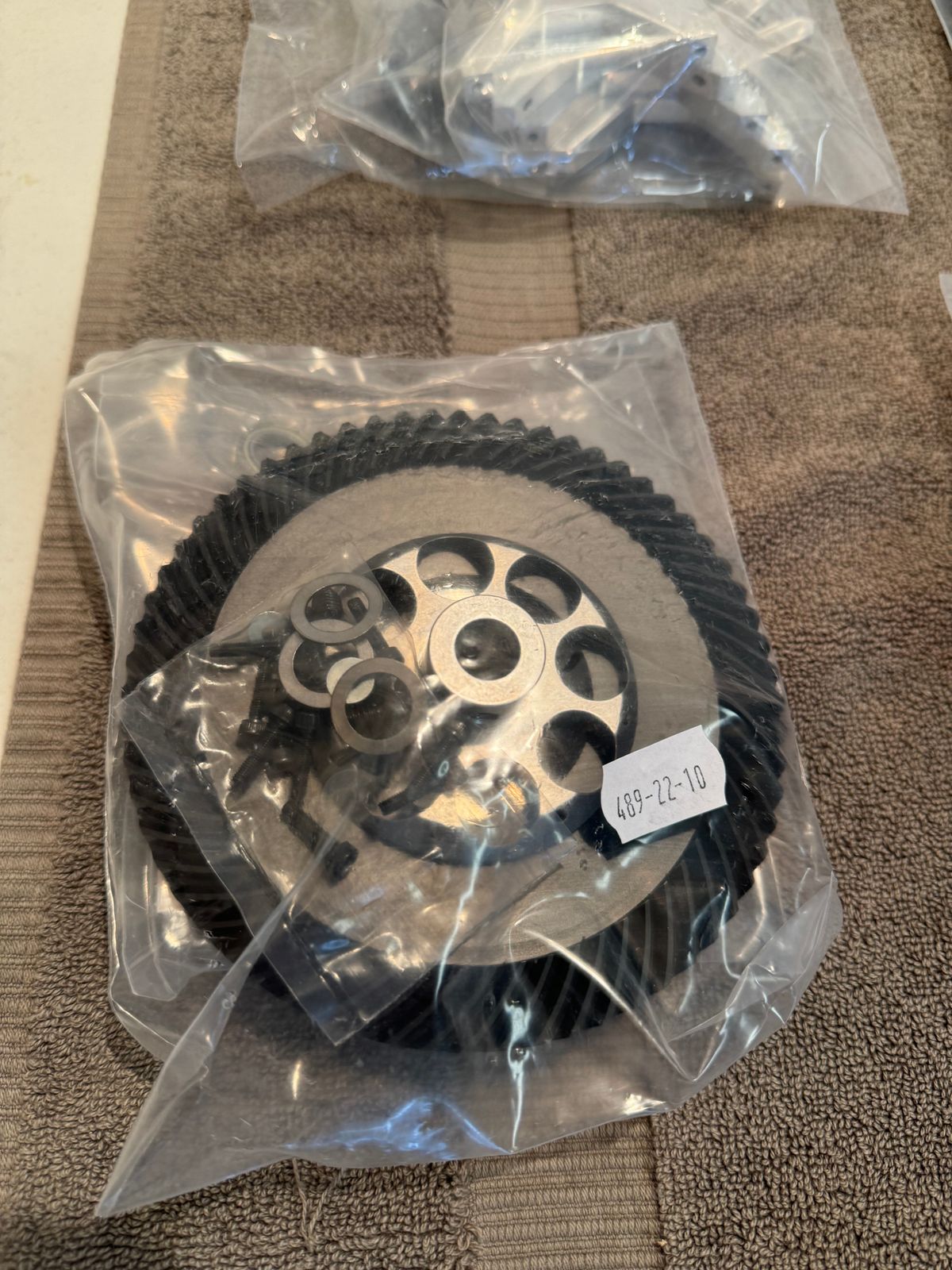

Those are nice looking gear, my friend! Do you like the tire quality?
Very nice tire quality!
Thatās pretty cool, Iām sure you know this but on the real one only the left rear steers the right one castors .
Wow! I didn't know, thank you!
Very nice work !
What a beast that is, nice clean setup as usual
What are the specs on the ESC?

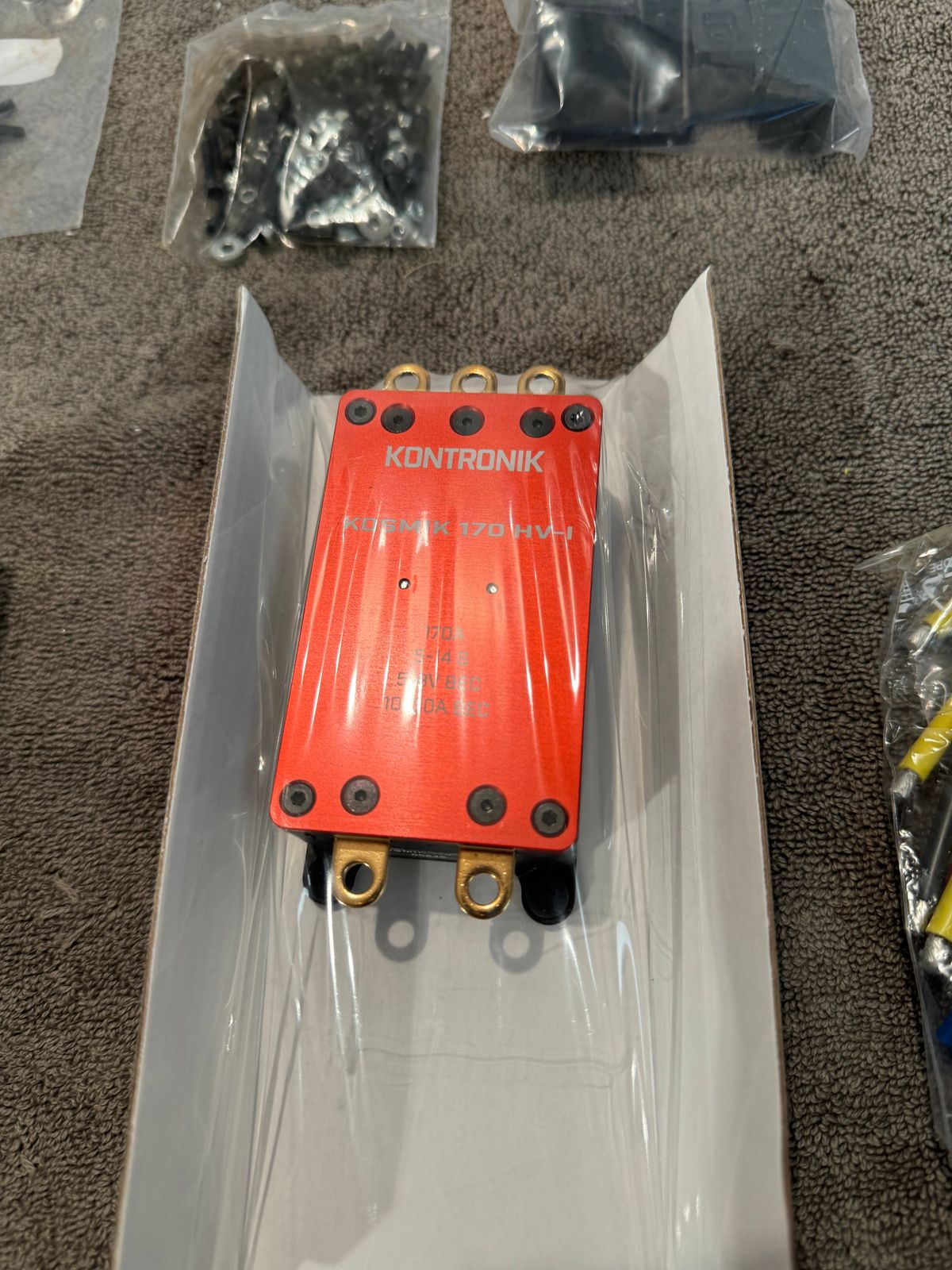

DuoCOOL KOSMIK 300 HV-I, 300 amps, probably is an overkill as it might be OK either the 170, but you need the heat sink and a fan if you are flying in hot conditions.
I would do the same for something that size and something that wonāt auto!
Gonzalo, I see you are using the CB220... and a wire loom to connect the BD 3SX. Is there a reason for the wire loom and not just a single wire?
Asking as I will use a similar setup (CB200) and intend to use a single wire to connect the BD.
I used the loom as it that way I have more power coming to the 3SX plus I added an additional cable to provide sufficient power to drive the servos.
Niceā¦
Out of interest, will you use the vario rotor head or the one developed by XXL helicopters : https://www.facebook.com/groups/660409615620055/permalink/105789999...
Beautiful work!
Looks great!
Stunning!!

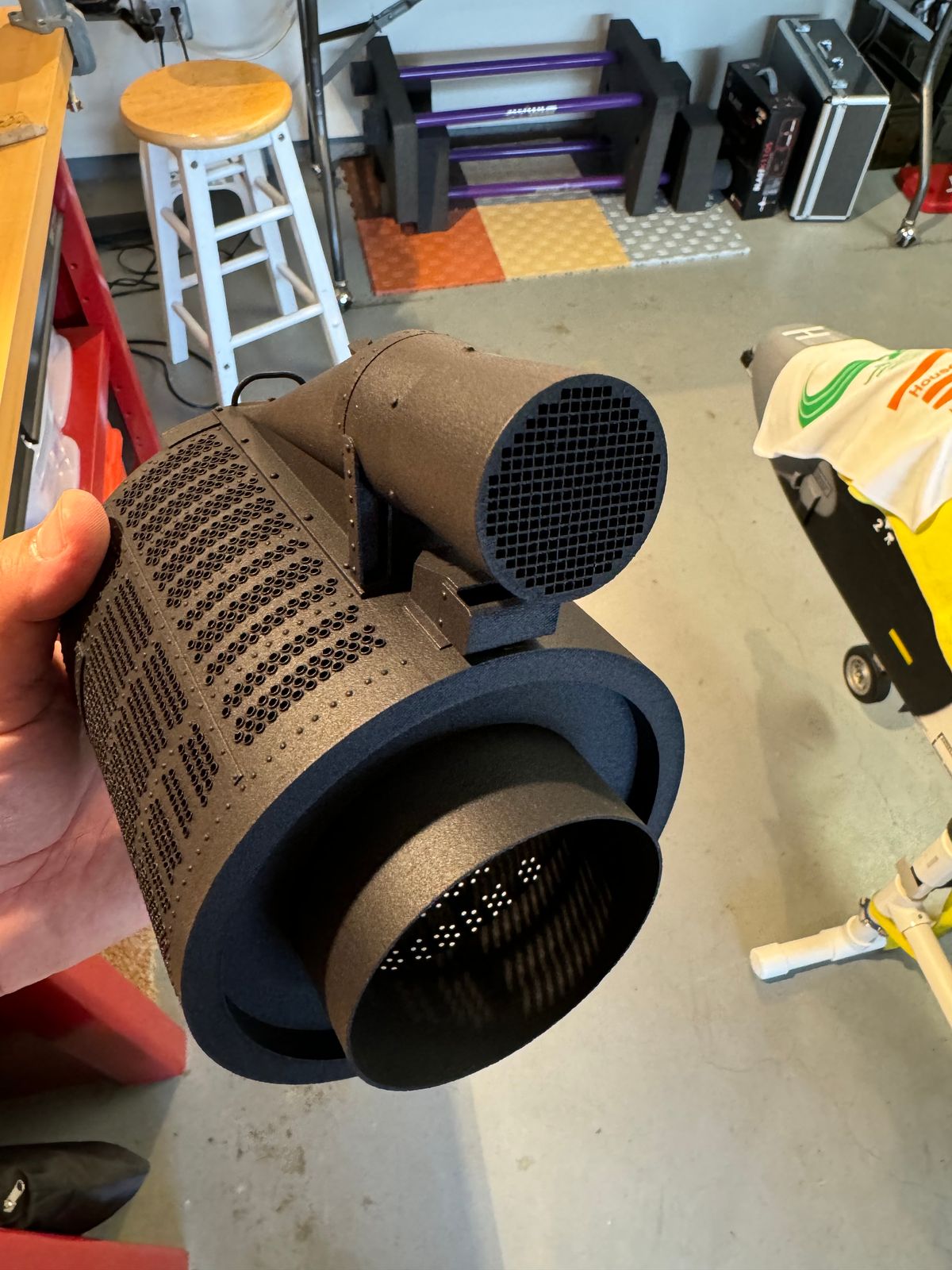

Grill just came out from the scanning, edited on Fusion 360 and to my printer!
Great work as always. This will be a stunning model. I would love one myself but it is just too big for me to move around as my workshop is upstairs in my house.
Thank you! Yes it's big and I will need my son to help me to move it into the van.
Impressive. What filament are you using?
Formlabs and is a resin based 3D printer
Loks great. How well do the 3D parts fit - I was considering doing this helicopter.
Really Awesome Gonzalo!

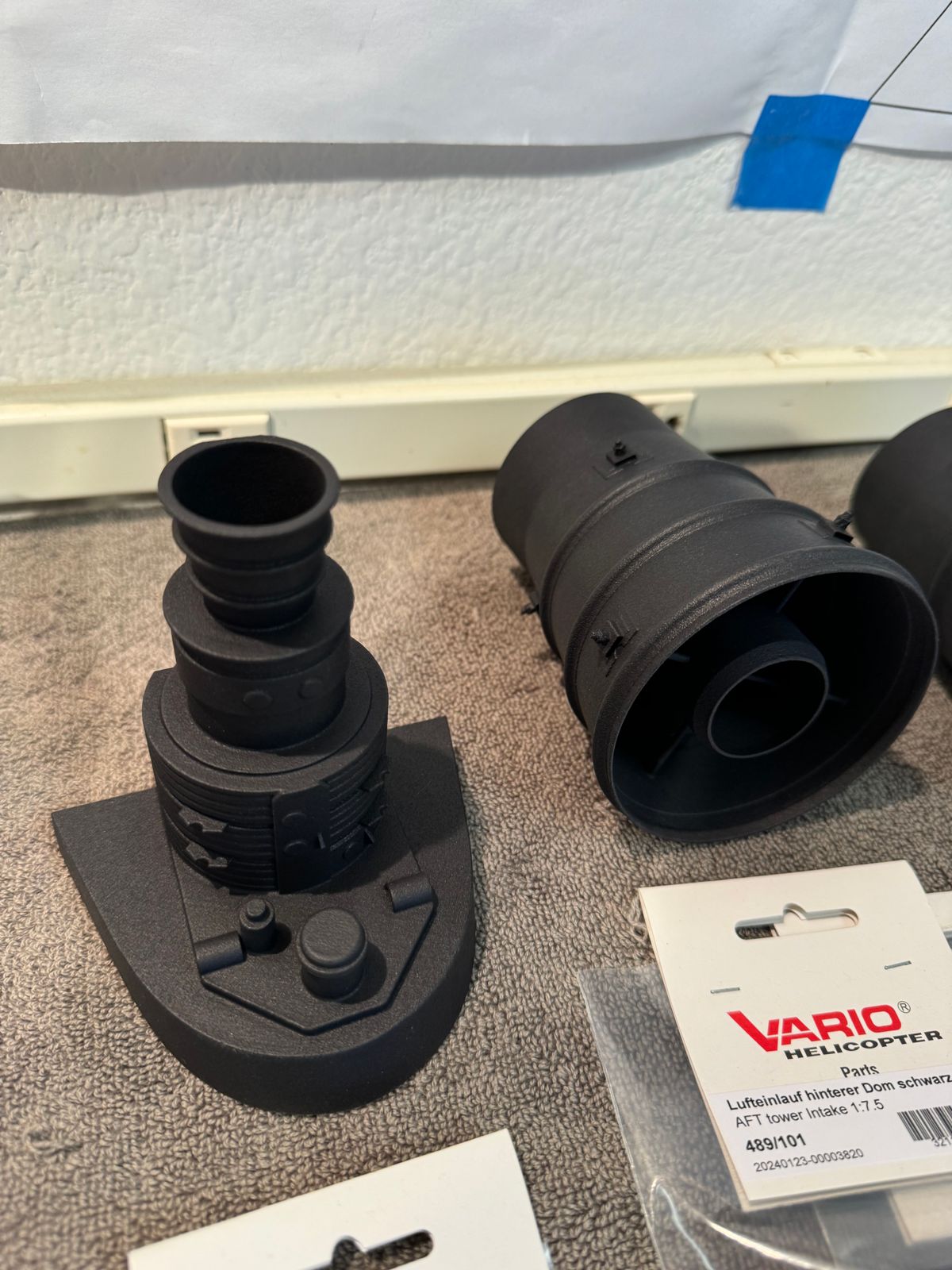

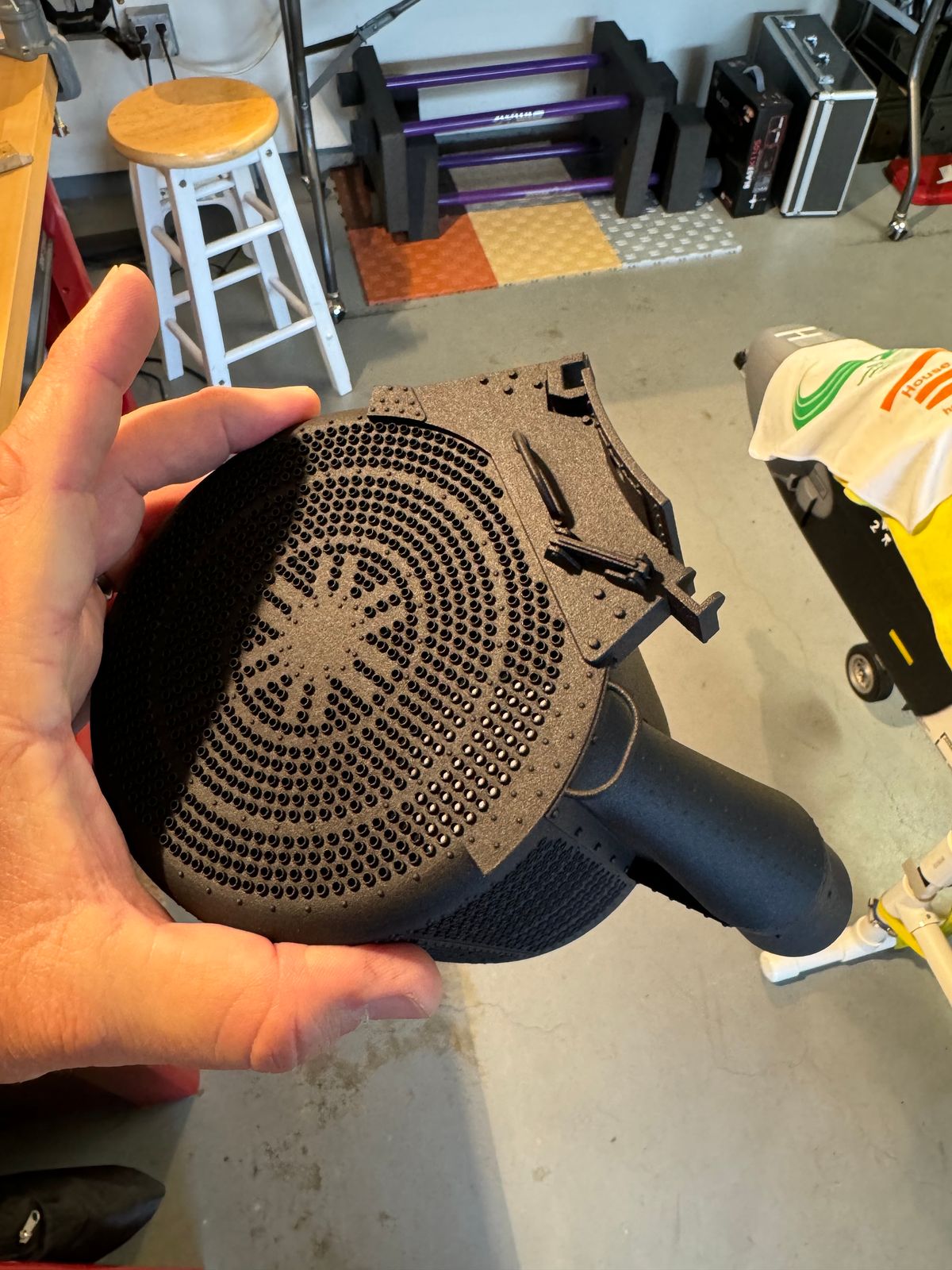

Amazing detail on the powerplants.
