Build Story
Vario Chinook XL
Gonzalo M.
Chapter 15 of 20
Front sensors and cameras
Nov 30, 2025

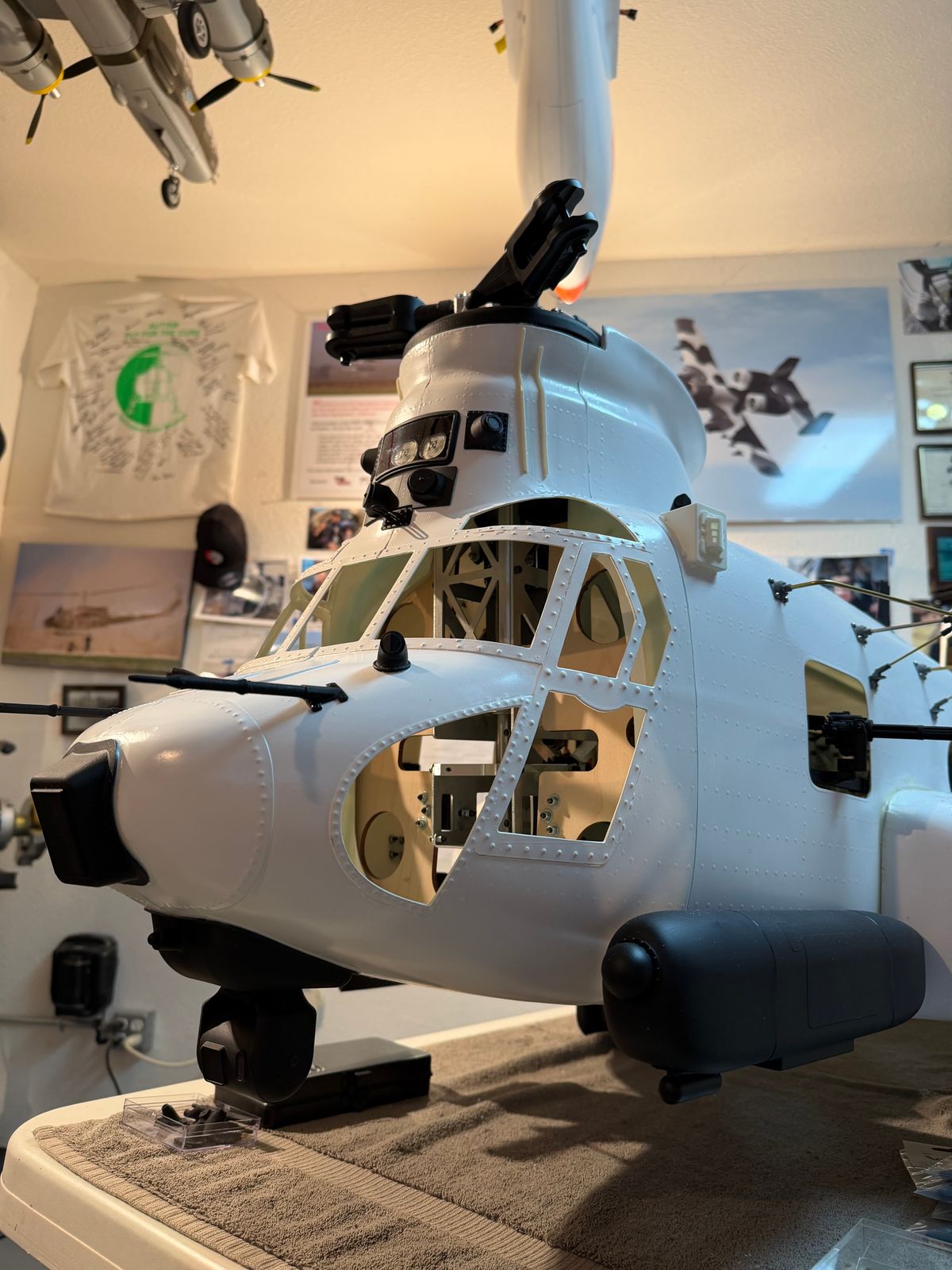

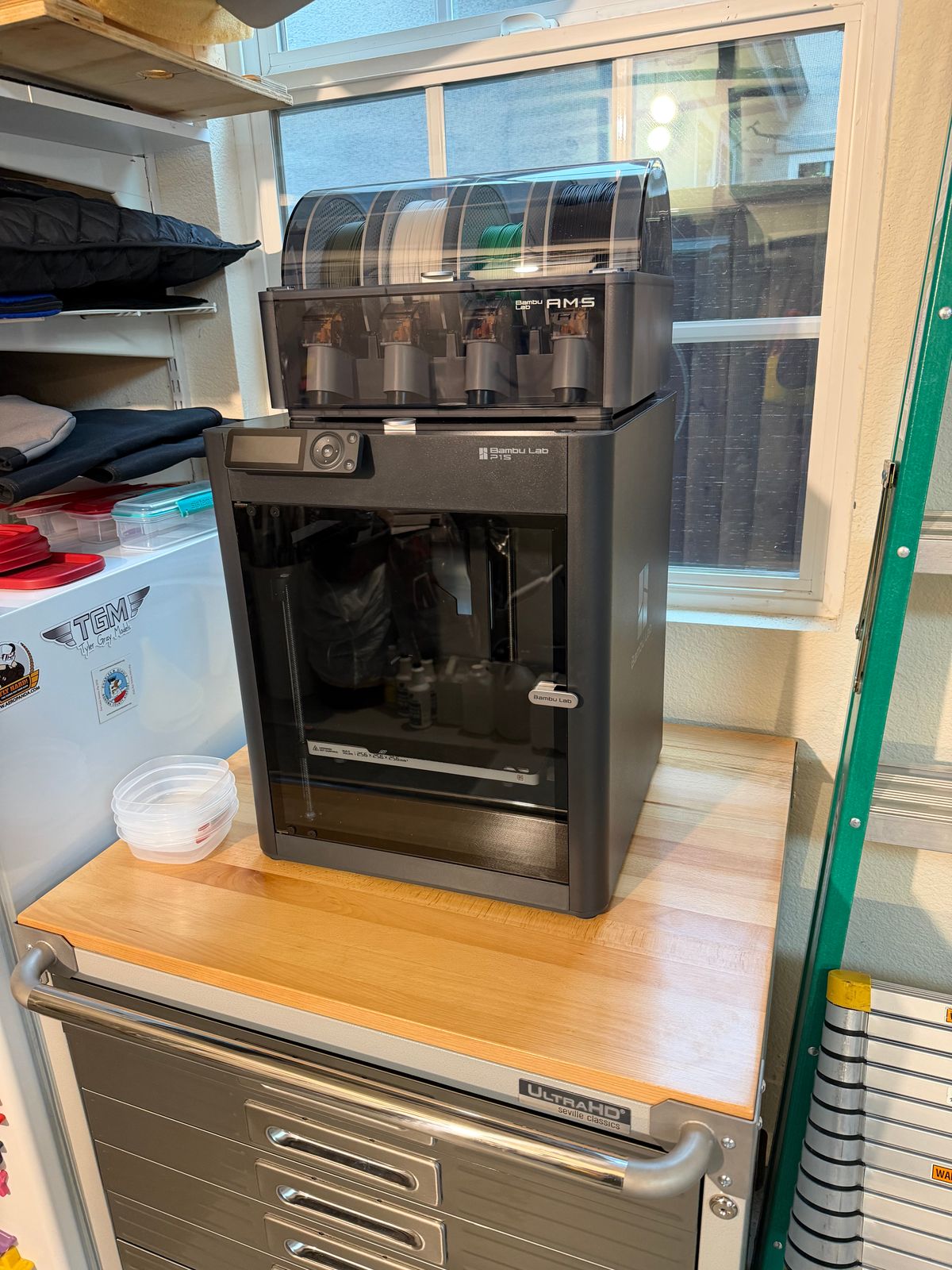

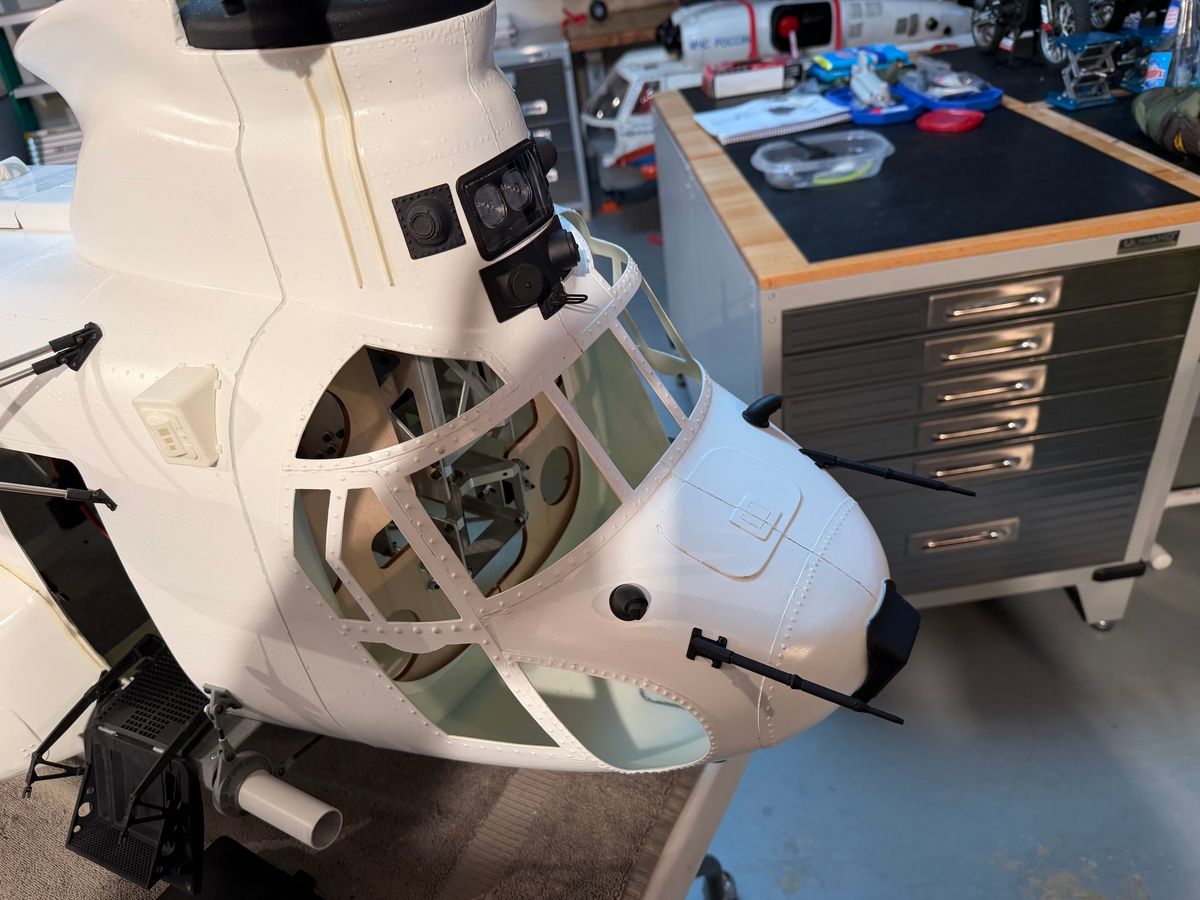

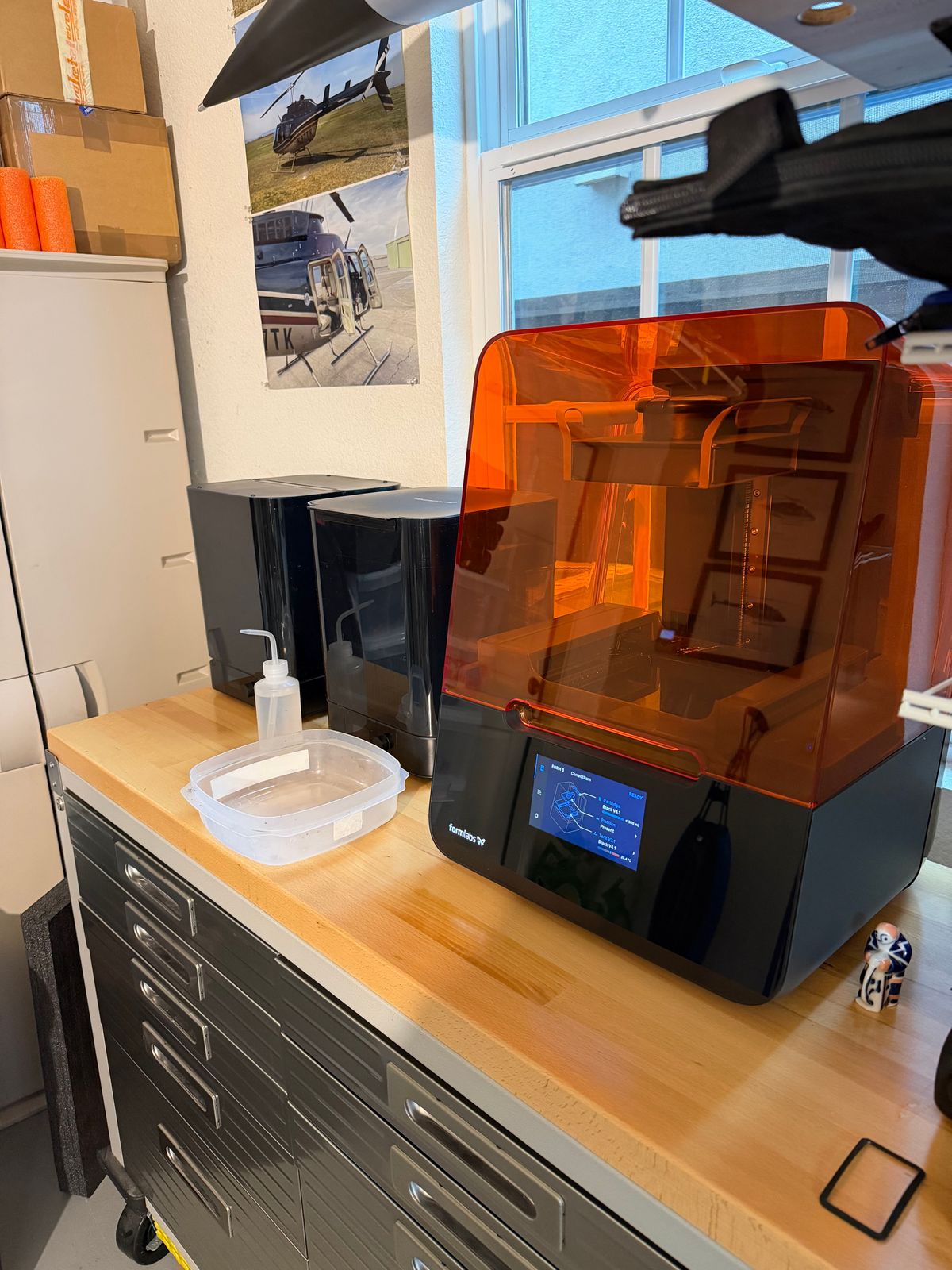

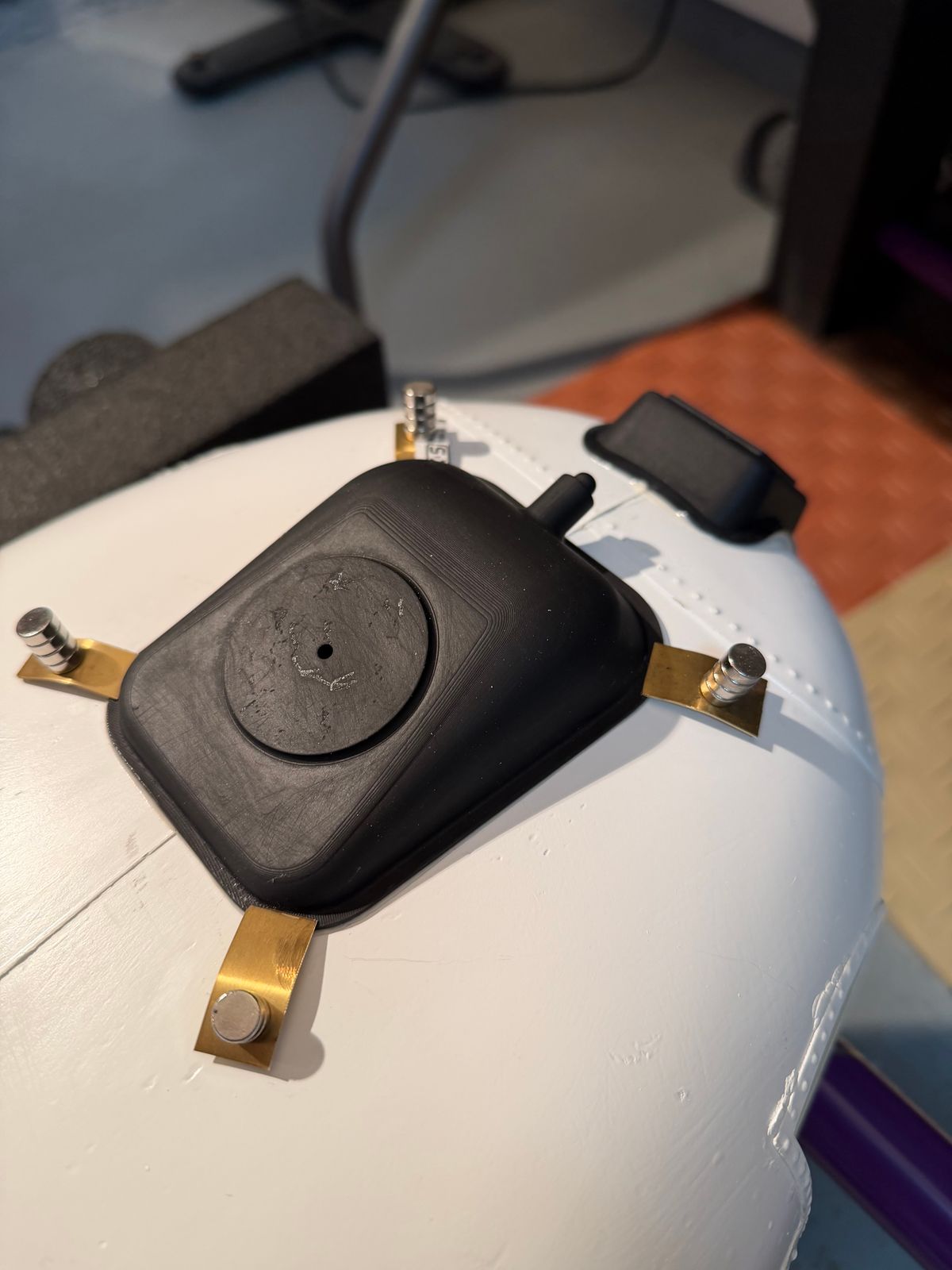

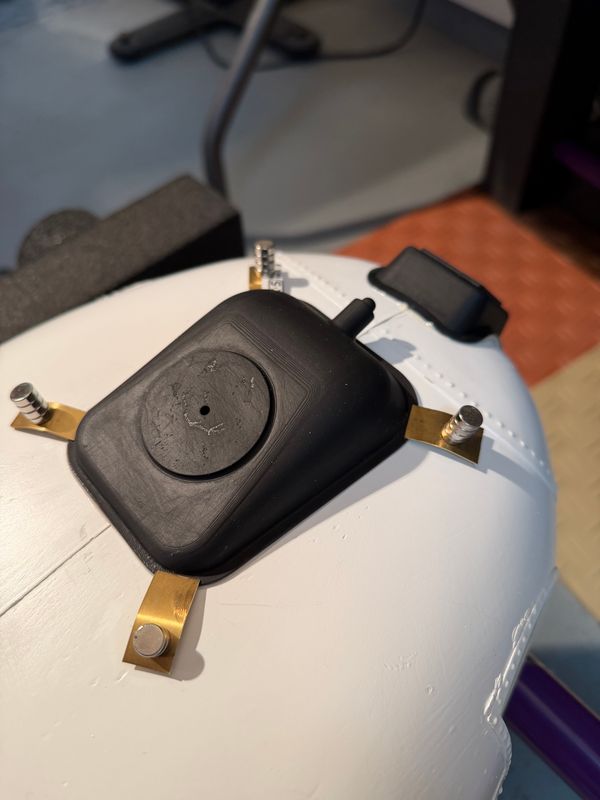

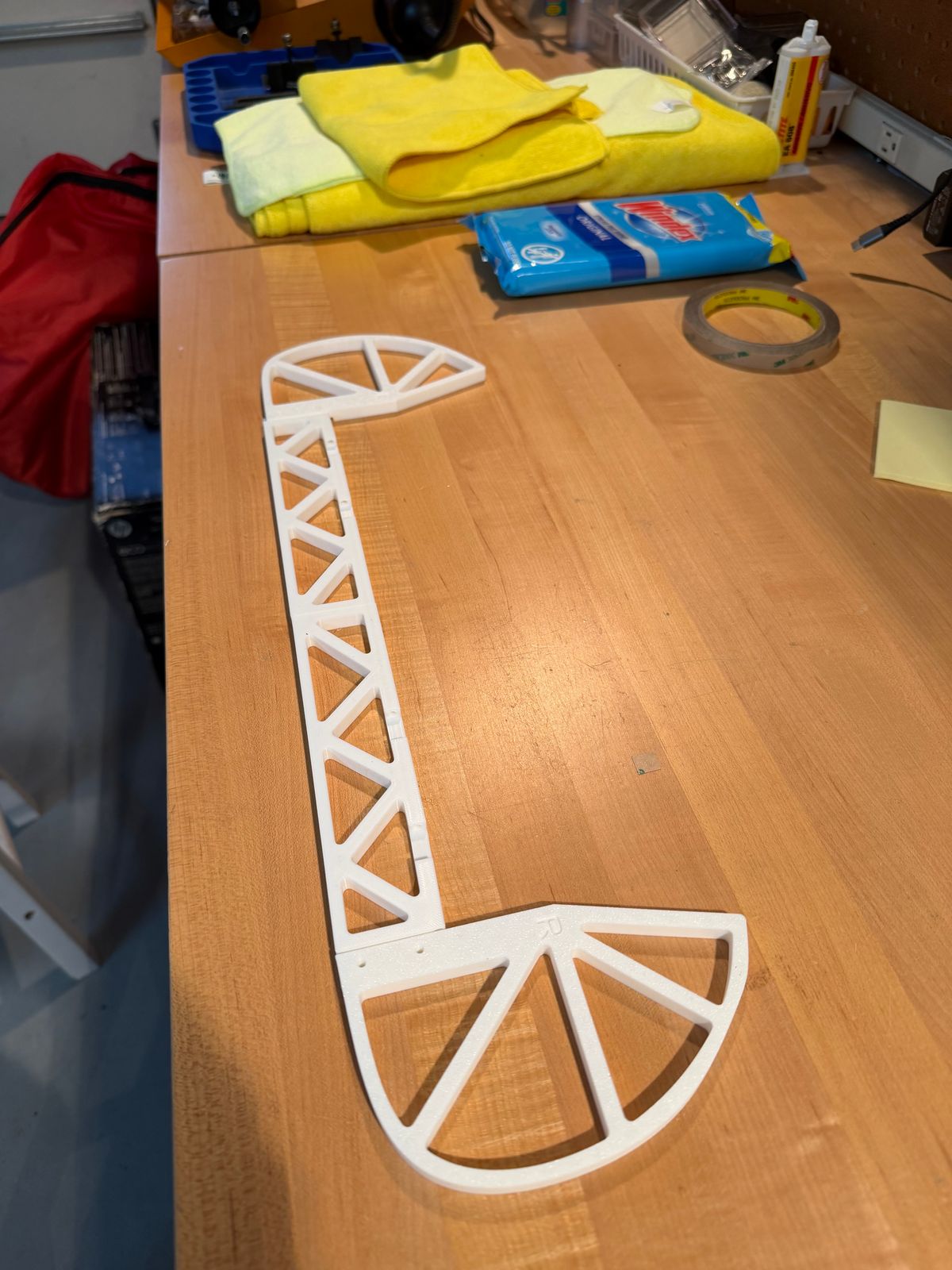

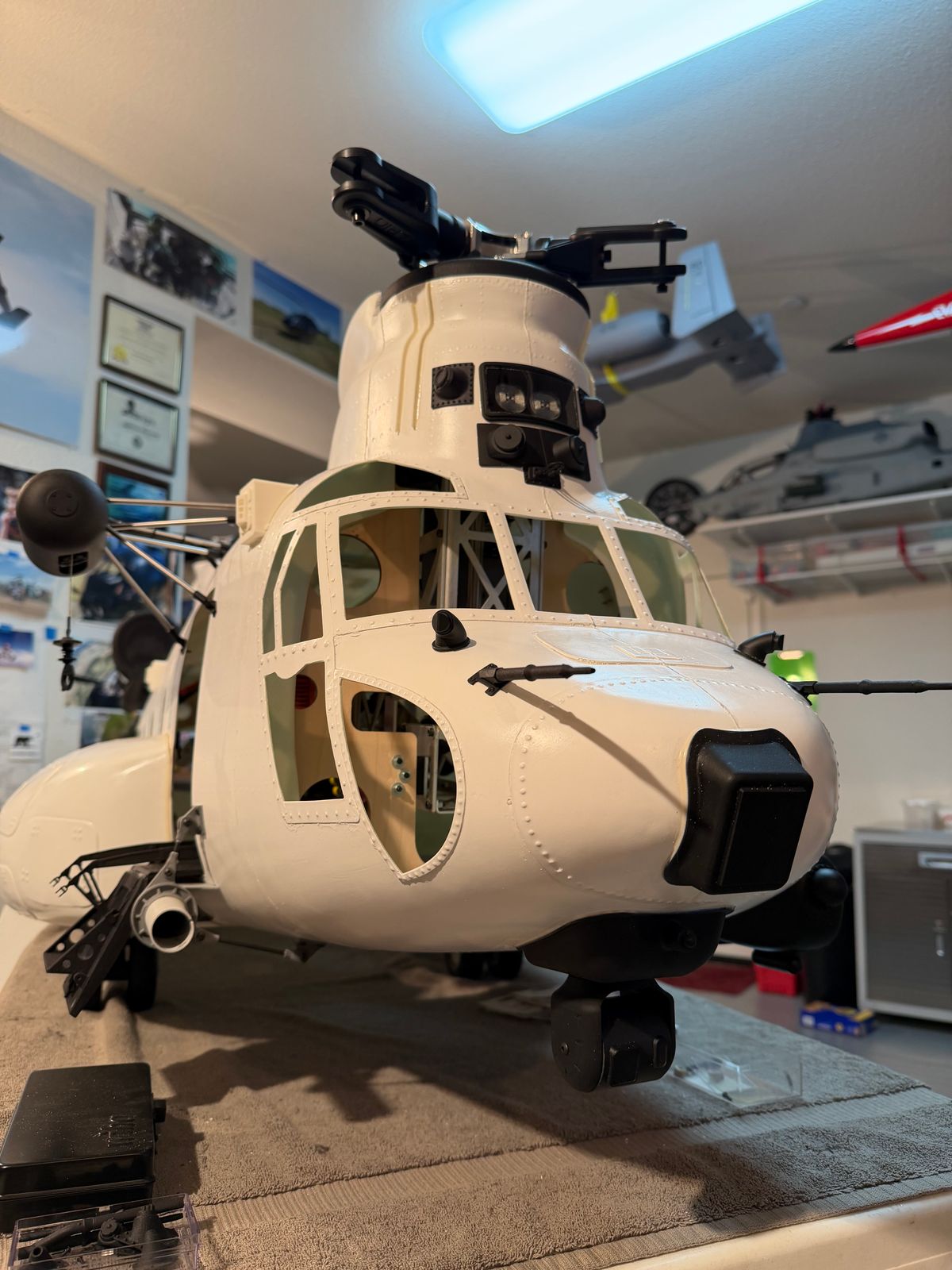

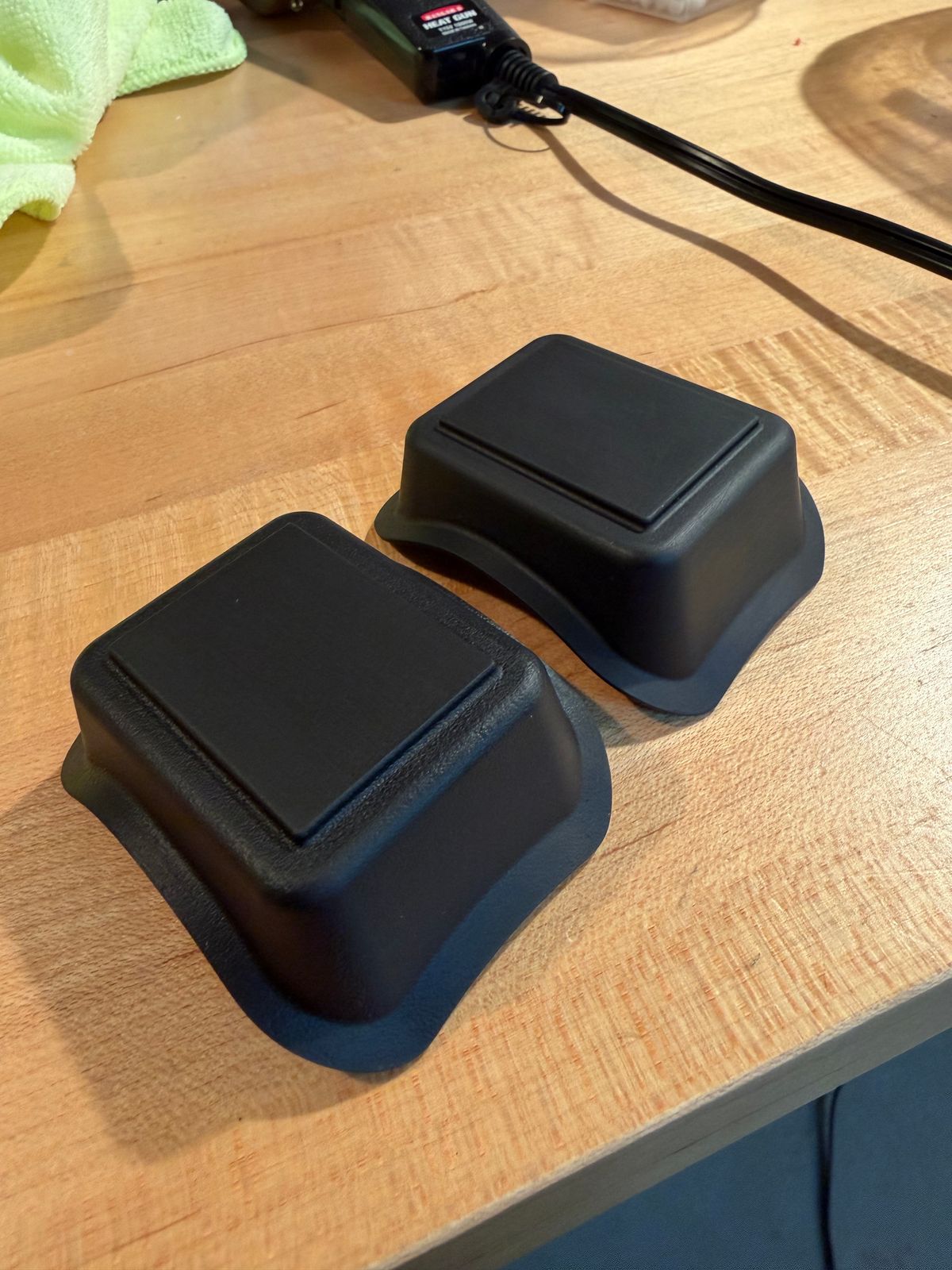

Tons of sensors and front cameras added to the MH-47. Also testing with the Formlabs printer having a sand cast finish directly at the front sensor. Got also a FDM printer for some section structures I need to do.
