Build Story
Vario Chinook XL
Gonzalo M.
Chapter 14 of 20
Winch and mini guns installation
Apr 19, 2025

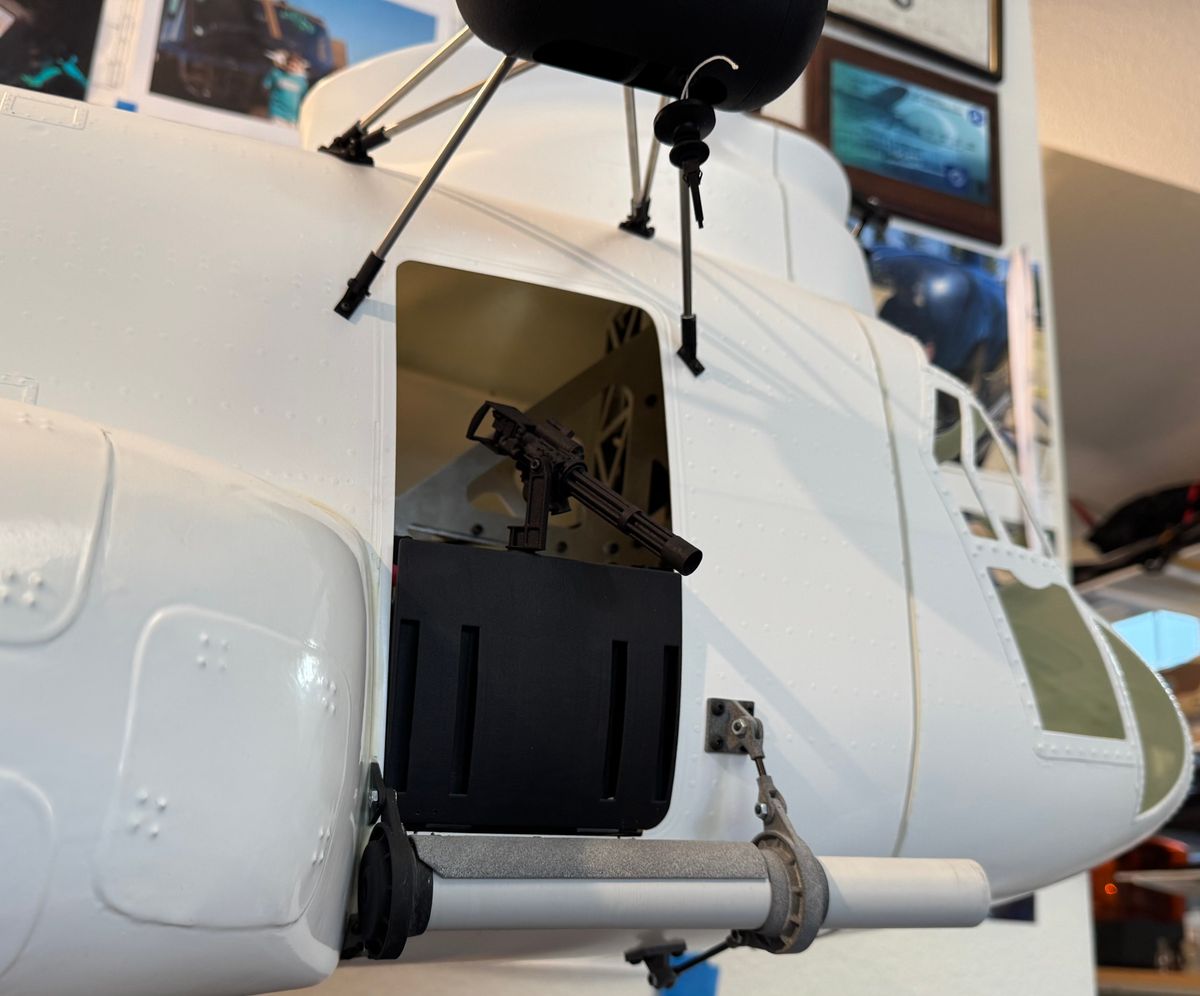

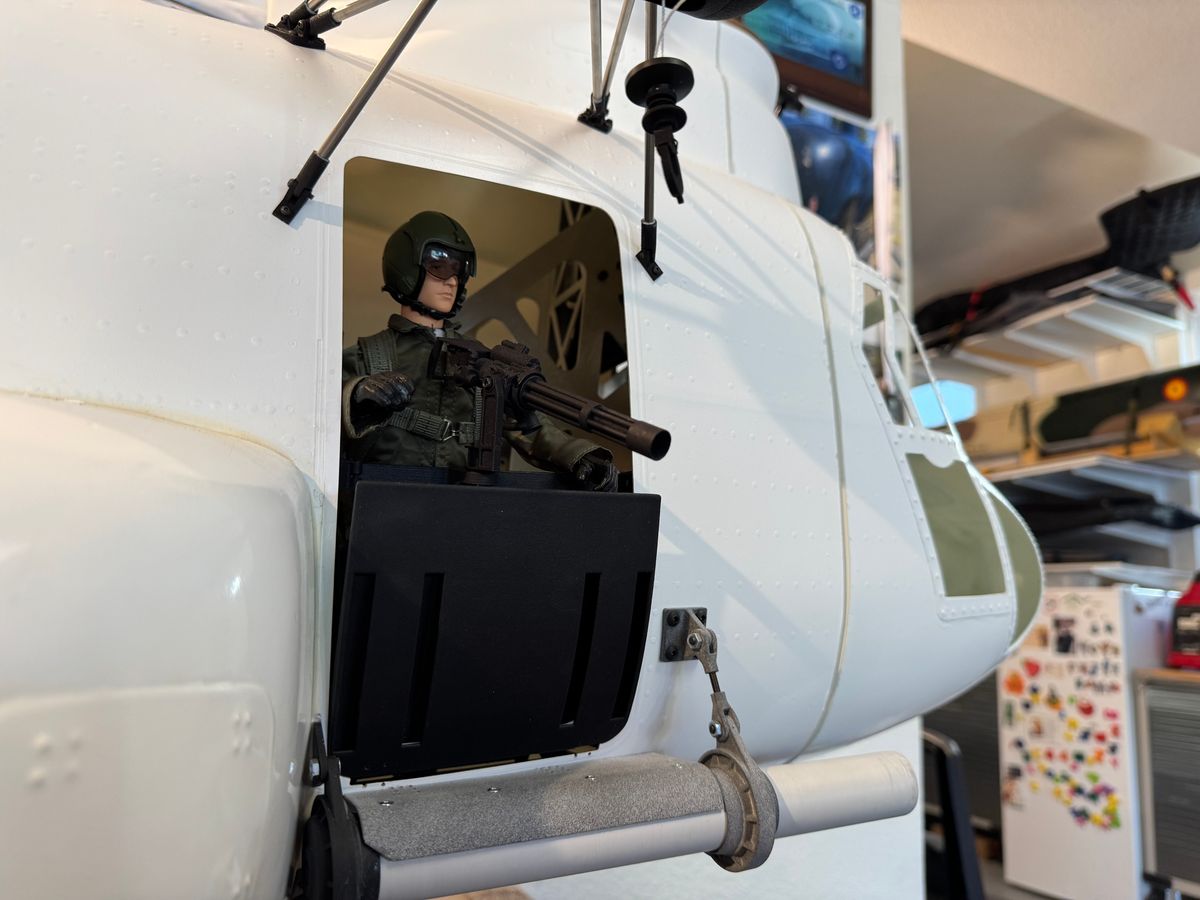

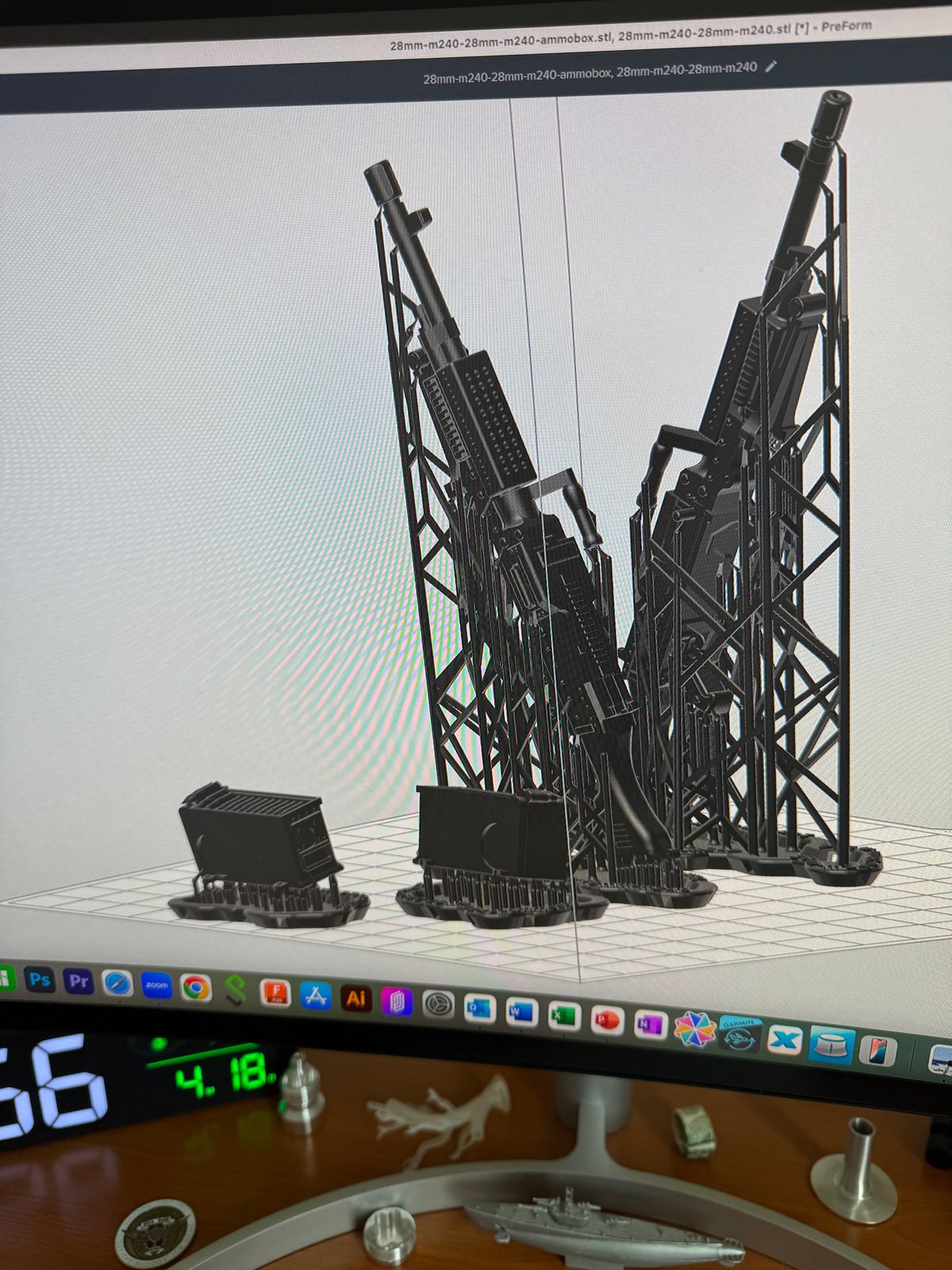

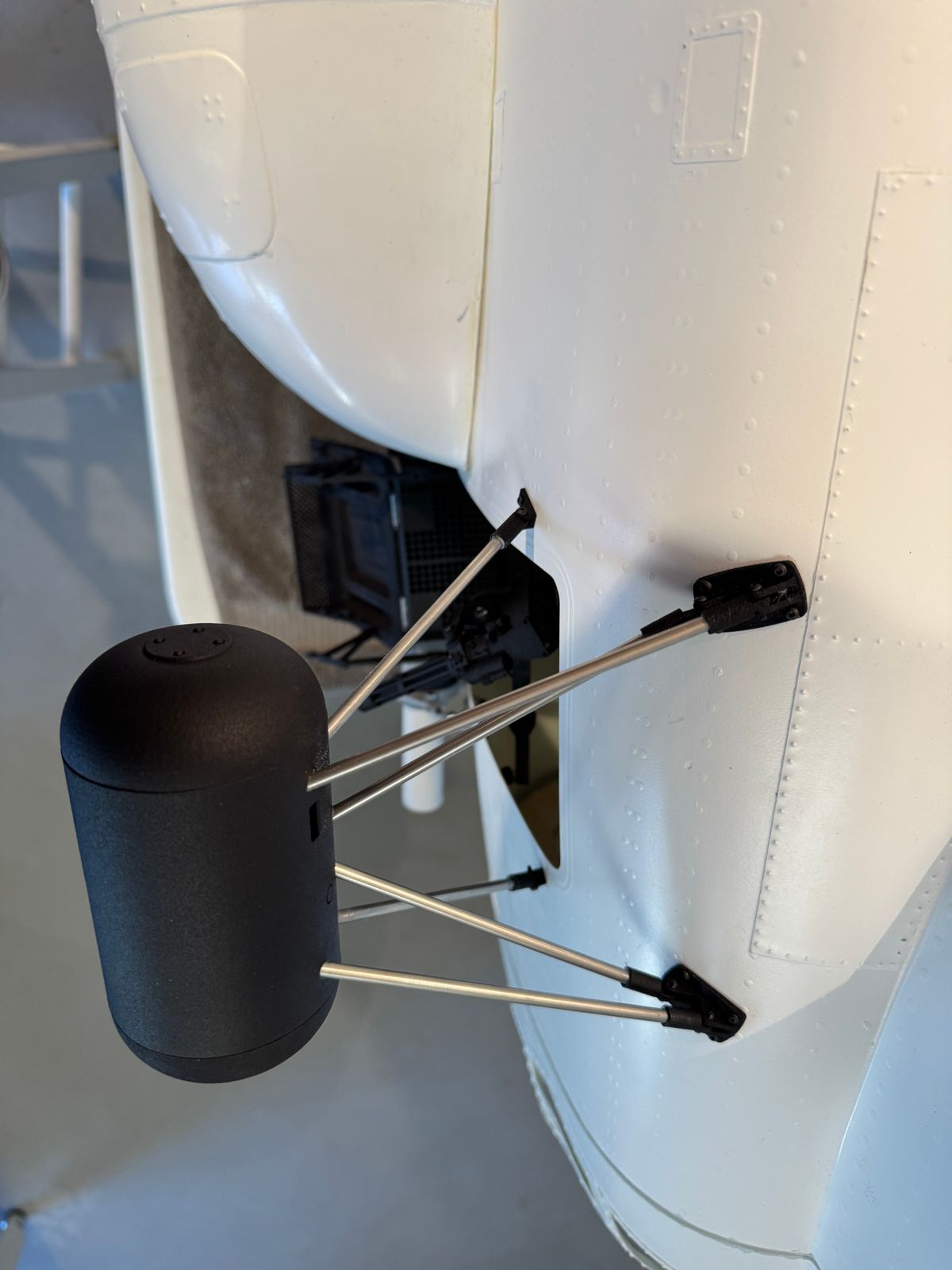

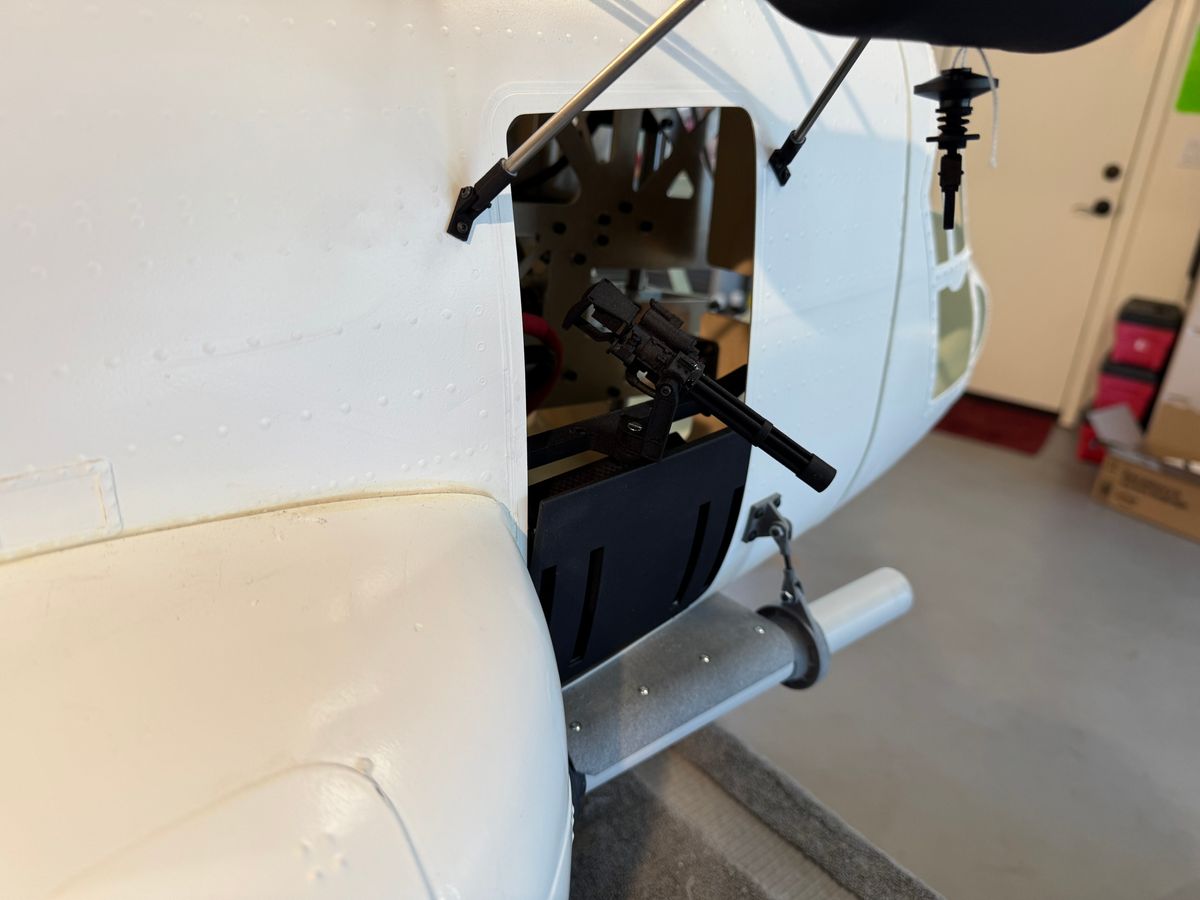

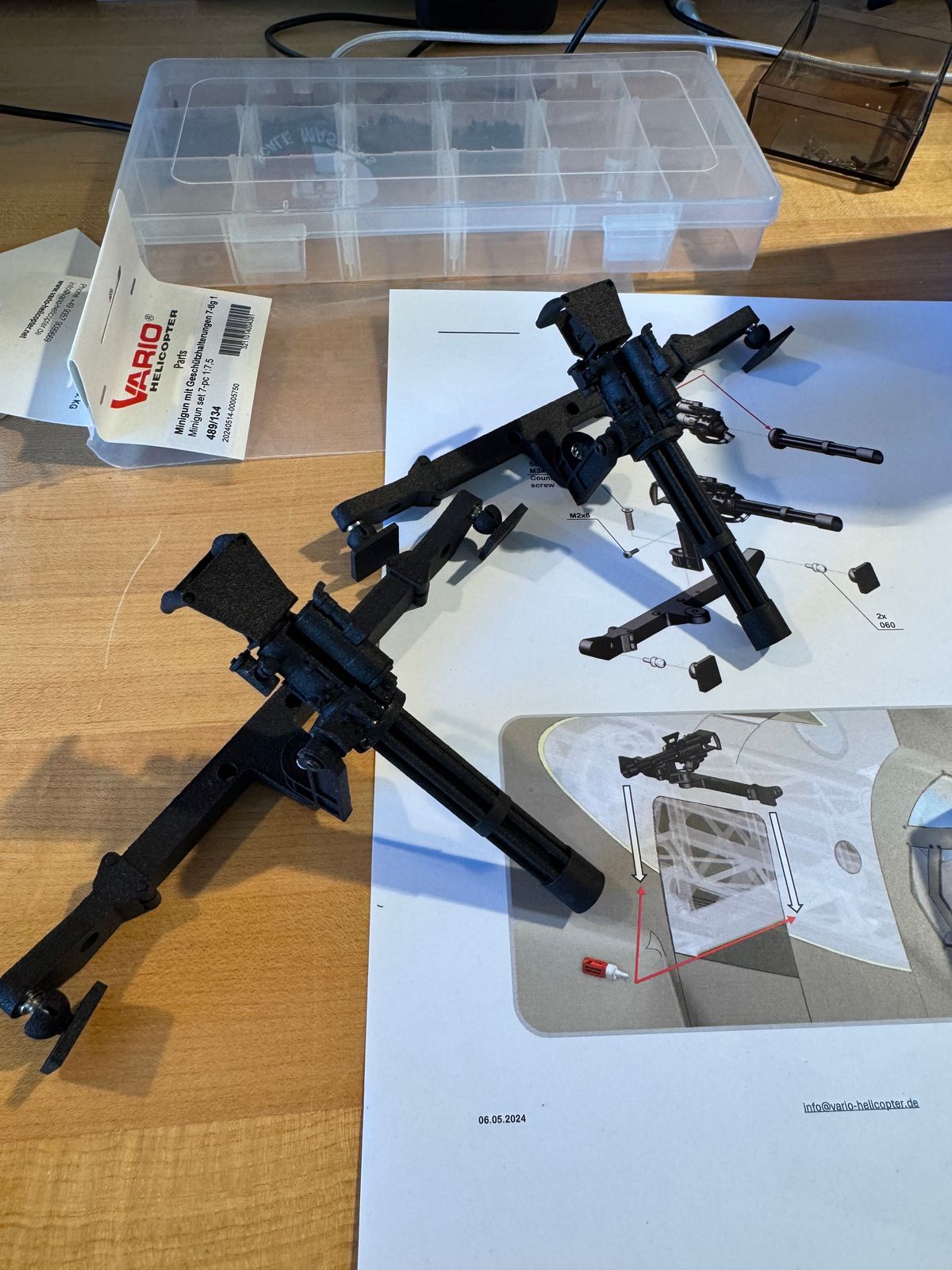

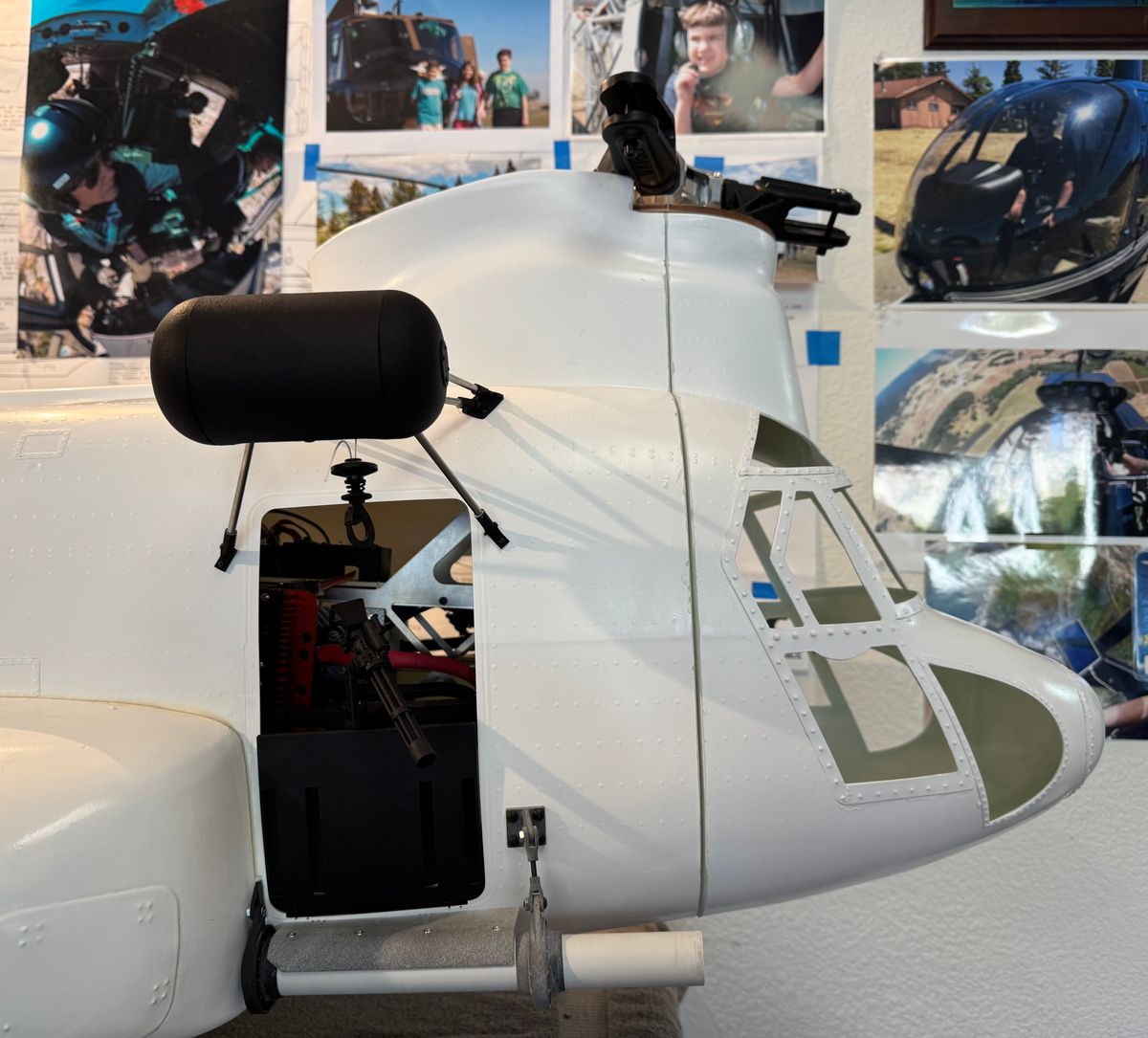

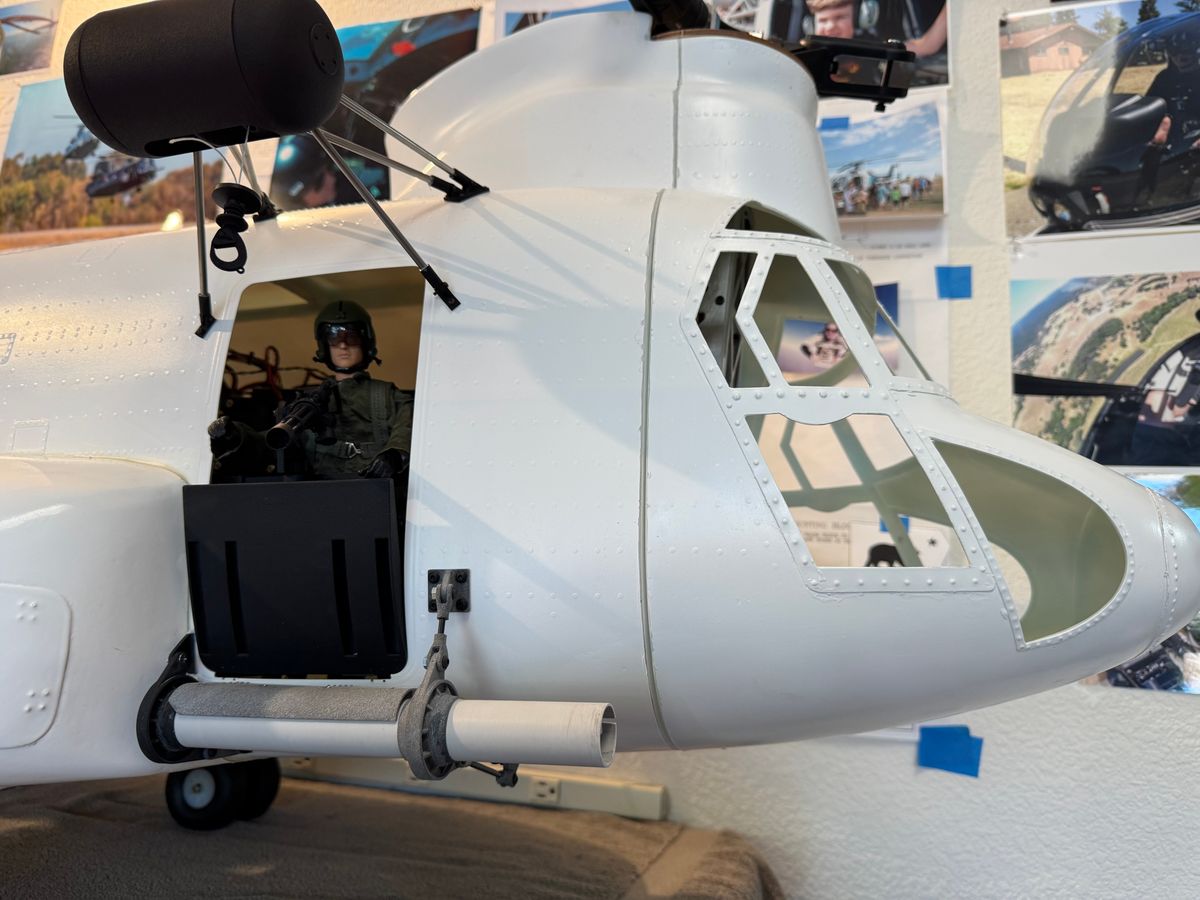

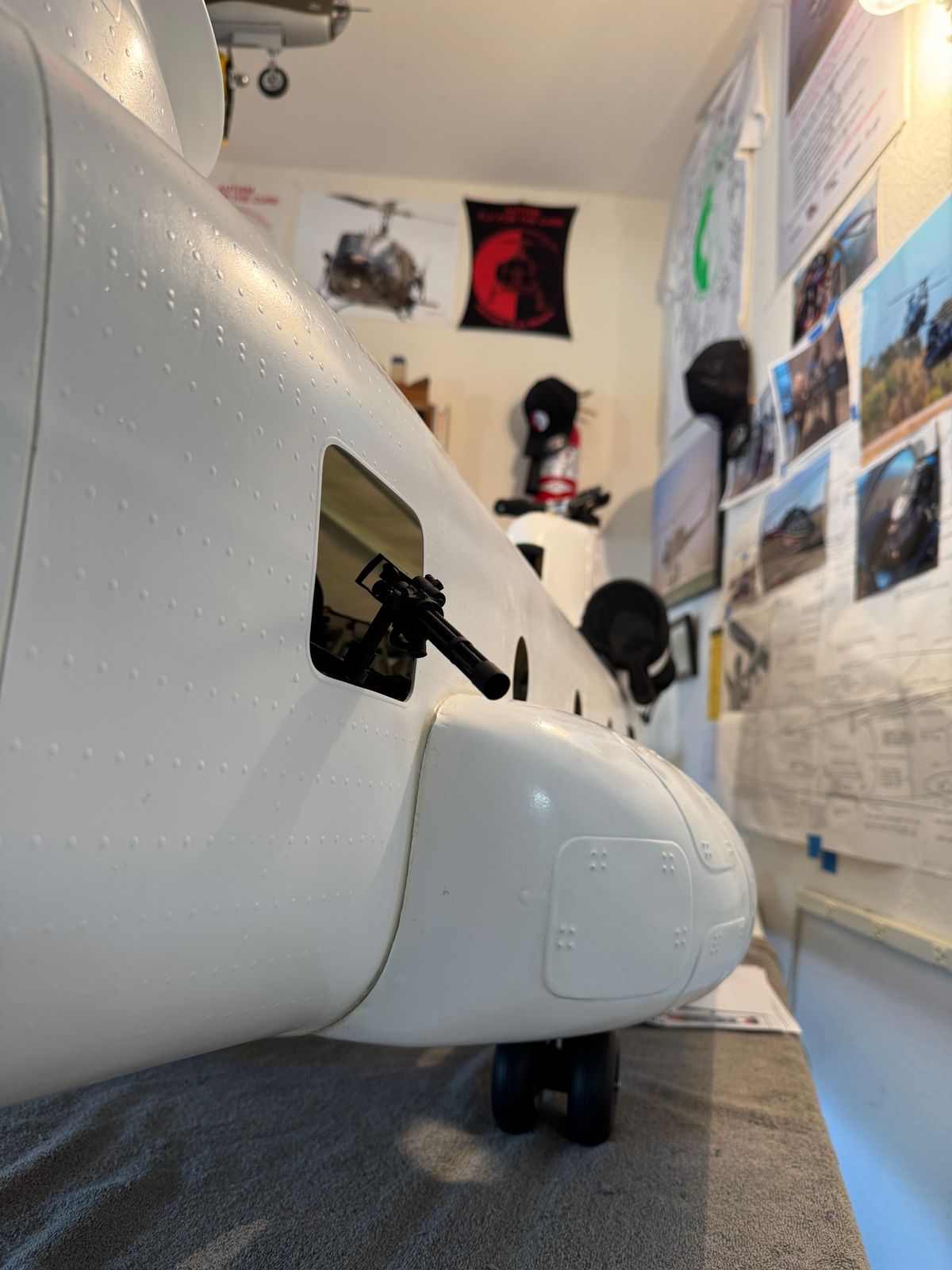

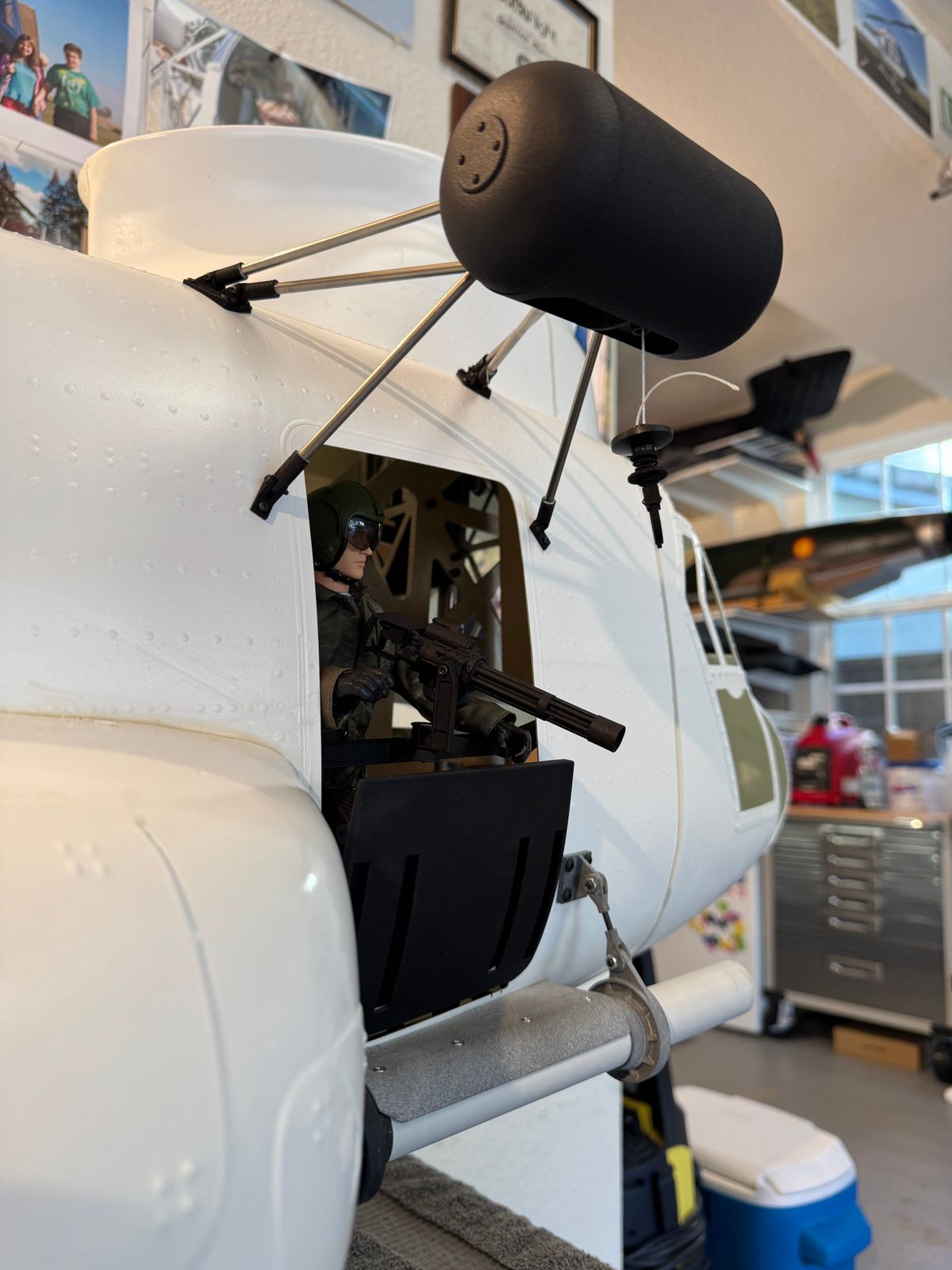

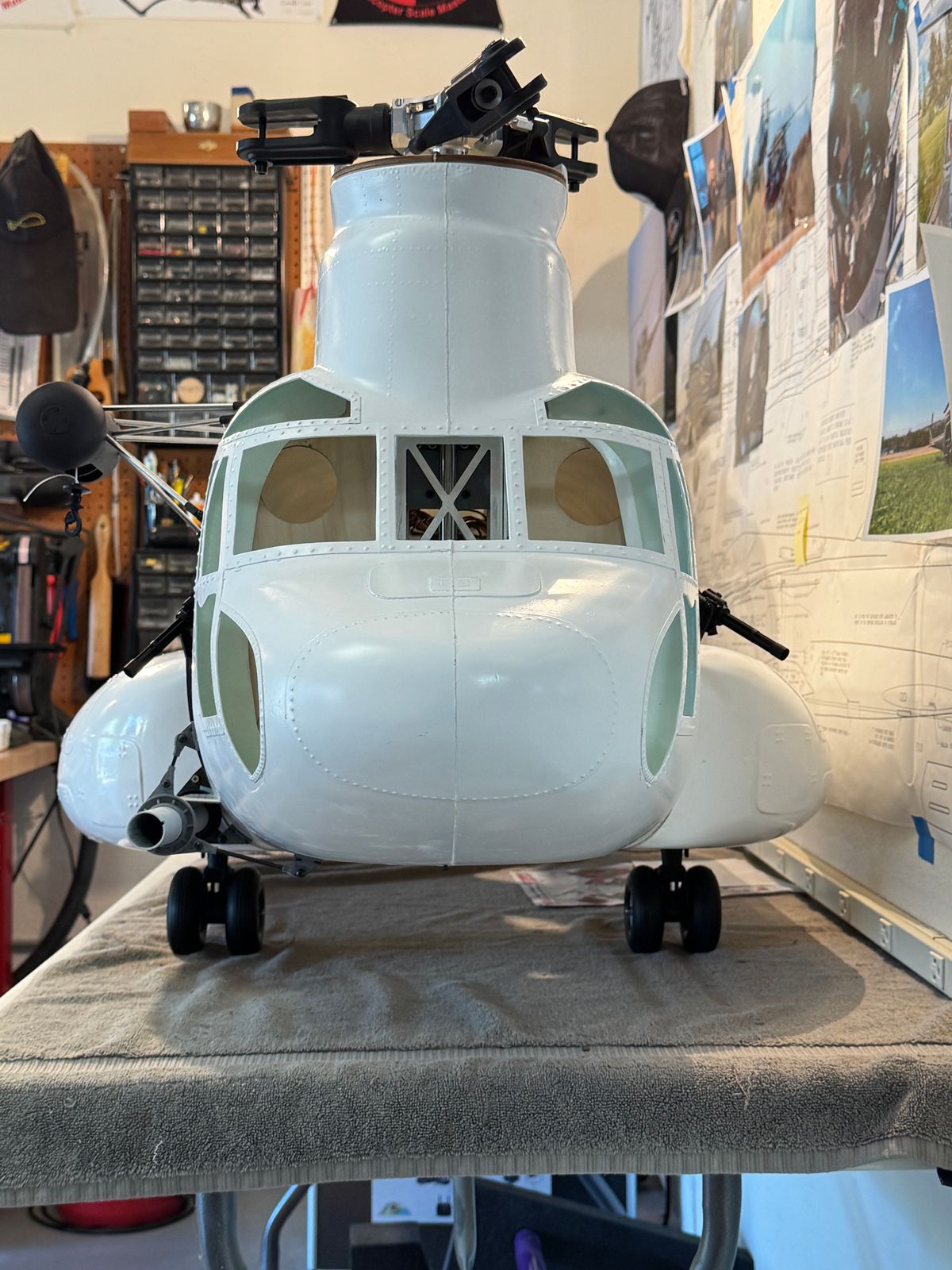

A winch has been installed on the MH-47 and will be operational. Vario did a great job enabling the housing to be ready for a winch servo. Also, the mini guns have been installed with the crew, and 3D-printed M240 Bravos have been installed on the side back openings based on information provided by one of my dear friends! Oh did I mentioned the crew has already some animatronics!
