"Align 700E/E1" MD530F build - NZ
Scott S.
Fun Key vertical fin stengthening
Fin mod. Those that know the Fun Key fuselages know the vertical fin is a little weak in the "twist plane" and can display an annoying wiggle at times in the hover with varying air currents swirling around. I wanted to eliminate that as a small cost of minor added weight.

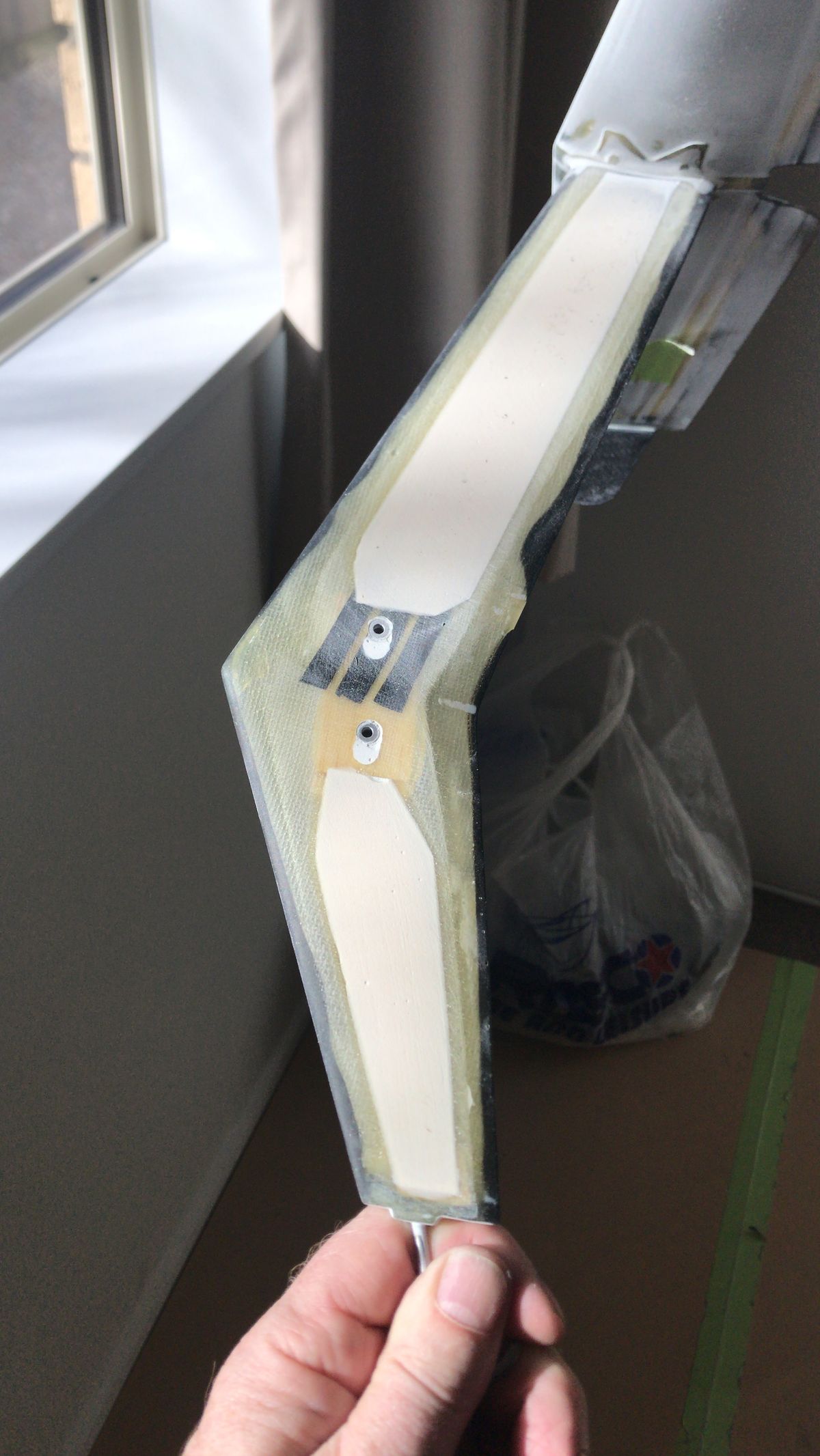

I covered the upper part of the fin above the mount points. Sanding it right back reveals what Fun Key did to strengthen it, which LOOKS good, but its just not quite there, partly because as the design narrows toward the top more than perhaps what is scale.
Not really knowing what I am doing with carbon fibre and resin, I chose to forfeit the indent patterns in the fin in order to not have complications with a thicker carbon cloth later.

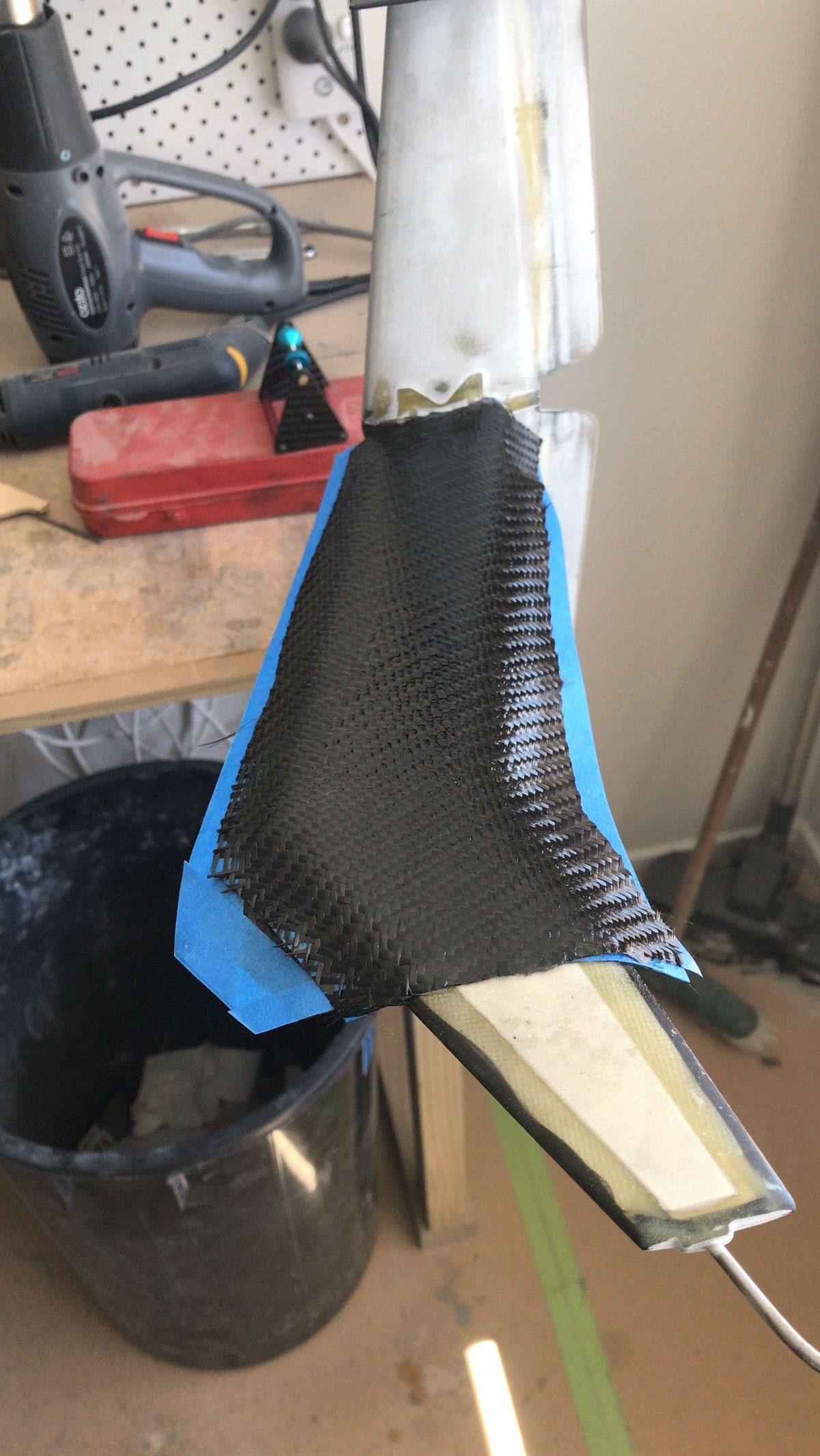

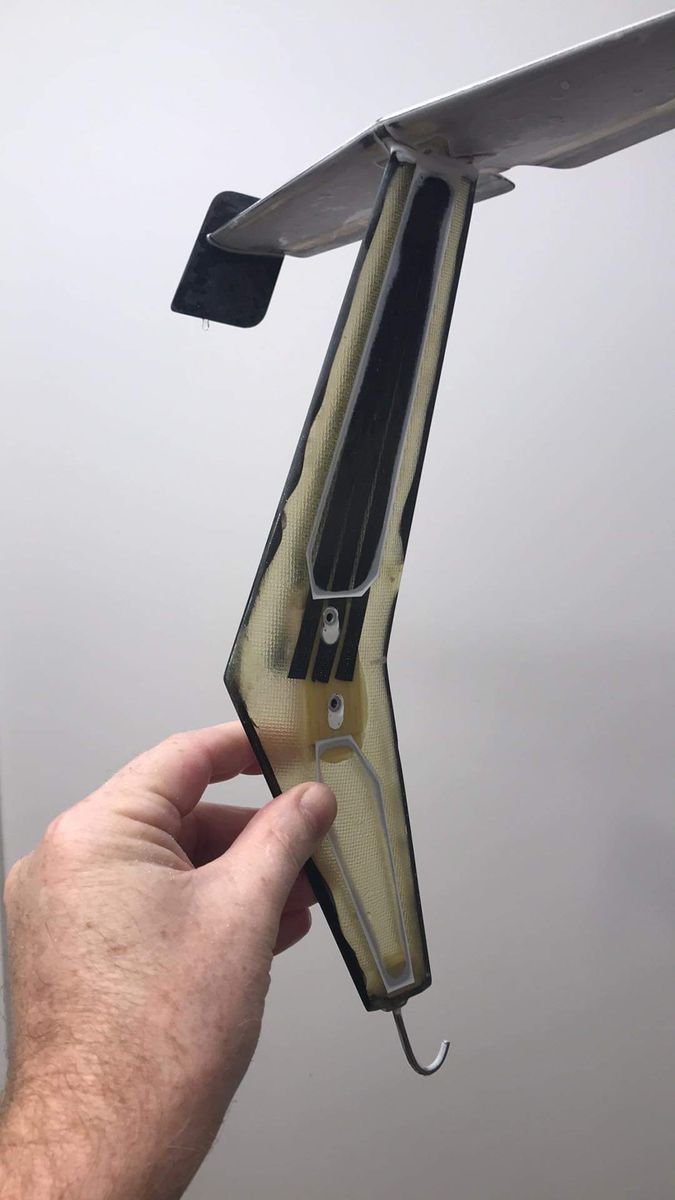

After subsequent 2 layers each side in total the fin is rock solid, and had not added a significant amount of weight - in fact because of the "CG friendly" 700E frame set the heli is still well CG forward at the moment.
There are other clever ways to strengthen it I guess however I had already bonded the H stab on so this was my fix. Being "stand off scale" I am not so concerned about the indent detail in fin sides. The result achieved the intention.
