Build Story
"Align 700E/E1" MD530F build - NZ
Scott S.
Chapter 4 of 20
Front canopy work
Sep 6, 2022

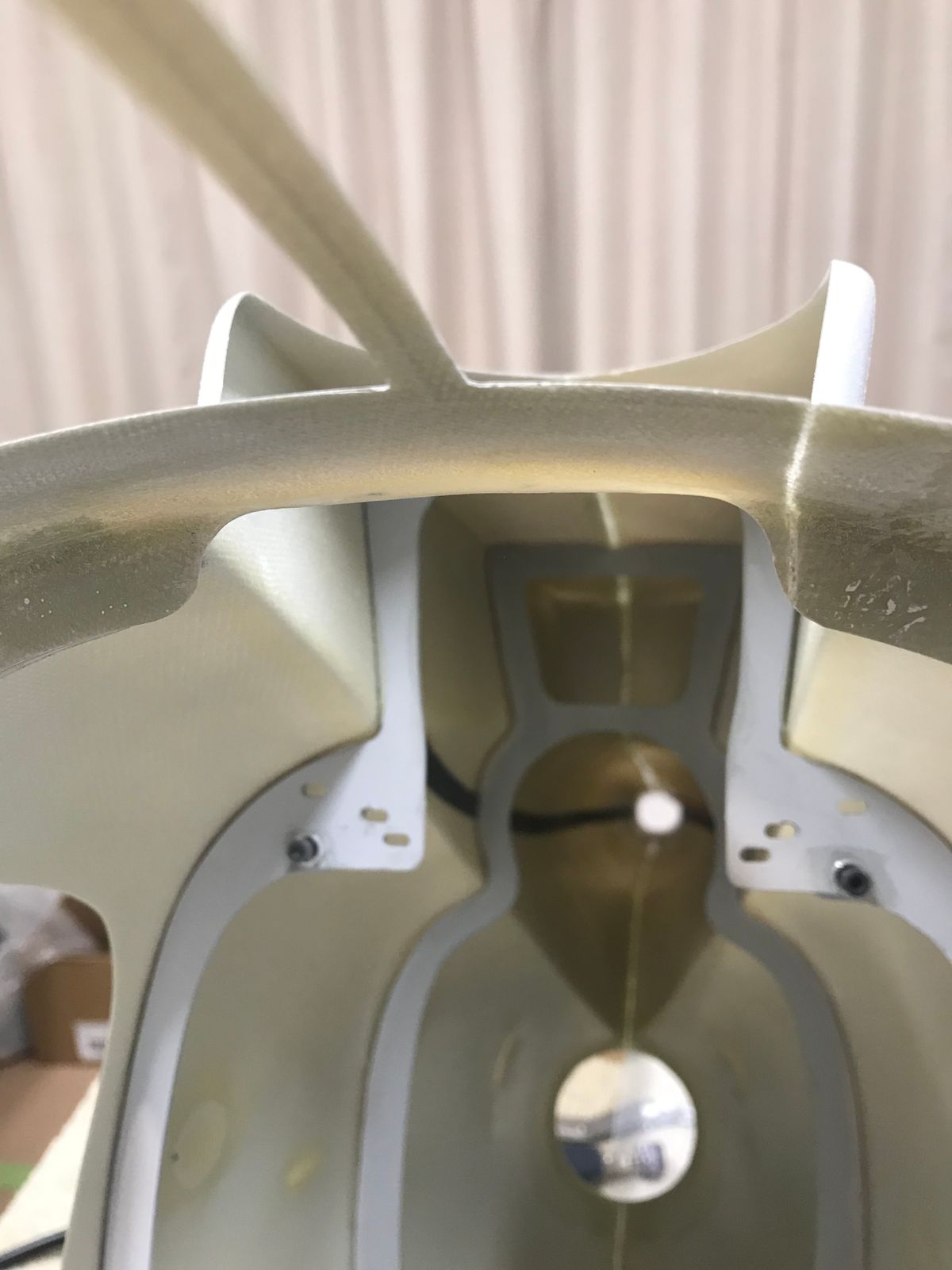

Not required for motor clearance, however I decided while the opportunity is there to take out the canopy flange directly behind the motor for better air exit past the motor.

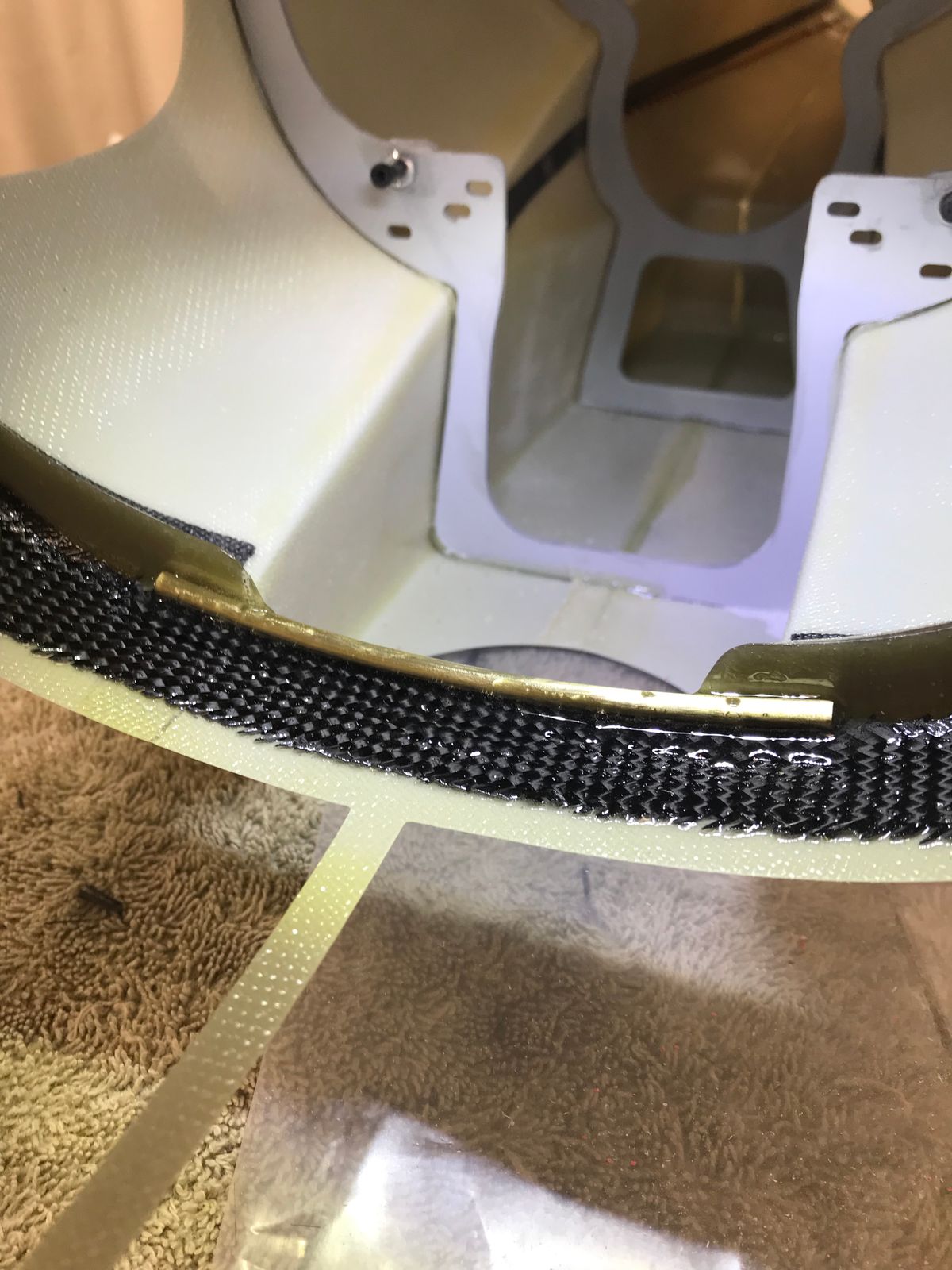

Then I just added some carbon fiber to reinforce and added a piece of copper tube just as a round profile for the back edge as this is where the canopy is pulled off the fuse.
