Build Story
"Align 700E/E1" MD530F build - NZ
Scott S.
Chapter 9 of 20
Roban to Fun Key landing strut mod
Nov 7, 2023
Having had zero issues with the 600 "Roban landing strut to Funkey fuse mod", and knowing the 700 will be considerably heavier "on its feet" I wanted to do the same thing.

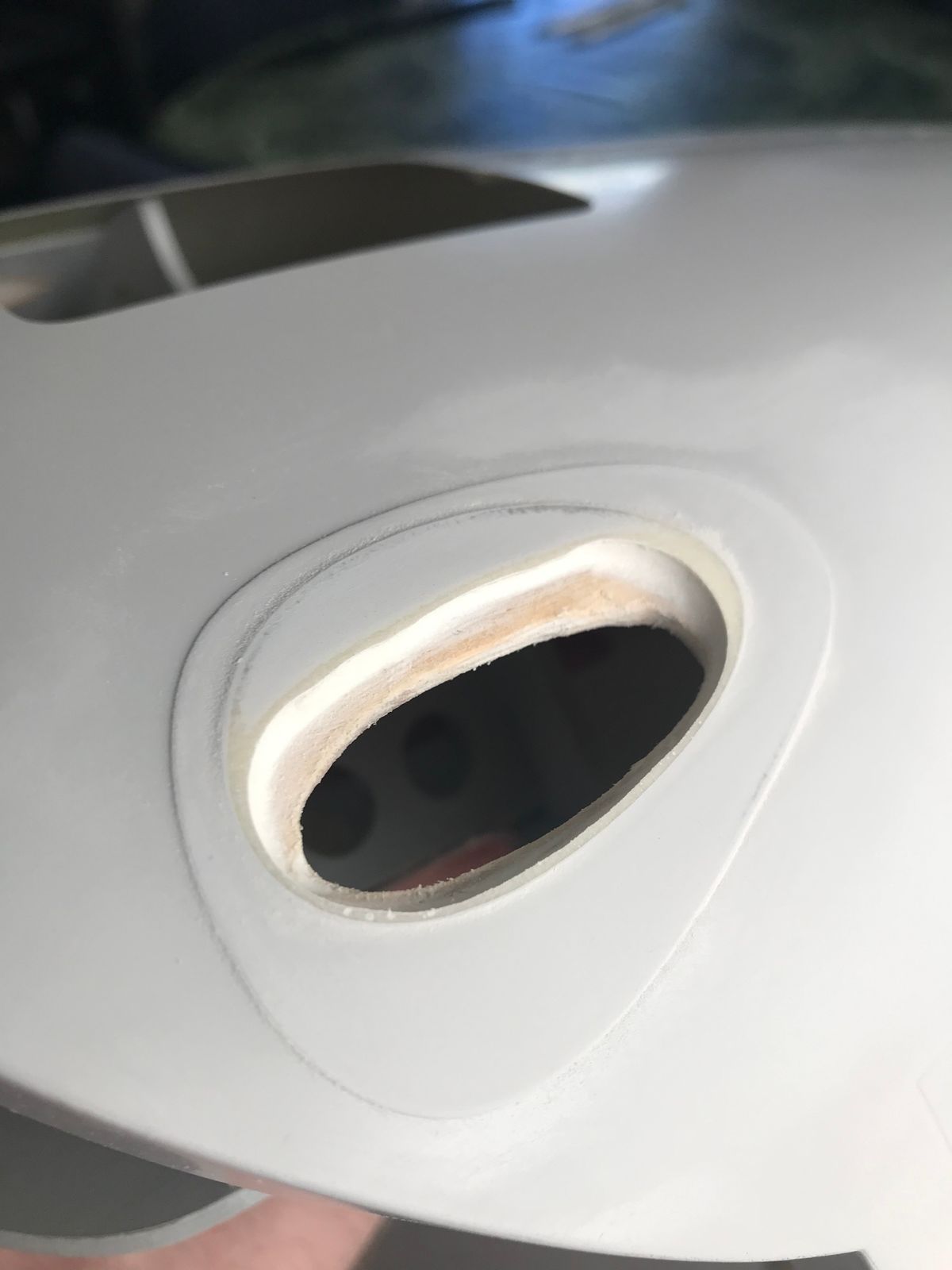

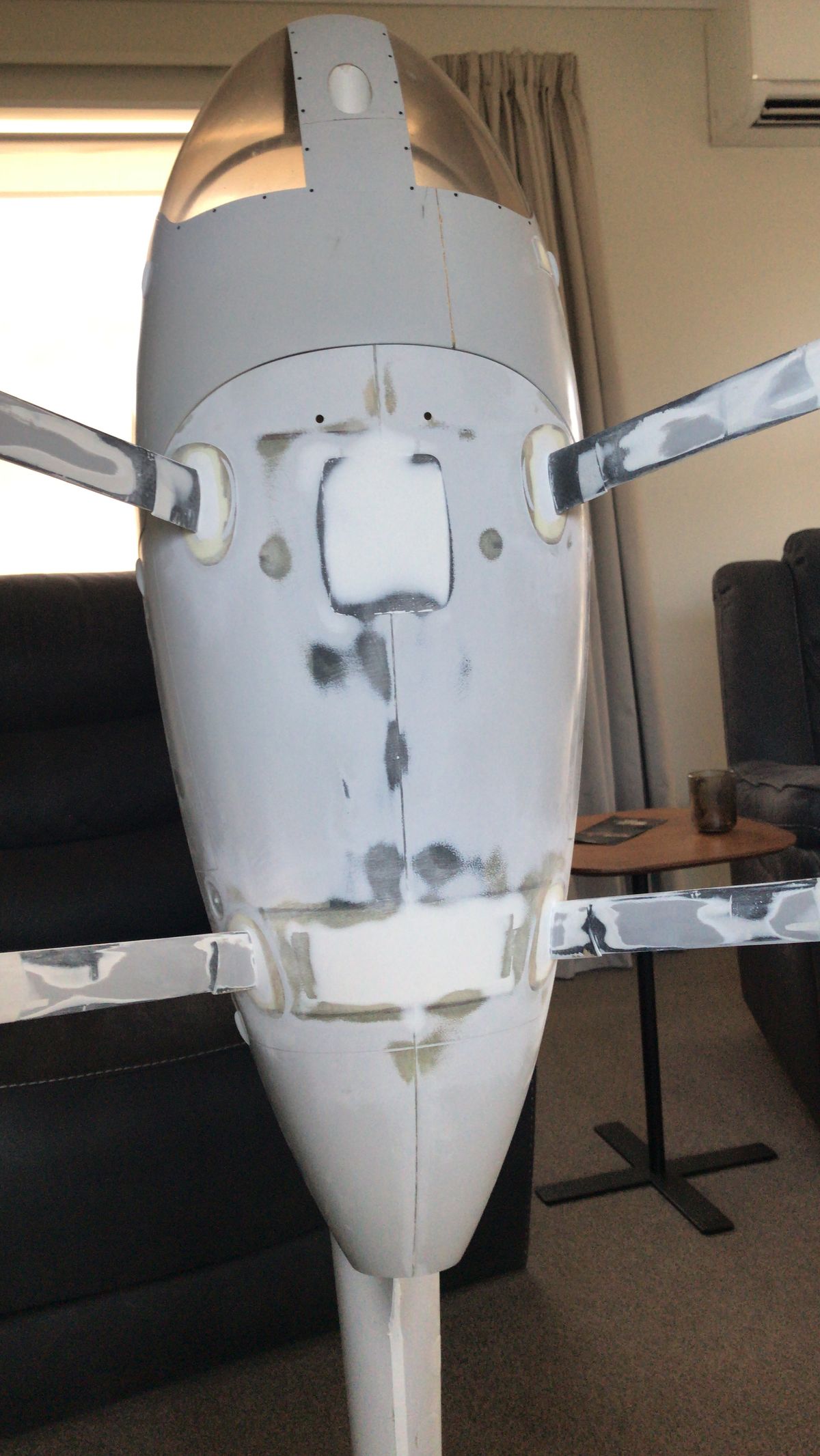

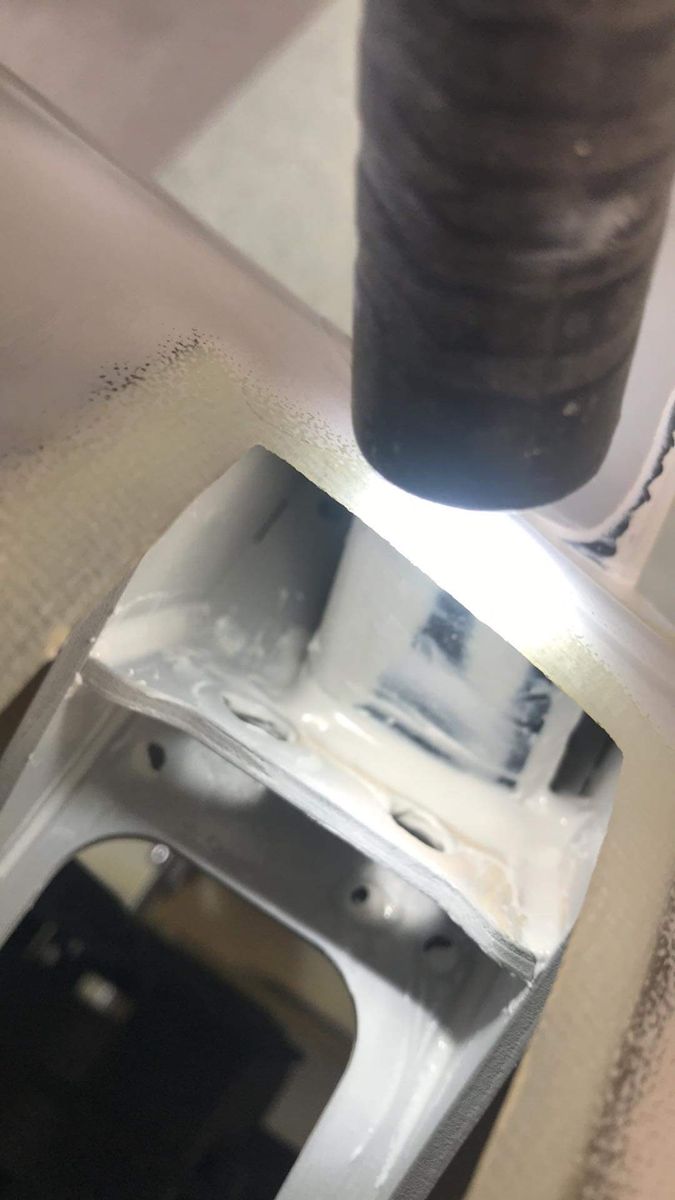

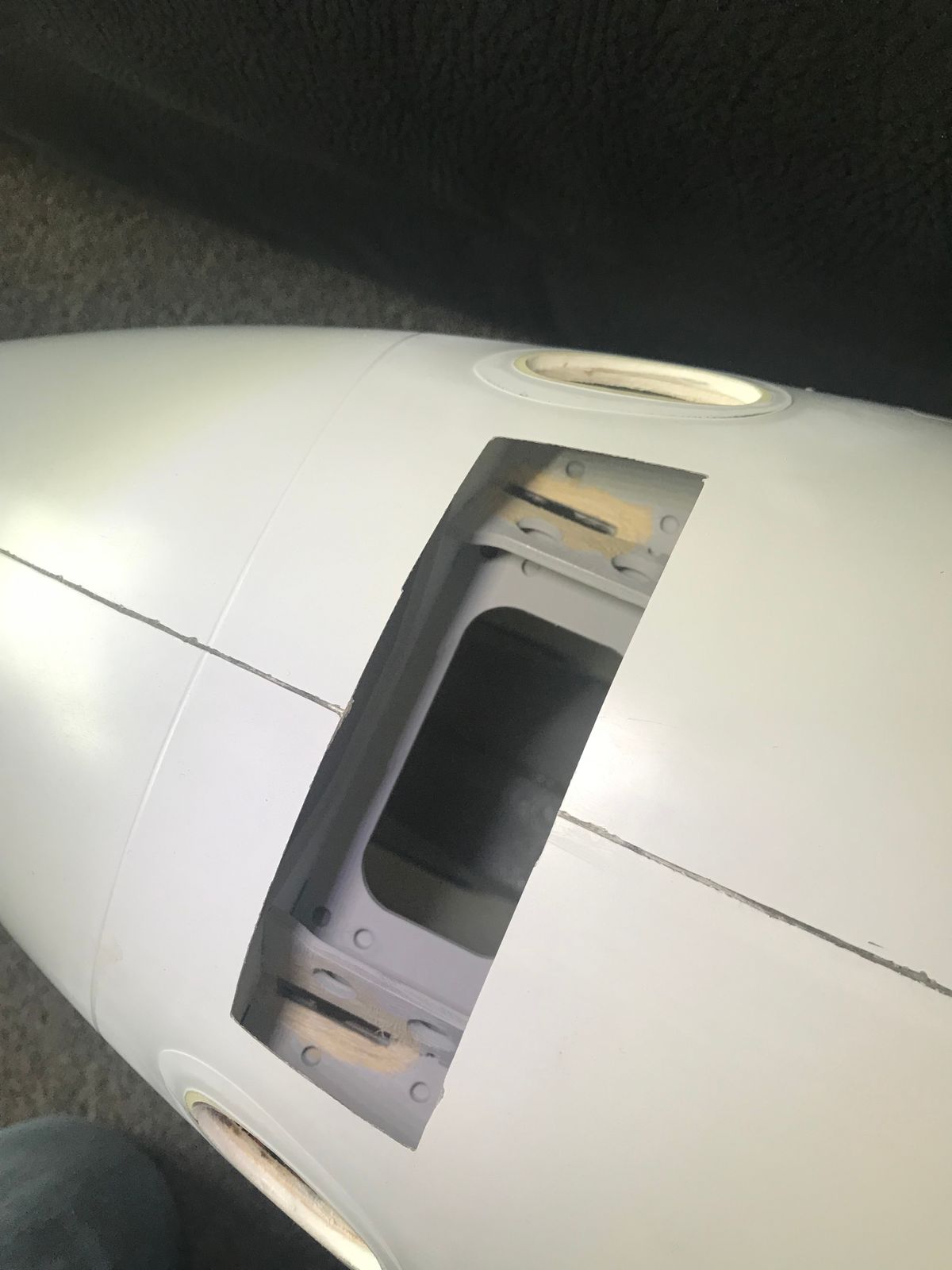

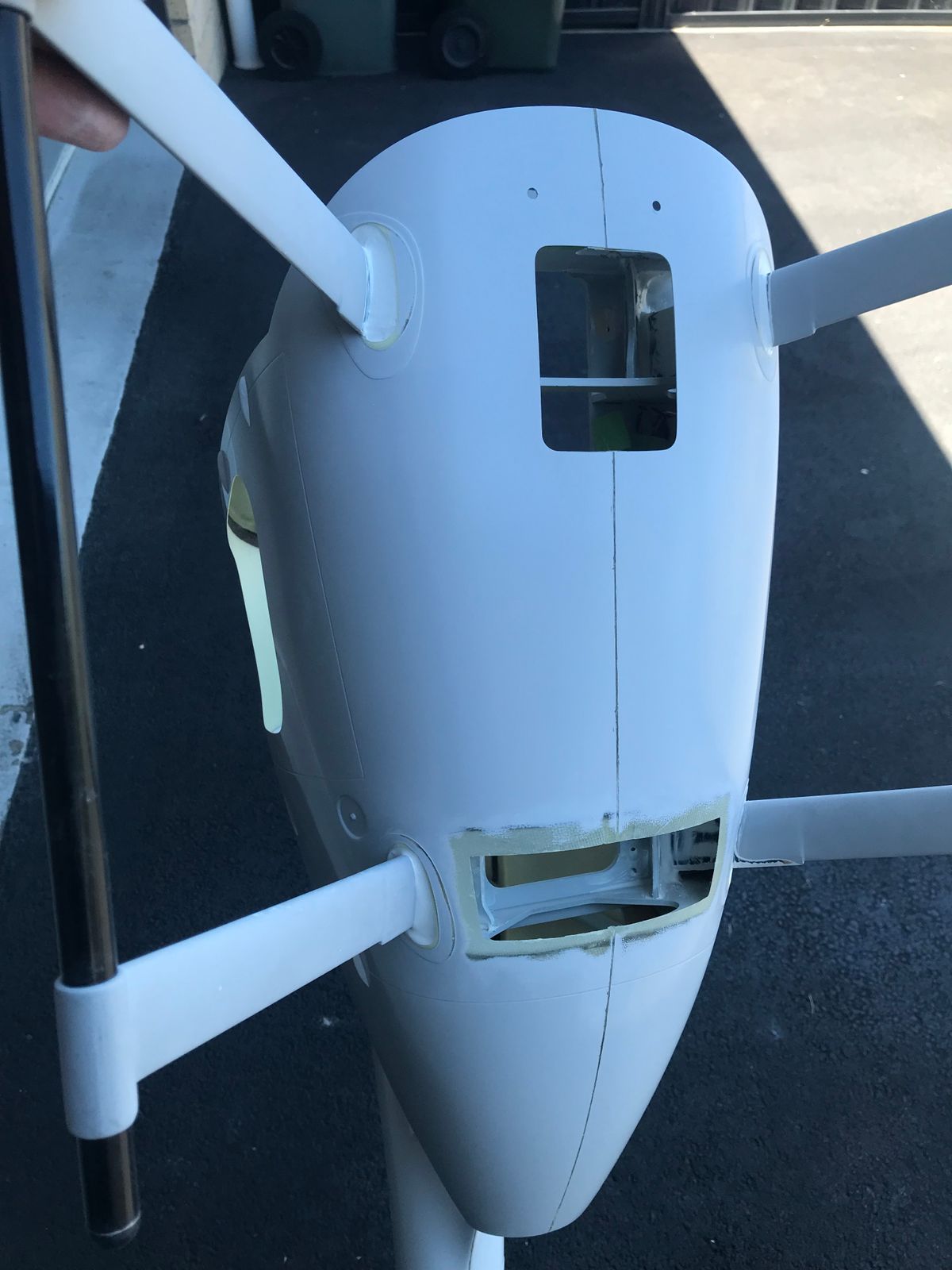

Firstly some pics taken earlier of the strut upgrade, where I went the "extra mile" and made a temporary hatch in the belly to more effectively access that area to to bond what is the weaker strut fitting (given the shorter distance between belly exit and floor) I also filled between the skin and ply floor structure at the exit points for added strength. Finally refitting hatch and filling in nitro cooling vent neatly as well
