Spreader Bucket
Nov 11, 2023

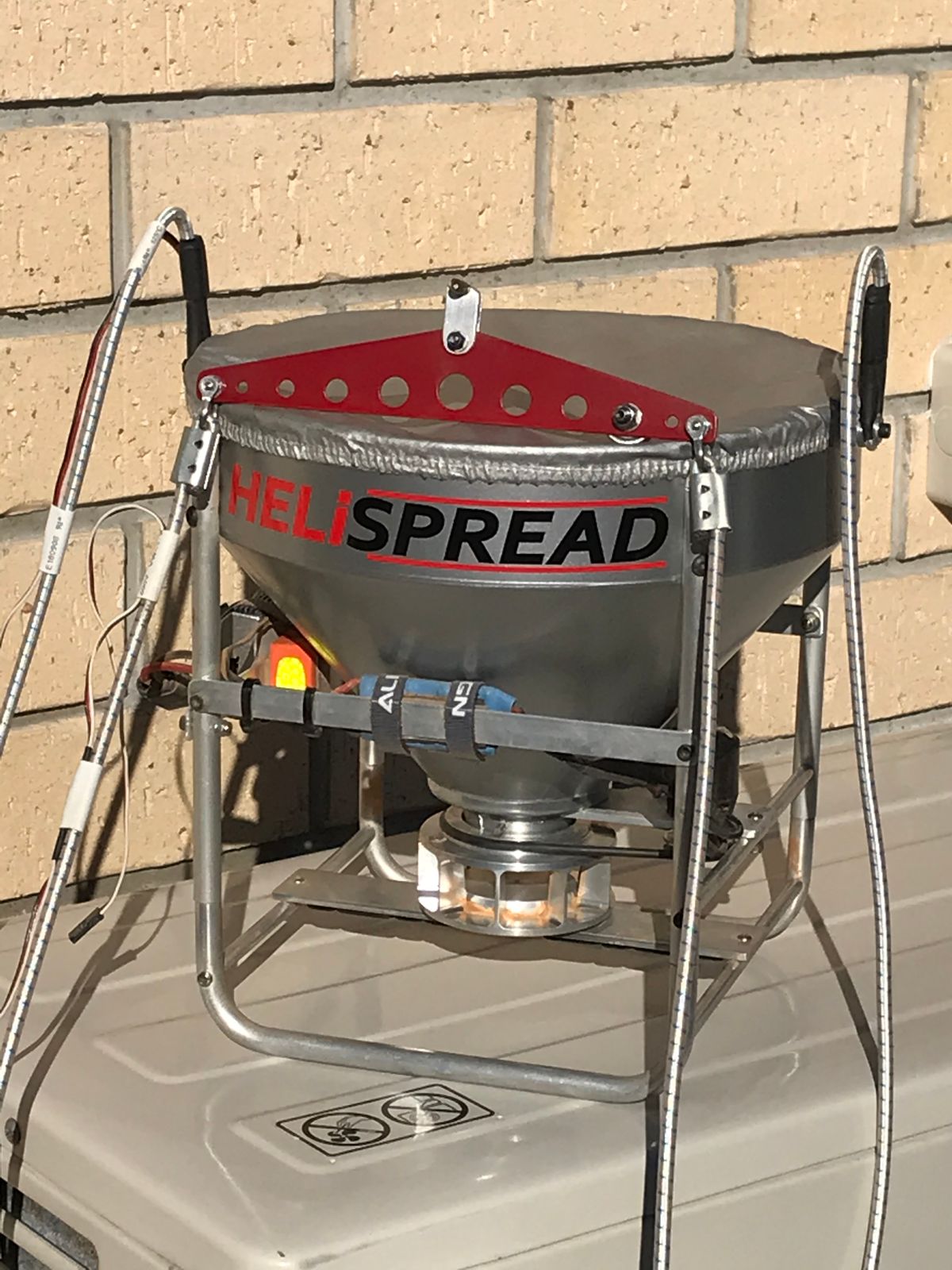

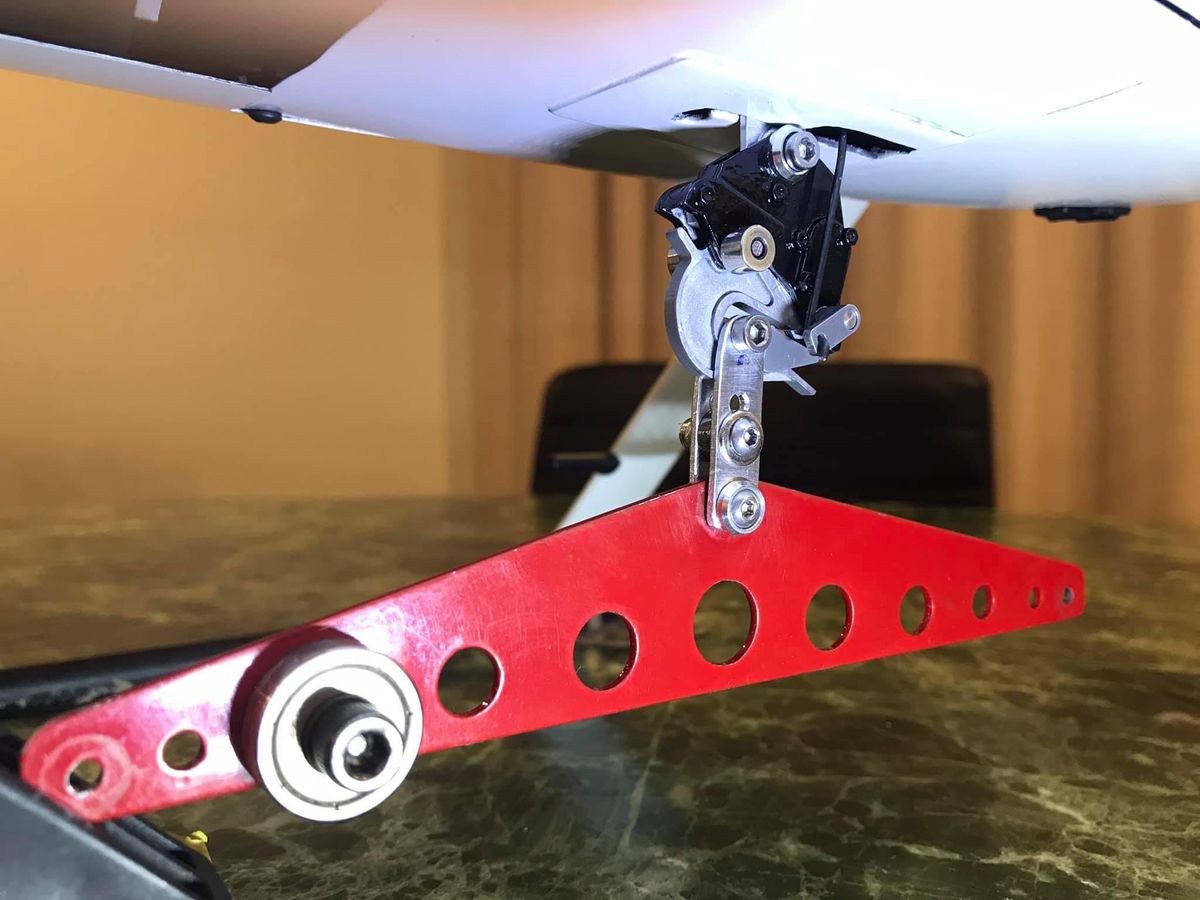

This was built some time ago but thought as it was mentioned in relation to cargo hook mod to display the bucket and its lifting frame, below close up of lifting frame on the same hook on previous 600 set up.
Full size gear is different in that they normally use a bungee set up to hold the frame "fore/aft" but I wanted to eliminate that so my method holds the frame in position while still being able to dump it all off the hook easily.
