"Align 700E/E1" MD530F build - NZ
Scott S.
Chapter 11 of 20
Making rotor head cap
Nov 7, 2023

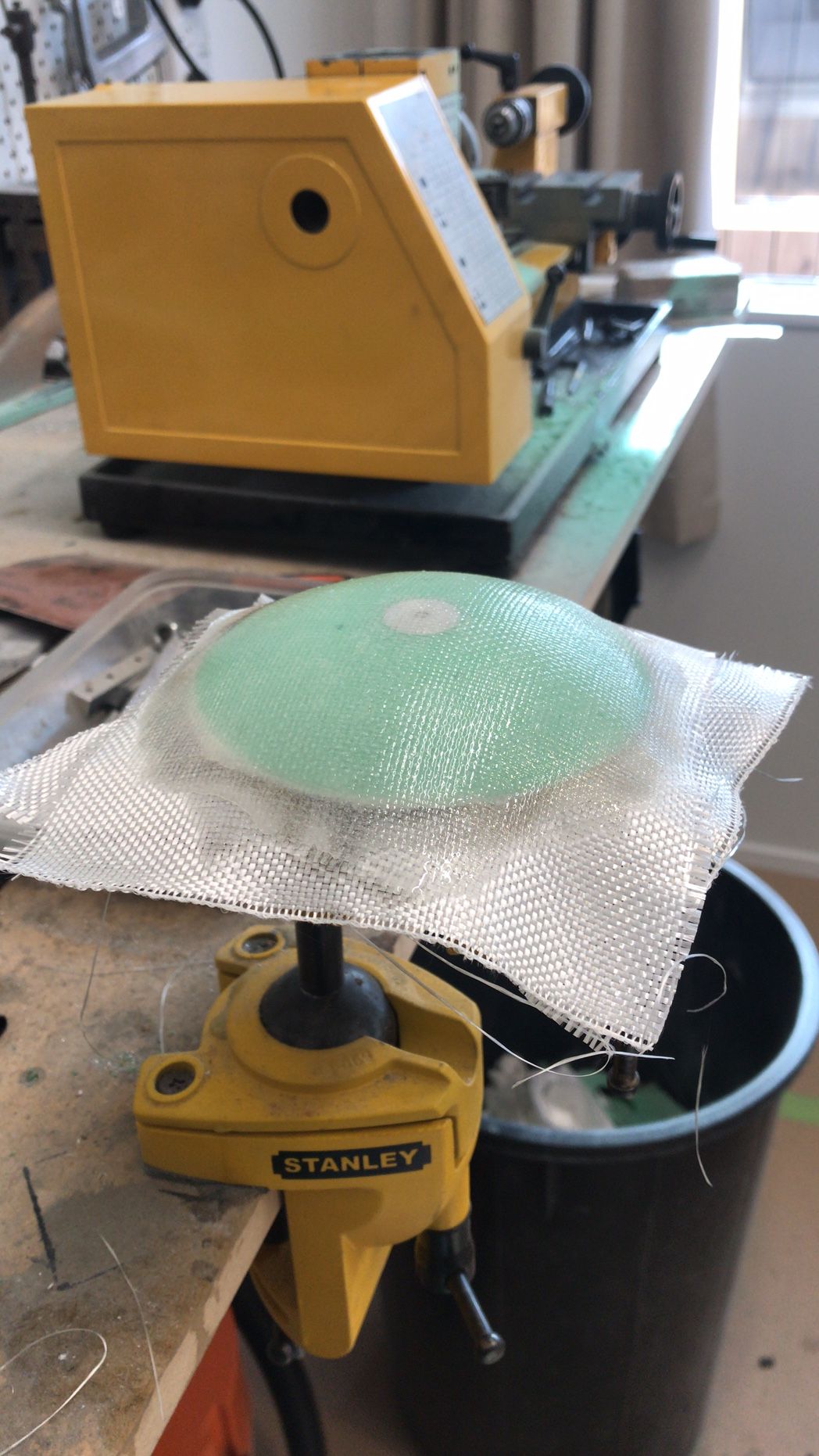

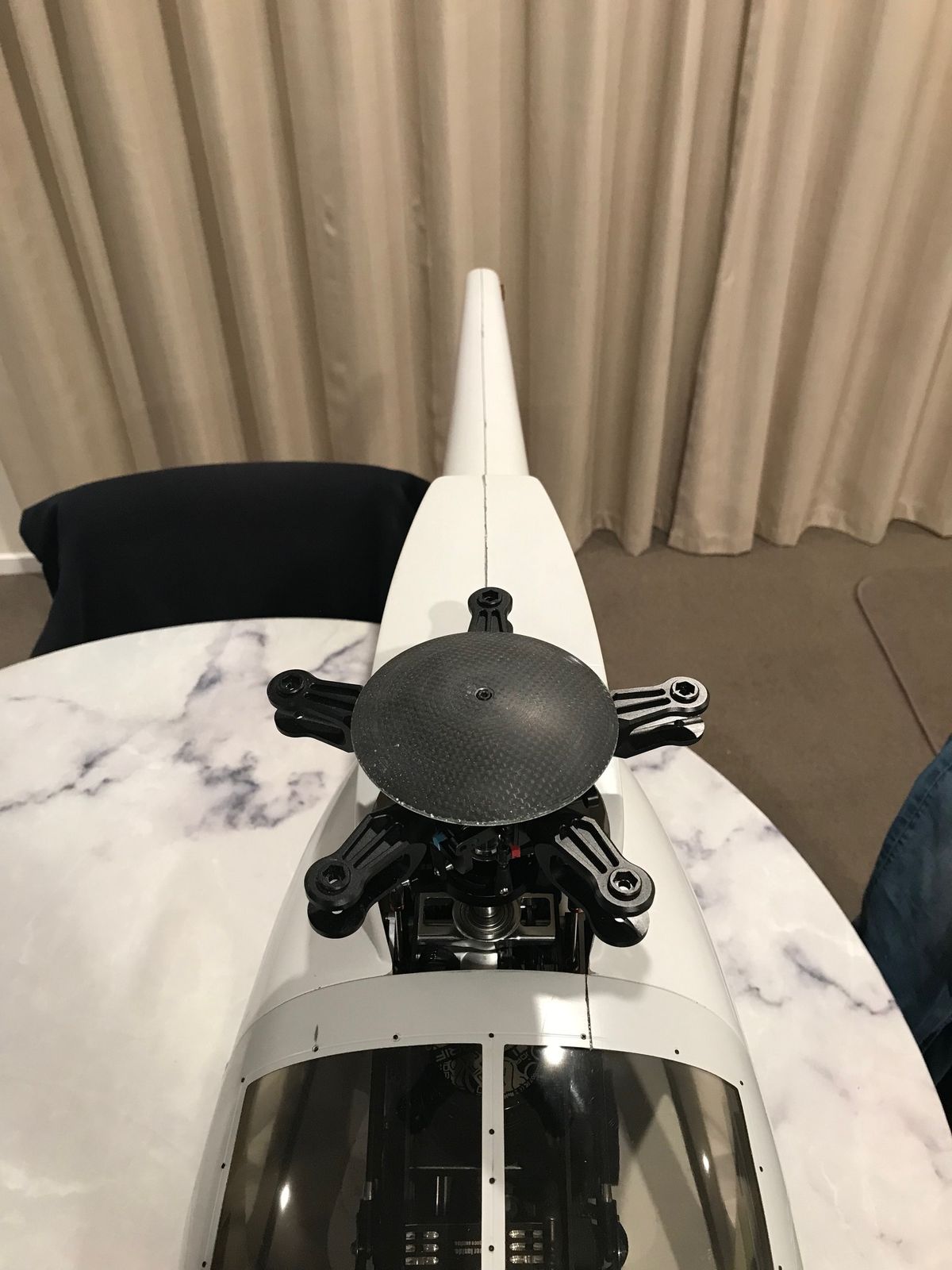

Rotor head cap made from first machining an alloy "post" and then gluing a piece of green foam onto it.
Fitting up to lathe chuck and shaping and then covering both sides with glass or carbon cloth
